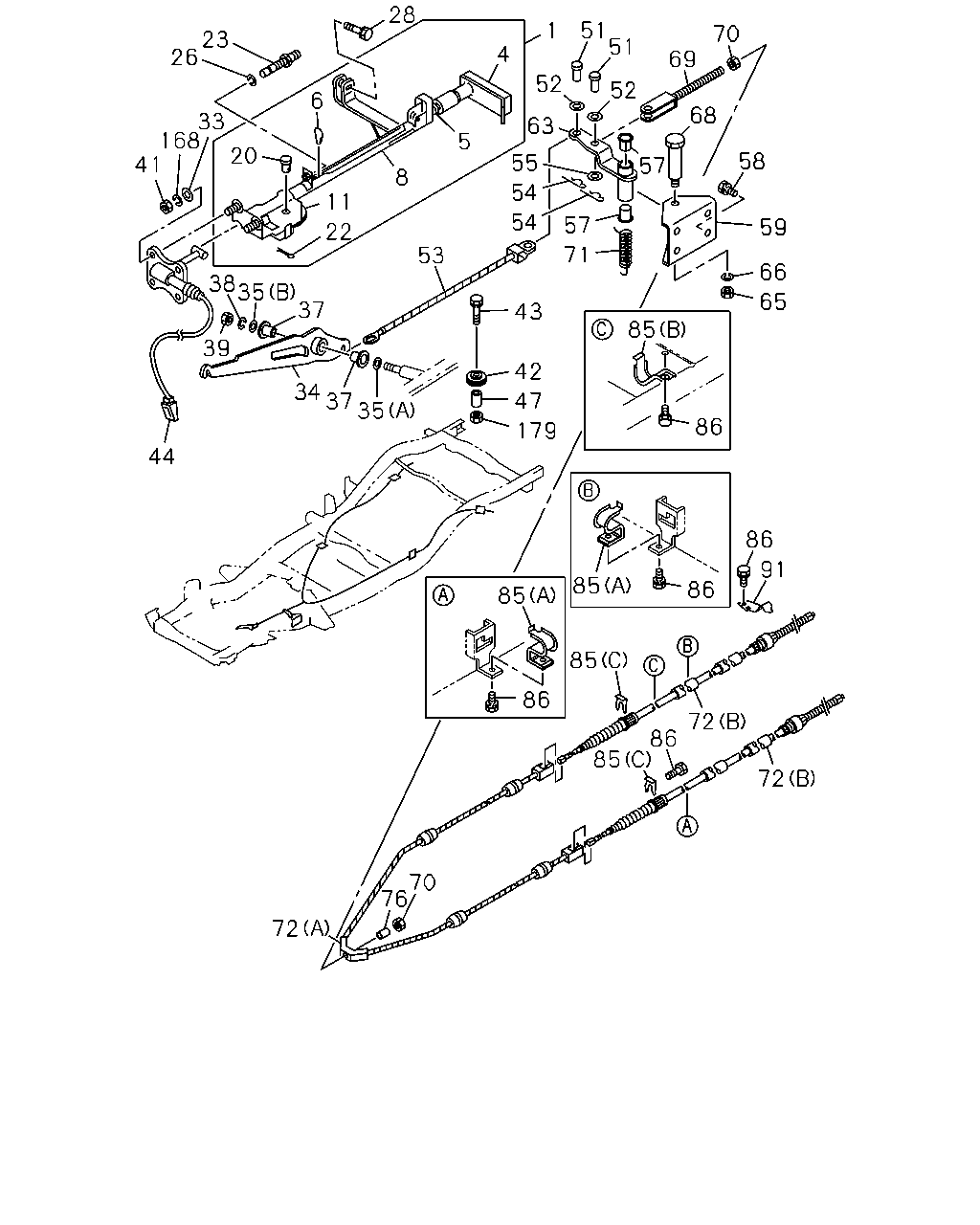

3-11 — PARKING BRAKE CONTROL (#95630) — 50 parça

72 70 76 85 86 72 72 85 86 86 86 85 85 91 85 86 65 66 59 58 68 69 70 51 51 1 52 52 63 179 47 42 43 71 57 55 54 54 53 5 4 28 23 26 6 8 20 22 11 33 168 41 38 35 39 37 34 37 35 44 57

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	STEM ASM; PARKING BRK	8-94367-557-3	01	1	0612-
4	STEM; PARKING BRK	8-97031-730-0	01	1	0612-
5	BUSHING; PARKING BRK	9-46129-022-0	01	1	0612-
6	PIN; STEM,PARK BRK	5-46129-009-0	01	1	0612-
8	GUIDE; PARKING BRK	8-97031-731-2	01	1	0612-
11	ROLLER; PARKING BRK	9-46125-071-0	01	1	0612-
20	PIN; PARKING BRK	8-94171-208-1	01	1	0612-
22	PIN; SHAFT,PARKING BRK L=20	9-08112-520-0	01	1	0612-
23	SWITCH; PARKING BRK 12V	9-82750-367-0	01	1	0612-
26	WASHER; PARKING BRK SW ID=8.2	0-91510-508-0	01	1	0612-
28	BOLT; HAND BRK LEVER M8X50 FLANGE	0-28050-850-0	01	1	0612-
33	WASHER; PL,HAND BRK LEVER ID=6.4	9-09160-506-0	04	1	0612-
34	LEVER; PARK BRK CONT	8-94113-338-1	01	1	0612-
35	WASHER; PL,RELAY LEVER,PARK BRK (A) ID=15.5 OD=24	8-94222-473-0	01	1	0612-
35	WASHER; PL,RELAY LEVER,PARK BRK (B) ID=10.5 OD=26	9-09160-710-0	01	1	0612-
37	BUSHING; RELAY LEVER,PARK BRK	5-46149-012-0	02	1	0612-
38	WASHER; LK,RELAY LEVER,PARK BRK ID=10.2	0-91510-510-0	01	1	0612-
39	NUT; RELAY LEVER,PARK BRK M10	0-91110-510-0	01	1	0612-
41	NUT; HAND BRK STEM M6	0-91110-506-0	04	1	0612-
42	ROLLER; PARK BRK CABLE	8-94341-286-0	01	1	0612-
43	BOLT; ROLLER,PARK BRK CABLE M8X40 FLANGE	0-28650-840-0	01	1	0612-
44	CABLE; PARKING BRK,FRT IDN	8-94367-559-0	01	1	0612-
47	COLLAR; ROLLER,PARK BRK CABLE	9-46129-013-1	01	1	0612-
51	PIN; JOINT,RELAY LEVER OD=8 L=20	0-82353-820-0	02	1	0612-
52	WASHER; CURVED RELAY LEVER ID=8.5 T=0.3	5-09509-001-0	02	1	0612-
53	CABLE; PARK BRK,FRT LWR	8-94377-308-0	01	1	0612-
54	PIN; SNAP,CABLE TO LEVER OD=1.8 L=15	0-81122-015-0	02	1	0612-
55	WASHER; PL,PARK BRK CABLE ID=8.4 OD=16	0-91610-508-0	02	1	0612-
57	BUSHING; RELAY LEVER	5-33659-053-0	02	1	0612-
58	BOLT; RELAY LEVER,PARK BRK M8X20 FLANGE IDN	0-28650-820-0	04	1	0612-
59	BRACKET; RELAY LEVER	8-94479-094-0	01	1	0612-
63	LEVER; RELAY,HAND BRK	8-94377-307-0	01	1	0612-
65	NUT; RELAY LEVER M10	0-91110-510-0	01	1	0612-
66	WASHER; LK,RELAY LEVER ID=10.2	0-91510-510-0	01	1	0612-
68	PIN; FULCRUM,RELAY LEVER,PARK BRK	8-94404-908-1	01	1	0612-
69	ROD; RELAY LEVER	8-94314-430-0	01	1	0612-
70	NUT; EQUALIZER TO FRT CABLE M8	0-91111-508-0	02	1	0612-
71	SPRING; RETURN,PARKING BRK TO BODY	8-94479-600-2	01	1	0612-
72	CABLE; PARKING BRK (A) IDN	8-94367-560-0	01	1	0612-
72	CABLE; PARKING BRK (B) IDN	8-94369-492-4	01	1	0612-
72	CABLE; PARKING BRK (B) IDN	8-94369-491-3	01	1	0612-
76	SLEEVE; CABLE GUIDE,PARKING BRK	8-11042-301-3	01	1	0612-
85	CLIP; BRKT (C)	5-09709-039-0	02	1	0612-
85	CLIP; BRKT (A)	8-94146-602-0	03	1	0612-
85	CLIP; BRKT (B) ID=14 IDN	9-09916-883-0	02	1	0612-
86	BOLT M6X12 FLANGE	0-28050-612-0	09	1	0612-
91	CLIP; PARKING BRK CABLE IDN	8-97045-075-0	01	1	0612-
91	CLIP; PARKING BRK CABLE IDN	8-97045-074-0	01	1	0612-
168	WASHER; LK,HAND BRK STEM ID=6.1 IDN	0-91510-506-0	04	1	0612-
179	NUT; ROLLER,PARK BRK CABLE M8 IDN	0-91110-508-0	01	1	0612-
