◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 10827 - FTR(AUSTRALIA) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-01 - PROPELLER SHAFT ▶
4-01 — PROPELLER SHAFT (#9563) — 246 parça

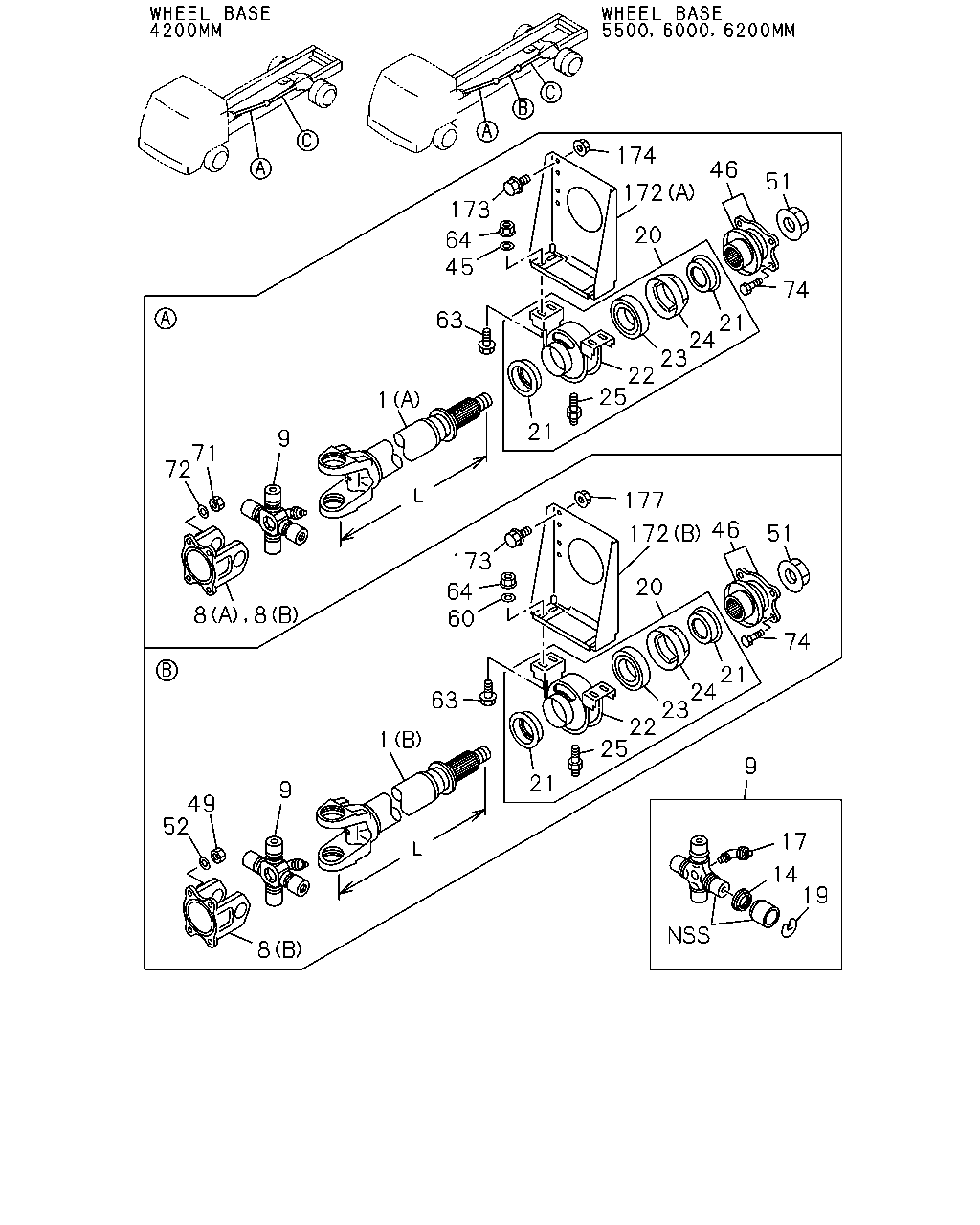

çizim 40322
174 46 51 172 173 20 64 45 74 63 21 24 23 22 25 1 21 9 71 72 177 46 51 172 173 20 64 60 8 8 74 21 24 23 22 25 63 1 9 21 9 49 52 17 14 19 8
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 SHAFT; PROP
STD CAB(FT**M*) (C) L=1546 		1-37153-558-0 01 1 0406- ●
1 SHAFT; PROP
(C) L=1296 		1-37124-065-1 01 1 0005-0210 ●
1 SHAFT; PROP
(C) L=1286 		1-37124-066-1 01 1 0211- ●
1 SHAFT; PROP
(A) L=601 		1-37152-005-1 01 1 0005-0210 ●
1 SHAFT; PROP
(A) L=611 		1-37152-055-1 01 1 0211- ●
1 SHAFT; PROP
(C) L=1286 		1-37124-066-1 01 1 0005-0210 ●
1 SHAFT; PROP
(C) L=1275 		1-37123-773-1 01 1 0211-0405 ●
1 SHAFT; PROP
(C) L=1275 		1-37123-773-1 01 1 0406- ●
1 SHAFT; PROP
STD CAB(FT**M*) (C) L=1275 		1-37123-773-1 01 1 0406- ●
1 SHAFT; PROP
(B) L=1081 		1-37151-641-1 01 1 0005-0210 ●
1 SHAFT; PROP
(B) L=1346 		1-37152-057-1 01 1 0211- ●
1 SHAFT; PROP
STD CAB(FT**M*) (A) L=761 		1-37151-772-1 01 1 0005-0210 ●
1 SHAFT; PROP
(A) L=1006 		1-37152-770-0 01 1 0211-0405 ●
1 SHAFT; PROP
(A) L=1006 		1-37152-770-0 01 1 0406- ●
1 SHAFT; PROP
STD CAB(FT**M*) (A) L=1006 		1-37152-770-0 01 1 0406- ●
1 SHAFT; PROP
DOUBLE CAB(FT**W*) (A) L=861 		1-37151-943-1 01 1 0005-0210 ●
8 YOKE; FLANGE,PROP SHAFT
(B) 		1-37211-056-3 02 1 0005-0405 ●
8 YOKE; FLANGE,PROP SHAFT
(B) 		1-37211-056-3 01 1 0406- ● ● ●
8 YOKE; FLANGE,PROP SHAFT
(B) 		1-37211-056-3 01 1 0406- ● ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-054-0 01 1 0005-0210 ● ●
8 YOKE; FLANGE,PROP SHAFT
(B) 		1-37211-056-3 01 1 0211-0405 ● ●
8 YOKE; FLANGE,PROP SHAFT
(B) 		1-37211-056-3 02 1 0406- ● ●
8 YOKE; FLANGE,PROP SHAFT
STD CAB(FT**M*) (B) 		1-37211-056-3 02 1 0406- ●
8 YOKE; FLANGE,PROP SHAFT
(B) 		1-37211-056-3 03 1 0005-0210 ●
8 YOKE; FLANGE,PROP SHAFT
(B) 		1-37211-056-3 03 1 0211-0405 ●
9 JOURNAL ASM; PROP SHAFT 1-37300-102-0 AR 1 0005-0210 ● ●
9 JOURNAL ASM; PROP SHAFT 1-37300-102-0 AR 1 0211-0405 ● ●
9 JOURNAL ASM; PROP SHAFT 1-37300-102-0 AR 1 0211-0405 ● ●
9 JOURNAL ASM; PROP SHAFT 1-37300-102-1 AR 1 0406- ● ●
9 JOURNAL ASM; PROP SHAFT 1-37300-102-1 AR 1 0406- ● ●
9 JOURNAL ASM; PROP SHAFT 1-37300-102-1 AR 1 0406- ●
9 JOURNAL ASM; PROP SHAFT
STD CAB(FT**M*) 		1-37300-102-1 AR 1 0406- ●
9 JOURNAL ASM; PROP SHAFT
STD CAB(FT**M*) 		1-37300-102-1 AR 1 0406- ●
9 JOURNAL ASM; PROP SHAFT
STD CAB(FT**M*) 		1-37300-102-1 AR 1 0406- ●
14 COVER; DUST,SPIDER 1-37319-012-0 AR 1 0005-0210 ● ●
14 COVER; DUST,SPIDER 1-37319-012-0 AR 1 0211-0405 ● ●
14 COVER; DUST,SPIDER 1-37319-012-0 AR 1 0406- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		9-09031-210-0 AR 1 0005-0210 ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		9-09031-210-0 AR 1 0211-0405 ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		9-09031-210-0 AR 1 0406-0512 ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 AR 1 0601- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 AR 1 0005-0210 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 AR 1 0005-0210 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 AR 1 0005-0210 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 AR 1 0211-0405 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 AR 1 0211-0405 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 AR 1 0211-0405 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 AR 1 0406- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 AR 1 0406- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 AR 1 0406- ● ● ●
20 BEARING ASM; CTR,PROP SHAFT 1-37510-105-0 01 1 0005-0210 ● ●
20 BEARING ASM; CTR,PROP SHAFT 1-37510-105-0 01 1 0005-0210 ●
20 BEARING ASM; CTR,PROP SHAFT 1-37510-105-0 01 1 0211-0405 ● ●
20 BEARING ASM; CTR,PROP SHAFT 1-37510-105-0 01 1 0211-0405 ●
20 BEARING ASM; CTR,PROP SHAFT 1-37510-105-0 01 1 0406- ● ● ●
20 BEARING ASM; CTR,PROP SHAFT 1-37510-105-0 01 1 0406- ● ●
21 SEAL; OIL,CENTER BRG
ID=54 		1-09625-161-0 02 1 0005-0210 ● ●
21 SEAL; OIL,CENTER BRG
ID=54 		1-09625-161-0 02 1 0005-0210 ●
21 SEAL; OIL,CENTER BRG
ID=54 		1-09625-161-0 02 1 0211-0405 ● ●
21 SEAL; OIL,CENTER BRG
ID=54 		1-09625-161-0 02 1 0211-0405 ●
21 SEAL; OIL,CENTER BRG
ID=54 		1-09625-161-0 02 1 0406- ● ● ●
21 SEAL; OIL,CENTER BRG
ID=54 		1-09625-161-0 02 1 0406- ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-059-0 01 1 0005-0210 ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-059-0 01 1 0005-0210 ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-059-0 01 1 0211-0405 ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-059-0 01 1 0211-0405 ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-059-0 01 1 0406- ● ● ●
22 RUBBER; CUSHION,CENTER BRG,1ST 1-37516-059-0 01 1 0406- ● ●
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 01 1 0005-0210 ● ●
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 01 1 0005-0210 ●
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 01 1 0211-0405 ● ●
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 01 1 0211-0405 ●
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 01 1 0406- ● ● ●
23 BEARING; CENTER,PROP SHAFT 9-00090-071-0 01 1 0406- ● ●
24 RETAINER; CENTER BRG,1ST 1-37529-068-0 01 1 0005-0210 ● ●
24 RETAINER; CENTER BRG,1ST 1-37529-068-0 01 1 0005-0210 ●
24 RETAINER; CENTER BRG,1ST 1-37529-068-0 01 1 0211-0405 ● ●
24 RETAINER; CENTER BRG,1ST 1-37529-068-0 01 1 0211-0405 ●
24 RETAINER; CENTER BRG,1ST 1-37529-068-0 01 1 0406- ● ● ●
24 RETAINER; CENTER BRG,1ST 1-37529-068-0 01 1 0406- ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 0005-0210 ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 0005-0210 ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 0211-0405 ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 0211-0405 ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 0406- ● ● ●
25 NIPPLE; GREASE,CENTER BRG
MT6 STRAIGHT 		1-09380-006-0 01 1 0406- ● ●
45 WASHER; PL,RET TO BRKT
ID=10.5 OD=22 		9-09164-610-0 04 1 0005-0210 ● ●
45 WASHER; PL,RET TO BRKT
ID=10.5 OD=22 		9-09164-610-0 04 1 0211-0605 ● ● ●
45 WASHER; PL,RET TO BRKT
ID=10.5 OD=22 		0-91614-610-0 04 1 0606- ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-071-0 01 1 0005-0210 ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-071-0 01 1 0005-0210 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-071-0 01 1 0211-0405 ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-071-0 01 1 0211-0405 ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-071-0 01 1 0406- ● ● ●
46 FLANGE; SPLINED,PROP SHAFT,1ST 1-37245-071-0 01 1 0406- ● ●
49 NUT; YOKE
M14 		9-99110-514-0 04 1 0005-0210 ●
49 NUT; YOKE
M14 		9-99110-514-0 04 1 0211-0405 ●
49 NUT; YOKE
M14 		9-99110-514-0 04 1 0406-0512 ●
49 NUT; YOKE
STD CAB(FT**M*) M14 		9-99110-514-0 04 1 0406-0512 ●
49 NUT; YOKE
M14 		0-91110-514-0 04 1 0601- ● ●
51 NUT; FLANGE,SPLINED
M30 		8-97160-857-0 01 1 0005-0210 ● ●
51 NUT; FLANGE,SPLINED
M30 		8-97160-857-0 01 1 0005-0210 ●
51 NUT; FLANGE,SPLINED
M30 		8-97160-857-0 01 1 0211-0405 ● ●
51 NUT; FLANGE,SPLINED
M30 		8-97160-857-0 01 1 0211-0405 ●
51 NUT; FLANGE,SPLINED
M30 		8-97160-857-0 01 1 0406- ● ● ●
51 NUT; FLANGE,SPLINED
M30 		8-97160-857-0 01 1 0406- ● ●
52 WASHER; LK,YOKE
ID=14.2 		9-09150-614-0 04 1 0005-0210 ●
52 WASHER; LK,YOKE
ID=14.2 		9-09150-614-0 04 1 0211-0405 ●
52 WASHER; LK,YOKE
ID=14.2 		9-09150-614-0 04 1 0406-0603 ●
52 WASHER; LK,YOKE
STD CAB(FT**M*) ID=14.2 		9-09150-614-0 04 1 0406-0603 ●
52 WASHER; LK,YOKE
ID=14.2 		0-91510-614-0 04 1 0604- ● ●
60 WASHER; PL,RET TO BRKT
ID=10.5 OD=22 		9-09164-610-0 04 1 0005-0210 ●
60 WASHER; PL,RET TO BRKT
ID=10.5 OD=22 		9-09164-610-0 04 1 0211-0405 ●
60 WASHER; PL,RET TO BRKT
ID=10.5 OD=22 		9-09164-610-0 04 1 0406-0605 ●
60 WASHER; PL,RET TO BRKT
STD CAB(FT**M*) ID=10.5 OD=22 		9-09164-610-0 04 1 0406-0605 ●
60 WASHER; PL,RET TO BRKT
ID=10.5 OD=22 		0-91614-610-0 04 1 0606- ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE 		0-28681-035-0 04 1 0005-0210 ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE 		0-28681-035-0 04 1 0005-0210 ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE 		0-28681-035-0 04 1 0211-0405 ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE 		0-28681-035-0 04 1 0211-0405 ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE 		0-28681-035-0 04 1 0406-0512 ● ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE 		0-28681-035-0 04 1 0406-0512 ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE 		0-28651-035-0 04 1 0601- ● ● ●
63 BOLT; RET TO BRKT,PROP SHAFT,1ST
M10X35 FLANGE 		0-28651-035-0 04 1 0601- ● ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91150-210-0 04 1 0005-0210 ● ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91150-210-0 04 1 0005-0210 ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91150-210-0 04 1 0211-0405 ● ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91150-210-0 04 1 0211-0405 ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91150-210-0 04 1 0406-0602 ● ● ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91150-210-0 04 1 0406-0602 ● ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91180-210-0 04 1 0603- ● ● ●
64 NUT; RET TO BRKT
M10 FLANGE 		0-91180-210-0 04 1 0603- ● ●
71 NUT; YOKE
M16 FLANGE 		1-09449-065-0 04 1 0005-0210 ● ●
71 NUT; YOKE
M14 		9-99110-514-0 04 1 0211-0512 ● ● ●
71 NUT; YOKE
M14 		0-91110-514-0 04 1 0601- ● ● ●
72 WASHER; LK,YOKE
ID=14.2 		9-09150-614-0 04 1 0211-0603 ● ● ●
72 WASHER; LK,YOKE
ID=14.2 		0-91510-614-0 04 1 0604- ● ● ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 04 1 0005-0210 ● ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 04 1 0005-0210 ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 04 1 0211-0405 ● ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 04 1 0211-0405 ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 04 1 0406- ● ● ●
74 BOLT; YOKE,TRANS
M14X37 		1-09000-121-0 04 1 0406- ● ●
172 BRACKET; CENTER BRG
(A) 		1-37515-102-0 01 1 0005-0210 ● ●
172 BRACKET; CENTER BRG
(A) 		1-37515-127-0 01 1 0211- ●
172 BRACKET; CENTER BRG
(B) 		1-37515-101-0 01 1 0005-0210 ●
172 BRACKET; CENTER BRG
(A) 		1-37515-102-0 01 1 0211-0410 ●
172 BRACKET; CENTER BRG
(A) 		1-37515-102-0 01 1 0411- ● ●
172 BRACKET; CENTER BRG
(B) 		1-37515-135-0 01 1 0211-0410 ●
172 BRACKET; CENTER BRG
(B) 		1-37515-135-0 01 1 0411- ● ●
173 BOLT; BRKT
M10X25 FLANGE 		0-28681-025-0 04 1 0005-0210 ● ●
173 BOLT; BRKT
M10X25 FLANGE 		0-28681-025-0 04 1 0005-0210 ●
173 BOLT; BRKT
M10X25 FLANGE 		0-28681-025-0 04 1 0211-0410 ● ●
173 BOLT; BRKT
M10X25 FLANGE 		0-28681-025-0 04 1 0211-0410 ●
173 BOLT; BRKT
M10X25 FLANGE 		0-28681-025-0 04 1 0411-0512 ● ● ●
173 BOLT; BRKT
M10X25 FLANGE 		0-28681-025-0 04 1 0411-0512 ● ●
173 BOLT; BRKT
M10X25 FLANGE 		0-28651-025-0 04 1 0601- ● ● ●
173 BOLT; BRKT
M10X25 FLANGE 		0-28651-025-0 04 1 0601- ● ●
174 NUT; BRKT
M10 FLANGE 		0-91150-210-0 04 1 0005-0210 ● ●
174 NUT; BRKT
M10 FLANGE 		0-91150-210-0 04 1 0211-0410 ● ●
174 NUT; BRKT
M10 FLANGE 		0-91150-210-0 04 1 0411-0602 ● ● ●
174 NUT; BRKT
M10 FLANGE 		0-91180-210-0 04 1 0603- ● ● ●
177 NUT
M10 FLANGE 		0-91150-210-0 04 1 0005-0210 ●
177 NUT
M10 FLANGE 		0-91150-210-0 04 1 0211-0405 ●
177 NUT
M10 FLANGE 		0-91150-210-0 04 1 0406-0602 ●
177 NUT
STD CAB(FT**M*) M10 FLANGE 		0-91150-210-0 04 1 0406-0602 ●
177 NUT
M10 FLANGE 		0-91180-210-0 04 1 0603- ● ●

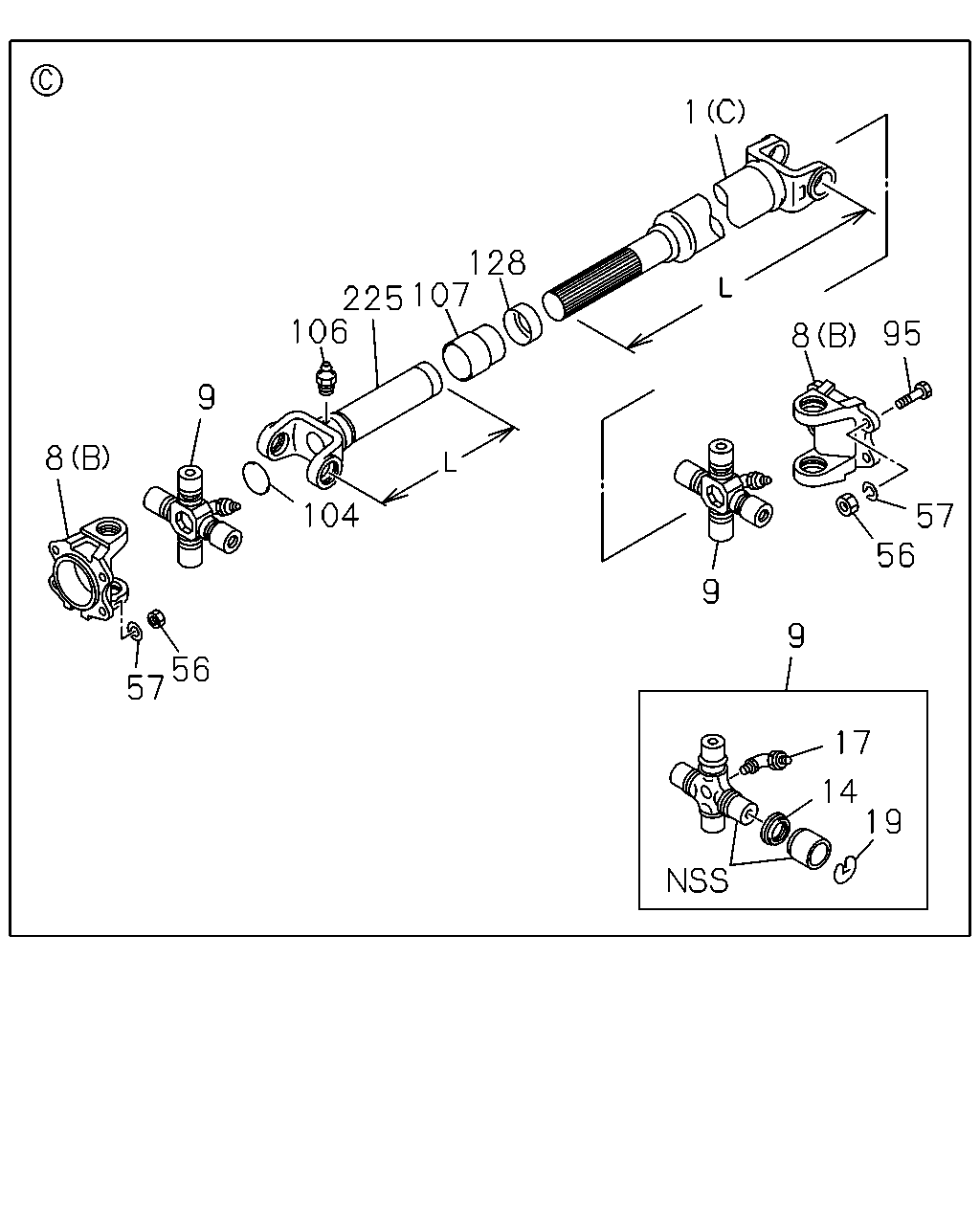

çizim 40386
1 128 225 107 106 95 8 9 8 104 57 56 9 9 56 57 17 14 19
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 SHAFT; PROP
STD CAB(FT**M*) (C) L=1546 		1-37153-558-0 01 1 0406- ●
1 SHAFT; PROP
(C) L=1296 		1-37124-065-1 01 1 0005-0210 ●
1 SHAFT; PROP
(C) L=1286 		1-37124-066-1 01 1 0211- ●
1 SHAFT; PROP
(A) L=601 		1-37152-005-1 01 1 0005-0210 ●
1 SHAFT; PROP
(A) L=611 		1-37152-055-1 01 1 0211- ●
1 SHAFT; PROP
(C) L=1286 		1-37124-066-1 01 1 0005-0210 ●
1 SHAFT; PROP
(C) L=1275 		1-37123-773-1 01 1 0211-0405 ●
1 SHAFT; PROP
(C) L=1275 		1-37123-773-1 01 1 0406- ●
1 SHAFT; PROP
STD CAB(FT**M*) (C) L=1275 		1-37123-773-1 01 1 0406- ●
1 SHAFT; PROP
(B) L=1081 		1-37151-641-1 01 1 0005-0210 ●
1 SHAFT; PROP
(B) L=1346 		1-37152-057-1 01 1 0211- ●
1 SHAFT; PROP
STD CAB(FT**M*) (A) L=761 		1-37151-772-1 01 1 0005-0210 ●
1 SHAFT; PROP
(A) L=1006 		1-37152-770-0 01 1 0211-0405 ●
1 SHAFT; PROP
(A) L=1006 		1-37152-770-0 01 1 0406- ●
1 SHAFT; PROP
STD CAB(FT**M*) (A) L=1006 		1-37152-770-0 01 1 0406- ●
1 SHAFT; PROP
DOUBLE CAB(FT**W*) (A) L=861 		1-37151-943-1 01 1 0005-0210 ●
8 YOKE; FLANGE,PROP SHAFT
(B) 		1-37211-056-3 02 1 0005-0405 ●
8 YOKE; FLANGE,PROP SHAFT
(B) 		1-37211-056-3 01 1 0406- ● ● ●
8 YOKE; FLANGE,PROP SHAFT
(B) 		1-37211-056-3 01 1 0406- ● ●
8 YOKE; FLANGE,PROP SHAFT
(A) 		1-37211-054-0 01 1 0005-0210 ● ●
8 YOKE; FLANGE,PROP SHAFT
(B) 		1-37211-056-3 01 1 0211-0405 ● ●
8 YOKE; FLANGE,PROP SHAFT
(B) 		1-37211-056-3 02 1 0406- ● ●
8 YOKE; FLANGE,PROP SHAFT
STD CAB(FT**M*) (B) 		1-37211-056-3 02 1 0406- ●
8 YOKE; FLANGE,PROP SHAFT
(B) 		1-37211-056-3 03 1 0005-0210 ●
8 YOKE; FLANGE,PROP SHAFT
(B) 		1-37211-056-3 03 1 0211-0405 ●
9 JOURNAL ASM; PROP SHAFT 1-37300-102-0 AR 1 0005-0210 ● ●
9 JOURNAL ASM; PROP SHAFT 1-37300-102-0 AR 1 0211-0405 ● ●
9 JOURNAL ASM; PROP SHAFT 1-37300-102-0 AR 1 0211-0405 ● ●
9 JOURNAL ASM; PROP SHAFT 1-37300-102-1 AR 1 0406- ● ●
9 JOURNAL ASM; PROP SHAFT 1-37300-102-1 AR 1 0406- ● ●
9 JOURNAL ASM; PROP SHAFT 1-37300-102-1 AR 1 0406- ●
9 JOURNAL ASM; PROP SHAFT
STD CAB(FT**M*) 		1-37300-102-1 AR 1 0406- ●
9 JOURNAL ASM; PROP SHAFT
STD CAB(FT**M*) 		1-37300-102-1 AR 1 0406- ●
9 JOURNAL ASM; PROP SHAFT
STD CAB(FT**M*) 		1-37300-102-1 AR 1 0406- ●
14 COVER; DUST,SPIDER 1-37319-012-0 AR 1 0005-0210 ● ●
14 COVER; DUST,SPIDER 1-37319-012-0 AR 1 0211-0405 ● ●
14 COVER; DUST,SPIDER 1-37319-012-0 AR 1 0406- ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		9-09031-210-0 AR 1 0005-0210 ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		9-09031-210-0 AR 1 0211-0405 ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		9-09031-210-0 AR 1 0406-0512 ● ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 AR 1 0601- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 AR 1 0005-0210 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 AR 1 0005-0210 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 AR 1 0005-0210 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 AR 1 0211-0405 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 AR 1 0211-0405 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 AR 1 0211-0405 ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 AR 1 0406- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 AR 1 0406- ● ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 AR 1 0406- ● ● ●
56 NUT; YOKE
M14 		9-99110-514-0 08 1 0005-0210 ● ●
56 NUT; YOKE
M14 		9-99110-514-0 08 1 0211-0512 ● ● ●
56 NUT; YOKE
M14 		0-91110-514-0 08 1 0601- ● ●
57 WASHER; LK,YOKE
ID=14.2 		9-09150-614-0 08 1 0005-0210 ● ●
57 WASHER; LK,YOKE
ID=14.2 		9-09150-614-0 08 1 0211-0603 ● ● ●
57 WASHER; LK,YOKE
ID=14.2 		0-91510-614-0 08 1 0604- ● ● ●
95 BOLT; YOKE,FINAL
M14X37 		1-09000-121-0 04 1 0005-0210 ● ●
95 BOLT; YOKE,FINAL
M14X37 		1-09000-121-0 04 1 0211- ● ● ●
104 PLUG; SLEEVE YOKE 1-09600-064-0 01 1 0005-0210 ● ●
104 PLUG; SLEEVE YOKE 1-09600-064-0 01 1 0211-0405 ● ●
104 PLUG; SLEEVE YOKE 1-09600-064-0 01 1 0406- ● ●
104 PLUG; SLEEVE YOKE
STD CAB(FT**M*) 		1-09600-064-0 01 1 0406- ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		9-09031-010-0 01 1 0005-0210 ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		9-09031-010-0 01 1 0211-0405 ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		9-09031-010-0 01 1 0406-0512 ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
STD CAB(FT**M*) PT1/8 STRAIGHT 		9-09031-010-0 01 1 0406-0512 ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		0-90301-410-0 01 1 0601- ● ● ●
107 COVER; RET,SLEEVE 1-37249-060-0 01 1 0005-0210 ● ●
107 COVER; RET,SLEEVE 1-37249-060-1 01 1 0211-0405 ● ●
107 COVER; RET,SLEEVE 1-37249-060-1 01 1 0406- ● ●
107 COVER; RET,SLEEVE
STD CAB(FT**M*) 		1-37249-060-1 01 1 0406- ●
128 SEAL; SLEEVE 1-37247-024-0 01 1 0005-0210 ● ●
128 SEAL; SLEEVE 1-37247-024-0 01 1 0211-0405 ● ●
128 SEAL; SLEEVE 1-37247-024-0 01 1 0406- ● ●
128 SEAL; SLEEVE
STD CAB(FT**M*) 		1-37247-024-0 01 1 0406- ●
225 YOKE; SLEEVE,PROP SHAFT
L=271 		1-37241-099-2 01 1 0005-0210 ● ●
225 YOKE; SLEEVE,PROP SHAFT
L=271 		1-37241-099-2 01 1 0211-0405 ● ●
225 YOKE; SLEEVE,PROP SHAFT
L=271 		1-37241-099-2 01 1 0406- ● ●
225 YOKE; SLEEVE,PROP SHAFT
STD CAB(FT**M*) L=271 		1-37241-099-2 01 1 0406- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
