Isuzu WW
▶
AUV
▶
TBR
▶
51134 - TBR-PICKUP INDONESIA
▶
3 - Brakes, Brake System
▶
3-05 - REAR WHEEL BRAKE
▶

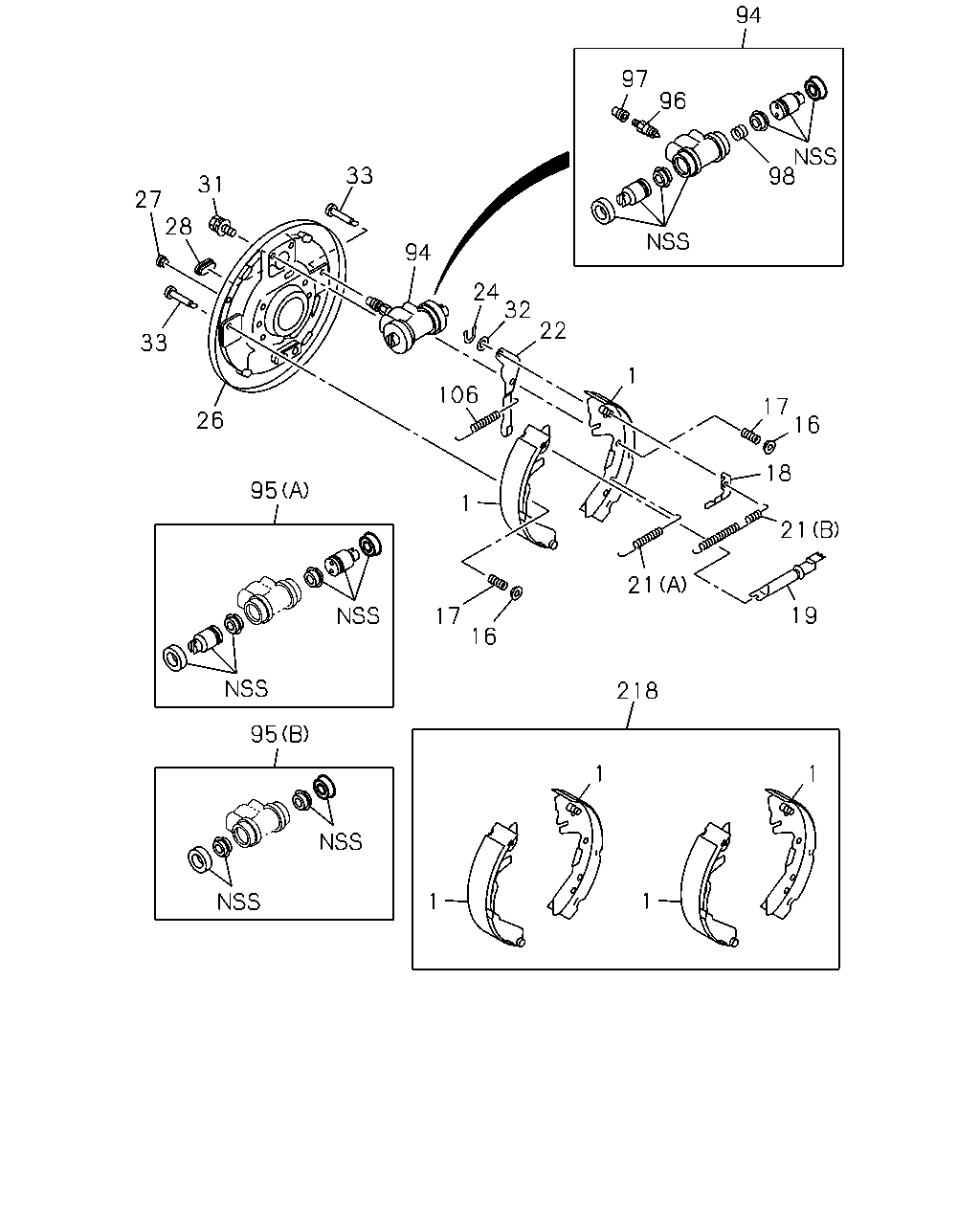

3-05 — REAR WHEEL BRAKE
(#95628) — 31 parça
94
97
96
98
94
24
32
22
106
1
17
16
18
21
19
21
218
1
1
1
1
95
16
17
1
95
26
33
27
28
31
33
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
SHOE; BRK,RR
LEADING IDN
8-97956-911-0
02
1
0612-
1
SHOE; BRK,RR
TRAILING IDN
8-97956-913-0
01
1
0612-
1
SHOE; BRK,RR
TRAILING IDN
8-97956-912-0
01
1
0612-
16
CUP; SHOE HOLDING
IDN
9-47162-033-0
04
1
0612-
17
SPRING; SHOE HOLD DOWN
IDN
8-94134-106-0
04
1
0612-
18
LEVER; AUTO ADJ
IDN
8-94124-866-1
01
1
0612-
18
LEVER; AUTO ADJ
IDN
8-94124-865-1
01
1
0612-
19
ADJUSTER; RR BRK
8-94127-078-1
01
1
0612-
19
ADJUSTER; RR BRK
8-94127-077-1
01
1
0612-
21
SPRING; SHOE,RET
(A) LOWER IDN
8-94127-066-0
02
1
0612-
21
SPRING; SHOE,RET
(B) UPPER IDN
8-94480-191-0
02
1
0612-
22
LEVER; PARKING BRK,WHEEL BRK
IDN
8-94124-868-2
01
1
0612-
22
LEVER; PARKING BRK,WHEEL BRK
IDN
8-94124-867-2
01
1
0612-
24
RETAINER; PARKING BRK
IDN
9-46349-005-1
02
1
0612-
26
PLATE; BACK,RR BRK
IDN
8-97956-909-0
01
1
0612-
26
PLATE; BACK,RR BRK
IDN
8-97956-908-0
01
1
0612-
27
COVER; CHECK HOLE,DRUM COVER
IDN
8-97122-854-0
02
1
0612-
28
COVER; ADJ HOLE
IDN
8-94111-509-0
02
1
0612-
31
BOLT; RR WHEEL CYL
M6X10 FLANGE IDN
8-94134-103-0
04
1
0612-
32
WASHER; LK
ID=9.5 IDN
9-09850-529-0
02
1
0612-
33
PIN; SHOE HOLD DOWN
8-94201-061-0
04
1
0612-
94
CYLINDER; WHEEL,RR BRK
IDN
8-97230-425-0
02
1
0612-
95
CUP SET; RR WHEEL CYL
(B)
5-87832-248-0
01
1
0612-
95
CUP SET; RR WHEEL CYL
(A)
5-87831-828-0
01
1
0612-
96
SCREW; BLEEDER,RR BRK
IDN
9-47615-027-0
02
1
0612-1108
96
SCREW; BLEEDER,RR BRK
IDN
8-98050-476-0
02
1
1109-
97
CAP; BLEEDER,RR WHEEL CYL
IDN
1-47619-009-0
02
1
0612-1108
97
CAP; BLEEDER,RR WHEEL CYL
IDN
8-98050-479-0
02
1
1109-
98
SPRING; RR WHEEL CYL
IDN
8-94230-597-2
02
1
0612-
106
SPRING; ADJ LEVER
IDN
8-94480-190-0
02
1
0612-
218
SHOE KIT; BRK,RR
IDN
5-87832-092-0
01
1
0612-
