Isuzu WW
▶
AUV
▶
TBR
▶
51134 - TBR-PICKUP INDONESIA
▶
3 - Brakes, Brake System
▶
3-02 - FRONT DISC BRAKE CALIPER
▶

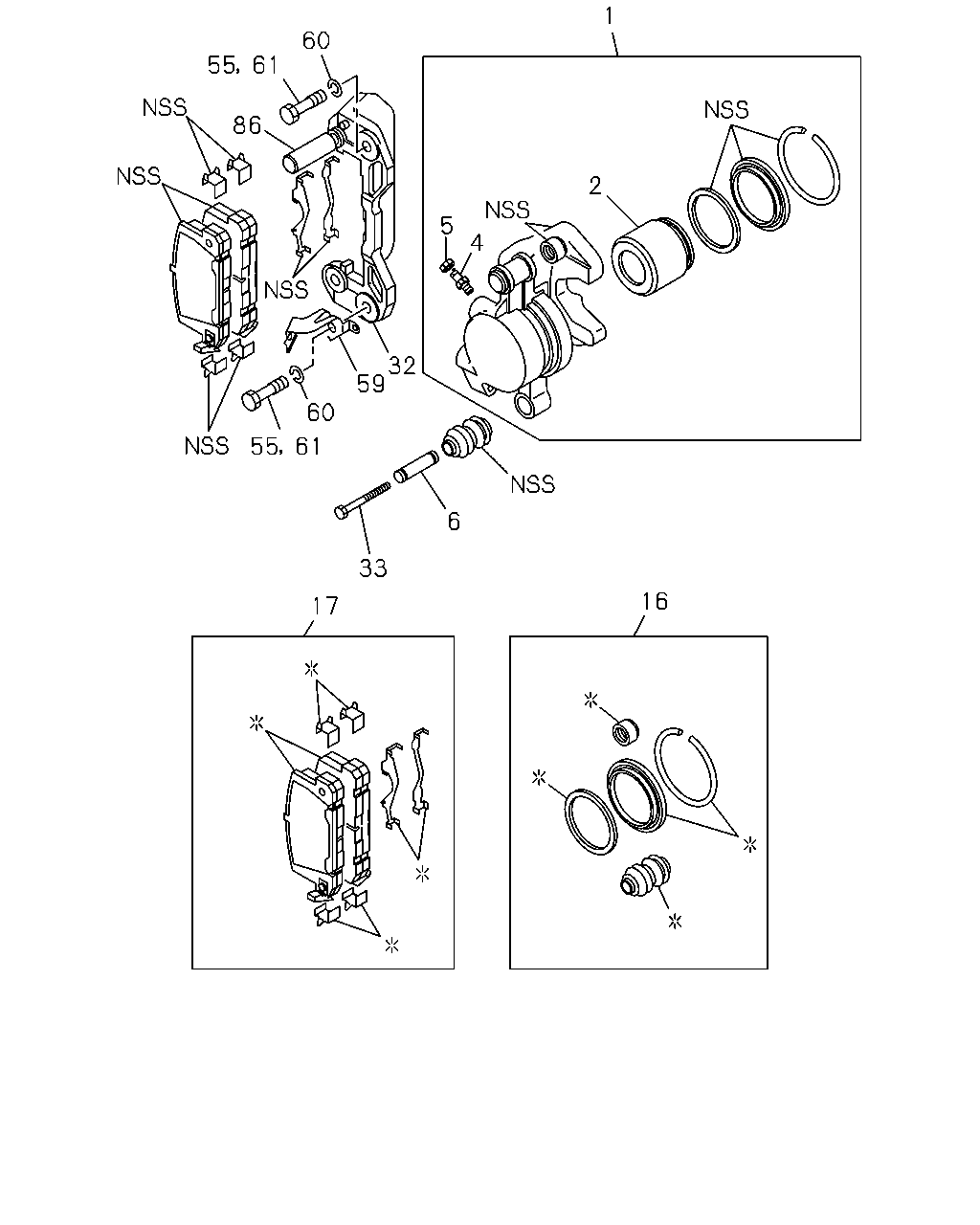

3-02 — FRONT DISC BRAKE CALIPER
(#95627) — 16 parça
1
2
4
5
60
61
55
86
55
61
60
59
32
6
33
17
16
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CALIPER; FRT DISC BRK
8-97017-493-0
01
1
0612-
1
CALIPER; FRT DISC BRK
8-97017-492-0
01
1
0612-
2
PISTON; CALIPER,DISC BRK,FRT
IDN
8-94438-689-0
02
1
0612-
4
SCREW; BLEEDER,DISC BRK,FRT
IDN
8-97113-867-0
02
1
0612-
5
CAP; BLEEDER,DISC BRK,FRT
IDN
1-47619-009-0
02
1
0612-
6
SLEEVE; BOOT,CALIPER
8-94136-644-0
02
1
0612-
16
REPAIR KIT; CALIPER,DISC BRK,FRT
8-97134-715-0
01
1
0612-
17
PAD KIT; CALIPER,DISC BRK,FRT
8-98066-821-0
01
1
0612-
32
SUPPORT; FRT DISC BRK
8-94386-828-0
02
1
0612-
33
BOLT; SUPPORT BRKT TO DISC BRK
M10X59.5
8-94438-712-0
02
1
0612-
55
BOLT; SUPPORT BRKT TO DISC BRK
8-97019-748-0
02
1
0612-
59
BRACKET; FLEX HOSE,FRT
8-97031-513-1
01
1
0612-
59
BRACKET; FLEX HOSE,FRT
8-97031-512-1
01
1
0612-
60
WASHER; LK,SUPPORT BRKT TO KNUCKLE
ID=14.2
0-91510-814-0
04
1
0612-
61
BOLT; SUPPORT BRKT TO KNUCKLE
8-97019-748-0
02
1
0612-
86
PIN; GUIDE
IDN
8-94438-694-0
02
1
0612-
