2-30 — GEAR SHIFTER AND QUADRANT BOX (#95625) — 18 parça

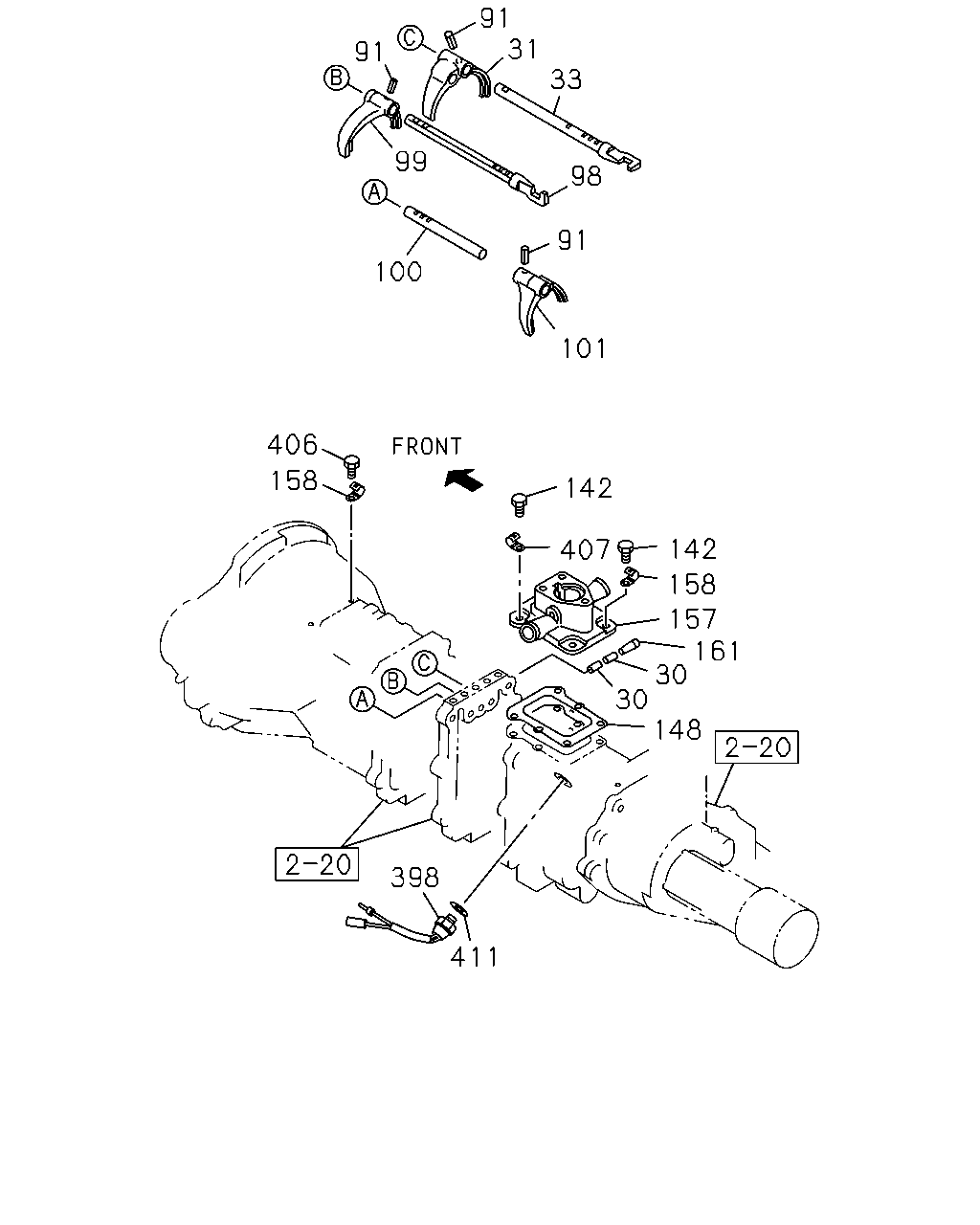

çizim 288329
148 30 30 161 157 158 142 407 142 406 158 398 411 101 91 100 99 98 33 31 91 91
BalonParca AdiParca NoAdetTipApplied Date
30 PIN; INTER LK
OD=5.5 L=10 		5-33534-002-1 02 1 0612-
31 ARM; SHIFT,LOW & 2ND 8-97024-503-1 01 1 0612-
33 ROD; SHIFT,LOW & 2ND
IDN 		8-97248-599-0 01 1 0612-
91 PIN; SPR,SHIFT ARM
D=4.2 L=25 		8-94171-541-0 03 1 0612-
98 ROD; SHIFT,TOP & 3RD
IDN 		8-97248-597-0 01 1 0612-
99 ARM; SHIFT,4TH & 3RD 8-94435-153-1 01 1 0612-
100 ROD; SHIFT,REV & 5TH
IDN 		8-97248-601-0 01 1 0612-
101 ARM; SHIFT,REV & 5TH 8-94440-061-3 01 1 0612-
142 BOLT; QUAD BOX
M8X22 FLANGE 		8-97365-376-0 04 1 0612-
148 GASKET; QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). 		8-97184-922-0 01 1 0612-
157 BOX; QUAD,TRANS 8-94161-146-4 01 1 0612-
158 CLIP; HARNESS
ID=12 IDN 		8-97367-984-1 02 1 0612-
161 PLUG; INTER LK HOLE 8-94239-543-1 01 1 0612-
398 SWITCH; REV LAMP 8-98042-851-0 01 1 0612-
406 BOLT; HARNESS CLIP
M8X16 FLANGE 		0-28050-816-0 01 1 0612-
407 CLIP; SWITCH HARNESS
ID=12 B=14 ID=8.5 IDN 		5-09700-350-0 01 1 0612-0708
407 CLIP; SWITCH HARNESS
ID=12 IDN 		8-97367-984-1 01 1 0709-
411 GASKET; REV LAMP SW
ALSO INCLUDED IN GASKET SET(M/T). ID=14.2 		8-94462-114-0 01 1 0612-
