51134 - TBR-PICKUP INDONESIA
▶
2 - Clutch, Transmission, Trans Axle
▶

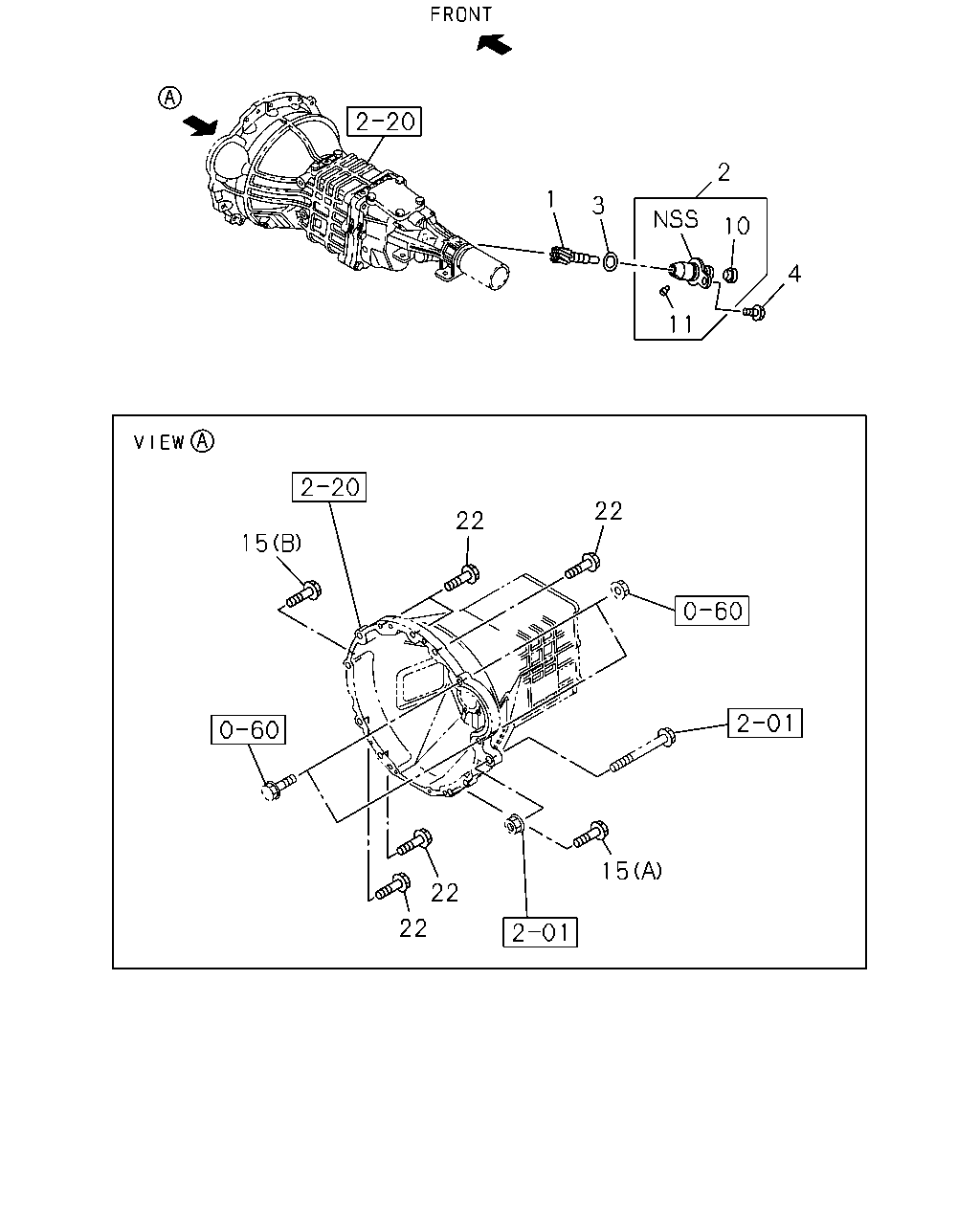

2-25 - SPEEDOMETER DRIVEN GEAR
▶
2-25 — SPEEDOMETER DRIVEN GEAR
(#95623) — 13 parça
15
22
22
22
22
15
11
4
10
2
1
3
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
GEAR; DRIVEN,SPD
Z=18
8-94473-304-2
01
1
0612-
2
BUSHING; DRIVEN GEAR,SPEEDOMETER
8-94463-608-4
01
1
0612-
3
GASKET; BUSHING
ID=21.7 OD=28.7
9-09921-100-0
01
1
0612-
4
BOLT; RET,DRIVEN GEAR
M8X16 FLANGE
0-28050-816-0
01
1
0612-
10
SEAL; OIL,DRIVE GEAR
NOK
8-97131-328-1
01
1
0612-
11
FILTER; BUSHING,SPEEDOMETER DRIVEN GEA
8-94446-571-1
01
1
0612-
15
BOLT; UNDER COVER TO TRANS
(A) M10X35 FLANGE
0-28051-035-0
01
1
0612-
15
BOLT; UNDER COVER TO TRANS
(B) M10X40 FLANGE
0-28051-040-0
01
1
0612-
22
BOLT; TRANS CASE TO ENG
M10X35 FLANGE
0-28051-035-0
01
1
0612-
22
BOLT; TRANS CASE TO ENG
M10X40 FLANGE
0-28051-040-0
02
1
0612-
22
BOLT; TRANS CASE TO ENG
M10X45 FLANGE
0-28051-045-0
01
1
0612-
22
BOLT; TRANS CASE TO ENG
M12X90 FLANGE
0-28051-290-0
01
1
0612-
22
BOLT; TRANS CASE TO ENG
M12X35 FLANGE
0-28051-235-0
01
1
0612-
