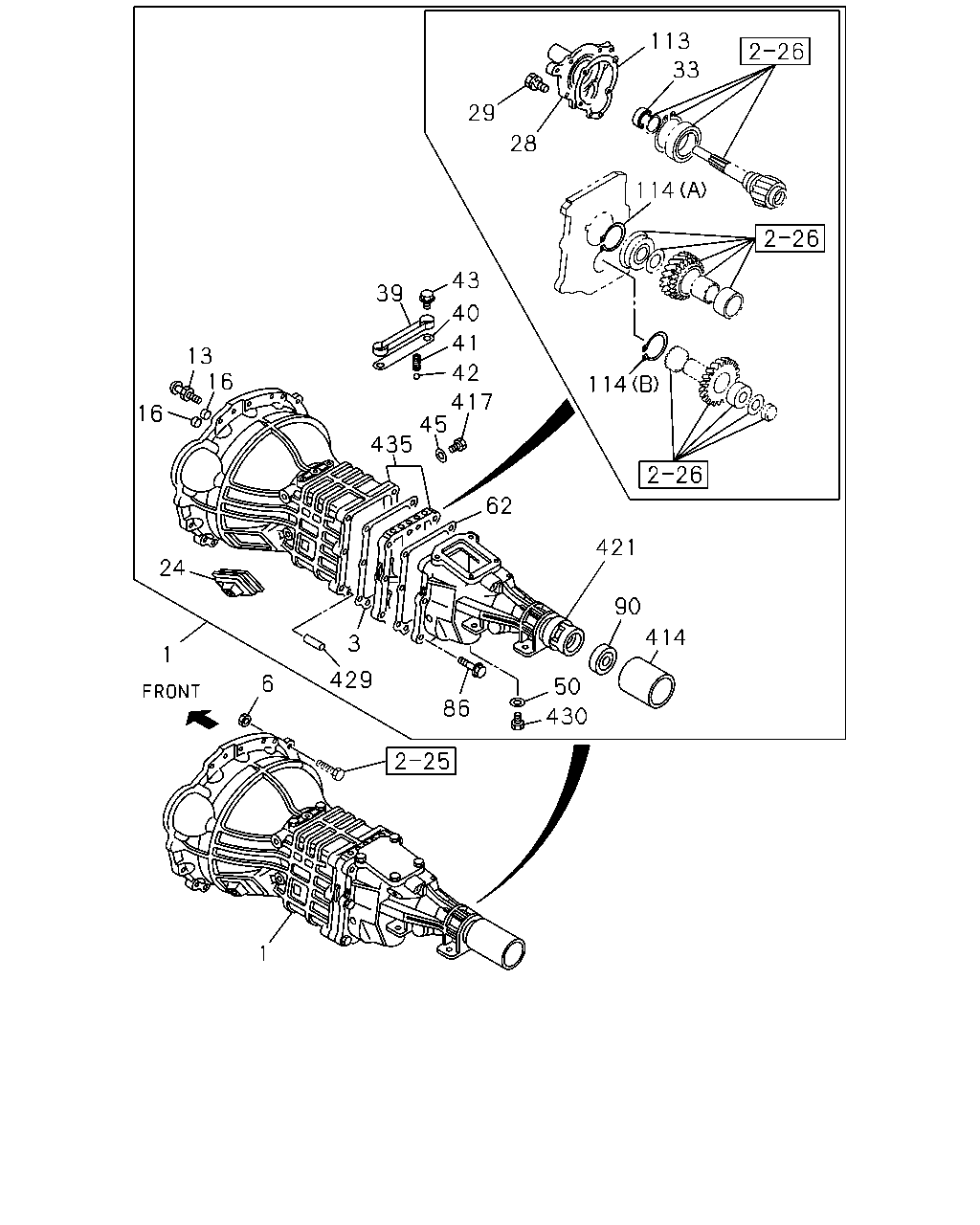

2-20 — MANUAL TRANSMISSION ASM AND CASE
(#95622) — 29 parça
113
33
29
28
114
114
43
39
40
41
42
45
435
13
16
16
62
421
90
414
50
430
3
24
429
86
1
6
1
417
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
TRANSMISSION ASM; MANUAL
IDN
8-97221-451-0
01
1
0612-
3
GASKET; CASE TO RR COVER
ALSO INCLUDED IN GASKET SET(M/T).
8-94482-496-0
01
1
0612-
6
NUT; CASE,TRANS
M10 FLANGE
0-91180-110-0
02
1
0612-
13
SUPPORT; SHIFT FORK
L=47.5
8-97072-827-0
01
1
0612-
16
PLUG; SHIFT ROD
OD=14
8-97358-601-0
02
1
0612-
24
COVER; CHECK HOLE,DUST
8-94156-700-0
01
1
0612-
28
COVER; FRT,TRANS CASE
8-97116-796-0
01
1
0612-
29
BOLT; FRT COVER
M8X22 FLANGE
8-97365-376-0
06
1
0612-
33
SEAL; OIL,FRT COVER,T/M
ALSO INCLUDED IN GASKET SET(M/T). NOK
8-94326-441-0
01
1
0612-
39
PLATE; DETENT SPR
8-98035-571-0
01
1
0612-
40
GASKET; DETENT SPR PLATE
ALSO INCLUDED IN GASKET SET(M/T).
8-94473-947-0
01
1
0612-
41
SPRING; DETENT BALL
L=25.6
8-94435-336-0
03
1
0612-
42
BALL; DETENT,GEAR SHIFT
8-94435-335-0
03
1
0612-
43
BOLT; PLATE TO PLATE
M8X22 FLANGE
8-97365-376-0
02
1
0612-
45
GASKET; FILLER PLUG
ALSO INCLUDED IN GASKET SET(M/T). ID=17
8-97115-712-0
01
1
0612-
50
GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(M/T). ID=17
8-97115-712-0
01
1
0612-
62
GASKET; RR COVER
ALSO INCLUDED IN GASKET SET(M/T).
8-94482-496-0
01
1
0612-
86
BOLT; RR COVER
M10X55 FLANGE
8-98035-672-0
08
1
0612-
90
SEAL; OIL,RR COVER
ALSO INCLUDED IN GASKET SET(M/T). NOK
8-97046-705-3
01
1
0612-
113
GASKET; FRT COVER TO TRANS CASE
ALSO INCLUDED IN GASKET SET(M/T).
8-97113-190-0
01
1
0612-
114
RING; SNAP,BALL BRG
(A) ID=49.6
5-09589-004-0
01
1
0612-
114
RING; SNAP,BALL BRG
(B) ID=71.7
5-09589-005-0
01
1
0612-
414
COVER; DUST,RR COVER
8-98027-802-0
01
1
0612-
417
PLUG; OIL FILLER,TRANS
8-97365-373-0
01
1
0612-
421
COVER; RR,TRANS
8-98036-019-0
01
1
0612-1105
421
COVER; RR,TRANS
8-98193-595-0
01
1
1106-
429
PIN; STRAIGHT
OD=10 L=40
5-09740-018-1
02
1
0612-
430
PLUG; OIL DRAIN
8-97365-374-0
01
1
0612-
435
CASE; TRANS
IDN
8-98035-893-0
01
1
0612-
