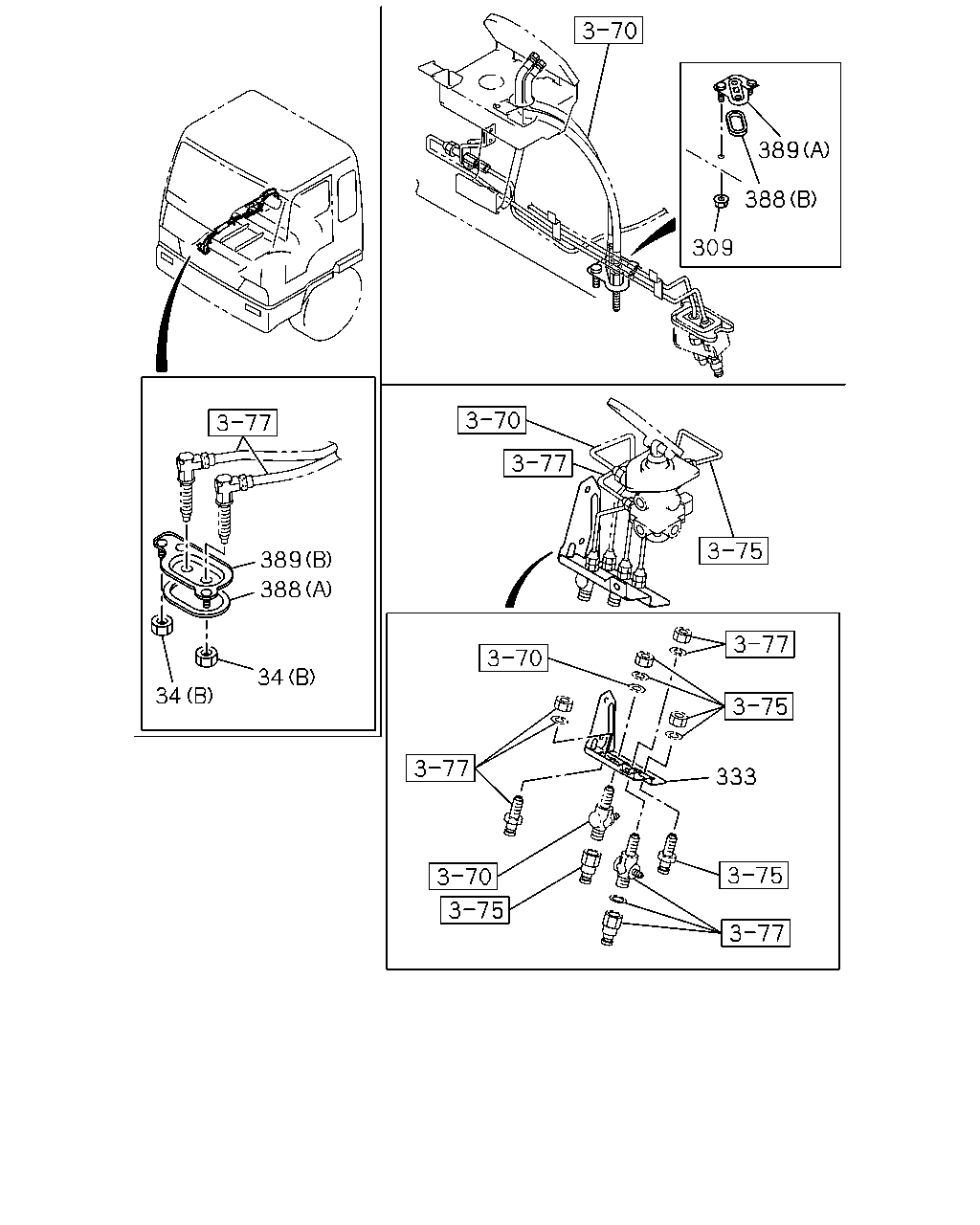

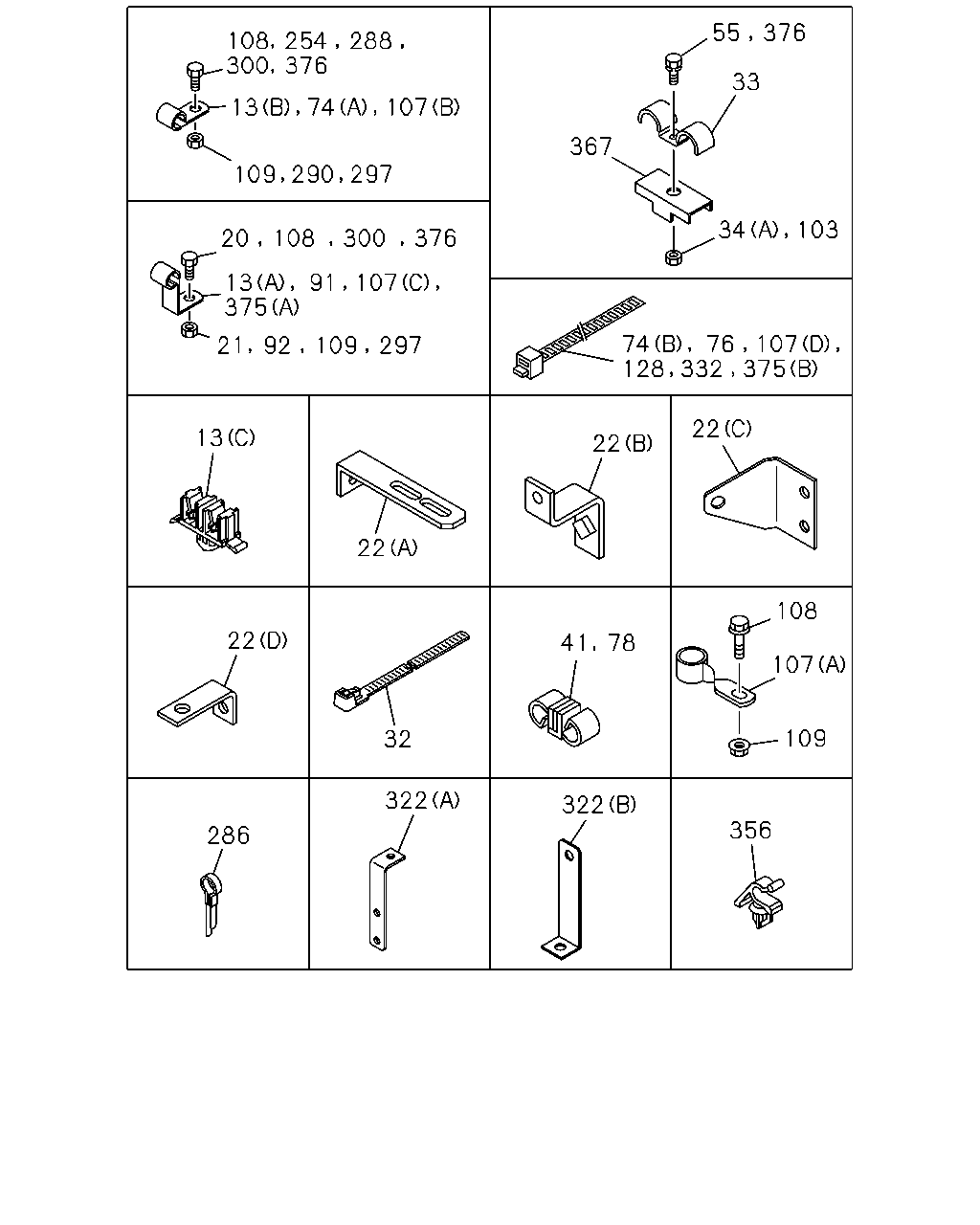

3-78 — FIXING PARTS; AIR PIPING (#9562) — 95 parça

389 388 309 389 388 34 34 333

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
34	NUT; BRKT (A) M8 FLANGE	0-91150-108-0	01	1	0005-0602	●	●
34	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	01	1	0603-	●	●
34	NUT; BRKT (B) M8 CUTTING NUT W/FLANGE	1-09985-340-0	03	1	0005-	●	●
309	NUT; BRKT FIX M8 CUTTING NUT W/FLANGE	1-09985-340-0	02	1	0005-	●	●
333	BRACKET; BRK AIR PIPE	1-79738-815-2	01	1	0005-	●	●
388	SEAL (A) L=280	1-79738-793-1	01	1	0005-	●	●
388	SEAL (B)	1-79738-826-0	01	1	0005-	●	●
389	BRACKET; UNION (B)	1-79738-814-2	01	1	0005-	●	●
389	BRACKET; UNION (A)	1-79738-827-1	01	1	0005-	●	●

108 254 288 300 376 13 74 107 109 290 297 20 108 300 376 107 91 13 375 21 92 109 297 13 22 22 32 322 286 322 356 109 108 107 41 78 22 22 74 76 107 128 332 375 34 103 33 367 55 376

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
13	CLIP; AIR PIPE (B) ID=7 L=20	9-09524-635-0	01	1	0005-0606	●
13	CLIP; AIR PIPE (B) ID=7 L=20	0-95234-635-0	01	1	0607-	●
13	CLIP; AIR PIPE (A) ID=7 L=38 H=21	1-09700-916-0	01	1	0005-0210	●	●
13	CLIP; AIR PIPE (A) ID=7 L=38 H=21	1-09700-916-0	02	1	0211-0305	●
13	CLIP; AIR PIPE 6HK1 TCC ENG(81L) (A) ID=7 L=38 H=21	1-09700-916-0	02	1	0306-	●
13	CLIP; AIR PIPE (C)	8-94435-553-0	03	1	0005-	●	●
13	CLIP; AIR PIPE (B) ID=7 L=40	9-09524-675-0	01	1	0005-0210	●	●
13	CLIP; AIR PIPE (A) ID=6 H=20 L=20	1-09700-603-0	02	1	0211-		●
20	BOLT; CLIP M8X30 FLANGE	0-28680-830-0	01	1	0005-0005	●
20	BOLT; CLIP M8X25 FLANGE	0-28680-825-0	01	1	0211-0512	●	●
20	BOLT; CLIP M8X25 FLANGE	0-28650-825-0	01	1	0601-	●	●
21	NUT; CLIP M8 FLANGE	0-91150-108-0	01	1	0005-0210	●
21	NUT; CLIP M8 FLANGE	0-91150-108-0	01	1	0211-0602	●	●
21	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	0603-	●	●
22	BRACKET; CLIP (A) L=150 H=30	1-47477-629-2	01	1	0005-0210	●
22	BRACKET; CLIP (B)	1-47475-881-0	01	1	0005-	●	●
22	BRACKET; CLIP (C)	1-47476-699-2	01	1	0005-	●	●
22	BRACKET; CLIP (D) L=60 H=30	1-47477-716-1	01	1	0005-	●	●
32	CLIP; BAND,RUBBER SLEEVE L=250	5-09707-030-1	01	1	0005-0210		●
33	CLIP; BOLT ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	01	1	0005-	●	●
33	CLIP; BOLT ID=16 & 7 L=21 & 17	1-09700-675-0	01	1	0005-	●	●
34	NUT; BRKT (A) M8 FLANGE	0-91150-108-0	01	1	0005-0602	●	●
34	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	01	1	0603-	●	●
34	NUT; BRKT (B) M8 CUTTING NUT W/FLANGE	1-09985-340-0	03	1	0005-	●	●
41	CLIP; AIR PIPE ID=6.35 & 15	1-09709-276-1	03	1	0005-0210	●
41	CLIP; AIR PIPE ID=6.35 & 15	1-09709-276-1	01	1	0211-	●
41	CLIP; AIR PIPE ID=15 & 15	1-09709-282-1	01	1	0005-	●	●
41	CLIP; AIR PIPE ID=6.35 & 15	1-09709-276-1	02	1	0005-0210		●
55	BOLT; PIPE CLIP M8X30 FLANGE	0-28680-830-0	04	1	0005-0512	●	●
55	BOLT; PIPE CLIP M8X30 FLANGE	0-28650-830-0	04	1	0601-	●	●
74	CLIP; NYLON TUBE (A) ID=16 L=28	1-09700-872-0	01	1	0005-	●	●
74	CLIP; NYLON TUBE (B) L=250	1-09707-126-0	05	1	0005-	●	●
76	CLIP; NYLON TUBE L=250	1-09707-126-0	04	1	0005-0210	●
76	CLIP; NYLON TUBE L=250	1-09707-126-0	04	1	0211-	●	●
78	CLIP; AIR PIPE ID=6.35 & 15	1-09709-276-1	03	1	0005-0210	●	●
78	CLIP; AIR PIPE ID=6.35 & 15	1-09709-276-1	04	1	0211-	●	●
91	CLIP; AIR PIPE ID=11 H=20 L=20	5-09700-351-0	04	1	0005-0707	●	●
91	CLIP; AIR PIPE ID=11 H=20 L=20	8-98033-780-0	04	1	0708-	●	●
92	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	02	1	0005-0602	●	●
92	NUT; PIPE CLIP M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
103	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	02	1	0005-0602	●	●
103	NUT; PIPE CLIP M8 FLANGE	0-91180-108-0	02	1	0603-	●	●
107	CLIP; NYLON TUBE (C) ID=27.5 H=23 L=24	1-09700-863-0	01	1	0005-	●	●
107	CLIP; NYLON TUBE (A) ID=18 L=54	1-09701-068-0	01	1	0005-0210	●	●
107	CLIP; NYLON TUBE (B) ID=18 L=28	1-09701-067-0	02	1	0211-	●	●
107	CLIP; NYLON TUBE (B) ID=11 L=50	9-09525-085-0	01	1	0005-0210	●	●
107	CLIP; NYLON TUBE (D) L=250	1-09707-126-0	01	1	0005-0009		●
107	CLIP; NYLON TUBE (D) L=250	1-09707-126-0	01	1	0010-0210	●	●
107	CLIP; NYLON TUBE (D) L=250	1-09707-126-0	01	1	0010-0210		●
107	CLIP; NYLON TUBE (D) L=250	1-09707-126-0	02	1	0211-	●	●
108	BOLT; TUBE CLIP M8X20 FLANGE	0-28680-820-0	03	1	0005-0512	●	●
108	BOLT; TUBE CLIP M8X20 FLANGE	0-28650-820-0	03	1	0601-	●	●
109	NUT; TUBE CLIP M8 FLANGE	0-91150-108-0	03	1	0005-0602	●	●
109	NUT; TUBE CLIP M8 FLANGE	0-91180-108-0	03	1	0603-	●	●
128	CLIP; NYLON TUBE L=250	1-09707-126-0	18	1	0005-	●	●
254	BOLT; PIPE CLIP M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	0005-0204	●	●
254	BOLT; PIPE CLIP M8X20.5 W/LK&PL WASHER	8-94279-207-0	02	1	0205-0205	●	●
286	CLIP; NYLON TUBE ID=14 L=44	9-09917-427-0	01	1	0105-0210	●
288	BOLT; CLIP,AIR PIPE M8X20 FLANGE	0-28680-820-0	03	1	0005-0512	●
288	BOLT; CLIP,AIR PIPE M8X20 FLANGE	0-28650-820-0	03	1	0601-	●
288	BOLT; CLIP,AIR PIPE M8X20 FLANGE	0-28680-820-0	02	1	0005-0512		●
288	BOLT; CLIP,AIR PIPE M8X20 FLANGE	0-28650-820-0	02	1	0601-		●
290	NUT; CLIP,AIR PIPE M8 FLANGE	0-91150-108-0	03	1	0005-0602	●
290	NUT; CLIP,AIR PIPE M8 FLANGE	0-91180-108-0	03	1	0603-	●
290	NUT; CLIP,AIR PIPE M8 FLANGE	0-91150-108-0	02	1	0005-0602		●
290	NUT; CLIP,AIR PIPE M8 FLANGE	0-91180-108-0	02	1	0603-		●
297	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0211-0602	●
297	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0603-	●
297	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	0211-0602		●
297	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0603-		●
300	BOLT; TUBE CLIP M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	0206-0904	●	●
300	BOLT; TUBE CLIP M8X24.5 W/LK&PL WASHER	8-98059-720-0	02	1	0905-	●	●
322	BRACKET; CLIP (A) L=59 B=20	1-47479-048-0	01	1	0211-	●
322	BRACKET; CLIP (B) L=95	1-82699-085-0	01	1	0211-	●	●
332	CLIP; BAND L=250	1-09707-126-0	03	1	0005-	●	●
356	CLIP; AIR PIPE ID=4.8	8-94128-483-0	01	1	0005-	●	●
367	BRACKET ASM	1-47475-427-1	02	1	0005-	●	●
375	CLIP; AIR PIPE (A) ID=13 L=25 H=75	1-09700-601-0	01	1	0005-0005	●
375	CLIP; AIR PIPE (B) L=250	1-09707-126-0	01	1	0211-	●
375	CLIP; AIR PIPE (A) ID=9 H=60	1-09700-956-0	01	1	0211-	●	●
376	BOLT; BRKT M8X25 FLANGE	0-28680-825-0	01	1	0211-0512	●
376	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	01	1	0601-	●
376	BOLT; BRKT M8X45 FLANGE	0-28080-845-0	02	1	0005-0512	●	●
376	BOLT; BRKT M8X45 FLANGE	0-28050-845-0	02	1	0601-	●	●
376	BOLT; BRKT M8X30 FLANGE	0-28680-830-0	01	1	0211-0512	●	●
376	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	01	1	0601-	●	●
