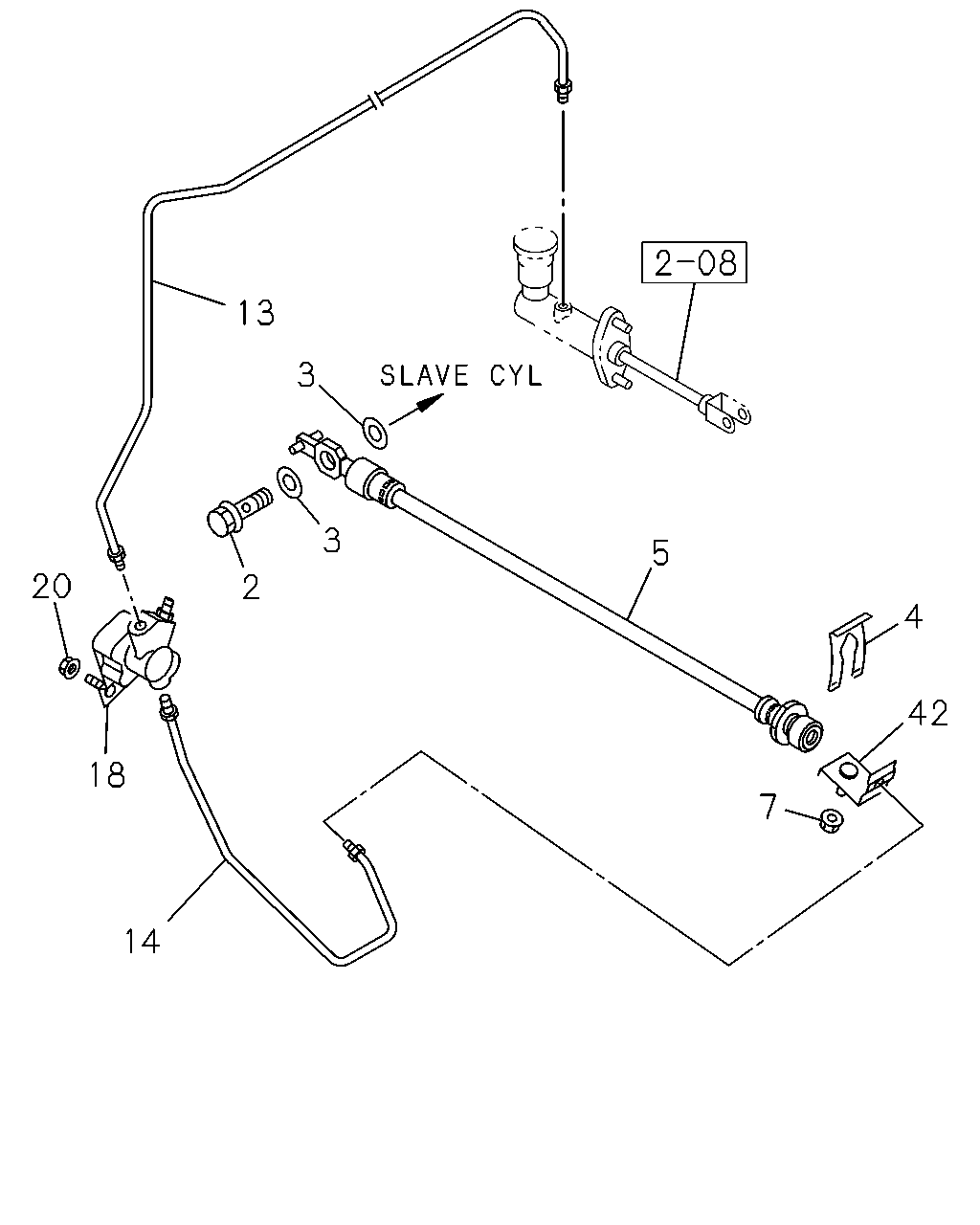

2-05 — CLUTCH PIPING
(#95618) — 12 parça
13
3
3
2
20
18
14
5
4
42
7
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
BOLT; EYE,SLAVE CYL
M10X22
8-97381-454-0
01
1
0612-0905
2
BOLT; EYE,SLAVE CYL
M10X22
8-98014-005-0
01
1
0906-
3
GASKET; FLEX HOSE,CLU
ID=10.2 OD=16.0
9-09571-410-0
02
1
0612-
4
CLIP; FLEX HOSE,CLU CONT
8-94436-216-0
01
1
0612-0704
4
CLIP; FLEX HOSE,CLU CONT
8-97946-552-0
01
1
0705-
5
HOSE; FLEX,CLU PIPE
8-94443-569-1
01
1
0612-
7
NUT; FLEX HOSE,CLU CONT
M8 FLANGE
0-91180-108-0
01
1
0612-
13
PIPE; OIL,FLEX HOSE TO CLU M/CYL
IDN
8-97132-023-2
01
1
0612-
14
PIPE ASM; OIL,OIL DAMPER TO SLAVE CYL
IDN
8-97123-562-2
01
1
0612-
18
DAMPER ASM; CLU OIL
8-97140-813-0
01
1
0612-
20
NUT; CLU OIL DAMPER
M6 FLANGE
0-91180-106-0
02
1
0612-
42
BRACKET; FLEX HOSE,CLU CONT
IDN
8-94425-108-2
01
1
0612-
