51134 - TBR-PICKUP INDONESIA
▶
2 - Clutch, Transmission, Trans Axle
▶
2-03 - CLUTCH PEDAL AND CONTROL
▶

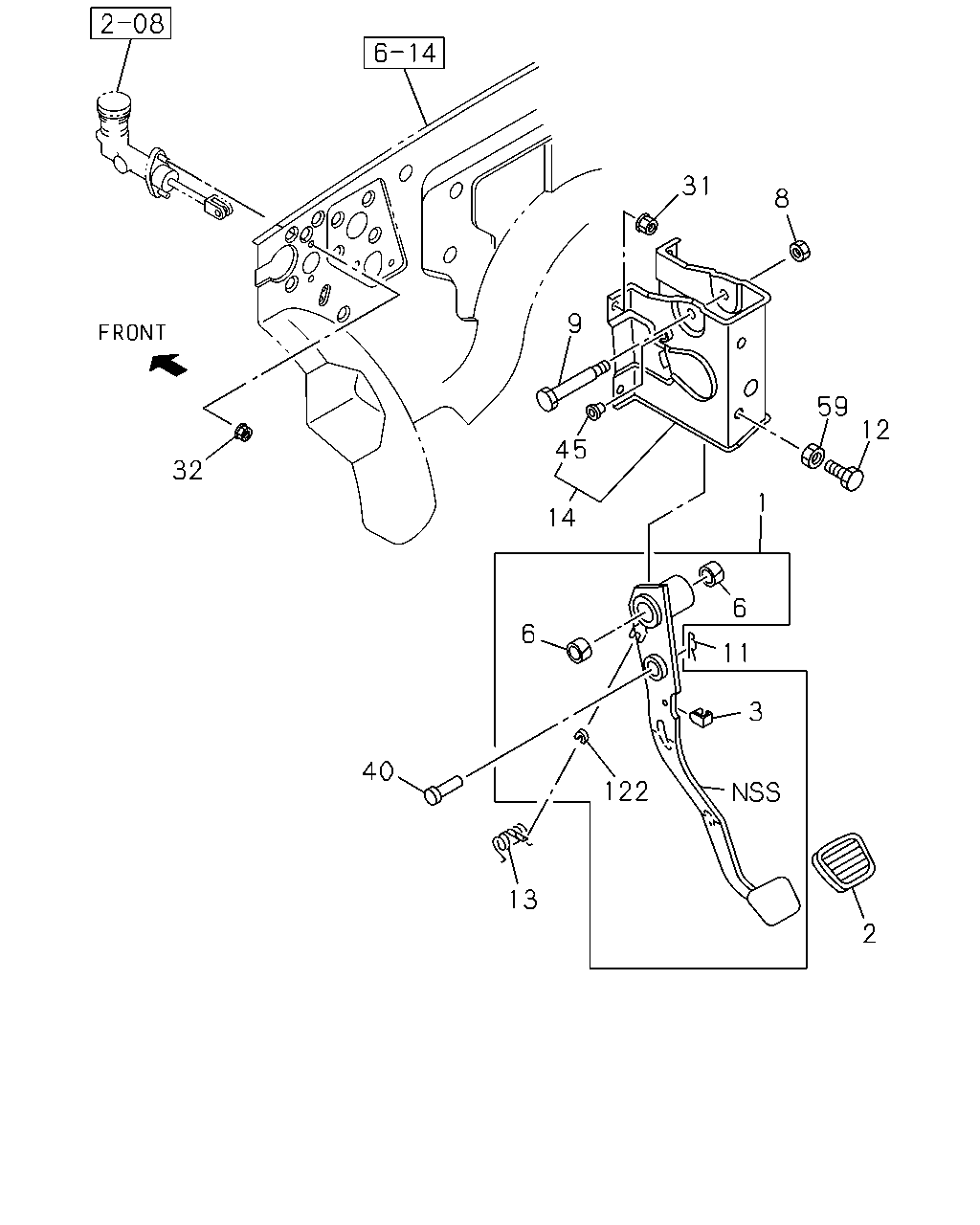

2-03 — CLUTCH PEDAL AND CONTROL
(#95617) — 17 parça
32
14
45
9
31
8
59
12
1
6
11
3
2
122
6
40
13
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PEDAL; CLU
8-97135-073-0
01
1
0612-
2
COVER; CLU PEDAL
8-94222-524-1
01
1
0612-
3
RUBBER; STOPPER,CLU PEDAL
8-94463-258-0
01
1
0612-
6
BUSHING; CLU PEDAL
8-94244-439-0
02
1
0612-
8
NUT; PIN TO PEDAL
M10 FLANGE
0-91180-110-0
01
1
0612-
9
PIN; CLU PEDAL
8-94455-308-0
01
1
0612-
11
PIN; SNAP,PUSH ROD TO PEDAL
L=27.7
1-09747-005-0
01
1
0612-
12
BOLT; CLU PEDAL ADJ
M10X35 FLANGE IDN
0-28651-035-0
01
1
0612-
13
SPRING; ASSIST,CLU PEDAL
8-97312-882-0
01
1
0612-
14
BRACKET ASM; CLU PEDAL MTG
8-94329-888-1
01
1
0612-
31
NUT; MTG BRKT TO BODY
M8 FLANGE
5-09440-005-0
04
1
0612-0805
31
NUT; MTG BRKT TO BODY
M8 FLANGE
8-97581-233-0
04
1
0806-
32
NUT; BRKT TO CLU M/CYL
M8 FLANGE
0-91180-108-0
02
1
0612-
40
PIN; JOINT,CLU DAMPER
8-94432-133-1
01
1
0612-
45
BUSHING; ASSIST SPRING,CLU PEDAL
8-94175-433-0
02
1
0612-
59
NUT; CLU PEDAL ADJ
M10
0-91110-510-0
01
1
0612-
122
BUSHING; ASSIST PEDAL,CLU
8-94175-434-0
01
1
0612-
