1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-41 - FUEL PIPING; CHASSIS
▶
1-41 — FUEL PIPING; CHASSIS
(#95613) — 18 parça
◀
[141A] NO.2 (9 parça)
[141A] NO.1 (9 parça)
▶
24
148
20
37
82
82
82
20
82
147
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
20
CLIP; HOSE,FUEL TANK
ID=19
8-97240-196-0
02
1
0612-
24
CLIP; FUEL HOSE
ID=18 & 18
8-94323-068-0
02
1
0612-
37
HOSE; RUBBER DELIVERY
L=590 SERVICED BY L=3000
0-01262-300-0
01
1
0612-
82
CLIP; FUEL HOSE
(A) ID=13
8-97173-220-0
02
1
0612-
82
CLIP; FUEL HOSE
(C) ID=19
8-97240-196-0
04
1
0612-
82
CLIP; FUEL HOSE
(B) ID=17.2 THA
8-97368-293-0
02
1
0612-0805
82
CLIP; FUEL HOSE
(B) ID=17.2 THA
8-98052-395-0
02
1
0806-
147
CLIP; FUEL PIPE TO HOSE
ID=13.2 & 11.5
8-97230-081-0
02
1
0612-
148
CLIP; HOSE,FUEL
ID=20.2 & 6
8-94472-577-0
02
1
0612-

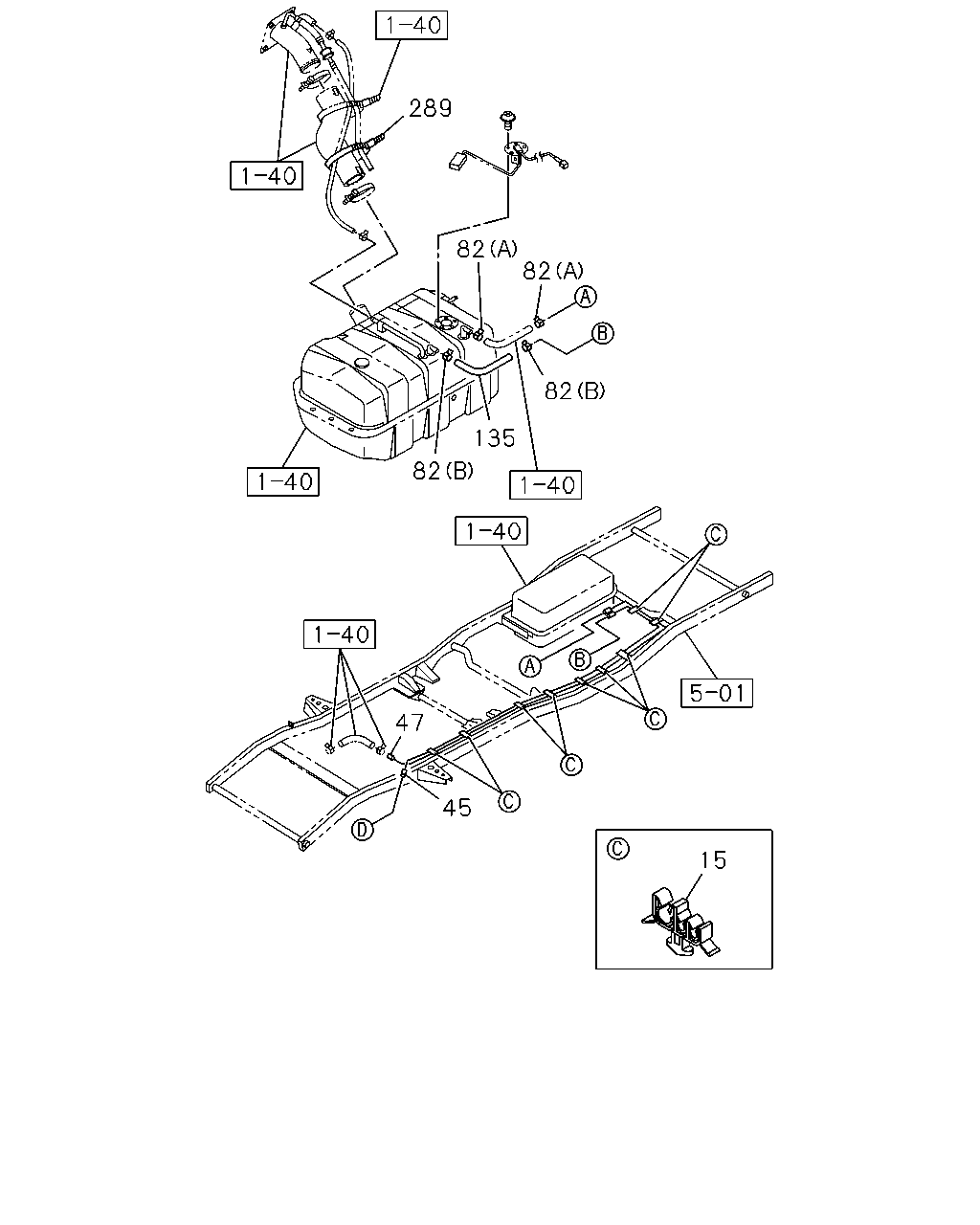

289
82
82
82
135
82
47
15
45
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
15
CLIP; FUEL PIPE
8-97245-523-0
09
1
0612-
45
PIPE; FUEL,DELIVERY
IDN
8-97562-642-0
01
1
0612-
47
PIPE; FUEL,RETURN
IDN
8-97562-643-0
01
1
0612-
82
CLIP; FUEL HOSE
(A) ID=13
8-97173-220-0
02
1
0612-
82
CLIP; FUEL HOSE
(C) ID=19
8-97240-196-0
04
1
0612-
82
CLIP; FUEL HOSE
(B) ID=17.2 THA
8-97368-293-0
02
1
0612-0805
82
CLIP; FUEL HOSE
(B) ID=17.2 THA
8-98052-395-0
02
1
0806-
135
HOSE; FUEL TANK TO FUEL PIPE
L=340 SERVICED BY L=3000
0-01262-300-0
01
1
0612-
289
CLIP; BAND,HOSE
L=250 IDN
5-09707-030-1
02
1
0612-
