Isuzu WW
▶
AUV
▶
TBR
▶
51134 - TBR-PICKUP INDONESIA
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-40 - FUEL TANK
▶
1-40 — FUEL TANK
(#95612) — 28 parça
◀

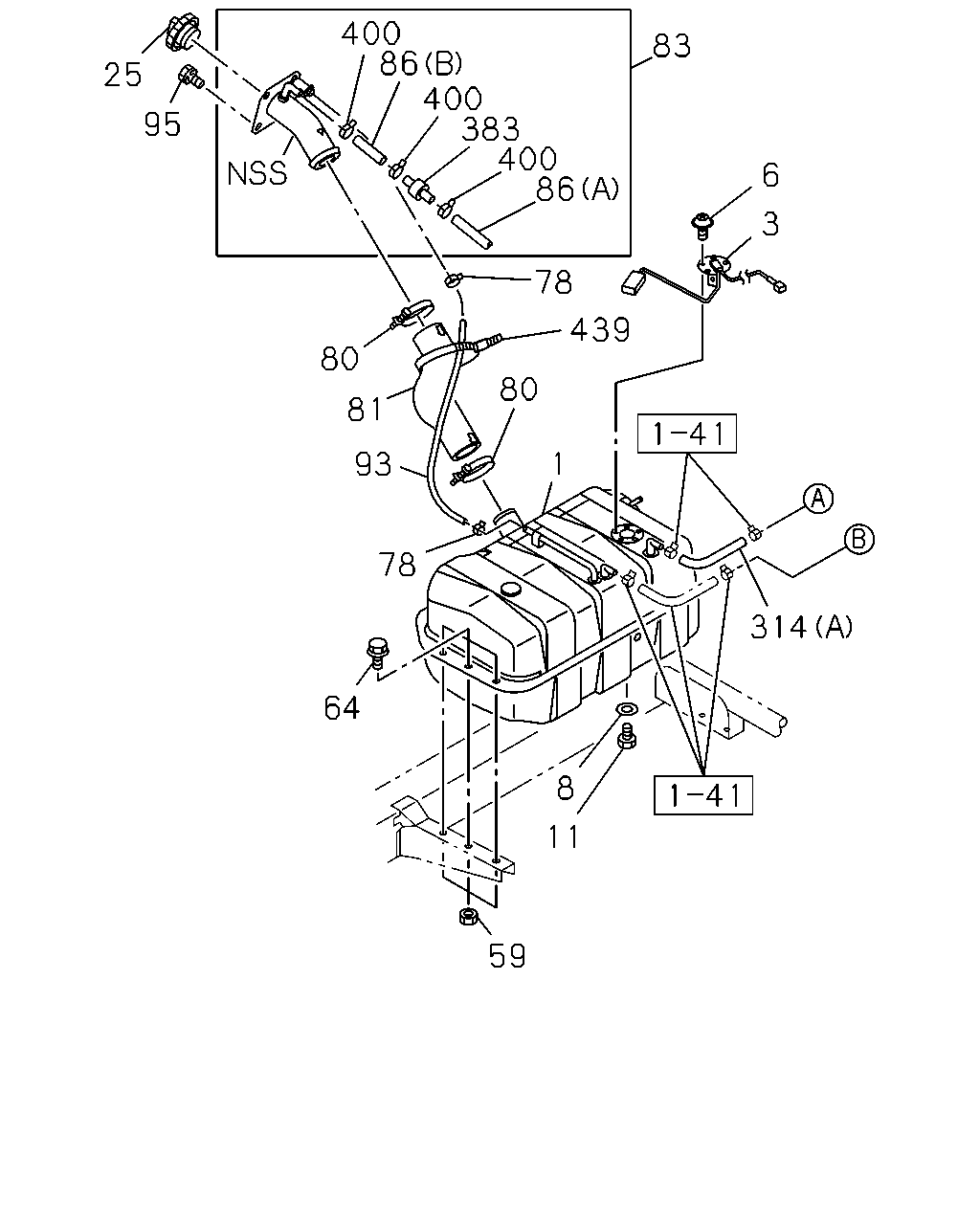

[140A] NO.1 (22 parça)

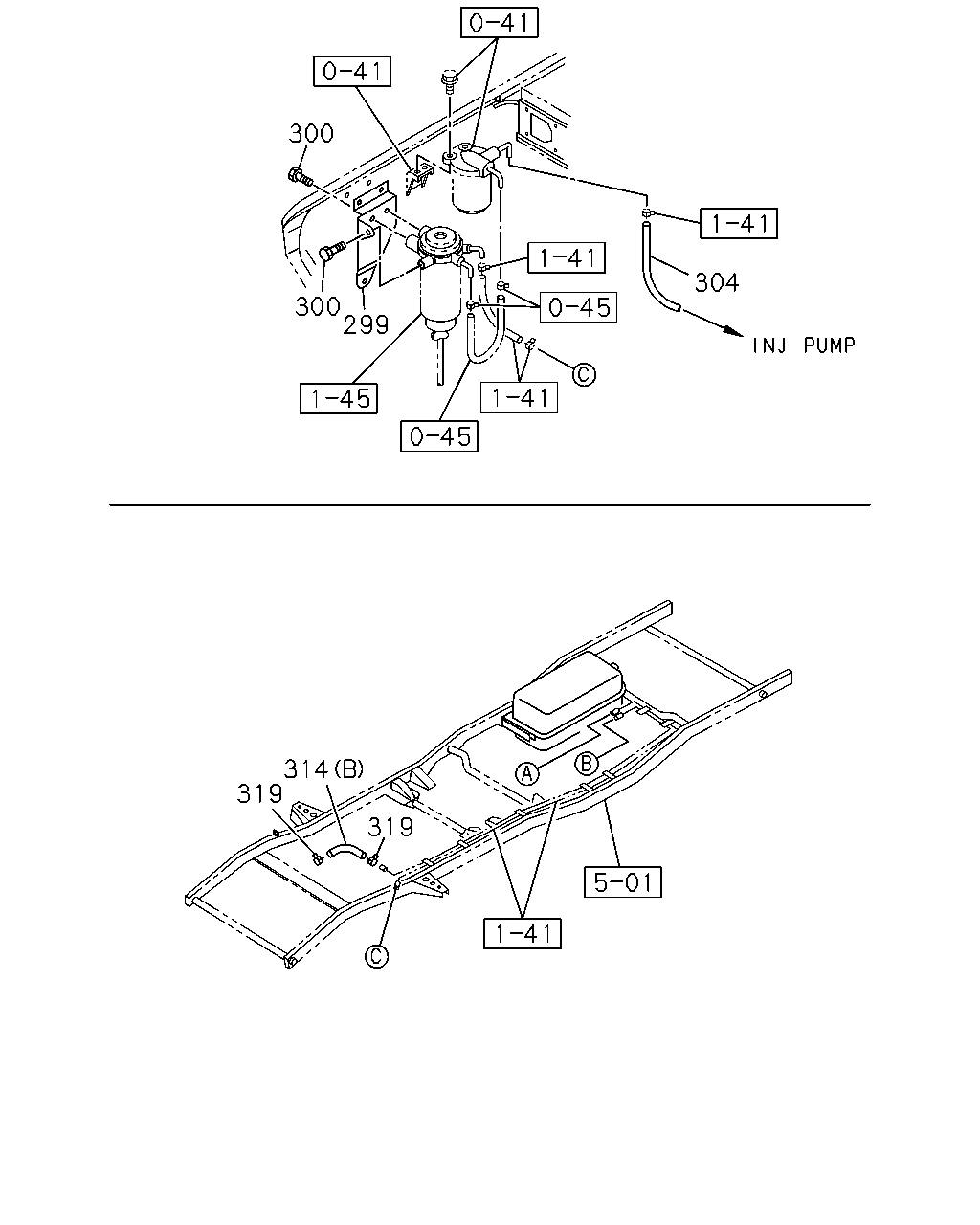

[140A] NO.2 (6 parça)
▶
59
11
8
314
64
78
1
93
81
80
80
78
439
3
6
83
86
400
383
400
86
400
95
25
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
TANK; FUEL
IDN
8-97562-635-0
01
1
0612-
3
UNIT; FUEL TANK,SUB
8-97021-139-0
01
1
0612-
6
SCREW; TANK UNIT TO SUB FUEL TANK
M5X10 W/LK WASHER
0-36220-510-0
05
1
0612-
8
GASKET; DRAIN PLUG,FUEL TANK
IDN
9-09920-624-0
01
1
0612-
11
PLUG; DRAIN,FUEL TANK
M14X14 IDN
9-09862-156-0
01
1
0612-
25
CAP; FILLER,FUEL TANK
8-97026-336-1
01
1
0612-
59
NUT; FUEL TANK
M8 FLANGE IDN
0-91180-208-0
06
1
0612-
64
BOLT; FUEL TANK
M8X20 FLANGE IDN
0-28650-820-0
06
1
0612-
78
CLIP; BREATHER HOSE
ID=16 IDN
8-94238-568-0
02
1
0612-
80
CLIP; FILLER HOSE
ID=60 IDN
9-09915-265-1
02
1
0612-
81
HOSE; FUEL FILLER
IDN
8-97022-612-0
01
1
0612-
83
NECK; FUEL FILLER
8-97081-015-1
01
1
0612-
86
HOSE; EVAP
(A) L=300 SERVICED BY L=3000
8-94128-826-0
01
1
0612-
86
HOSE; EVAP
(B) L=60 SERVICED BY L=3000
8-94128-826-0
01
1
0612-
93
HOSE; BREATHER,FUEL TANK
L=460 SERVICED BY L=3000
0-01259-300-0
01
1
0612-
95
SCREW; FILLER NECK
M6X16
8-94381-646-0
03
1
0612-0703
95
SCREW; FILLER NECK
M6X16
8-98022-271-0
03
1
0704-
314
HOSE; RUBBER,FUEL RETURN
(A) L=200 SERVICED BY L=3000
0-01256-300-0
01
1
0612-
314
HOSE; RUBBER,FUEL RETURN
(B) L=500 SERVICED BY L=3000
0-01256-300-0
01
1
0612-
383
VALVE; 2 WAY
8-97178-373-0
01
1
0612-
400
CLIP; HOSE,EVAP
ID=8.5
8-94166-071-0
02
1
0612-
439
CLIP; BAND,FUEL TANK UNIT
L=100
5-09707-036-1
01
1
0612-
319
319
314
304
299
300
300
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
299
BRACKET; FUEL FILTER
IDN
8-97012-362-0
01
1
0612-
300
BOLT; BRKT TO BODY
M8X16 W/LK WASHER
0-50540-816-0
03
1
0612-
304
HOSE; RUBBER,FUEL FILTER TO INJ PUMP
8-98019-826-0
01
1
0612-
314
HOSE; RUBBER,FUEL RETURN
(A) L=200 SERVICED BY L=3000
0-01256-300-0
01
1
0612-
314
HOSE; RUBBER,FUEL RETURN
(B) L=500 SERVICED BY L=3000
0-01256-300-0
01
1
0612-
319
CLIP; RUBBER HOSE
ID=13
8-97173-220-0
02
1
0612-
