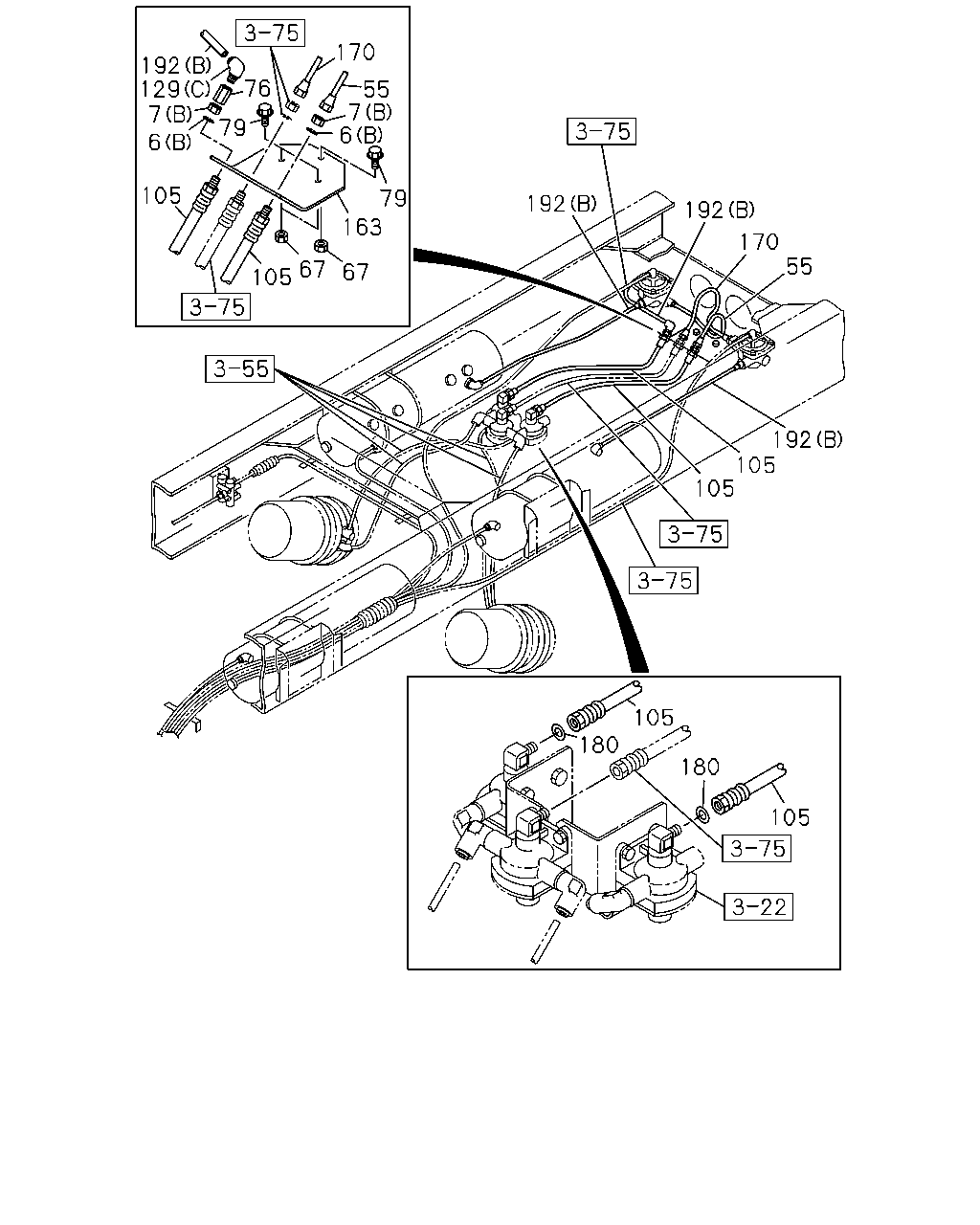

3-77 — BRAKE PIPING; AIR,REAR (#9561) — 65 parça
çizim 39854
170 192 129 7 6 76 55 7 6 79 105 79 192 192 163 170 55 67 105 67 192 105 105 180 180 105 105
BalonParca AdiParca NoAdetTipApplied Date A B
6 WASHER; LK,FLEX HOSE
(A) ID=16.2 		9-09150-516-0 02 1 0005-0603 ● ●
6 WASHER; LK,FLEX HOSE
(A) ID=16.2 		0-91510-516-0 02 1 0604- ● ●
6 WASHER; LK,FLEX HOSE
(B) ID=20.2 		9-09150-520-0 02 1 0005-0603 ● ●
6 WASHER; LK,FLEX HOSE
(B) ID=20.2 		0-91510-520-0 02 1 0604- ● ●
7 NUT; FLEX HOSE
(A) M16 		9-99111-416-0 02 1 0005-0512 ● ●
7 NUT; FLEX HOSE
(A) M16 		0-91111-516-0 02 1 0601- ● ●
7 NUT; FLEX HOSE
(B) M20 		9-99111-420-0 02 1 0005-0512 ● ●
7 NUT; FLEX HOSE
(B) M20 		0-91111-520-0 02 1 0601- ● ●
55 PIPE; AIR,RELAY VLV TO FLEX HOSE
L=426 		1-49118-958-0 01 1 0005- ● ●
67 NUT; HOSE BRKT
M8 FLANGE 		0-91150-108-0 03 1 0005-0602 ● ●
67 NUT; HOSE BRKT
M8 FLANGE 		0-91180-108-0 03 1 0603- ● ●
76 ADAPTER; NYLON TUBE
M20 & RC3/8 STRAIGHT 		1-09660-883-0 01 1 0005- ● ●
79 BOLT; HOSE BRKT
M8X25 FLANGE 		0-28680-825-0 03 1 0005-0512 ● ●
79 BOLT; HOSE BRKT
M8X25 FLANGE 		0-28650-825-0 03 1 0601- ● ●
105 HOSE; FLEX
L=610 		0-07807-610-1 02 1 0005-0605 ● ●
105 HOSE; FLEX
L=610 		0-57807-610-1 02 1 0606- ● ●
129 CONNECTOR; NYLON TUBE
(B) DIN8 & M16 STRAIGHT 		1-09660-875-0 01 1 0005- ● ●
129 CONNECTOR; NYLON TUBE
(A) DIN12 & M16 STRAIGHT 		1-09660-876-0 01 1 0005- ● ●
129 CONNECTOR; NYLON TUBE
(C) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0005- ● ●
129 CONNECTOR; NYLON TUBE
(D) DIN8 & M20 STRAIGHT 		1-09661-056-0 02 1 0005-0007 ● ●
129 CONNECTOR; NYLON TUBE
(D) DIN8 & M20 STRAIGHT 		1-09661-381-0 02 1 0008-0706 ● ●
163 BRACKET; FLEX HOSE 1-47477-997-1 01 1 0005- ● ●
170 PIPE; AIR,RELAY VLV TO FLEX HOSE
L=510 		1-49118-957-0 01 1 0005- ● ●
180 GASKET; FLEX HOSE
ID=11 OD=18 		9-09572-510-0 02 1 0005- ● ●
192 TUBE; NYLON
(B) SERVICED BY L=2000 OD=12 		1-87410-069-0 AR 1 0005-0212 ● ●
192 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 0005- ● ●
192 TUBE; NYLON
(B) SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0301- ● ●

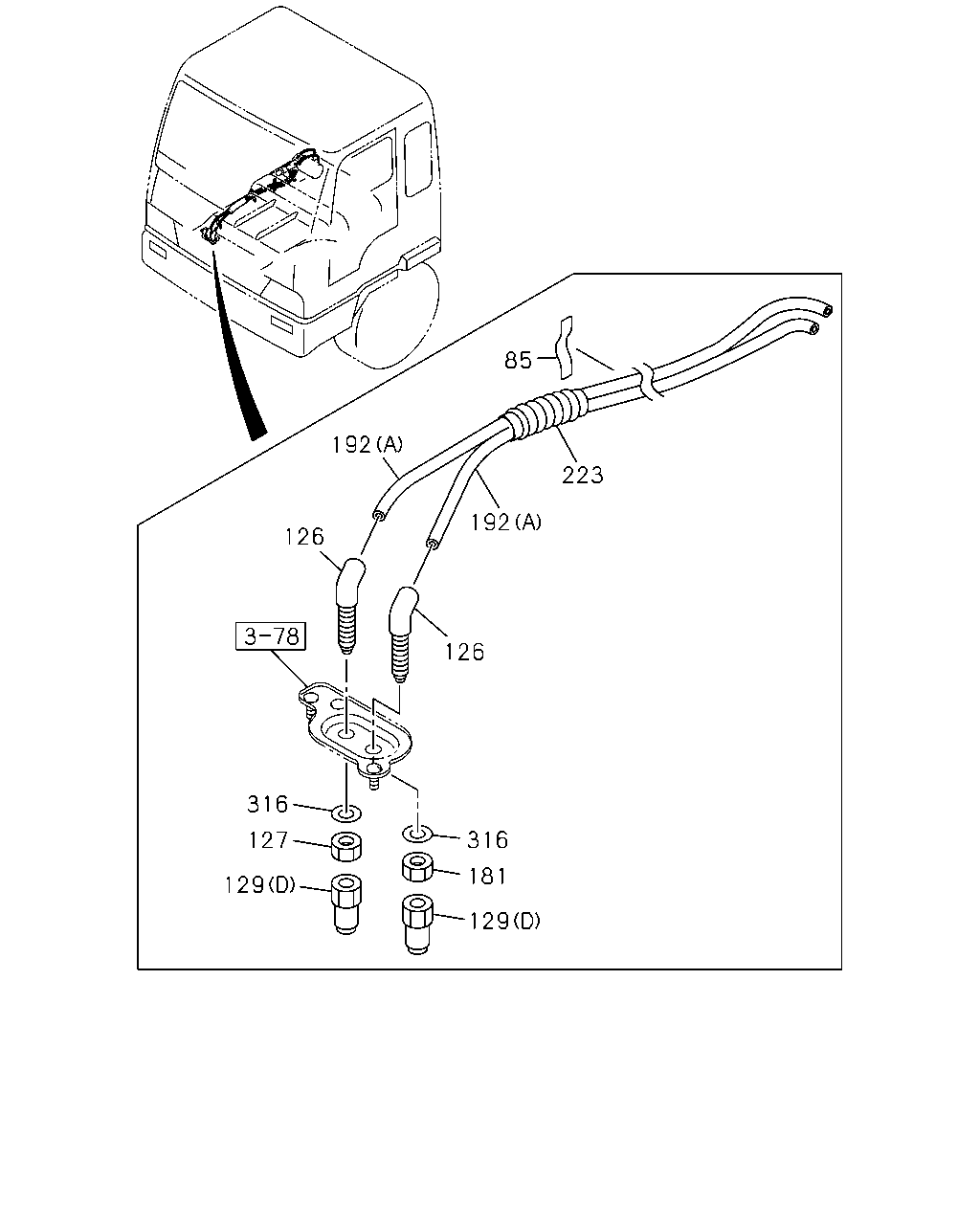

çizim 40319
85 192 223 192 126 126 316 316 127 181 129 129
BalonParca AdiParca NoAdetTipApplied Date A B
85 GASKET; NYLON TUBE
100X40 		1-72498-022-1 05 1 0005- ● ●
126 UNION; NYLON TUBE
DIN8 & M20 ELBOW 		1-09661-015-0 02 1 0005-0706 ● ●
126 UNION; NYLON TUBE
DIN8 & M20 ELBOW 		8-98078-117-0 02 1 0707- ● ●
127 NUT; UNION
M20 		9-99111-420-0 01 1 0005-0512 ● ●
127 NUT; UNION
M20 		0-91111-520-0 01 1 0601- ● ●
129 CONNECTOR; NYLON TUBE
(B) DIN8 & M16 STRAIGHT 		1-09660-875-0 01 1 0005- ● ●
129 CONNECTOR; NYLON TUBE
(A) DIN12 & M16 STRAIGHT 		1-09660-876-0 01 1 0005- ● ●
129 CONNECTOR; NYLON TUBE
(C) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0005- ● ●
129 CONNECTOR; NYLON TUBE
(D) DIN8 & M20 STRAIGHT 		1-09661-056-0 02 1 0005-0007 ● ●
129 CONNECTOR; NYLON TUBE
(D) DIN8 & M20 STRAIGHT 		1-09661-381-0 02 1 0008-0706 ● ●
181 NUT; TUBE UNION
M20 		9-99111-420-0 01 1 0005-0512 ● ●
181 NUT; TUBE UNION
M20 		0-91111-520-0 01 1 0601- ● ●
192 TUBE; NYLON
(B) SERVICED BY L=2000 OD=12 		1-87410-069-0 AR 1 0005-0212 ● ●
192 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 0005- ● ●
192 TUBE; NYLON
(B) SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0301- ● ●
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=15 		1-87410-102-0 01 1 0005- ● ●
316 WASHER; PL
ID=21 		9-09160-520-0 02 1 0005-0605 ● ●
316 WASHER; PL
ID=21 		0-91610-520-0 02 1 0606- ● ●

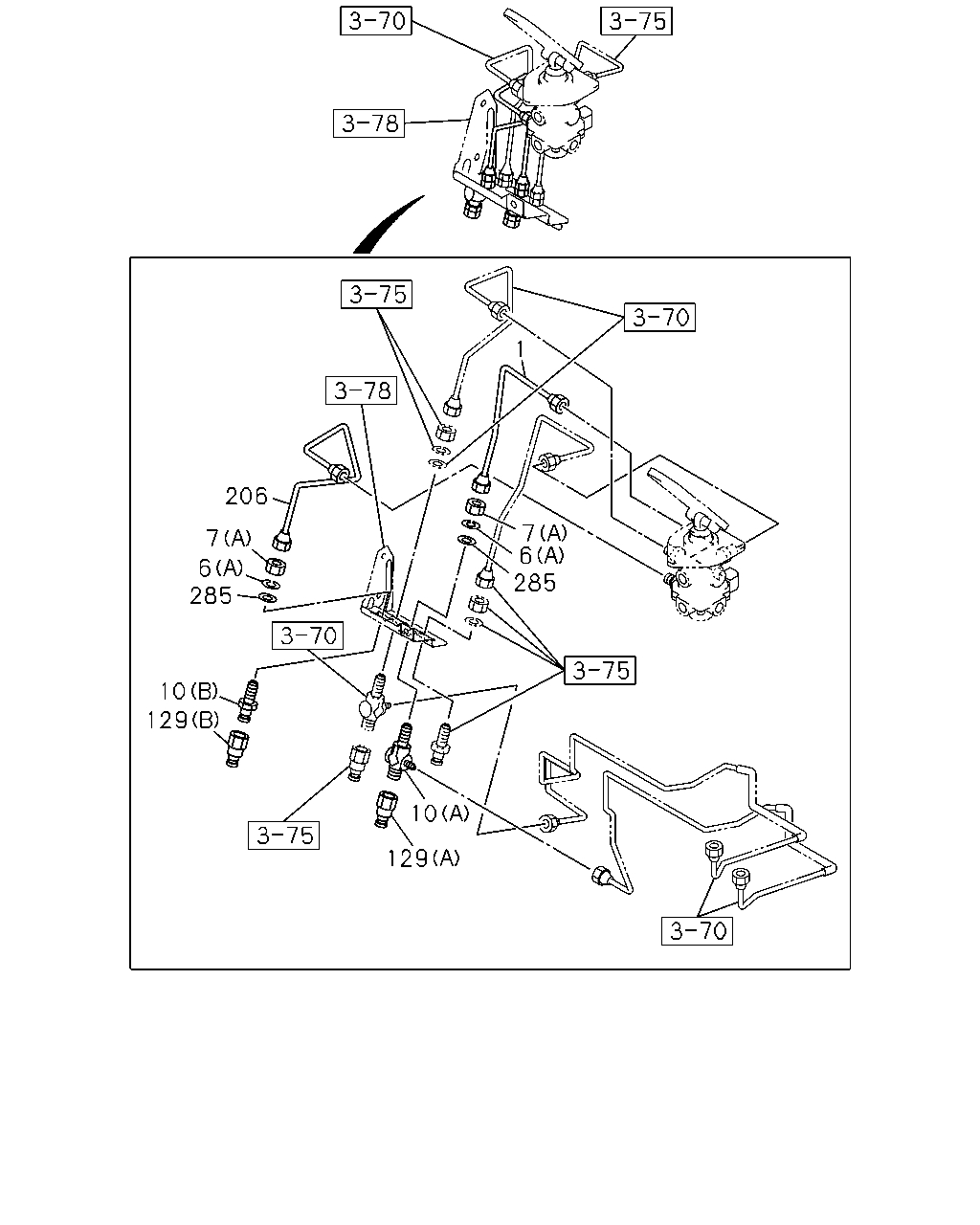

çizim 40575
206 7 6 285 7 6 285 10 129 10 129 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 PIPE; AIR,FLEX HOSE TO BRK VLV
L=277 		1-49121-487-0 01 1 0005- ● ●
6 WASHER; LK,FLEX HOSE
(A) ID=16.2 		9-09150-516-0 02 1 0005-0603 ● ●
6 WASHER; LK,FLEX HOSE
(A) ID=16.2 		0-91510-516-0 02 1 0604- ● ●
6 WASHER; LK,FLEX HOSE
(B) ID=20.2 		9-09150-520-0 02 1 0005-0603 ● ●
6 WASHER; LK,FLEX HOSE
(B) ID=20.2 		0-91510-520-0 02 1 0604- ● ●
7 NUT; FLEX HOSE
(A) M16 		9-99111-416-0 02 1 0005-0512 ● ●
7 NUT; FLEX HOSE
(A) M16 		0-91111-516-0 02 1 0601- ● ●
7 NUT; FLEX HOSE
(B) M20 		9-99111-420-0 02 1 0005-0512 ● ●
7 NUT; FLEX HOSE
(B) M20 		0-91111-520-0 02 1 0601- ● ●
10 CONNECTOR; FLEX HOSE
(B) M16 STRAIGHT 		1-09654-380-0 01 1 0005- ● ●
10 CONNECTOR; FLEX HOSE
(A) 		1-09656-721-0 01 1 0005-0103 ● ●
10 CONNECTOR; FLEX HOSE
(A) 		1-09656-754-0 01 1 0104- ● ●
129 CONNECTOR; NYLON TUBE
(B) DIN8 & M16 STRAIGHT 		1-09660-875-0 01 1 0005- ● ●
129 CONNECTOR; NYLON TUBE
(A) DIN12 & M16 STRAIGHT 		1-09660-876-0 01 1 0005- ● ●
129 CONNECTOR; NYLON TUBE
(C) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0005- ● ●
129 CONNECTOR; NYLON TUBE
(D) DIN8 & M20 STRAIGHT 		1-09661-056-0 02 1 0005-0007 ● ●
129 CONNECTOR; NYLON TUBE
(D) DIN8 & M20 STRAIGHT 		1-09661-381-0 02 1 0008-0706 ● ●
206 PIPE; AIR,BRK VLV TO FLEX HOSE
L=406 		1-47492-451-3 01 1 0005- ● ●
285 WASHER; PL,CONNECTOR
ID=17 		9-09160-516-0 02 1 0005-0605 ● ●
285 WASHER; PL,CONNECTOR
ID=17 OD=30 		0-91610-516-0 02 1 0606- ● ●
