0-84 — FEED PUMP; INJECTION PUMP (#95605) — 7 parça

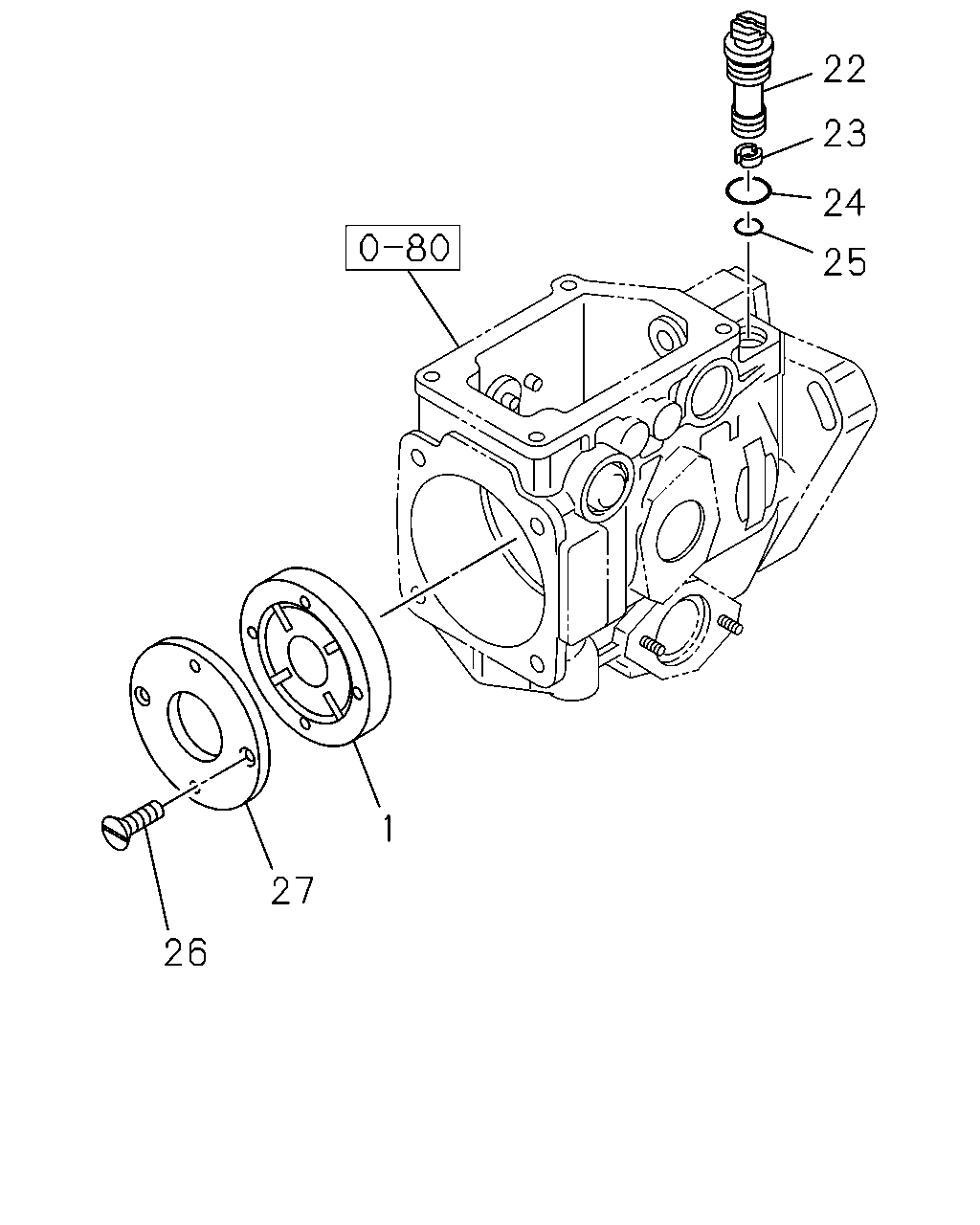

çizim 288196
26 27 1 25 24 23 22
BalonParca AdiParca NoAdetTipApplied Date
1 PUMP ASM; FUEL FEED,INJ PUMP
ASM PART: A = 8-98022-001-1, B = 8-98022-003-1 		8-94227-477-0 01 1 -
22 VALVE; REGULATING,INJ PUMP
STAMP 06 ASM PART: A = 8-98022-001-1, B = 8-98022-003-1 		8-94174-819-0 01 1 -
23 RING; SPRING,REGULATING VLV,INJ PUMP
ASM PART: A = 8-98022-001-1, B = 8-98022-003-1 		8-94227-643-0 01 1 -
24 GASKET; REGULATING VLV,INJ PUMP
ASM PART: A = 8-98022-001-1, B = 8-98022-003-1 		8-94227-641-0 01 1 -
25 GASKET; REGULATING VLV,INJ PUMP
ASM PART: A = 8-98022-001-1, B = 8-98022-003-1 		8-94227-640-0 01 1 -
26 SCREW; COVER FIX,FUEL FEED PUMP
ASM PART: A = 8-98022-001-1, B = 8-98022-003-1 		8-94227-479-0 02 1 -
27 COVER; FUEL FEED PUMP
ASM PART: A = 8-98022-001-1, B = 8-98022-003-1 		8-97386-241-0 01 1 -
