◀ 🏠 ▶ Isuzu WW ▶ AUV ▶ TBR ▶ 51134 - TBR-PICKUP INDONESIA ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-81 - GOVERNOR; INJECTION PUMP ▶
0-81 — GOVERNOR; INJECTION PUMP (#95603) — 124 parça

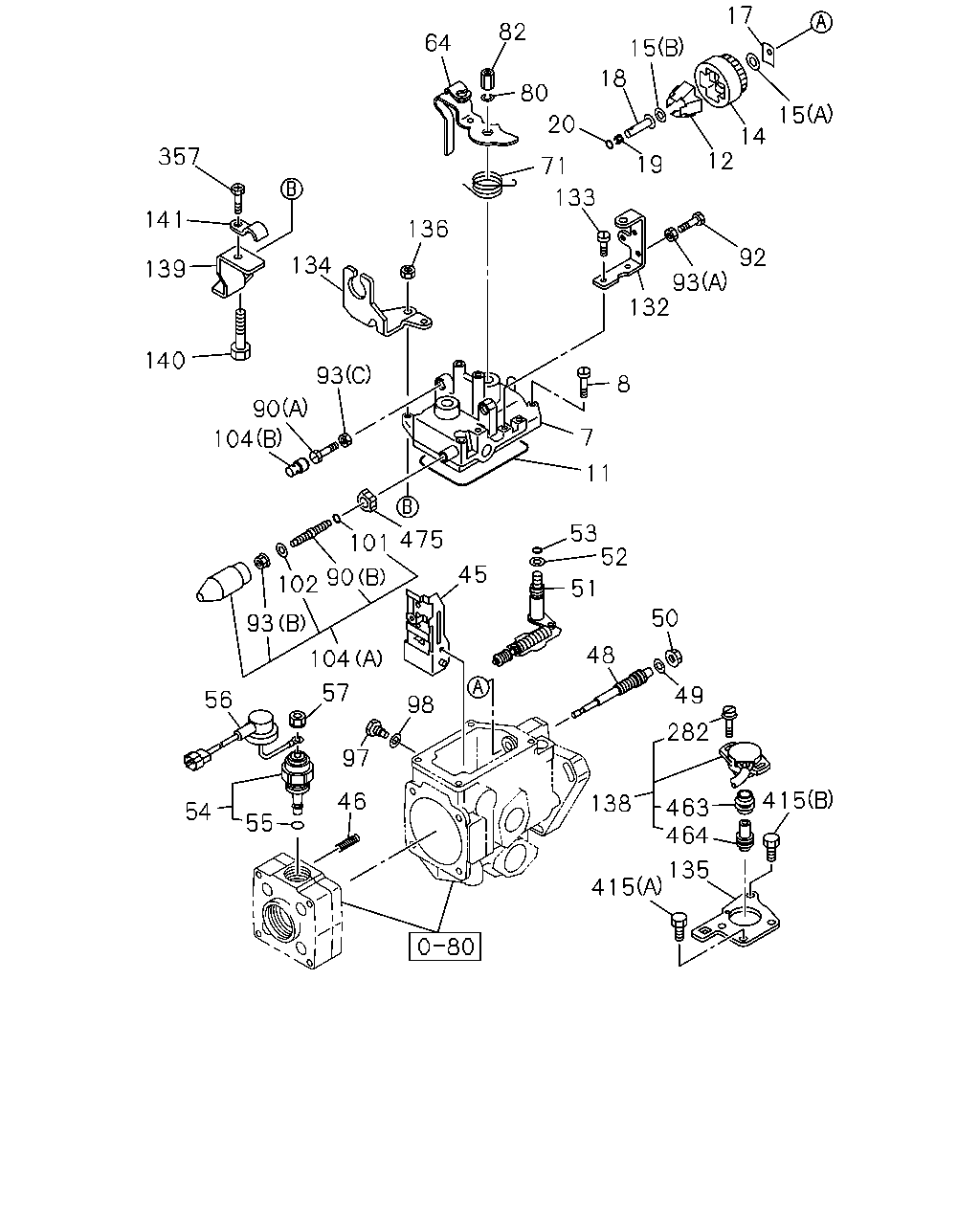

çizim 289516
415 135 464 463 415 282 138 49 48 50 51 52 53 45 98 97 46 55 54 57 104 56 93 102 101 90 475 11 7 8 132 93 92 104 90 93 134 139 140 141 357 136 133 19 12 14 15 17 15 18 80 20 71 82 64
BalonParca AdiParca NoAdetTipApplied Date
7 COVER; GOV HSG,INJ PUMP
ASM PART: A = 8-98022-001-1, B = 8-98022-003-1 		8-97328-704-0 01 1 -
8 BOLT; GOV COVER,INJ PUMP
ASM PART: A = 8-98022-001-1, B = 8-98022-003-1 		8-94227-636-0 04 1 -
11 GASKET; COVER TO HSG,GOV
ASM PART: A = 8-98022-001-1, B = 8-98022-003-1 		8-97136-413-0 01 1 -
12 FLYWEIGHT ASM; GOV
ASM PART: A = 8-98022-001-1, B = 8-98022-003-1 		8-97328-711-0 01 1 -
14 HOLDER; GOV FLYWEIGHT,INJ PUMP
ASM PART: A = 8-98022-001-1, B = 8-98022-003-1 		8-94227-613-0 01 1 -
15 WASHER; LK,FLYWEIGHT FIX,GOV
(A) ASM PART: A = 8-98022-001-1, B = 8-98022-003-1 		8-94227-612-0 01 1 -
15 WASHER; LK,FLYWEIGHT FIX,GOV
(B) ASM PART: A = 8-98022-001-1, B = 8-98022-003-1 		8-94408-517-0 01 1 -
17 SHIM; FLYWEIGHT SLEEVE,GOV
T=1.05 ASM PART: A = 8-98022-001-1, B = 8-98022-003-1 		8-94227-607-0 AR 1 -
17 SHIM; FLYWEIGHT SLEEVE,GOV
T=1.25 ASM PART: A = 8-98022-001-1, B = 8-98022-003-1 		8-94227-608-0 AR 1 -
17 SHIM; FLYWEIGHT SLEEVE,GOV
T=1.45 ASM PART: A = 8-98022-001-1, B = 8-98022-003-1 		8-94227-609-0 AR 1 -
17 SHIM; FLYWEIGHT SLEEVE,GOV
T=1.65 ASM PART: A = 8-98022-001-1, B = 8-98022-003-1 		8-94227-610-0 AR 1 -
17 SHIM; FLYWEIGHT SLEEVE,GOV
T=1.85 ASM PART: A = 8-98022-001-1, B = 8-98022-003-1 		8-94227-611-0 AR 1 -
17 SHIM; FLYWEIGHT SLEEVE,GOV
T=1.15 ASM PART: A = 8-98022-001-1, B = 8-98022-003-1 		8-94231-123-0 AR 1 -
17 SHIM; FLYWEIGHT SLEEVE,GOV
T=1.35 ASM PART: A = 8-98022-001-1, B = 8-98022-003-1 		8-94231-124-0 AR 1 -
17 SHIM; FLYWEIGHT SLEEVE,GOV
T=1.55 ASM PART: A = 8-98022-001-1, B = 8-98022-003-1 		8-94231-125-0 AR 1 -
17 SHIM; FLYWEIGHT SLEEVE,GOV
T=1.75 ASM PART: A = 8-98022-001-1, B = 8-98022-003-1 		8-94231-126-0 AR 1 -
18 SLEEVE; GOV
ASM PART: A = 8-98022-001-1, B = 8-98022-003-1 		8-97214-475-0 01 1 -
19 CAP; GOV SLEEVE,INJ PUMP
ASM PART: A = 8-98022-001-1, B = 8-98022-003-1 		8-94408-519-0 01 1 -
20 PLUG; CLOSING,GOV SLEEVE
L=5.20 ASM PART: A = 8-98022-001-1, B = 8-98022-003-1 		8-94372-499-0 01 1 -
20 PLUG; CLOSING,GOV SLEEVE
L=5.30 ASM PART: A = 8-98022-001-1, B = 8-98022-003-1 		8-94372-500-0 01 1 -
20 PLUG; CLOSING,GOV SLEEVE
L=5.40 ASM PART: A = 8-98022-001-1, B = 8-98022-003-1 		8-94372-501-0 01 1 -
20 PLUG; CLOSING,GOV SLEEVE
L=5.50 ASM PART: A = 8-98022-001-1, B = 8-98022-003-1 		8-94372-502-0 01 1 -
20 PLUG; CLOSING,GOV SLEEVE
L=2.10 ASM PART: A = 8-98022-001-1, B = 8-98022-003-1 		8-94408-520-0 01 1 -
20 PLUG; CLOSING,GOV SLEEVE
L=2.30 ASM PART: A = 8-98022-001-1, B = 8-98022-003-1 		8-94408-521-0 01 1 -
20 PLUG; CLOSING,GOV SLEEVE
L=2.50 ASM PART: A = 8-98022-001-1, B = 8-98022-003-1 		8-94408-522-0 01 1 -
20 PLUG; CLOSING,GOV SLEEVE
L=2.70 ASM PART: A = 8-98022-001-1, B = 8-98022-003-1 		8-94408-523-0 01 1 -
20 PLUG; CLOSING,GOV SLEEVE
L=2.90 ASM PART: A = 8-98022-001-1, B = 8-98022-003-1 		8-94408-524-0 01 1 -
20 PLUG; CLOSING,GOV SLEEVE
L=3.10 ASM PART: A = 8-98022-001-1, B = 8-98022-003-1 		8-94408-525-0 01 1 -
20 PLUG; CLOSING,GOV SLEEVE
L=3.30 ASM PART: A = 8-98022-001-1, B = 8-98022-003-1 		8-94408-526-0 01 1 -
20 PLUG; CLOSING,GOV SLEEVE
L=3.50 ASM PART: A = 8-98022-001-1, B = 8-98022-003-1 		8-94408-527-0 01 1 -
20 PLUG; CLOSING,GOV SLEEVE
L=3.70 ASM PART: A = 8-98022-001-1, B = 8-98022-003-1 		8-94408-528-0 01 1 -
20 PLUG; CLOSING,GOV SLEEVE
L=3.90 ASM PART: A = 8-98022-001-1, B = 8-98022-003-1 		8-94408-529-0 01 1 -
20 PLUG; CLOSING,GOV SLEEVE
L=4.10 ASM PART: A = 8-98022-001-1, B = 8-98022-003-1 		8-94408-530-0 01 1 -
20 PLUG; CLOSING,GOV SLEEVE
L=4.30 ASM PART: A = 8-98022-001-1, B = 8-98022-003-1 		8-94408-531-0 01 1 -
20 PLUG; CLOSING,GOV SLEEVE
L=4.50 ASM PART: A = 8-98022-001-1, B = 8-98022-003-1 		8-94408-532-0 01 1 -
20 PLUG; CLOSING,GOV SLEEVE
L=4.70 ASM PART: A = 8-98022-001-1, B = 8-98022-003-1 		8-94408-533-0 01 1 -
20 PLUG; CLOSING,GOV SLEEVE
L=4.90 ASM PART: A = 8-98022-001-1, B = 8-98022-003-1 		8-94408-534-0 01 1 -
20 PLUG; CLOSING,GOV SLEEVE
L=5.10 ASM PART: A = 8-98022-001-1, B = 8-98022-003-1 		8-94408-535-0 01 1 -
20 PLUG; CLOSING,GOV SLEEVE
L=2.20 ASM PART: A = 8-98022-001-1, B = 8-98022-003-1 		8-94428-868-0 01 1 -
20 PLUG; CLOSING,GOV SLEEVE
L=2.40 ASM PART: A = 8-98022-001-1, B = 8-98022-003-1 		8-94428-869-0 01 1 -
20 PLUG; CLOSING,GOV SLEEVE
L=2.60 ASM PART: A = 8-98022-001-1, B = 8-98022-003-1 		8-94428-870-0 01 1 -
20 PLUG; CLOSING,GOV SLEEVE
L=2.80 ASM PART: A = 8-98022-001-1, B = 8-98022-003-1 		8-94428-871-0 01 1 -
20 PLUG; CLOSING,GOV SLEEVE
L=3.00 ASM PART: A = 8-98022-001-1, B = 8-98022-003-1 		8-94428-872-0 01 1 -
20 PLUG; CLOSING,GOV SLEEVE
L=3.20 ASM PART: A = 8-98022-001-1, B = 8-98022-003-1 		8-94428-873-0 01 1 -
20 PLUG; CLOSING,GOV SLEEVE
L=3.40 ASM PART: A = 8-98022-001-1, B = 8-98022-003-1 		8-94428-874-0 01 1 -
20 PLUG; CLOSING,GOV SLEEVE
L=3.60 ASM PART: A = 8-98022-001-1, B = 8-98022-003-1 		8-94428-875-0 01 1 -
20 PLUG; CLOSING,GOV SLEEVE
L=3.80 ASM PART: A = 8-98022-001-1, B = 8-98022-003-1 		8-94428-876-0 01 1 -
20 PLUG; CLOSING,GOV SLEEVE
L=4.00 ASM PART: A = 8-98022-001-1, B = 8-98022-003-1 		8-94428-877-0 01 1 -
20 PLUG; CLOSING,GOV SLEEVE
L=4.20 ASM PART: A = 8-98022-001-1, B = 8-98022-003-1 		8-94428-878-0 01 1 -
20 PLUG; CLOSING,GOV SLEEVE
L=4.40 ASM PART: A = 8-98022-001-1, B = 8-98022-003-1 		8-94428-879-0 01 1 -
20 PLUG; CLOSING,GOV SLEEVE
L=4.60 ASM PART: A = 8-98022-001-1, B = 8-98022-003-1 		8-94428-880-0 01 1 -
20 PLUG; CLOSING,GOV SLEEVE
L=4.80 ASM PART: A = 8-98022-001-1, B = 8-98022-003-1 		8-94428-881-0 01 1 -
20 PLUG; CLOSING,GOV SLEEVE
L=5.00 ASM PART: A = 8-98022-001-1, B = 8-98022-003-1 		8-94428-882-0 01 1 -
20 PLUG; CLOSING,GOV SLEEVE
L=5.60 ASM PART: A = 8-98022-001-1, B = 8-98022-003-1 		8-97163-167-0 01 1 -
20 PLUG; CLOSING,GOV SLEEVE
L=5.70 ASM PART: A = 8-98022-001-1, B = 8-98022-003-1 		8-97163-168-0 01 1 -
20 PLUG; CLOSING,GOV SLEEVE
L=5.80 ASM PART: A = 8-98022-001-1, B = 8-98022-003-1 		8-97163-169-0 01 1 -
20 PLUG; CLOSING,GOV SLEEVE
L=5.90 ASM PART: A = 8-98022-001-1, B = 8-98022-003-1 		8-97163-170-0 01 1 -
45 LEVER ASM; GOV,INJ PUMP
ASM PART: A = 8-98022-001-1, B = 8-98022-003-1 		8-97332-036-0 01 1 -
46 SPRING; GOV,INJ PUMP
ASM PART: A = 8-98022-001-1, B = 8-98022-003-1 		8-94473-128-0 02 1 -
48 SHAFT; GOV,INJ PUMP
ASM PART: A = 8-98022-001-1, B = 8-98022-003-1 		8-94248-002-0 01 1 -
49 GASKET; GOV SHAFT,INJ PUMP
ASM PART: A = 8-98022-001-1, B = 8-98022-003-1 		8-94227-606-0 01 1 -
50 NUT; GOV SHAFT,INJ PUMP
ASM PART: A = 8-98022-001-1, B = 8-98022-003-1 		8-94473-129-0 01 1 -
51 SHAFT; LOAD CONT LEVER,GOV
ASM PART: A = 8-98022-001-1, B = 8-98022-003-1 		8-98050-923-0 01 1 -
52 WASHER; CONT SHAFT,GOV
ASM PART: A = 8-98022-001-1, B = 8-98022-003-1 		8-94227-590-0 01 1 -
53 GASKET; CONT SHAFT,GOV
ASM PART: A = 8-98022-001-1, B = 8-98022-003-1 		8-94227-585-0 01 1 -
54 VALVE; MAG,ENG STOP,INJ PUMP
ASM PART: A = 8-98022-001-1, B = 8-98022-003-1 		8-94242-275-0 01 1 -
55 GASKET; MAG VLV,INJ PUMP
ASM PART: A = 8-98022-001-1, B = 8-98022-003-1 		8-94239-373-0 01 1 -
56 WIRE; LEAD,MAG VLV,INJ PUMP
ASM PART: A = 8-98022-001-1, B = 8-98022-003-1 		8-94470-582-0 01 1 -
57 NUT; VLV
ASM PART: A = 8-98022-001-1, B = 8-98022-003-1 		8-97138-042-1 01 1 -
64 LEVER; LOAD CONT,GOV
STAMP 118 ASM PART: A = 8-98022-001-1, B = 8-98022-003-1 		8-97119-200-0 01 1 -
64 LEVER; LOAD CONT,GOV
STAMP 119 ASM PART: A = 8-98022-001-1, B = 8-98022-003-1 		8-97119-201-0 01 1 -
64 LEVER; LOAD CONT,GOV
STAMP 280 ASM PART: A = 8-98022-001-1, B = 8-98022-003-1 		8-97328-707-0 01 1 -
64 LEVER; LOAD CONT,GOV
STAMP 279 ASM PART: A = 8-98022-001-1, B = 8-98022-003-1 		8-98050-935-0 01 1 -
71 SPRING; CONT LEVER,GOV
ASM PART: A = 8-98022-001-1, B = 8-98022-003-1 		8-94313-218-0 01 1 -
80 WASHER; LK,CONT LEVER,GOV
ID=6.1, IDN ASM PART: A = 8-98022-001-1, B = 8-98022-003-1 		9-09150-506-0 01 1 -
82 NUT; CONT LEVER FIX,GOV
ASM PART: A = 8-98022-001-1, B = 8-98022-003-1 		1-15729-006-0 01 1 -
90 SCREW; FULL LOAD ADJ,GOV
(A) ASM PART: A = 8-98022-001-1, B = 8-98022-003-1 		8-94426-049-0 01 1 -
90 SCREW; FULL LOAD ADJ,GOV
(B) L=24MM ASM PART: A = 8-98022-001-1, B = 8-98022-003-1 		8-97214-479-0 01 1 -
90 SCREW; FULL LOAD ADJ,GOV
(B) L=26MM ASM PART: A = 8-98022-001-1, B = 8-98022-003-1 		8-97214-480-0 01 1 -
90 SCREW; FULL LOAD ADJ,GOV
(B) L=28MM ASM PART: A = 8-98022-001-1, B = 8-98022-003-1 		8-97214-481-0 01 1 -
92 BOLT; FULL LOAD STOPPER,GOV
ASM PART: A = 8-98022-001-1, B = 8-98022-003-1 		8-94426-049-0 01 1 -
93 NUT; ADJ SCREW LK,INJ PUMP GOV
(A) ASM PART: A = 8-98022-001-1, B = 8-98022-003-1 		1-15729-006-0 01 1 -
93 NUT; ADJ SCREW LK,INJ PUMP GOV
(C) ASM PART: A = 8-98022-001-1, B = 8-98022-003-1 		8-94426-047-1 01 1 -
93 NUT; ADJ SCREW LK,INJ PUMP GOV
(B) ASM PART: A = 8-98022-001-1, B = 8-98022-003-1 		8-97214-482-0 01 1 -
97 BOLT; PIVOT,GOV LEVER
ASM PART: A = 8-98022-001-1, B = 8-98022-003-1 		8-94227-601-0 02 1 -
98 GASKET; PIVOT BOLT,GOV LEVER
ASM PART: A = 8-98022-001-1, B = 8-98022-003-1 		8-94227-602-0 02 1 -
101 GASKET; ADJ SPRING CAPSULE,GOV
ASM PART: A = 8-98022-001-1, B = 8-98022-003-1 		8-94227-598-0 01 1 -
102 WASHER; FULL LOAD ADJ SCREW,GOV
ASM PART: A = 8-98022-001-1, B = 8-98022-003-1 		8-94227-593-0 01 1 -
104 CAP; LOCK NUT,ADJ SCREW
(B), L=18.0 ASM PART: A = 8-98022-001-1, B = 8-98022-003-1 		8-94316-263-0 01 1 -
104 CAP; LOCK NUT,ADJ SCREW
(B), L=21.0 ASM PART: A = 8-98022-001-1, B = 8-98022-003-1 		8-94316-264-0 01 1 -
104 CAP; LOCK NUT,ADJ SCREW
(B), L=24.0 ASM PART: A = 8-98022-001-1, B = 8-98022-003-1 		8-94316-265-0 01 1 -
104 CAP; LOCK NUT,ADJ SCREW
(B), L=27.0 ASM PART: A = 8-98022-001-1, B = 8-98022-003-1 		8-94316-266-0 01 1 -
104 CAP; LOCK NUT,ADJ SCREW
(A) ASM PART: A = 8-98022-001-1, B = 8-98022-003-1 		8-97214-486-0 01 1 -
132 BRACKET; ADJ SCREW,GOV
ASM PART: A = 8-98022-001-1, B = 8-98022-003-1 		8-97328-705-0 01 1 -
133 BOLT; BRKT FIX,GOV
M6X12 ASM PART: A = 8-98022-001-1, B = 8-98022-003-1 		8-94313-267-0 02 1 -
134 BRACKET; CONT CABLE,GOV
ASM PART: A = 8-98022-001-1 		8-98050-938-0 01 1 -
135 BRACKET; POTENTIO METER
ASM PART: A = 8-98022-001-1, B = 8-98022-003-1 		8-97368-270-0 01 1 -
136 NUT; BRKT BOLT
ASM PART: A = 8-98022-001-1 		1-15729-006-0 01 1 -
138 POTENTIO METER
ASM PART: A = 8-98022-001-1, B = 8-98022-003-1 		8-97328-709-0 01 1 -
139 BRACKET; INJ PUMP
ASM PART: A = 8-98022-001-1, B = 8-98022-003-1 		8-97263-483-0 01 1 -
140 BOLT; BRKT,INJ PUMP
ASM PART: A = 8-98022-001-1 		8-94313-264-0 01 1 -
141 PLATE ASM; PIPE BRKT
ASM PART: A = 8-98022-001-1, B = 8-98022-003-1 		8-97182-233-0 01 1 -
282 SCREW; POTENTIO METER
ASM PART: A = 8-98022-001-1, B = 8-98022-003-1 		8-97148-143-0 02 1 -
357 BOLT; PLATE,GOV
ASM PART: A = 8-98022-001-1, B = 8-98022-003-1 		8-94174-987-0 01 1 -
415 BOLT; BRKT TO HOUSING
(A) ASM PART: A = 8-98022-001-1, B = 8-98022-003-1 		8-94313-203-0 02 1 -
415 BOLT; BRKT TO HOUSING
(B) ASM PART: A = 8-98022-001-1, B = 8-98022-003-1 		8-97020-720-0 01 1 -
463 BOOT; POTENTIO METER
ASM PART: A = 8-98022-001-1, B = 8-98022-003-1 		8-97148-144-0 01 1 -
464 JOINT; POTENTIO METER
ANGLE=15? ASM PART: A = 8-98022-001-1, B = 8-98022-003-1 		8-97168-229-0 01 1 -
464 JOINT; POTENTIO METER
ANGLE=30? ASM PART: A = 8-98022-001-1, B = 8-98022-003-1 		8-97168-230-0 01 1 -
464 JOINT; POTENTIO METER
ANGLE=45? ASM PART: A = 8-98022-001-1, B = 8-98022-003-1 		8-97168-231-0 01 1 -
464 JOINT; POTENTIO METER
ANGLE=60? ASM PART: A = 8-98022-001-1, B = 8-98022-003-1 		8-97168-232-0 01 1 -
464 JOINT; POTENTIO METER
ANGLE=75? ASM PART: A = 8-98022-001-1, B = 8-98022-003-1 		8-97168-233-0 01 1 -
464 JOINT; POTENTIO METER
ANGLE=52.5? ASM PART: A = 8-98022-001-1, B = 8-98022-003-1 		8-97168-234-0 01 1 -
464 JOINT; POTENTIO METER
ANGLE=48.5? ASM PART: A = 8-98022-001-1, B = 8-98022-003-1 		8-97168-235-0 01 1 -
464 JOINT; POTENTIO METER
ANGLE=37.5? ASM PART: A = 8-98022-001-1, B = 8-98022-003-1 		8-97168-236-0 01 1 -
464 JOINT; POTENTIO METER
ANGLE=90? ASM PART: A = 8-98022-001-1, B = 8-98022-003-1 		8-97214-514-0 01 1 -
464 JOINT; POTENTIO METER
ANGLE=105? ASM PART: A = 8-98022-001-1, B = 8-98022-003-1 		8-97214-515-0 01 1 -
464 JOINT; POTENTIO METER
ANGLE=120? ASM PART: A = 8-98022-001-1, B = 8-98022-003-1 		8-97214-516-0 01 1 -
464 JOINT; POTENTIO METER
ANGLE=135? ASM PART: A = 8-98022-001-1, B = 8-98022-003-1 		8-97214-517-0 01 1 -
464 JOINT; POTENTIO METER
ANGLE=150? ASM PART: A = 8-98022-001-1, B = 8-98022-003-1 		8-97214-518-0 01 1 -
464 JOINT; POTENTIO METER
ANGLE=165? ASM PART: A = 8-98022-001-1, B = 8-98022-003-1 		8-97214-519-0 01 1 -
464 JOINT; POTENTIO METER
ANGLE=0? ASM PART: A = 8-98022-001-1, B = 8-98022-003-1 		8-97214-520-0 01 1 -
464 JOINT; POTENTIO METER
ANGLE=7.5? ASM PART: A = 8-98022-001-1, B = 8-98022-003-1 		8-97368-271-0 01 1 -
475 DAMPER; GOVERNOR
ASM PART: A = 8-98022-001-1, B = 8-98022-003-1 		8-97214-483-0 01 1 -
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
