◀ 🏠 ▶ Isuzu WW ▶ AUV ▶ TBR ▶ 51134 - TBR-PICKUP INDONESIA ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-80 - INJECTION PUMP ▶
0-80 — INJECTION PUMP (#95602) — 138 parça

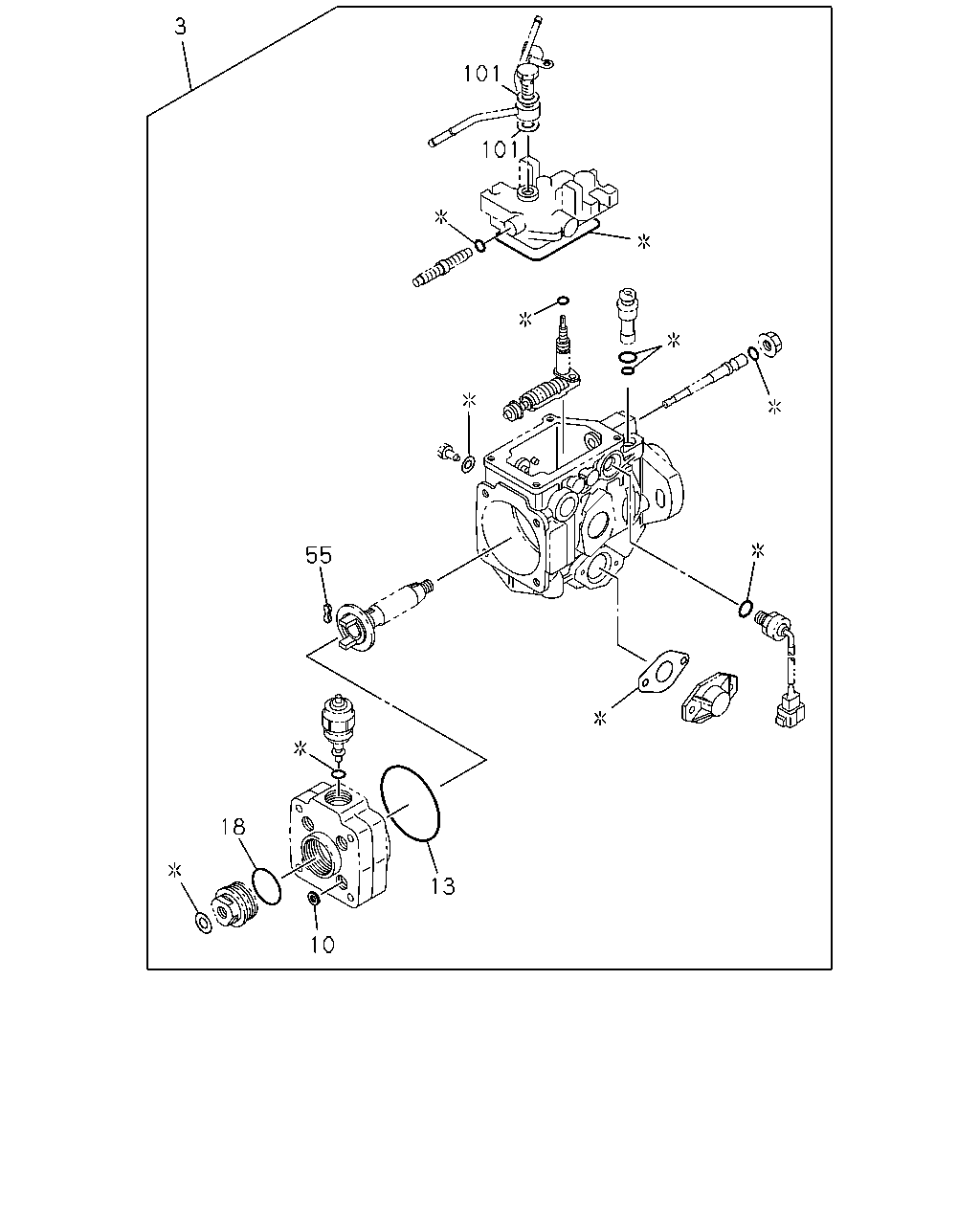

çizim 289514
3 101 101 55 18 10 13
BalonParca AdiParca NoAdetTipApplied Date
3 REPAIR KIT; FUEL INJ PUMP
ASM PART: A = 8-98022-001-1, B = 8-98022-003-1 		8-97383-766-0 01 1 -
10 GASKET; DELIVERY VLV,INJ PUMP
ASM PART: A = 8-98022-001-1, B = 8-98022-003-1 		8-94247-716-0 04 1 -
13 GASKET; DISTR HD,INJ PUMP
ASM PART: A = 8-98022-001-1, B = 8-98022-003-1 		8-94227-527-0 01 1 -
18 GASKET; DISTR PLUG,INJ PUMP
ASM PART: A = 8-98022-001-1, B = 8-98022-003-1 		8-94227-637-0 01 1 -
55 DAMPER; CAM DRIVE,INJ PUMP
ASM PART: A = 8-98022-001-1, B = 8-98022-003-1 		8-94169-528-0 02 1 -
101 GASKET; OVERFLOW VLV,INJ PUMP
ASM PART: A = 8-98022-001-1, B = 8-98022-003-1 		8-97249-545-0 02 1 -

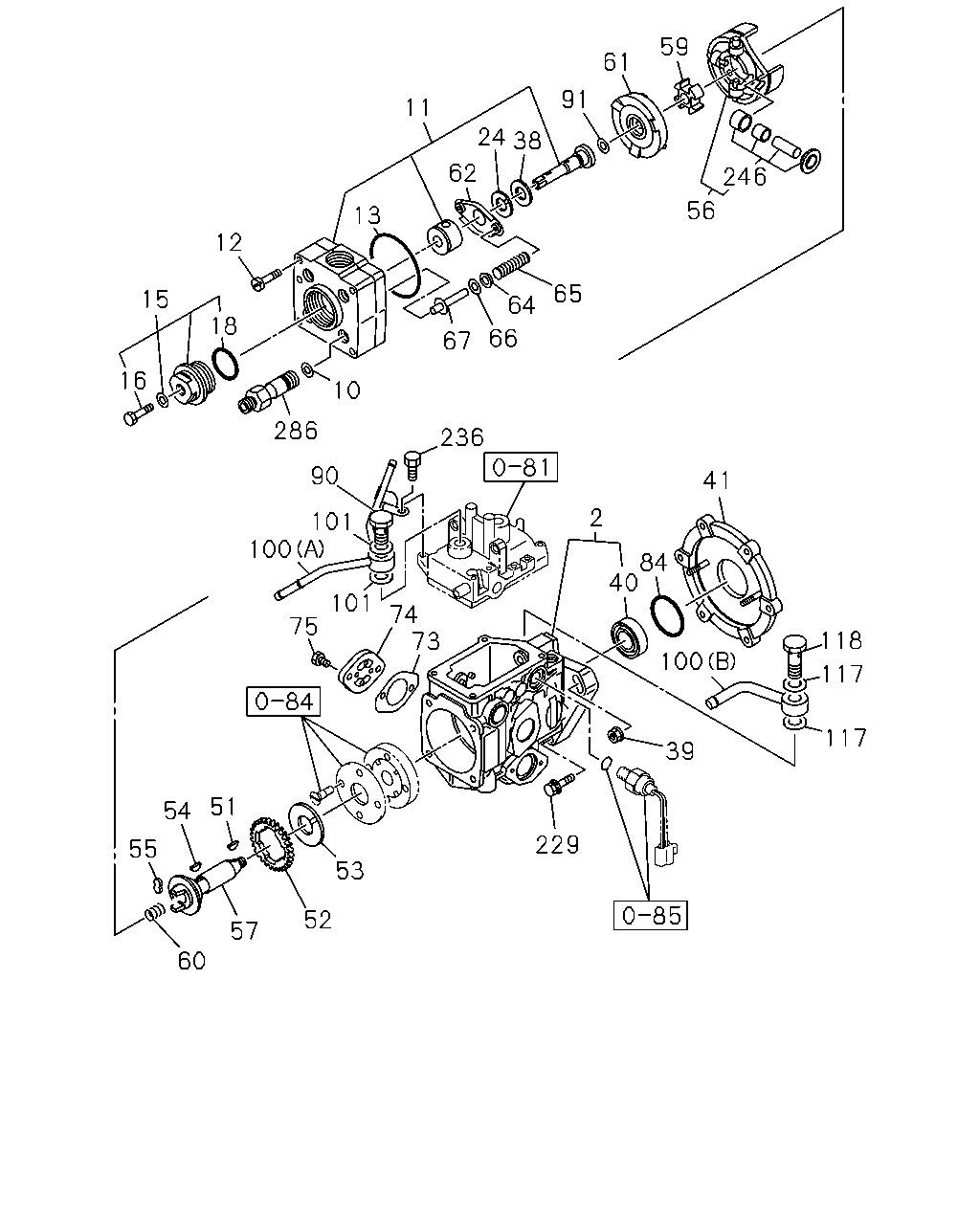

çizim 289515
16 18 15 12 13 11 62 24 38 91 61 59 246 56 65 64 66 67 10 286 90 101 100 75 101 74 73 51 54 55 60 57 52 53 229 39 117 117 118 100 40 84 41 2 236
BalonParca AdiParca NoAdetTipApplied Date
2 HOUSING ASM; PUMP,FUEL INJ
ASM PART: A = 8-98022-001-1, B = 8-98022-003-1 		8-97322-859-0 01 1 -
10 GASKET; DELIVERY VLV,INJ PUMP
ASM PART: A = 8-98022-001-1, B = 8-98022-003-1 		8-94247-716-0 04 1 -
11 HEAD ASM; DISTR,INJ PUMP
ASM PART: A = 8-98022-001-1, B = 8-98022-003-1 		8-97322-852-0 01 1 -
12 SCREW; DISTR HD,INJ PUMP
ASM PART: A = 8-98022-001-1, B = 8-98022-003-1 		8-94257-670-0 04 1 -
13 GASKET; DISTR HD,INJ PUMP
ASM PART: A = 8-98022-001-1, B = 8-98022-003-1 		8-94227-527-0 01 1 -
15 PLUG ASM; DISTR,INJ PUMP
ASM PART: A = 8-98022-001-1, B = 8-98022-003-1 		8-97231-942-0 01 1 -
16 BOLT; DISTR PLUG,INJ PUMP
ASM PART: A = 8-98022-001-1, B = 8-98022-003-1 		8-97224-536-0 01 1 -
18 GASKET; DISTR PLUG,INJ PUMP
ASM PART: A = 8-98022-001-1, B = 8-98022-003-1 		8-94227-637-0 01 1 -
24 WASHER; PLUNGER,INJ PUMP
ASM PART: A = 8-98022-001-1, B = 8-98022-003-1 		8-94227-515-0 01 1 -
38 SHIM; PLUNGER BARREL,INJ PUMP
ASM PART: A = 8-98022-001-1, B = 8-98022-003-1 		8-94227-514-0 01 1 -
39 NUT; MTG BRKT FIX
ASM PART: A = 8-98022-001-1, B = 8-98022-003-1 		8-97119-344-0 02 1 -
40 SEAL; OIL,CM/SHF FRT,INJ PUMP
ASM PART: A = 8-98022-001-1, B = 8-98022-003-1 		8-97147-034-0 01 1 -
41 BRACKET; INJ PUMP HSG
ASM PART: A = 8-98022-001-1, B = 8-98022-003-1 		8-97214-512-1 01 1 -
51 KEY; DRIVE GEAR,INJ PUMP
ASM PART: A = 8-98022-001-1, B = 8-98022-003-1 		8-94239-370-0 01 1 -
52 GEAR; GOV DRIVE,INJ PUMP
ASM PART: A = 8-98022-001-1, B = 8-98022-003-1 		8-94227-483-0 01 1 -
53 WASHER; GOV DRIVE GEAR,INJ PUMP
ASM PART: A = 8-98022-001-1, B = 8-98022-003-1 		8-94317-488-0 01 1 -
54 KEY; FEED PUMP,INJ PUMP
ASM PART: A = 8-98022-001-1, B = 8-98022-003-1 		8-94227-481-0 01 1 -
55 DAMPER; CAM DRIVE,INJ PUMP
ASM PART: A = 8-98022-001-1, B = 8-98022-003-1 		8-94169-528-0 02 1 -
56 ROLLER ASM; TIMER,INJ PUMP
ASM PART: A = 8-98022-001-1, B = 8-98022-003-1 		8-97224-529-0 01 1 -
57 SHAFT; DRIVE,INJ PUMP
ASM PART: A = 8-98022-001-1, B = 8-98022-003-1 		8-97217-211-0 01 1 -
59 DISC; DRIVE,INJ PUMP
ASM PART: A = 8-98022-001-1, B = 8-98022-003-1 		8-97144-349-1 01 1 -
60 SPRING; DRIVE DISC,INJ PUMP
ASM PART: A = 8-98022-001-1, B = 8-98022-003-1 		8-97214-524-0 01 1 -
61 CAM; DISC,PLUNGER,INJ PUMP
ASM PART: A = 8-98022-001-1, B = 8-98022-003-1 		8-97322-847-0 01 1 -
62 SEAT; PLUNGER SPRING,INJ PUMP
ASM PART: A = 8-98022-001-1, B = 8-98022-003-1 		8-94227-516-1 01 1 -
64 SEAT; PLUNGER SPRING LWR,INJ PUMP
ASM PART: A = 8-98022-001-1, B = 8-98022-003-1 		8-94227-517-0 02 1 -
65 SPRING KIT; PLUNGER,INJ PUMP
ASM PART: A = 8-98022-001-1, B = 8-98022-003-1 		8-97214-522-0 01 1 -
66 SHIM; PLUNGER SPRING,INJ PUMP
T=0.50 ASM PART: A = 8-98022-001-1, B = 8-98022-003-1 		8-94227-518-0 AR 1 -
66 SHIM; PLUNGER SPRING,INJ PUMP
T=0.80 ASM PART: A = 8-98022-001-1, B = 8-98022-003-1 		8-94227-519-0 AR 1 -
66 SHIM; PLUNGER SPRING,INJ PUMP
T=1.00 ASM PART: A = 8-98022-001-1, B = 8-98022-003-1 		8-94227-520-0 AR 1 -
66 SHIM; PLUNGER SPRING,INJ PUMP
T=1.20 ASM PART: A = 8-98022-001-1, B = 8-98022-003-1 		8-94227-521-0 AR 1 -
66 SHIM; PLUNGER SPRING,INJ PUMP
T=1.50 ASM PART: A = 8-98022-001-1, B = 8-98022-003-1 		8-94227-522-0 AR 1 -
66 SHIM; PLUNGER SPRING,INJ PUMP
T=1.80 ASM PART: A = 8-98022-001-1, B = 8-98022-003-1 		8-94227-523-0 AR 1 -
66 SHIM; PLUNGER SPRING,INJ PUMP
T=2.00 ASM PART: A = 8-98022-001-1, B = 8-98022-003-1 		8-94227-524-0 AR 1 -
66 SHIM; PLUNGER SPRING,INJ PUMP
T=0.90 ASM PART: A = 8-98022-001-1, B = 8-98022-003-1 		8-94433-204-0 AR 1 -
66 SHIM; PLUNGER SPRING,INJ PUMP
T=1.10 ASM PART: A = 8-98022-001-1, B = 8-98022-003-1 		8-94433-205-0 AR 1 -
66 SHIM; PLUNGER SPRING,INJ PUMP
T=1.30 ASM PART: A = 8-98022-001-1, B = 8-98022-003-1 		8-94433-206-0 AR 1 -
66 SHIM; PLUNGER SPRING,INJ PUMP
T=1.40 ASM PART: A = 8-98022-001-1, B = 8-98022-003-1 		8-94433-207-0 AR 1 -
66 SHIM; PLUNGER SPRING,INJ PUMP
T=1.60 ASM PART: A = 8-98022-001-1, B = 8-98022-003-1 		8-94433-208-0 AR 1 -
66 SHIM; PLUNGER SPRING,INJ PUMP
T=1.70 ASM PART: A = 8-98022-001-1, B = 8-98022-003-1 		8-94433-209-0 AR 1 -
66 SHIM; PLUNGER SPRING,INJ PUMP
T=0.40 ASM PART: A = 8-98022-001-1, B = 8-98022-003-1 		8-97146-139-0 AR 1 -
66 SHIM; PLUNGER SPRING,INJ PUMP
T=0.60 ASM PART: A = 8-98022-001-1, B = 8-98022-003-1 		8-97146-140-0 AR 1 -
66 SHIM; PLUNGER SPRING,INJ PUMP
T=0.70 ASM PART: A = 8-98022-001-1, B = 8-98022-003-1 		8-97146-141-0 AR 1 -
66 SHIM; PLUNGER SPRING,INJ PUMP
T=1.90 ASM PART: A = 8-98022-001-1, B = 8-98022-003-1 		8-97146-142-0 AR 1 -
66 SHIM; PLUNGER SPRING,INJ PUMP
T=2.10 ASM PART: A = 8-98022-001-1, B = 8-98022-003-1 		8-97189-360-0 AR 1 -
66 SHIM; PLUNGER SPRING,INJ PUMP
T=2.20 ASM PART: A = 8-98022-001-1, B = 8-98022-003-1 		8-97189-361-0 AR 1 -
66 SHIM; PLUNGER SPRING,INJ PUMP
T=2.30 ASM PART: A = 8-98022-001-1, B = 8-98022-003-1 		8-97189-362-0 AR 1 -
66 SHIM; PLUNGER SPRING,INJ PUMP
T=2.40 ASM PART: A = 8-98022-001-1, B = 8-98022-003-1 		8-97189-363-0 AR 1 -
66 SHIM; PLUNGER SPRING,INJ PUMP
T=2.50 ASM PART: A = 8-98022-001-1, B = 8-98022-003-1 		8-97189-364-0 AR 1 -
66 SHIM; PLUNGER SPRING,INJ PUMP
T=2.60 ASM PART: A = 8-98022-001-1, B = 8-98022-003-1 		8-97189-365-0 AR 1 -
66 SHIM; PLUNGER SPRING,INJ PUMP
T=2.70 ASM PART: A = 8-98022-001-1, B = 8-98022-003-1 		8-97189-366-0 AR 1 -
66 SHIM; PLUNGER SPRING,INJ PUMP
T=2.80 ASM PART: A = 8-98022-001-1, B = 8-98022-003-1 		8-97189-367-0 AR 1 -
66 SHIM; PLUNGER SPRING,INJ PUMP
T=2.90 ASM PART: A = 8-98022-001-1, B = 8-98022-003-1 		8-97189-368-0 AR 1 -
66 SHIM; PLUNGER SPRING,INJ PUMP
T=3.00 ASM PART: A = 8-98022-001-1, B = 8-98022-003-1 		8-97189-369-0 AR 1 -
66 SHIM; PLUNGER SPRING,INJ PUMP
T=3.10 ASM PART: A = 8-98022-001-1, B = 8-98022-003-1 		8-97189-370-0 AR 1 -
66 SHIM; PLUNGER SPRING,INJ PUMP
T=3.20 ASM PART: A = 8-98022-001-1, B = 8-98022-003-1 		8-97189-371-0 AR 1 -
66 SHIM; PLUNGER SPRING,INJ PUMP
T=3.30 ASM PART: A = 8-98022-001-1, B = 8-98022-003-1 		8-97189-372-0 AR 1 -
66 SHIM; PLUNGER SPRING,INJ PUMP
T=3.40 ASM PART: A = 8-98022-001-1, B = 8-98022-003-1 		8-97189-373-0 AR 1 -
66 SHIM; PLUNGER SPRING,INJ PUMP
T=0.20 ASM PART: A = 8-98022-001-1, B = 8-98022-003-1 		8-97189-374-0 AR 1 -
67 PIN; GUIDE,PLUNGER SPRING
ASM PART: A = 8-98022-001-1, B = 8-98022-003-1 		8-97328-703-0 02 1 -
73 GASKET; COVER TO HSG
ASM PART: A = 8-98022-001-1, B = 8-98022-003-1 		8-97383-765-0 01 1 -
74 COVER; HSG,INJ PUMP
ASM PART: A = 8-98022-001-1, B = 8-98022-003-1 		8-97231-934-0 01 1 -
75 SCREW; COVER TO HSG
ASM PART: A = 8-98022-001-1, B = 8-98022-003-1 		8-97231-933-0 02 1 -
84 GASKET; BRKT TO HSG
ID=52.6 ASM PART: A = 8-98022-001-1, B = 8-98022-003-1 		9-09561-353-0 01 1 -
90 VALVE; OVERFLOW,INJ PUMP
ASM PART: A = 8-98022-001-1, B = 8-98022-003-1 		8-97214-509-0 01 1 -
91 SHIM; PLUNGER,INJ PUMP
T=1.74 ASM PART: A = 8-98022-001-1, B = 8-98022-003-1 		8-94111-658-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=1.76 ASM PART: A = 8-98022-001-1, B = 8-98022-003-1 		8-94111-659-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=1.78 ASM PART: A = 8-98022-001-1, B = 8-98022-003-1 		8-94111-660-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=1.80 ASM PART: A = 8-98022-001-1, B = 8-98022-003-1 		8-94111-661-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=1.82 ASM PART: A = 8-98022-001-1, B = 8-98022-003-1 		8-94111-662-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=1.84 ASM PART: A = 8-98022-001-1, B = 8-98022-003-1 		8-94111-663-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=1.86 ASM PART: A = 8-98022-001-1, B = 8-98022-003-1 		8-94111-664-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=1.88 ASM PART: A = 8-98022-001-1, B = 8-98022-003-1 		8-94111-665-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=1.90 ASM PART: A = 8-98022-001-1, B = 8-98022-003-1 		8-94227-528-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=1.92 ASM PART: A = 8-98022-001-1, B = 8-98022-003-1 		8-94227-529-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=1.94 ASM PART: A = 8-98022-001-1, B = 8-98022-003-1 		8-94227-530-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=1.96 ASM PART: A = 8-98022-001-1, B = 8-98022-003-1 		8-94227-531-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=1.98 ASM PART: A = 8-98022-001-1, B = 8-98022-003-1 		8-94227-532-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.00 ASM PART: A = 8-98022-001-1, B = 8-98022-003-1 		8-94227-533-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.02 ASM PART: A = 8-98022-001-1, B = 8-98022-003-1 		8-94227-534-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.04 ASM PART: A = 8-98022-001-1, B = 8-98022-003-1 		8-94227-535-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.06 ASM PART: A = 8-98022-001-1, B = 8-98022-003-1 		8-94227-536-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.08 ASM PART: A = 8-98022-001-1, B = 8-98022-003-1 		8-94227-537-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.10 ASM PART: A = 8-98022-001-1, B = 8-98022-003-1 		8-94227-538-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.12 ASM PART: A = 8-98022-001-1, B = 8-98022-003-1 		8-94227-539-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.14 ASM PART: A = 8-98022-001-1, B = 8-98022-003-1 		8-94227-540-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.16 ASM PART: A = 8-98022-001-1, B = 8-98022-003-1 		8-94227-541-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.18 ASM PART: A = 8-98022-001-1, B = 8-98022-003-1 		8-94227-542-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.20 ASM PART: A = 8-98022-001-1, B = 8-98022-003-1 		8-94227-543-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.22 ASM PART: A = 8-98022-001-1, B = 8-98022-003-1 		8-94227-544-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.24 ASM PART: A = 8-98022-001-1, B = 8-98022-003-1 		8-94227-545-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.26 ASM PART: A = 8-98022-001-1, B = 8-98022-003-1 		8-94227-546-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.28 ASM PART: A = 8-98022-001-1, B = 8-98022-003-1 		8-94227-547-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.30 ASM PART: A = 8-98022-001-1, B = 8-98022-003-1 		8-94227-548-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.32 ASM PART: A = 8-98022-001-1, B = 8-98022-003-1 		8-94227-549-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.34 ASM PART: A = 8-98022-001-1, B = 8-98022-003-1 		8-94227-550-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.36 ASM PART: A = 8-98022-001-1, B = 8-98022-003-1 		8-94227-551-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.38 ASM PART: A = 8-98022-001-1, B = 8-98022-003-1 		8-94227-552-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.40 ASM PART: A = 8-98022-001-1, B = 8-98022-003-1 		8-94227-553-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.42 ASM PART: A = 8-98022-001-1, B = 8-98022-003-1 		8-94227-554-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.44 ASM PART: A = 8-98022-001-1, B = 8-98022-003-1 		8-94227-555-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.46 ASM PART: A = 8-98022-001-1, B = 8-98022-003-1 		8-94227-556-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.48 ASM PART: A = 8-98022-001-1, B = 8-98022-003-1 		8-94227-557-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.50 ASM PART: A = 8-98022-001-1, B = 8-98022-003-1 		8-94227-558-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.52 ASM PART: A = 8-98022-001-1, B = 8-98022-003-1 		8-94227-559-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.54 ASM PART: A = 8-98022-001-1, B = 8-98022-003-1 		8-94227-560-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.56 ASM PART: A = 8-98022-001-1, B = 8-98022-003-1 		8-94227-561-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.58 ASM PART: A = 8-98022-001-1, B = 8-98022-003-1 		8-94227-562-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.60 ASM PART: A = 8-98022-001-1, B = 8-98022-003-1 		8-94227-563-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.62 ASM PART: A = 8-98022-001-1, B = 8-98022-003-1 		8-94227-564-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.64 ASM PART: A = 8-98022-001-1, B = 8-98022-003-1 		8-94227-565-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.66 ASM PART: A = 8-98022-001-1, B = 8-98022-003-1 		8-94227-566-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.68 ASM PART: A = 8-98022-001-1, B = 8-98022-003-1 		8-94227-567-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.70 ASM PART: A = 8-98022-001-1, B = 8-98022-003-1 		8-94227-568-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.72 ASM PART: A = 8-98022-001-1, B = 8-98022-003-1 		8-94227-569-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.74 ASM PART: A = 8-98022-001-1, B = 8-98022-003-1 		8-94227-570-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.76 ASM PART: A = 8-98022-001-1, B = 8-98022-003-1 		8-94227-571-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.78 ASM PART: A = 8-98022-001-1, B = 8-98022-003-1 		8-94227-572-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.80 ASM PART: A = 8-98022-001-1, B = 8-98022-003-1 		8-94227-573-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.82 ASM PART: A = 8-98022-001-1, B = 8-98022-003-1 		8-94227-574-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.84 ASM PART: A = 8-98022-001-1, B = 8-98022-003-1 		8-94227-575-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.86 ASM PART: A = 8-98022-001-1, B = 8-98022-003-1 		8-94227-576-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.88 ASM PART: A = 8-98022-001-1, B = 8-98022-003-1 		8-94227-577-0 AR 1 -
91 SHIM; PLUNGER,INJ PUMP
T=2.90 ASM PART: A = 8-98022-001-1, B = 8-98022-003-1 		8-94227-578-0 AR 1 -
100 PIPE; FUEL INJ PUMP
(A) ASM PART: A = 8-98022-001-1, B = 8-98022-003-1 		8-97328-708-0 01 1 -
100 PIPE; FUEL INJ PUMP
(B) ASM PART: A = 8-98022-001-1, B = 8-98022-003-1 		8-98050-936-0 01 1 -
101 GASKET; OVERFLOW VLV,INJ PUMP
ASM PART: A = 8-98022-001-1, B = 8-98022-003-1 		8-97249-545-0 02 1 -
117 GASKET; EYE BOLT,INJ PUMP
ASM PART: A = 8-98022-001-1, B = 8-98022-003-1 		8-97249-545-0 02 1 -
118 BOLT; EYE,FUEL INL,INJ PUMP
ASM PART: A = 8-98022-001-1, B = 8-98022-003-1 		8-97202-330-0 01 1 -
229 BOLT; BRKT
ASM PART: A = 8-98022-001-1, B = 8-98022-003-1 		8-97049-904-0 01 1 -
236 BOLT; PIPE
ASM PART: B = 8-98022-003-1 		8-97094-111-0 01 1 -
246 ROLLER KIT; INJ PUMP
ASM PART: A = 8-98022-001-1, B = 8-98022-003-1 		8-97218-980-0 01 1 -
286 VALVE; PRESSURE,CONT
ASM PART: A = 8-98022-001-1, B = 8-98022-003-1 		8-97227-581-1 04 1 -
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
