0-65 — STARTER (#95600) — 24 parça

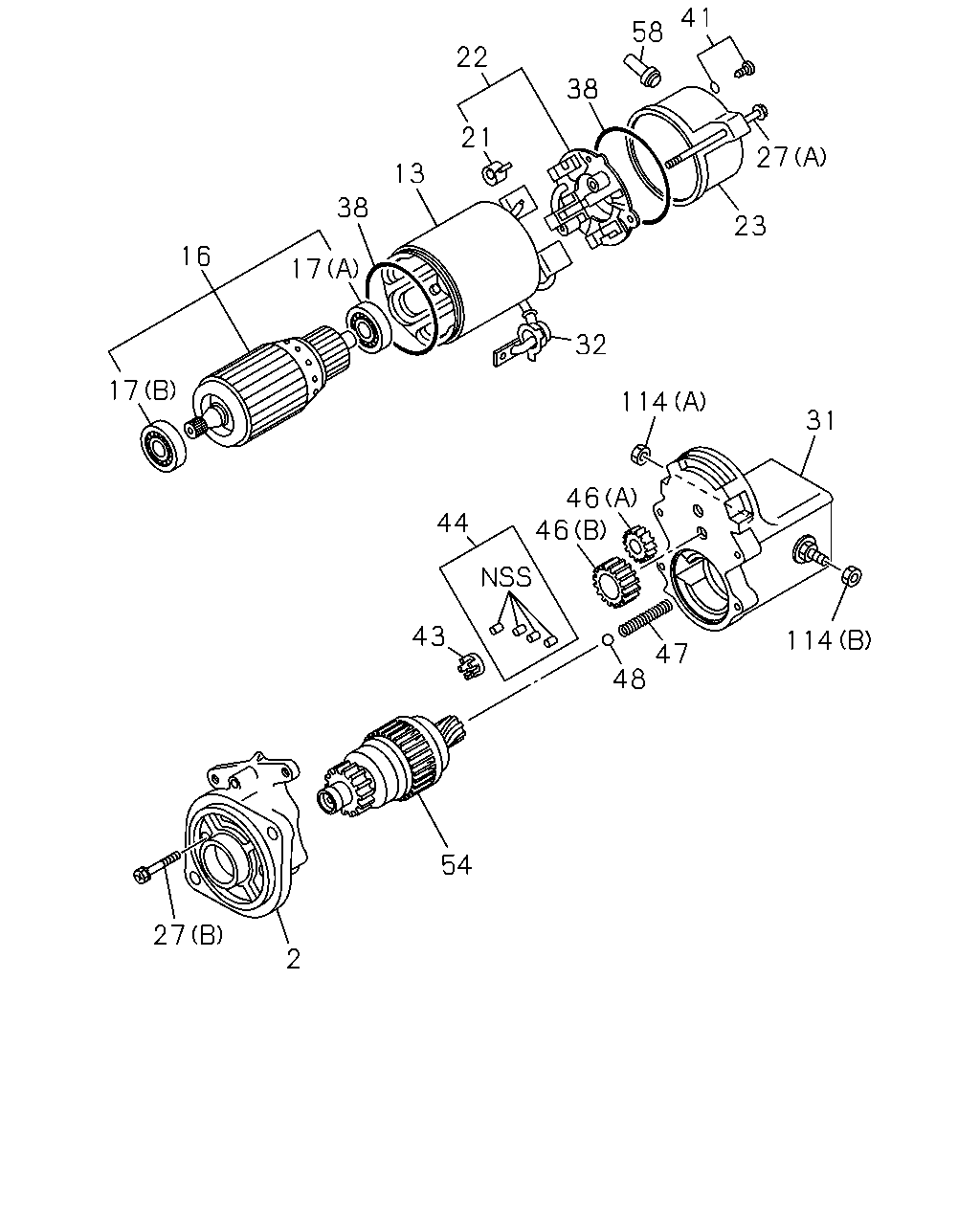

çizim 288172
114 47 48 43 44 46 46 114 31 32 23 27 41 58 38 22 21 13 38 17 16 17 27 2 54
BalonParca AdiParca NoAdetTipApplied Date
2 CASE; PINION,STARTER
IDN ASM PART: A = 8-97957-512-0 		8-97941-441-0 01 1 -
13 YOKE; STARTER
IDN ASM PART: A = 8-97957-512-0 		8-97941-438-0 01 1 -
16 ARMATURE; STARTER
IDN ASM PART: A = 8-97957-512-0 		8-97941-439-0 01 1 -
17 BEARING; ARMATURE,STARTER
(A), IDN ASM PART: A = 8-97957-512-0 		8-97941-448-0 01 1 -
17 BEARING; ARMATURE,STARTER
(B), IDN ASM PART: A = 8-97957-512-0 		8-97941-449-0 01 1 -
21 SPRING; BRUSH HOLDER STARTER
IDN ASM PART: A = 8-97957-512-0 		8-97112-880-0 04 1 -
22 HOLDER; BRUSH STARTER
IDN ASM PART: A = 8-97957-512-0 		8-97941-443-0 01 1 -
23 COVER; RR COVER STARTER
IDN ASM PART: A = 8-97957-512-0 		8-97941-444-0 01 1 -
27 BOLT; THROUGH,STARTER
(A), IDN ASM PART: A = 8-97957-512-0 		8-97941-451-0 02 1 -
27 BOLT; THROUGH,STARTER
(B), IDN ASM PART: A = 8-97957-512-0 		8-97941-454-0 02 1 -
31 SWITCH; ENGAGE STARTER
IDN ASM PART: A = 8-97957-512-0 		8-94941-442-0 01 1 -
32 COVER; RUBBER,STARTER
IDN ASM PART: A = 8-97957-512-0 		5-81119-029-0 01 1 -
38 GASKET; RR COVER,STARTER
IDN ASM PART: A = 8-97957-512-0 		8-97941-450-0 02 1 -
41 SCREW; RR COVER,STARTER
IDN ASM PART: A = 8-97957-512-0 		8-97941-452-0 02 1 -
43 RETAINER; PINION STARTER
IDN ASM PART: A = 8-97957-512-0 		8-94377-246-0 01 1 -
44 ROLLER; PINION STARTER
IDN ASM PART: A = 8-97957-512-0 		5-81129-099-0 05 1 -
46 GEAR; CLU STARTER
(A), IDN ASM PART: A = 8-97957-512-0 		8-97142-904-0 01 1 -
46 GEAR; CLU STARTER
(B), IDN ASM PART: A = 8-97957-512-0 		8-97941-445-0 01 1 -
47 SPRING; PINION STARTER
IDN ASM PART: A = 8-97957-512-0 		8-97941-447-0 01 1 -
48 BALL; PINION,STARTER
IDN ASM PART: A = 8-97957-512-0 		8-97941-446-0 01 1 -
54 CLUTCH; PINION,STARTER
IDN ASM PART: A = 8-97957-512-0 		8-97941-440-0 01 1 -
58 PIPE; DRAIN RR COVER STARTER
IDN ASM PART: A = 8-97957-512-0 		8-97041-421-0 01 1 -
114 NUT; TERMINAL
(A), IDN ASM PART: A = 8-97957-512-0 		8-94377-238-0 01 1 -
114 NUT; TERMINAL
(B), IDN ASM PART: A = 8-97957-512-0 		8-97941-453-0 01 1 -
