3-75 — BRAKE PIPING; AIR,FRONT (#9560) — 147 parça

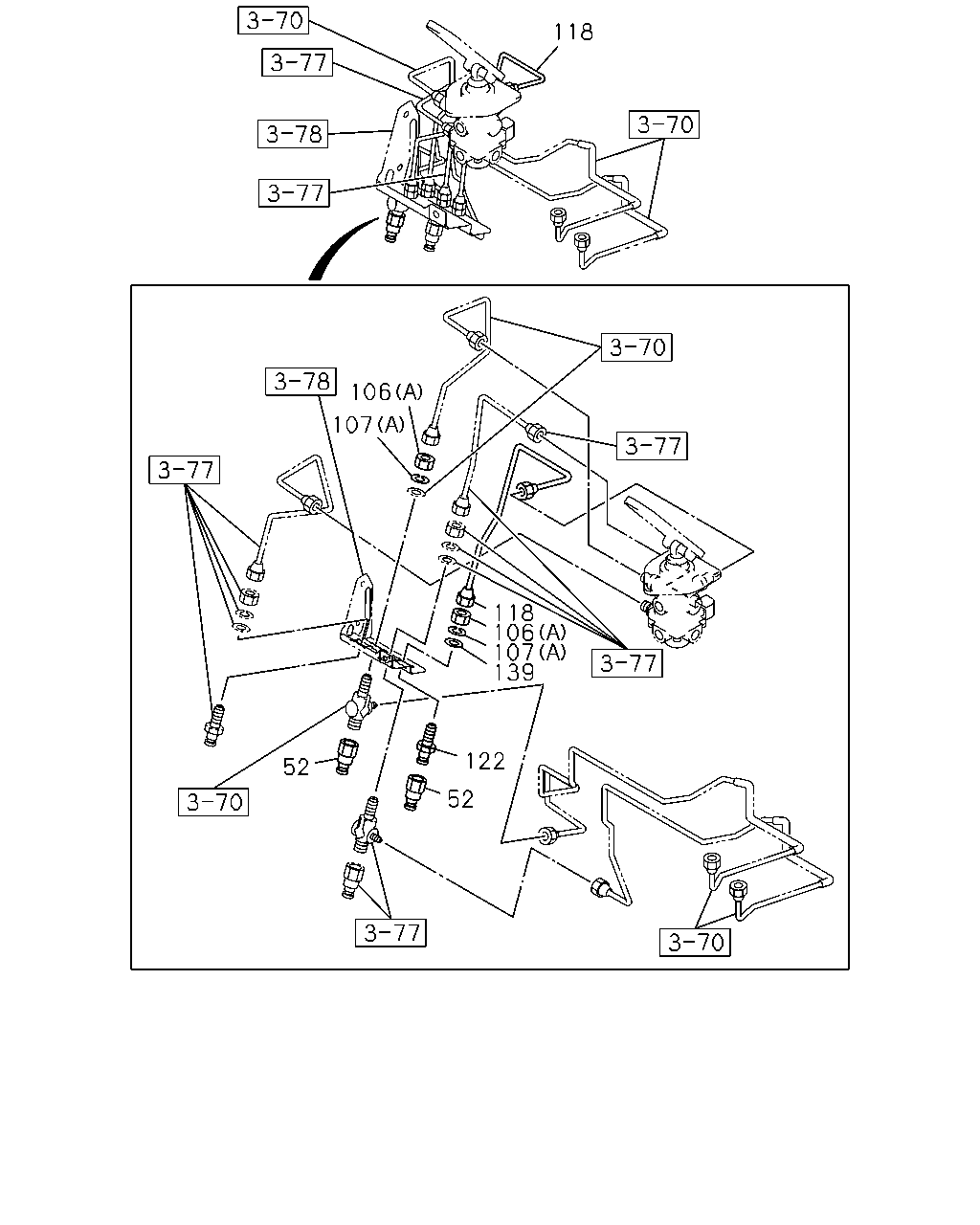

çizim 40388
118 106 107 118 106 107 139 122 52 52
BalonParca AdiParca NoAdetTipApplied Date A B
52 CONNECTOR; NYLON TUBE
DIN12 & M16 STRAIGHT 		1-09660-876-0 02 1 0005- ● ●
106 NUT; FLEX HOSE
(A) M16 		9-99111-416-0 02 1 0005-0512 ● ●
106 NUT; FLEX HOSE
(A) M16 		9-99111-416-0 02 1 0005-0512 ● ●
106 NUT; FLEX HOSE
(A) M16 		0-91111-516-0 02 1 0601- ● ●
106 NUT; FLEX HOSE
(A) M16 		0-91111-516-0 02 1 0601- ● ●
106 NUT; FLEX HOSE
(B) M20 		9-99111-420-0 01 1 0005-0512 ● ●
106 NUT; FLEX HOSE
(B) M20 		0-91111-520-0 01 1 0601- ● ●
107 WASHER; LK,FLEX HOSE
(A) ID=16.2 		9-09150-516-0 02 1 0005-0603 ● ●
107 WASHER; LK,FLEX HOSE
(A) ID=16.2 		9-09150-516-0 02 1 0005-0603 ● ●
107 WASHER; LK,FLEX HOSE
(A) ID=16.2 		0-91510-516-0 02 1 0604- ● ●
107 WASHER; LK,FLEX HOSE
(A) ID=16.2 		0-91510-516-0 02 1 0604- ● ●
107 WASHER; LK,FLEX HOSE
(B) ID=20.2 		9-09150-520-0 01 1 0005-0603 ● ●
107 WASHER; LK,FLEX HOSE
(B) ID=20.2 		0-91510-520-0 01 1 0604- ● ●
118 PIPE; AIR,BRK VLV TO FLEX HOSE
L=419 		1-49115-942-3 01 1 0005- ● ●
122 CONNECTOR; FLEX HOSE
M16 STRAIGHT 		1-09654-380-0 01 1 0005- ● ●
139 WASHER; PL,CONNECTOR
ID=17 		9-09160-516-0 01 1 0005-0605 ● ●
139 WASHER; PL,CONNECTOR
ID=17 OD=30 		0-91610-516-0 01 1 0606- ● ●

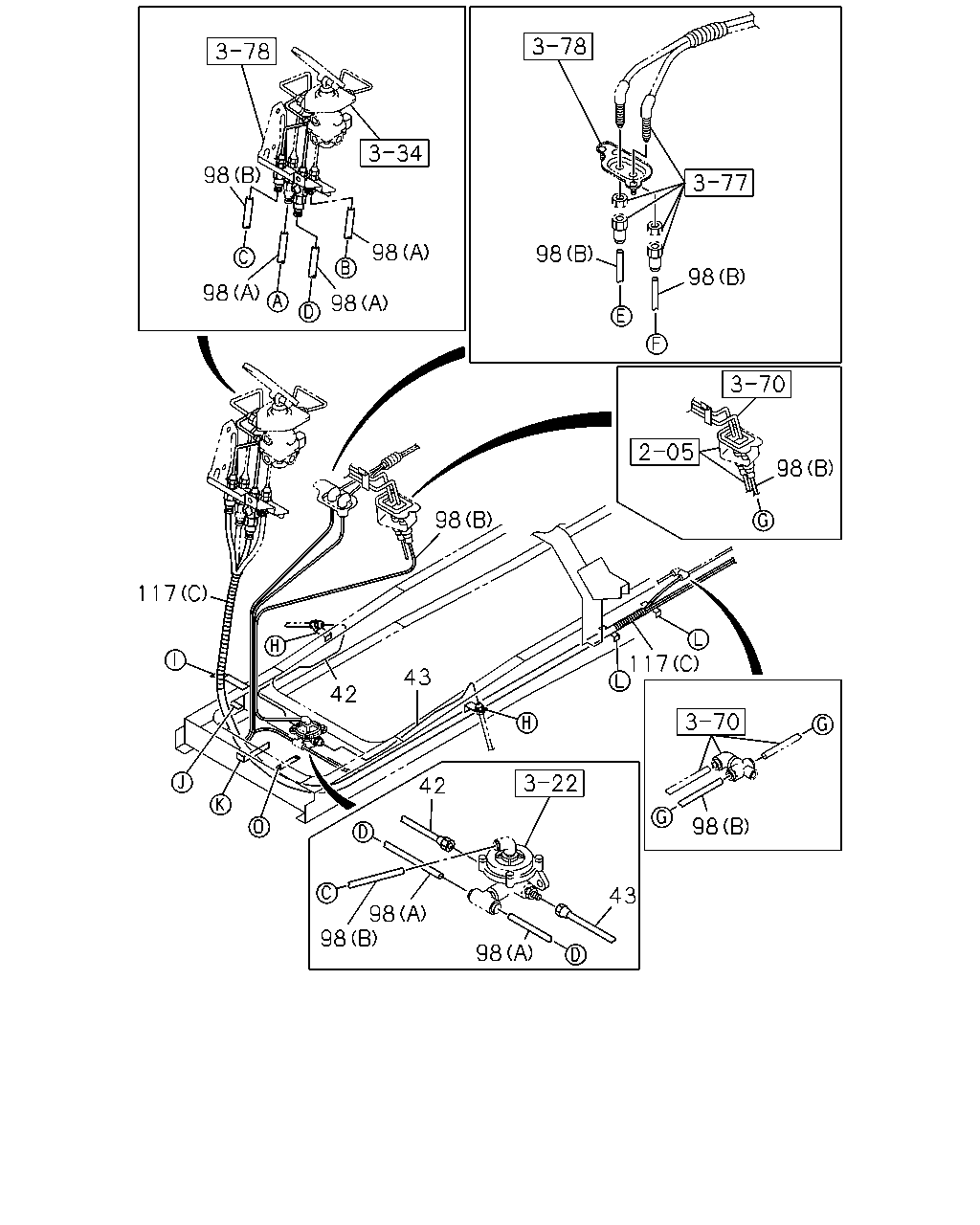

çizim 40460
98 98 98 98 98 98 98 98 117 117 43 42 42 98 43 98 98 98
BalonParca AdiParca NoAdetTipApplied Date A B
42 PIPE; AIR,QUICK RELAY VALVE TO UNION
L=1199 SERVICED BY L=1250 		1-47428-791-0 01 1 0005-0210 ● ●
42 PIPE; AIR,QUICK RELAY VALVE TO UNION
L=1189 SERVICED BY L=1250 		1-47428-791-0 01 1 0211- ● ●
43 PIPE; AIR,RELAY VLV TO FLEX HOSE
L=1174 SERVICED BY L=1250 		1-47428-791-0 01 1 0005-0104 ● ●
43 PIPE; AIR,RELAY VLV TO FLEX HOSE
L=1174 SERVICED BY L=1250 		1-47428-791-0 01 1 0105-0210 ● ●
43 PIPE; AIR,RELAY VLV TO FLEX HOSE
L=1183 SERVICED BY L=1250 		1-47428-791-0 01 1 0211- ● ●
98 TUBE; NYLON
(A) SERVICED BY L=30000 OD=12 		1-09369-544-0 AR 1 0005-0405 ● ●
98 TUBE; NYLON
(B) SERVICED BY L=30000 OD=8 		1-09369-578-0 AR 1 0005-0405 ● ●
98 TUBE; NYLON
(A) SERVICED BY L=6000 OD=12 		1-87410-071-0 AR 1 0005-0210 ● ●
98 TUBE; NYLON
(A) SERVICED BY L=8000 OD=12 		1-87410-072-0 AR 1 0005-0210 ● ●
98 TUBE; NYLON
(B) SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 0005-0405 ● ●
98 TUBE; NYLON
(B) SERVICED BY L=4000 OD=8 		1-87410-074-0 AR 1 0005-0405 ● ●
98 TUBE; NYLON
(B) SERVICED BY L=6000 OD=8 		1-87410-075-0 AR 1 0005-0210 ● ●
98 TUBE; NYLON
(B) SERVICED BY L=8000 OD=8 		1-87410-076-0 AR 1 0005-0511 ● ●
98 TUBE; NYLON
(A) SERVICED BY L=2000 OD=12 		1-87410-069-0 AR 1 0006-0405 ● ●
98 TUBE; NYLON
(A) SERVICED BY L=6000 OD=12 		1-87410-071-0 AR 1 0211-0511 ● ●
98 TUBE; NYLON
(A) SERVICED BY L=8000 OD=12 		1-87410-072-0 AR 1 0211-0405 ● ●
98 TUBE; NYLON
(B) SERVICED BY L=6000 OD=8 		1-87410-075-0 AR 1 0211-0405 ● ●
98 TUBE; NYLON
(B) SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0406- ● ●
98 TUBE; NYLON
(B) SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 0406- ● ●
98 TUBE; NYLON
(B) SERVICED BY L=6000 OD=8 		1-87411-008-0 AR 1 0406- ● ●
98 TUBE; NYLON
(B) SERVICED BY L=12000 OD=8 		1-87411-010-0 AR 1 0406- ● ●
98 TUBE; NYLON
(A) SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0406- ● ●
98 TUBE; NYLON
(A) SERVICED BY L=8000 OD=12 		1-87411-014-0 AR 1 0406- ● ●
98 TUBE; NYLON
(A) SERVICED BY L=12000 OD=12 		1-87411-015-0 AR 1 0406- ● ●
98 TUBE; NYLON
(B) SERVICED BY L=8000 OD=8 		1-87411-009-0 AR 1 0512- ● ●
98 TUBE; NYLON
(B) SERVICED BY L=6000 OD=12 		1-87411-013-0 AR 1 0512- ● ●
117 TUBE; CORRUGATE
(A) SERVICED BY L=2000 ID=10 		1-87410-088-0 AR 1 0005-0405 ● ●
117 TUBE; CORRUGATE
(B) SERVICED BY L=2000 ID=28 		1-87410-098-0 AR 1 0005-0405 ● ●
117 TUBE; CORRUGATE
(C) SERVICED BY L=2000 ID=32 		1-87410-104-0 AR 1 0005-0405 ● ●
117 TUBE; CORRUGATE
(A) SERVICED BY L=2000 ID=10 		1-87411-019-0 AR 1 0406- ● ●
117 TUBE; CORRUGATE
(B) SERVICED BY L=2000 ID=28 		1-87411-033-0 AR 1 0406- ● ●
117 TUBE; CORRUGATE
(C) SERVICED BY L=2000 ID=32 		1-87411-035-0 AR 1 0406- ● ●

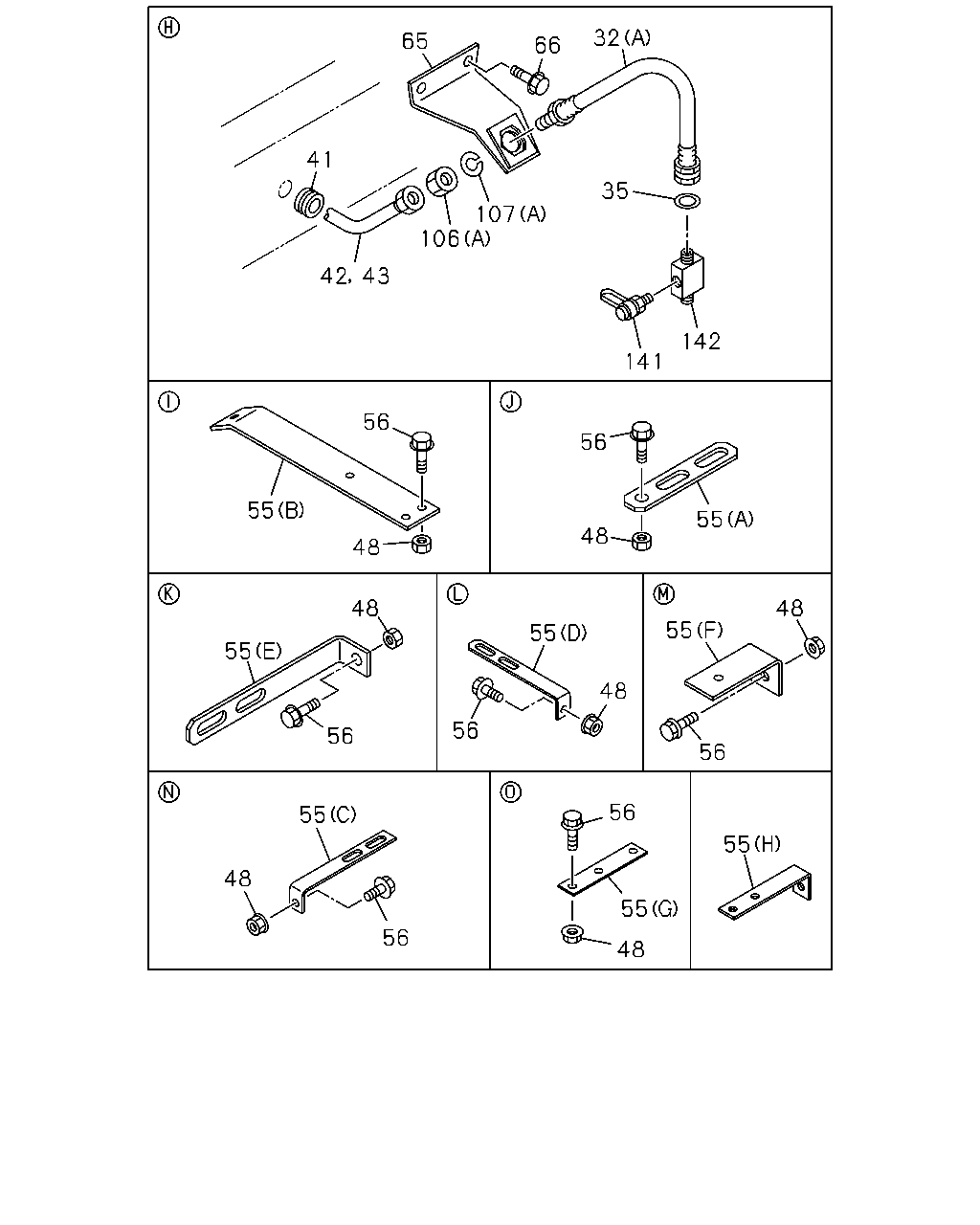

çizim 42424
32 65 66 41 35 107 106 42 43 142 141 56 56 55 55 48 48 48 48 55 55 55 48 56 56 56 56 55 55 48 55 56 48
BalonParca AdiParca NoAdetTipApplied Date A B
32 HOSE; FLEX,FRT
(A) L=520 		0-07475-520-1 02 1 0005-0210 ● ●
32 HOSE; FLEX,FRT
(A) L=630 		0-07475-630-1 02 1 0211-0605 ● ●
32 HOSE; FLEX,FRT
(A) L=630 		0-57475-630-1 02 1 0606- ● ●
32 HOSE; FLEX,FRT
(B) L=720 		0-07807-720-1 01 1 0005-0605 ● ●
32 HOSE; FLEX,FRT
(B) L=720 		0-57807-720-1 01 1 0606- ● ●
35 GASKET; FLEX HOSE
ID=11 OD=18 		9-09572-510-0 02 1 0005- ● ●
41 GROMMET; AIR PIPE
ID=24 OD=30 T=17 		9-09956-092-1 02 1 0005-0210 ● ●
41 GROMMET; AIR PIPE
ID=28 OD=35 T=25 		1-09332-011-1 02 1 0211- ● ●
42 PIPE; AIR,QUICK RELAY VALVE TO UNION
L=1199 SERVICED BY L=1250 		1-47428-791-0 01 1 0005-0210 ● ●
42 PIPE; AIR,QUICK RELAY VALVE TO UNION
L=1189 SERVICED BY L=1250 		1-47428-791-0 01 1 0211- ● ●
43 PIPE; AIR,RELAY VLV TO FLEX HOSE
L=1174 SERVICED BY L=1250 		1-47428-791-0 01 1 0005-0104 ● ●
43 PIPE; AIR,RELAY VLV TO FLEX HOSE
L=1174 SERVICED BY L=1250 		1-47428-791-0 01 1 0105-0210 ● ●
43 PIPE; AIR,RELAY VLV TO FLEX HOSE
L=1183 SERVICED BY L=1250 		1-47428-791-0 01 1 0211- ● ●
48 NUT; UNION BRKT
M8 FLANGE 		0-91150-108-0 09 1 0005-0602 ● ●
48 NUT; UNION BRKT
M8 FLANGE 		0-91180-108-0 09 1 0603- ● ●
48 NUT; UNION BRKT
M8 FLANGE 		0-91150-108-0 01 1 0005-0210 ●
55 BRACKET; TUBE UNION
(B) 		1-47477-256-1 01 1 0005- ● ●
55 BRACKET; TUBE UNION
(A) 		1-47477-514-3 01 1 0005- ● ●
55 BRACKET; TUBE UNION
(C) L=150 H=30 		1-47477-629-2 01 1 0005-0005 ● ●
55 BRACKET; TUBE UNION
(C) L=150 H=30 		1-47477-629-2 01 1 0005-0210 ● ●
55 BRACKET; TUBE UNION
(C) L=150 H=30 		1-47477-629-2 01 1 0005-0210 ●
55 BRACKET; TUBE UNION
(D) L=100 H=30 		1-47477-645-2 03 1 0005-0006 ● ●
55 BRACKET; TUBE UNION
(D) L=100 H=30 		1-47477-645-2 02 1 0007- ● ●
55 BRACKET; TUBE UNION
(E) L=225 		1-47477-646-3 02 1 0005-0210 ● ●
55 BRACKET; TUBE UNION
(E) L=225 		1-47477-646-3 01 1 0211- ● ●
55 BRACKET; TUBE UNION
(G) L=117 		1-47478-116-0 01 1 0005-0210 ● ●
55 BRACKET; TUBE UNION
(C) L=150 H=30 		1-47477-629-2 02 1 0211- ● ●
55 BRACKET; TUBE UNION
(F) L=55 B=25 		1-47478-439-0 01 1 0005- ● ●
55 BRACKET; TUBE UNION
(H) L=59 B=20 		1-47479-048-0 01 1 0007-0210 ● ●
55 BRACKET; TUBE UNION
(H) L=160 B=25 		1-53441-518-0 02 1 0211- ● ●
56 BOLT; UNION BRKT
M8X25 FLANGE 		0-28680-825-0 11 1 0005-0512 ● ●
56 BOLT; UNION BRKT
M8X25 FLANGE 		0-28650-825-0 11 1 0601- ● ●
56 BOLT; UNION BRKT
M8X25 FLANGE 		0-28680-825-0 01 1 0005-0210 ●
65 BRACKET; FLEX HOSE 1-47476-210-0 01 1 0005- ● ●
65 BRACKET; FLEX HOSE 1-47476-211-0 01 1 0005- ● ●
66 BOLT; HOSE BRKT
M8X25 FLANGE 		0-28080-825-0 04 1 0005-0006 ● ●
66 BOLT; HOSE BRKT
M8X25 FLANGE 		0-28680-825-0 04 1 0007-0512 ● ●
66 BOLT; HOSE BRKT
M8X25 FLANGE 		0-28650-825-0 04 1 0601- ● ●
106 NUT; FLEX HOSE
(A) M16 		9-99111-416-0 02 1 0005-0512 ● ●
106 NUT; FLEX HOSE
(A) M16 		9-99111-416-0 02 1 0005-0512 ● ●
106 NUT; FLEX HOSE
(A) M16 		0-91111-516-0 02 1 0601- ● ●
106 NUT; FLEX HOSE
(A) M16 		0-91111-516-0 02 1 0601- ● ●
106 NUT; FLEX HOSE
(B) M20 		9-99111-420-0 01 1 0005-0512 ● ●
106 NUT; FLEX HOSE
(B) M20 		0-91111-520-0 01 1 0601- ● ●
107 WASHER; LK,FLEX HOSE
(A) ID=16.2 		9-09150-516-0 02 1 0005-0603 ● ●
107 WASHER; LK,FLEX HOSE
(A) ID=16.2 		9-09150-516-0 02 1 0005-0603 ● ●
107 WASHER; LK,FLEX HOSE
(A) ID=16.2 		0-91510-516-0 02 1 0604- ● ●
107 WASHER; LK,FLEX HOSE
(A) ID=16.2 		0-91510-516-0 02 1 0604- ● ●
107 WASHER; LK,FLEX HOSE
(B) ID=20.2 		9-09150-520-0 01 1 0005-0603 ● ●
107 WASHER; LK,FLEX HOSE
(B) ID=20.2 		0-91510-520-0 01 1 0604- ● ●
141 CONNECTOR; TEST 1-47459-013-1 01 1 0005- ● ●
142 UNION; 3-WAY 1-09660-838-0 01 1 0005-0305 ● ●
142 UNION; 3-WAY 1-09661-592-0 01 1 0306- ● ●

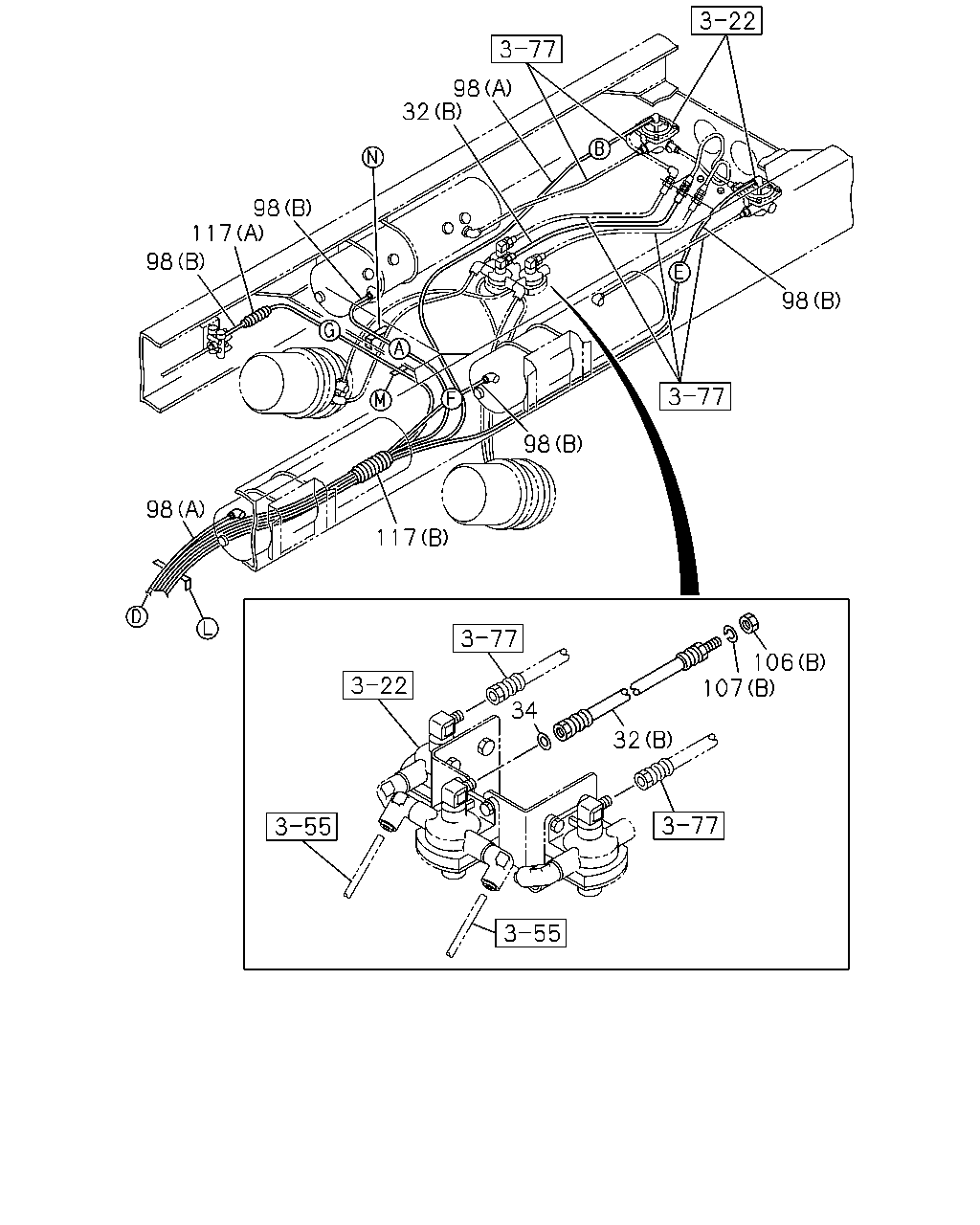

çizim 100088
98 32 98 117 98 98 98 98 117 106 107 34 32
BalonParca AdiParca NoAdetTipApplied Date A B
32 HOSE; FLEX,FRT
(A) L=520 		0-07475-520-1 02 1 0005-0210 ● ●
32 HOSE; FLEX,FRT
(A) L=630 		0-07475-630-1 02 1 0211-0605 ● ●
32 HOSE; FLEX,FRT
(A) L=630 		0-57475-630-1 02 1 0606- ● ●
32 HOSE; FLEX,FRT
(B) L=720 		0-07807-720-1 01 1 0005-0605 ● ●
32 HOSE; FLEX,FRT
(B) L=720 		0-57807-720-1 01 1 0606- ● ●
34 GASKET; FLEX HOSE
ID=11 OD=18 		9-09572-510-0 01 1 0005- ● ●
98 TUBE; NYLON
(A) SERVICED BY L=30000 OD=12 		1-09369-544-0 AR 1 0005-0405 ● ●
98 TUBE; NYLON
(B) SERVICED BY L=30000 OD=8 		1-09369-578-0 AR 1 0005-0405 ● ●
98 TUBE; NYLON
(A) SERVICED BY L=6000 OD=12 		1-87410-071-0 AR 1 0005-0210 ● ●
98 TUBE; NYLON
(A) SERVICED BY L=8000 OD=12 		1-87410-072-0 AR 1 0005-0210 ● ●
98 TUBE; NYLON
(B) SERVICED BY L=2000 OD=8 		1-87410-073-0 AR 1 0005-0405 ● ●
98 TUBE; NYLON
(B) SERVICED BY L=4000 OD=8 		1-87410-074-0 AR 1 0005-0405 ● ●
98 TUBE; NYLON
(B) SERVICED BY L=6000 OD=8 		1-87410-075-0 AR 1 0005-0210 ● ●
98 TUBE; NYLON
(B) SERVICED BY L=8000 OD=8 		1-87410-076-0 AR 1 0005-0511 ● ●
98 TUBE; NYLON
(A) SERVICED BY L=2000 OD=12 		1-87410-069-0 AR 1 0006-0405 ● ●
98 TUBE; NYLON
(A) SERVICED BY L=6000 OD=12 		1-87410-071-0 AR 1 0211-0511 ● ●
98 TUBE; NYLON
(A) SERVICED BY L=8000 OD=12 		1-87410-072-0 AR 1 0211-0405 ● ●
98 TUBE; NYLON
(B) SERVICED BY L=6000 OD=8 		1-87410-075-0 AR 1 0211-0405 ● ●
98 TUBE; NYLON
(B) SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0406- ● ●
98 TUBE; NYLON
(B) SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 0406- ● ●
98 TUBE; NYLON
(B) SERVICED BY L=6000 OD=8 		1-87411-008-0 AR 1 0406- ● ●
98 TUBE; NYLON
(B) SERVICED BY L=12000 OD=8 		1-87411-010-0 AR 1 0406- ● ●
98 TUBE; NYLON
(A) SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0406- ● ●
98 TUBE; NYLON
(A) SERVICED BY L=8000 OD=12 		1-87411-014-0 AR 1 0406- ● ●
98 TUBE; NYLON
(A) SERVICED BY L=12000 OD=12 		1-87411-015-0 AR 1 0406- ● ●
98 TUBE; NYLON
(B) SERVICED BY L=8000 OD=8 		1-87411-009-0 AR 1 0512- ● ●
98 TUBE; NYLON
(B) SERVICED BY L=6000 OD=12 		1-87411-013-0 AR 1 0512- ● ●
106 NUT; FLEX HOSE
(A) M16 		9-99111-416-0 02 1 0005-0512 ● ●
106 NUT; FLEX HOSE
(A) M16 		9-99111-416-0 02 1 0005-0512 ● ●
106 NUT; FLEX HOSE
(A) M16 		0-91111-516-0 02 1 0601- ● ●
106 NUT; FLEX HOSE
(A) M16 		0-91111-516-0 02 1 0601- ● ●
106 NUT; FLEX HOSE
(B) M20 		9-99111-420-0 01 1 0005-0512 ● ●
106 NUT; FLEX HOSE
(B) M20 		0-91111-520-0 01 1 0601- ● ●
107 WASHER; LK,FLEX HOSE
(A) ID=16.2 		9-09150-516-0 02 1 0005-0603 ● ●
107 WASHER; LK,FLEX HOSE
(A) ID=16.2 		9-09150-516-0 02 1 0005-0603 ● ●
107 WASHER; LK,FLEX HOSE
(A) ID=16.2 		0-91510-516-0 02 1 0604- ● ●
107 WASHER; LK,FLEX HOSE
(A) ID=16.2 		0-91510-516-0 02 1 0604- ● ●
107 WASHER; LK,FLEX HOSE
(B) ID=20.2 		9-09150-520-0 01 1 0005-0603 ● ●
107 WASHER; LK,FLEX HOSE
(B) ID=20.2 		0-91510-520-0 01 1 0604- ● ●
117 TUBE; CORRUGATE
(A) SERVICED BY L=2000 ID=10 		1-87410-088-0 AR 1 0005-0405 ● ●
117 TUBE; CORRUGATE
(B) SERVICED BY L=2000 ID=28 		1-87410-098-0 AR 1 0005-0405 ● ●
117 TUBE; CORRUGATE
(C) SERVICED BY L=2000 ID=32 		1-87410-104-0 AR 1 0005-0405 ● ●
117 TUBE; CORRUGATE
(A) SERVICED BY L=2000 ID=10 		1-87411-019-0 AR 1 0406- ● ●
117 TUBE; CORRUGATE
(B) SERVICED BY L=2000 ID=28 		1-87411-033-0 AR 1 0406- ● ●
117 TUBE; CORRUGATE
(C) SERVICED BY L=2000 ID=32 		1-87411-035-0 AR 1 0406- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
