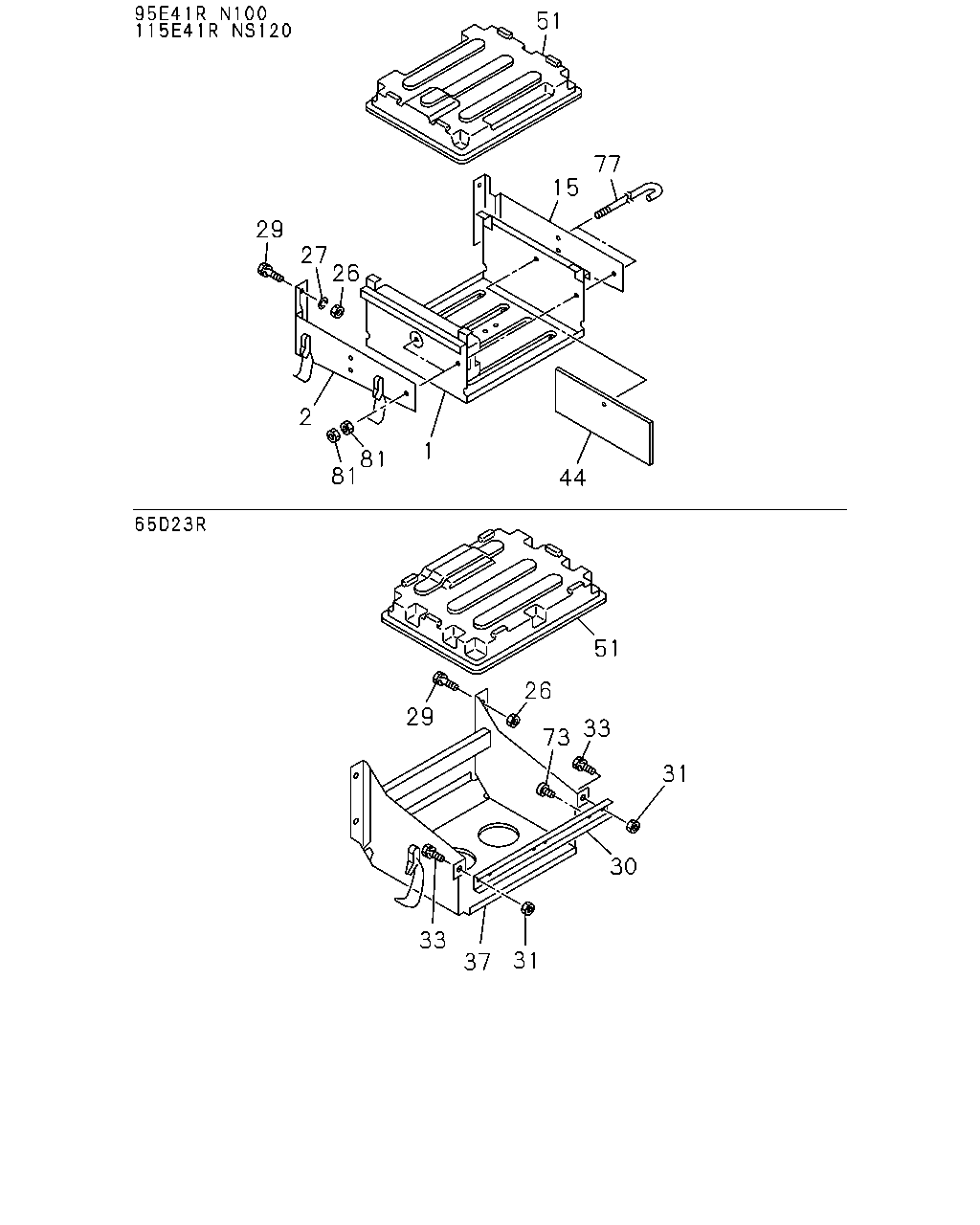

5-20 — BATTERY CARRIER (#956) — 24 parça

51 77 15 29 27 26 2 1 81 81 44 51 26 29 33 73 31 30 33 31 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CARRIER; BATTERY BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73>	9-53613-584-3	01	1	9202-	●	●
2	BRACKET; BATTERY BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73>	1-53613-339-1	01	1	9202-	●	●
15	BRACKET; BATTERY BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73>	1-53613-340-1	01	1	9202-	●	●
26	NUT; BRKT BATTERY 65D23R MAINTENANCE FREE<WL4> M10	9-09110-510-0	04	1	9202-	●	●
26	NUT; BRKT BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M14	9-99110-414-0	04	1	9202-	●	●
27	WASHER; LK,BRKT BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> ID=14.2	9-09150-514-0	04	1	9202-	●	●
29	BOLT; BRKT TO FRAME BATTERY 65D23R MAINTENANCE FREE<WL4> M10X30 W/LK WASHER	0-50041-030-0	04	1	9202-9204	●	●
29	BOLT; BRKT TO FRAME BATTERY 65D23R MAINTENANCE FREE<WL4> M10X35 W/LK WASHER	0-50041-035-0	04	1	9205-9307	●	●
29	BOLT; BRKT TO FRAME BATTERY 65D23R MAINTENANCE FREE<WL4> M10X30 FLANGE	0-28081-030-0	04	1	9308-	●	●
29	BOLT; BRKT TO FRAME BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M14X35	0-20801-435-0	04	1	9202-9204	●	●
29	BOLT; BRKT TO FRAME BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M14X40	0-20801-440-0	04	1	9205-	●	●
30	PLATE; BATTERY BATTERY 65D23R MAINTENANCE FREE<WL4>	1-53616-046-3	01	1	9202-	●	●
31	NUT; PLATE BATTERY 65D23R MAINTENANCE FREE<WL4> M8	9-09110-408-0	02	1	9202-	●	●
33	BOLT; PLATE TO BRKT BATTERY 65D23R MAINTENANCE FREE<WL4> M8X20 FLANGE	0-28010-820-0	02	1	9202-9204	●	●
33	BOLT; PLATE TO BRKT BATTERY 65D23R MAINTENANCE FREE<WL4> M8X20 FLANGE	0-28080-820-0	02	1	9205-	●	●
37	BRACKET; BATTERY BATTERY 65D23R MAINTENANCE FREE<WL4> EXC. CHINA EQUIPMENT(YT2)	1-53613-356-0	01	1	9202-9202	●	●
37	BRACKET; BATTERY BATTERY 65D23R MAINTENANCE FREE<WL4> EXC. CHINA EQUIPMENT(YT2)	1-53613-354-3	01	1	9203-	●	●
37	BRACKET; BATTERY CHINA EQUIPMENT(YT2) BATTERY 65D23R MAINTENANCE FREE<WL4>	1-53613-357-1	01	1	9202-	●	●
44	SPACER; BATTERY BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73>	1-53619-006-0	02	1	9202-	●	●
51	COVER; BATTERY BATTERY 65D23R MAINTENANCE FREE<WL4>	1-53612-019-1	01	1	9202-	●	●
51	COVER; BATTERY BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73>	1-53612-029-0	01	1	9202-	●	●
73	RUBBER; CUSHION,PLATE BATTERY 65D23R MAINTENANCE FREE<WL4>	1-09337-002-0	04	1	9202-	●	●
77	BOLT; BATTERY BRKT,FRT TO RR BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73>	1-53616-101-0	02	1	9202-	●	●
81	NUT; BATTERY BATTERY 95E41R N100<SJ1>,BATTERY 115E41R NS120<W73> M8	9-09110-408-0	04	1	9202-	●	●
