Isuzu WW
▶
AUV
▶
TBR
▶
51134 - TBR-PICKUP INDONESIA
▶
0 - Engine, Emission, Engine Electrical
▶
0-61 - BATTERY AND ENGINE ELECTRICAL PARTS
▶

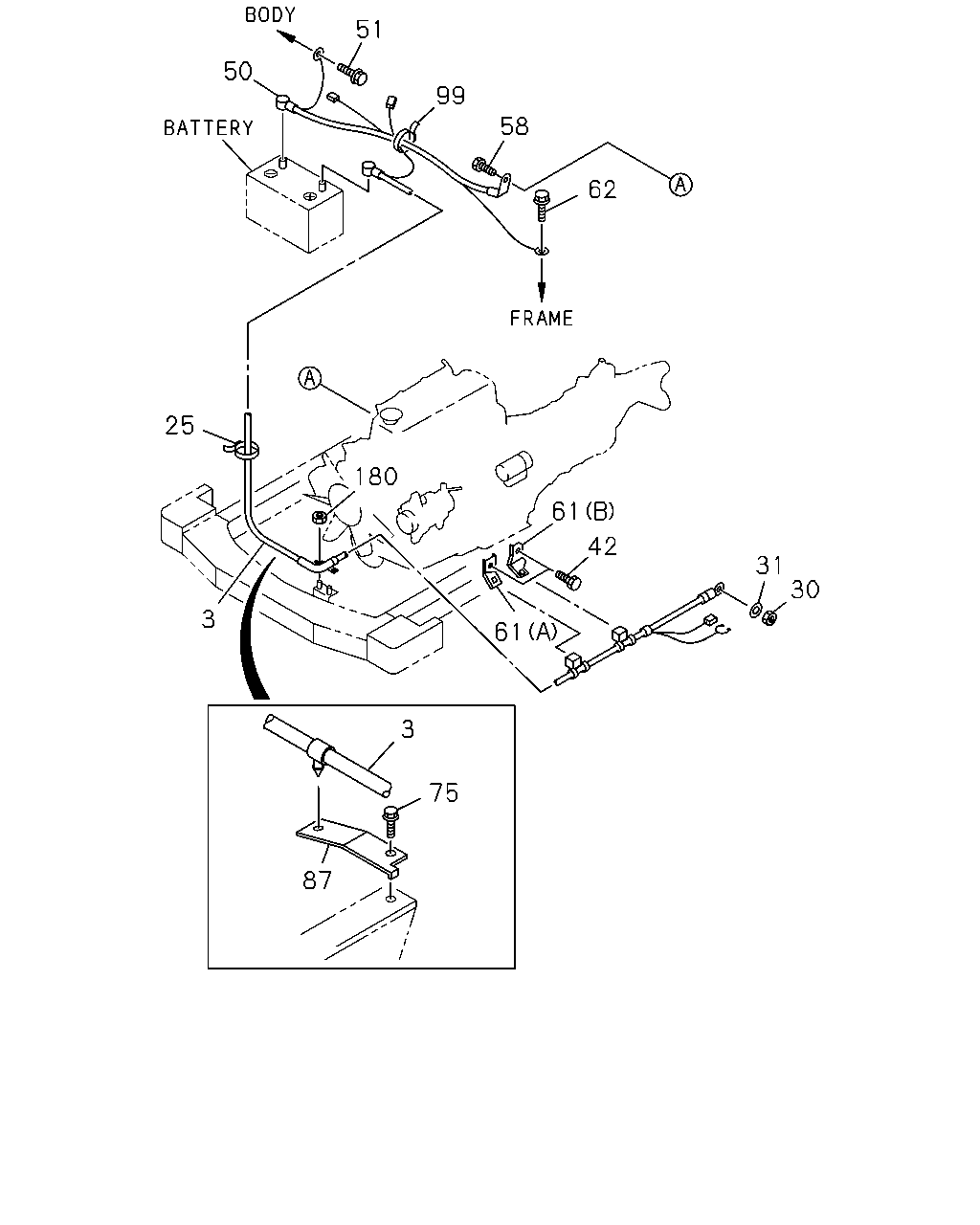

0-61 — BATTERY AND ENGINE ELECTRICAL PARTS
(#95599) — 15 parça
62
58
99
51
50
25
180
61
42
31
30
61
3
75
87
3
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
3
HARNESS; CABLE,BATTERY TO STARTER
IDN
8-97955-008-1
01
1
0612-
25
CLIP; BATTERY CABLE TO BRKT
L=140 IDN
5-09707-031-1
01
1
0612-
30
NUT; CABLE,STARTER TO BATTERY
M8
0-91111-508-0
01
1
0612-
31
WASHER; LK,CABLE,STARTER TO BATTERY
ID=8.2
0-91510-508-0
01
1
0612-
42
BOLT; BRKT,BATTERY CABLE
M6X12 FLANGE
0-28050-612-0
02
1
0612-
50
CABLE; BATTERY TO BODY (-)
IDN
8-97145-201-1
01
1
0612-
51
BOLT; CABLE TO FRAME
M8X16 W/LK&PL WASHER
8-97087-055-0
01
1
0612-
58
BOLT; CABLE,BATTERY
M10X16 FLANGE
0-28051-016-0
01
1
0612-
61
BRACKET; BATTERY CABLE
(B)
8-94315-286-0
01
1
0612-
61
BRACKET; BATTERY CABLE
(A)
8-97077-656-0
01
1
0612-
62
BOLT; EARTH CABLE FIX
M6X16 W/LK&PL WASHER
8-97086-823-0
01
1
0612-
75
BOLT; BRKT
M6X16 FLANGE
0-28450-616-0
01
1
0612-
87
BRACKET; HARNESS
IDN
8-97956-338-0
01
1
0612-
99
CLIP; BATTERY CABLE
L=140 IDN
5-09707-031-1
01
1
0612-
180
NUT; COVER
M6 FLANGE IDN
5-09440-004-0
02
1
0612-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
