51134 - TBR-PICKUP INDONESIA
▶
0 - Engine, Emission, Engine Electrical
▶
0-60 - ENGINE ELECTRICAL CONTROL PARTS
▶

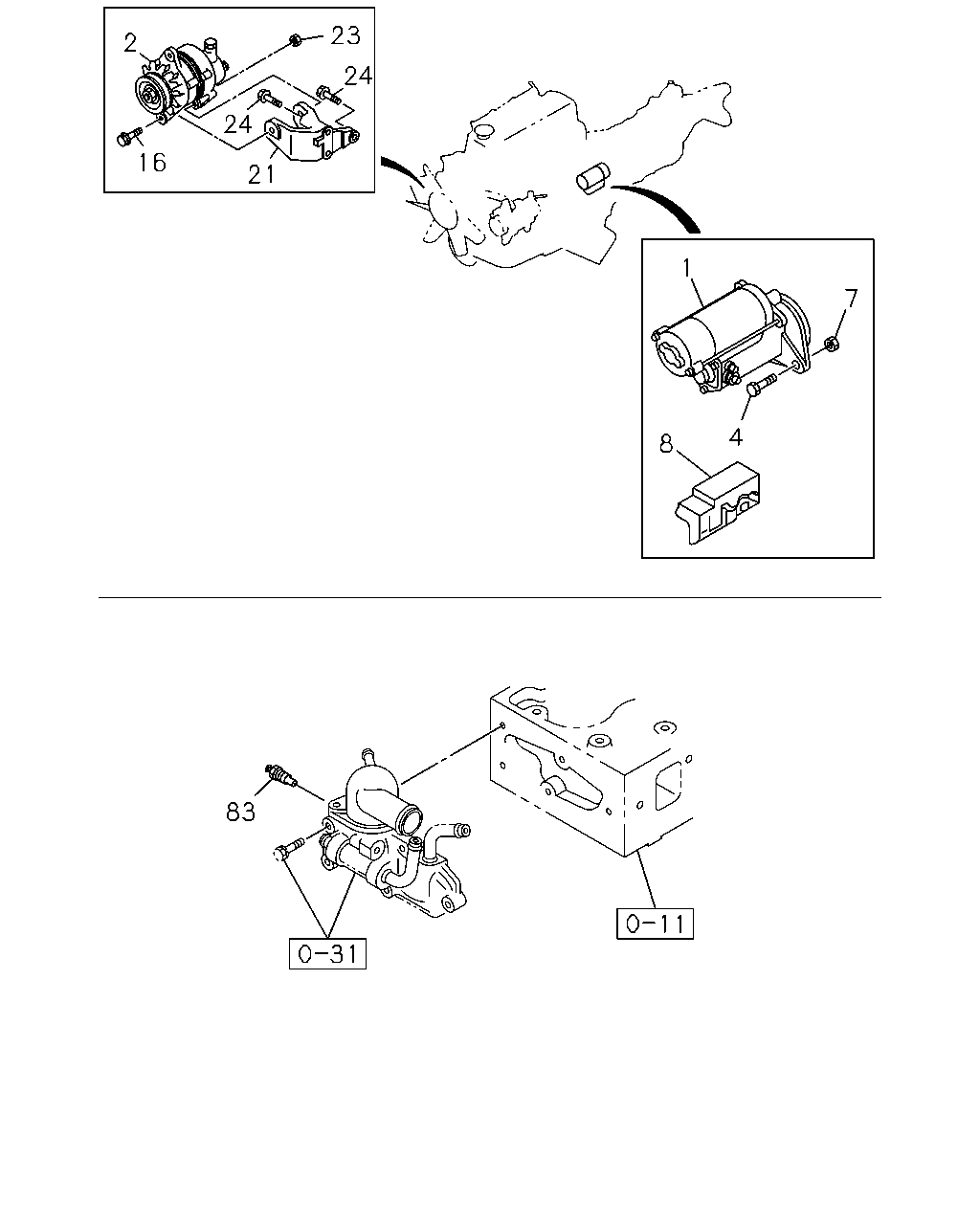

0-60 — ENGINE ELECTRICAL CONTROL PARTS
(#95598) — 18 parça
◀
[060A] NO.1 (13 parça)
[060A] NO.2 (3 parça)
[060A] NO.3 (2 parça)
▶
83
7
4
8
1
21
24
24
23
2
16
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 12V 2.0KW DENSO IDN
8-97957-512-0
01
1
0612-
2
GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 12V 50A IDN
8-97187-657-2
01
1
0612-
4
BOLT; STARTER
M12X60
8-97161-846-1
02
1
0612-
7
NUT; STARTER
M12 FLANGE IDN
0-91180-112-0
02
1
0612-
8
SPACER; STARTER
8-97351-456-0
01
1
0612-
16
BOLT; GEN
M10X130 FLANGE
0-28056-013-0
01
1
0612-
21
BRACKET; GEN
IDN
8-97562-610-0
01
1
0612-
23
NUT; GEN
M10 FLANGE
0-91180-210-0
01
1
0612-
24
BOLT; GEN BRKT
M10X70 W/LK WASHER
0-50041-070-0
02
1
0612-0909
24
BOLT; GEN BRKT
M10X70 W/LK WASHER
0-50541-070-0
02
1
0910-
24
BOLT; GEN BRKT
M10X35 W/LK WASHER
0-50541-035-0
01
1
0612-
83
THERMOMETER UNIT
DENSO
8-94235-691-0
01
1
0612-
83
THERMOMETER UNIT
YAZAKI
8-94237-861-0
01
1
0612-
578
11
10
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
10
RELAY; STARTER
12V
8-94112-912-0
01
1
0612-
11
BOLT; RELAY STARTER
M6X16 FLANGE
0-28450-616-0
01
1
0612-
578
RELAY; CHARGE WARNING
8-94232-225-0
01
1
0612-
131
130
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date

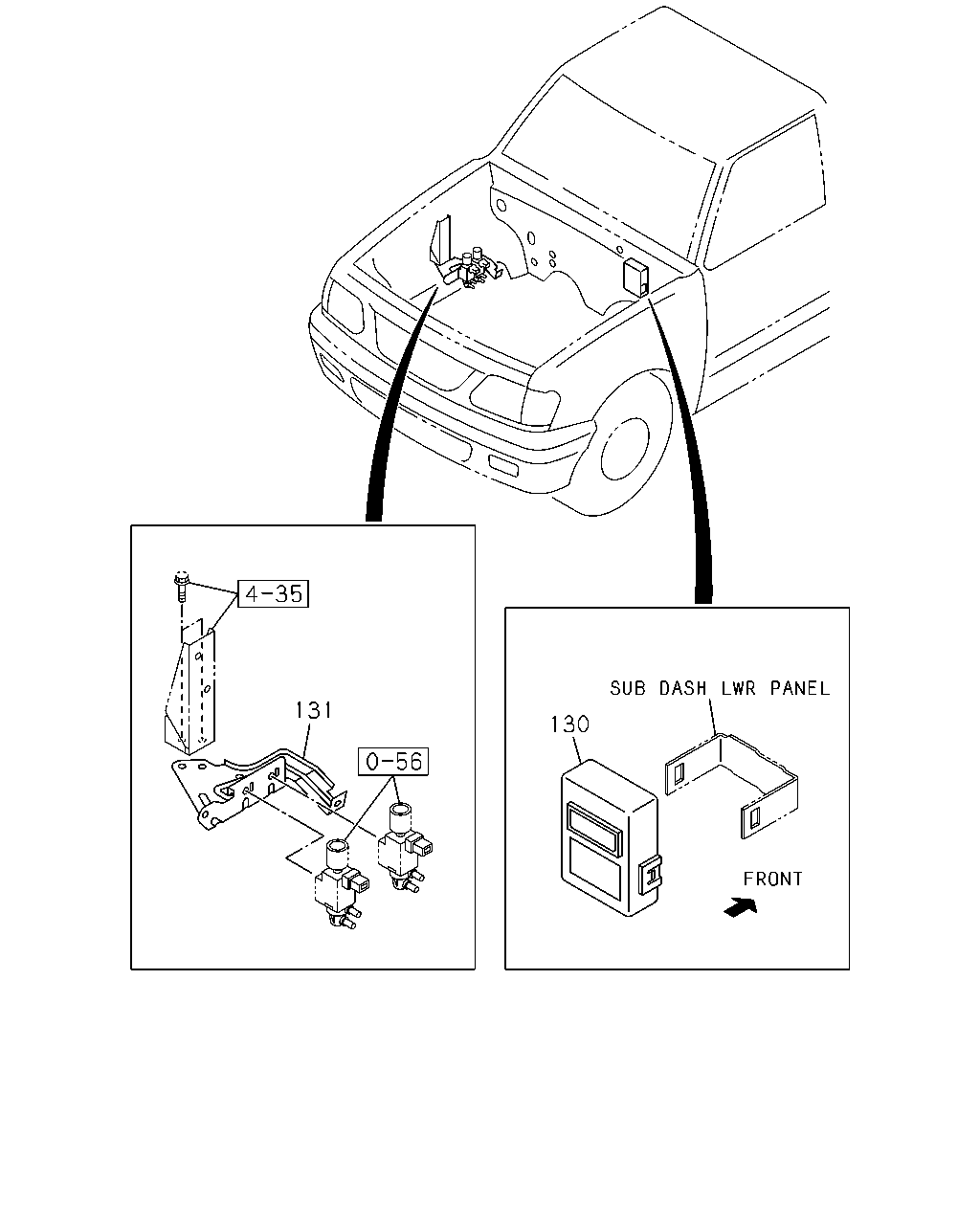

130
CONTROLLER; EGR
8-98019-897-1
01
1
0612-
131
BRACKET; EGR
IDN
8-98013-677-0
01
1
0612-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
