51134 - TBR-PICKUP INDONESIA
▶
0 - Engine, Emission, Engine Electrical
▶
0-56 - EMISSION SYSTEM
▶

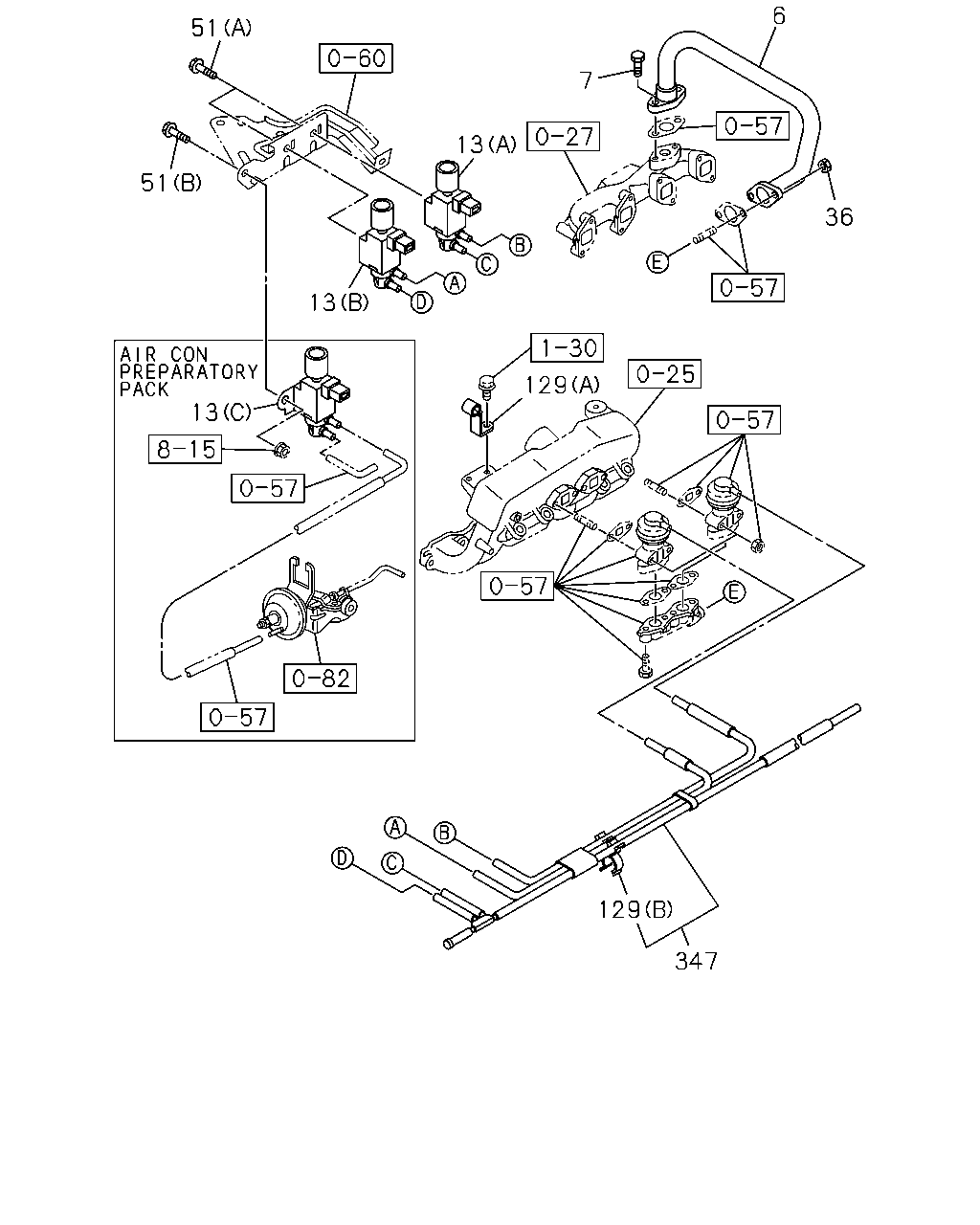

0-56 — EMISSION SYSTEM
(#95596) — 12 parça
129
347
13
129
36
6
7
13
13
51
51
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
6
PIPE; EGR
8-97118-378-1
01
1
0612-
7
BOLT; BRKT,EGR PIPE
M8X23 FLANGE
8-97189-522-0
02
1
0612-0702
7
BOLT; BRKT,EGR PIPE
M8X23 FLANGE
8-98048-437-0
02
1
0703-
13
VALVE; VAC SW
(A)
8-97043-750-0
01
1
0612-
13
VALVE; VAC SW
(B)
8-97171-030-0
01
1
0612-
13
VALVE; VAC SW
AIR CON PREPARATORY PACK(S6D) (C)
8-94178-888-0
01
1
0612-
36
NUT; EGR PIPE
M8 FLANGE IDN
0-91180-208-0
02
1
0612-
51
BOLT; VAC SW
(A) M5X8
0-20800-508-0
02
1
0612-
51
BOLT; VAC SW
AIR CON PREPARATORY PACK(S6D) (B) M8X16 FLANGE
0-28050-816-0
01
1
0612-
129
CLIP; VAC HOSE
(A) ID=14 H=50 L=20
1-09700-843-0
01
1
0612-
129
CLIP; VAC HOSE
(B) ID=14.5 & 7X4
8-94368-499-0
01
1
0612-
347
HOSE ASM; VACUUM,EGR
8-98019-954-0
01
1
0612-
