3-70 — BRAKE PIPING; AIR,AIR MASTER (#9559) — 148 parça

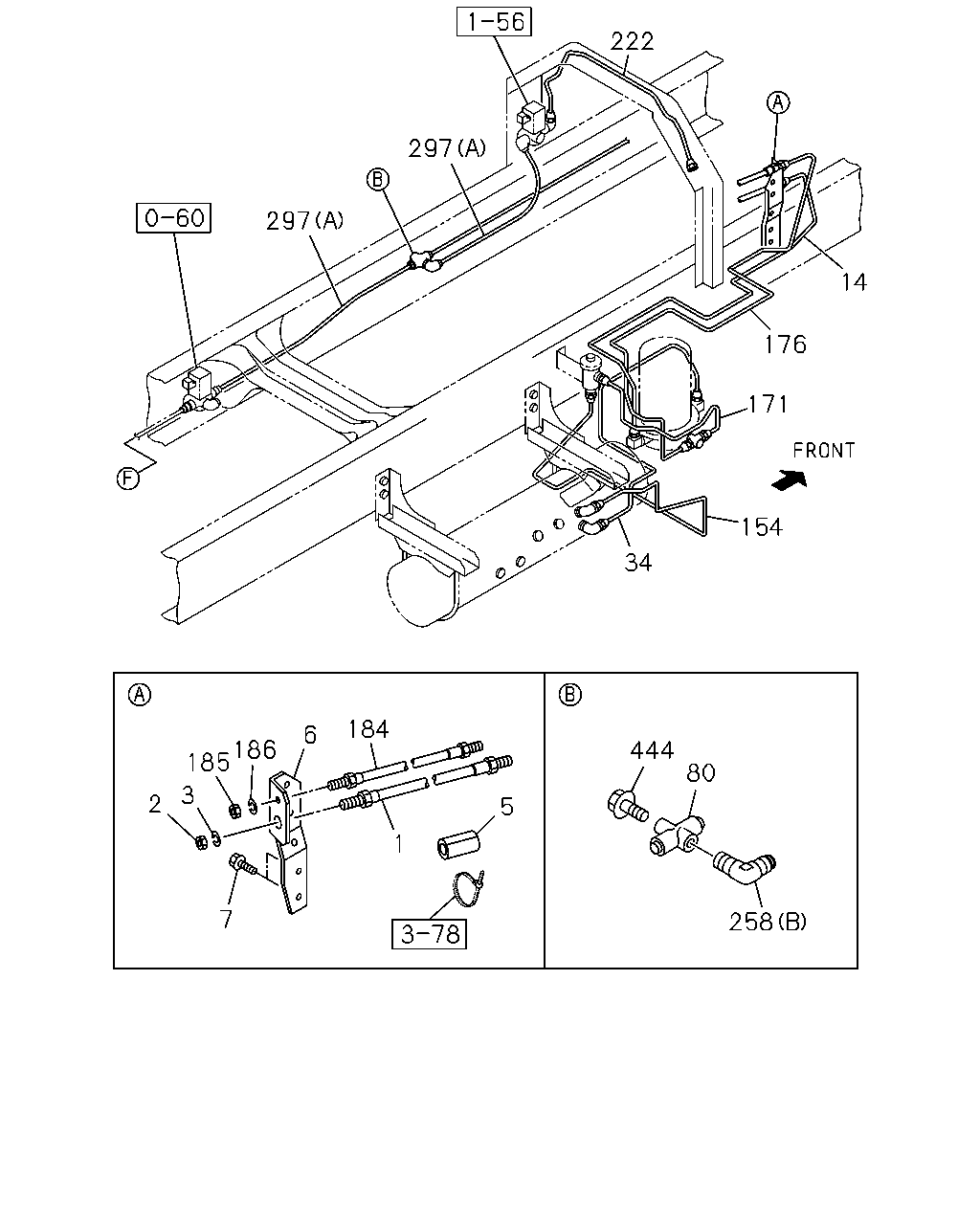

çizim 39822
222 297 297 14 176 171 154 34 184 6 186 185 444 80 3 2 5 1 7 258
BalonParca AdiParca NoAdetTipApplied Date A B
1 HOSE; FLEX,AIR TANK
L=320 		1-09363-560-1 01 1 0005-0210 ●
1 HOSE; FLEX,AIR TANK
L=320 		1-09363-560-1 01 1 0211-0305 ● ●
1 HOSE; FLEX,AIR TANK
6HK1 TCC ENG(81L) L=320 		1-09363-560-1 01 1 0306- ● ●
1 HOSE; FLEX,AIR TANK
L=360 		1-09363-530-0 01 1 0005-0210 ●
2 NUT; FLEX HOSE,AIR TANK
M22 		9-09111-422-0 01 1 0005-0512 ● ●
2 NUT; FLEX HOSE,AIR TANK
M22 		0-91111-522-0 01 1 0601- ● ●
3 WASHER; LK,FLEX HOSE,AIR TANK
ID=22.5 		9-09150-522-0 01 1 0005-0603 ● ●
3 WASHER; LK,FLEX HOSE,AIR TANK
ID=22.5 		0-91510-522-0 01 1 0604- ● ●
5 SLEEVE; FLEX HOSE
ID=32 OD=36 L=50 		1-09337-023-0 01 1 0005-0210 ●
6 BRACKET; FLEX HOSE,AIR TANK 1-47477-264-2 01 1 0005-0304 ●
6 BRACKET; FLEX HOSE,AIR TANK 1-47478-864-0 01 1 0005-0304 ●
6 BRACKET; FLEX HOSE,AIR TANK 1-47478-864-0 01 1 0305- ● ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X30 FLANGE 		0-28680-830-0 02 1 0005-0512 ● ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X30 FLANGE 		0-28650-830-0 02 1 0601- ● ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK 1-49122-460-0 01 1 0005-0210 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK 1-49123-681-0 01 1 0211- ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK 1-49122-465-0 01 1 0005-0005 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK 1-49122-666-0 01 1 0005-0210 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK 1-49123-509-0 01 1 0211-0212 ●
14 PIPE; AIR,FLEX HOSE TO AIR TANK 1-49123-928-0 01 1 0301- ●
34 PIPE; AIR 1-49122-461-0 01 1 0005-0005 ● ●
34 PIPE; AIR 1-49122-461-0 01 1 0005-0005 ●
34 PIPE; AIR 1-49122-684-0 01 1 0006-0210 ●
34 PIPE; AIR 1-49123-682-0 01 1 0211- ● ●
34 PIPE; AIR 1-49122-664-0 01 1 0005-0005 ●
34 PIPE; AIR 1-49122-683-0 01 1 0006-0210 ●
80 UNION; 3 WAY
DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 0005- ● ●
154 PIPE; AIR,AIR TANK TO AIR GOV 1-49122-462-0 01 1 0005-0005 ● ●
154 PIPE; AIR,AIR TANK TO AIR GOV 1-49122-462-0 01 1 0005-0210 ●
154 PIPE; AIR,AIR TANK TO AIR GOV 1-49122-462-0 01 1 0211- ● ●
154 PIPE; AIR,AIR TANK TO AIR GOV 1-49122-665-0 01 1 0005-0210 ●
171 PIPE; AIR,GOV TO AIR DRYER 1-49122-463-0 01 1 0005- ● ●
176 PIPE; AIR,AIR DRYER TO UNION 1-49122-464-0 01 1 0005-0210 ●
176 PIPE; AIR,AIR DRYER TO UNION
L=1880 SERVICED BY L=2000 		1-47428-823-0 01 1 0211- ●
176 PIPE; AIR,AIR DRYER TO UNION 1-49122-466-0 01 1 0005-0005 ●
176 PIPE; AIR,AIR DRYER TO UNION 1-49122-667-0 01 1 0005-0210 ●
176 PIPE; AIR,AIR DRYER TO UNION
L=1535 SERVICED BY L=1620 		1-47428-820-0 01 1 0211- ●
184 HOSE; FLEX,AIR GOV
L=330 		1-09363-584-0 01 1 0005-0210 ●
184 HOSE; FLEX,AIR GOV
L=330 		1-09363-584-0 01 1 0211- ● ●
184 HOSE; FLEX,AIR GOV
L=350 		1-09363-651-0 01 1 0005-0210 ●
185 NUT; FLEX HOSE,AIR GOV
M12 		9-09840-280-0 01 1 0005- ● ●
186 WASHER; LK,FLEX HOSE,AIR GOV
ID=12.2 		9-09150-512-0 01 1 0005-0603 ● ●
186 WASHER; LK,FLEX HOSE,AIR GOV
ID=12.2 		0-91510-512-0 01 1 0604- ● ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
L=1011 SERVICED BY L=1100 		1-47426-351-0 01 1 0005-0210 ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
L=1041 SERVICED BY L=1100 		1-47428-815-0 01 1 0211- ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
L=1042 SERVICED BY L=1100 		1-47428-815-0 01 1 0005-0005 ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE
L=1046 SERVICED BY L=1100 		1-47428-815-0 01 1 0005-0210 ●
222 PIPE; AIR,MAG VLV TO FLEX HOSE 1-49123-693-0 01 1 0211- ●
258 CONNECTOR; NYLON TUBE
(C) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0408-0410 ● ●
258 CONNECTOR; NYLON TUBE
(A) DIN6 & R1/8 STRAIGHT 		1-09660-691-1 01 1 0005-0302 ● ●
258 CONNECTOR; NYLON TUBE
(A) DIN6 R1/8 STRAIGHT 		1-09660-759-1 01 1 0303- ● ●
258 CONNECTOR; NYLON TUBE
(B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0005- ● ●
258 CONNECTOR; NYLON TUBE
(C) DIN8 & M16 STRAIGHT 		1-09661-095-0 01 1 0005-0007 ● ●
258 CONNECTOR; NYLON TUBE
(C) DIN8 & M16 STRAIGHT 		1-09660-875-0 01 1 0008- ● ●
297 TUBE; NYLON
WHEEL BASE 6200MM(62W) (B) SERVICED BY L=4000 OD=12 		1-87411-012-0 01 1 0406- ●
297 TUBE; NYLON
WHEEL BASE 6200MM(62W) (A) SERVICED BY L=4000 OD=8 		1-87411-007-0 01 1 0406- ●
297 TUBE; NYLON
WHEEL BASE 4200MM(42W) (B) SERVICED BY L=2000 OD=12 		1-87410-069-0 01 1 0005- ●
297 TUBE; NYLON
WHEEL BASE 5500MM(55W) (B) SERVICED BY L=4000 OD=12 		1-87410-070-0 01 1 0005-0210 ●
297 TUBE; NYLON
(B) SERVICED BY L=4000 OD=12 		1-87410-070-0 01 1 0005-0210 ●
297 TUBE; NYLON
WHEEL BASE 6000MM(60W) (B) SERVICED BY L=4000 OD=12 		1-87410-070-0 01 1 0211- ● ●
297 TUBE; NYLON
WHEEL BASE 5500MM(55W) (A) SERVICED BY L=4000 OD=8 		1-87410-074-0 01 1 0005-0210 ●
297 TUBE; NYLON
WHEEL BASE 6000MM(60W) (A) SERVICED BY L=4000 OD=8 		1-87410-074-0 01 1 0211- ● ●
297 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0005-0210 ● ●
297 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0005-0210 ● ●
297 TUBE; NYLON
WHEEL BASE 4200MM(42W) (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0005-0210 ●
297 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0211- ● ●
297 TUBE; NYLON
WHEEL BASE 4200MM(42W) (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0211- ●
444 BOLT; UNION
M8X20 FLANGE 		0-28680-820-0 01 1 0005-0210 ● ●
444 BOLT; UNION
M8X25 FLANGE 		0-28680-825-0 01 1 0211-0512 ● ●
444 BOLT; UNION
M8X25 FLANGE 		0-28650-825-0 01 1 0601- ● ●
çizim 39850
297 296 297 229 296 296 297 341 421
BalonParca AdiParca NoAdetTipApplied Date A B
229 ADAPTER; NYLON TUBE
DIN8 & M12 STRAIGHT 		1-09661-093-0 01 1 0005-0007 ●
229 ADAPTER; NYLON TUBE
DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0008-0210 ●
229 ADAPTER; NYLON TUBE
DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0211- ● ●
296 TUBE; NYLON
(B) L=1200 OD=6 		1-09366-256-1 01 1 0005- ● ●
296 TUBE; NYLON
(A) SERVICED BY L=2000 OD=12 		1-87410-069-0 03 1 0005- ● ●
297 TUBE; NYLON
WHEEL BASE 6200MM(62W) (B) SERVICED BY L=4000 OD=12 		1-87411-012-0 01 1 0406- ●
297 TUBE; NYLON
WHEEL BASE 6200MM(62W) (A) SERVICED BY L=4000 OD=8 		1-87411-007-0 01 1 0406- ●
297 TUBE; NYLON
WHEEL BASE 4200MM(42W) (B) SERVICED BY L=2000 OD=12 		1-87410-069-0 01 1 0005- ●
297 TUBE; NYLON
WHEEL BASE 5500MM(55W) (B) SERVICED BY L=4000 OD=12 		1-87410-070-0 01 1 0005-0210 ●
297 TUBE; NYLON
(B) SERVICED BY L=4000 OD=12 		1-87410-070-0 01 1 0005-0210 ●
297 TUBE; NYLON
WHEEL BASE 6000MM(60W) (B) SERVICED BY L=4000 OD=12 		1-87410-070-0 01 1 0211- ● ●
297 TUBE; NYLON
WHEEL BASE 5500MM(55W) (A) SERVICED BY L=4000 OD=8 		1-87410-074-0 01 1 0005-0210 ●
297 TUBE; NYLON
WHEEL BASE 6000MM(60W) (A) SERVICED BY L=4000 OD=8 		1-87410-074-0 01 1 0211- ● ●
297 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0005-0210 ● ●
297 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0005-0210 ● ●
297 TUBE; NYLON
WHEEL BASE 4200MM(42W) (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0005-0210 ●
297 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0211- ● ●
297 TUBE; NYLON
WHEEL BASE 4200MM(42W) (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0211- ●
341 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 03 1 0005-0210 ●
341 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 02 1 0211-0512 ● ●
341 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 0601- ● ●
341 BOLT; BRKT
M8X20 FLANGE 		0-28680-820-0 01 1 0005-0512 ● ●
341 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 01 1 0601- ● ●
341 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 02 1 0005-0210 ●
421 NUT; BRKT
M8 FLANGE 		0-91150-108-0 04 1 0005-0210 ●
421 NUT; BRKT
M8 FLANGE 		0-91150-108-0 03 1 0211-0602 ● ●
421 NUT; BRKT
M8 FLANGE 		0-91180-108-0 03 1 0603- ● ●
421 NUT; BRKT
M8 FLANGE 		0-91150-108-0 03 1 0005-0210 ●

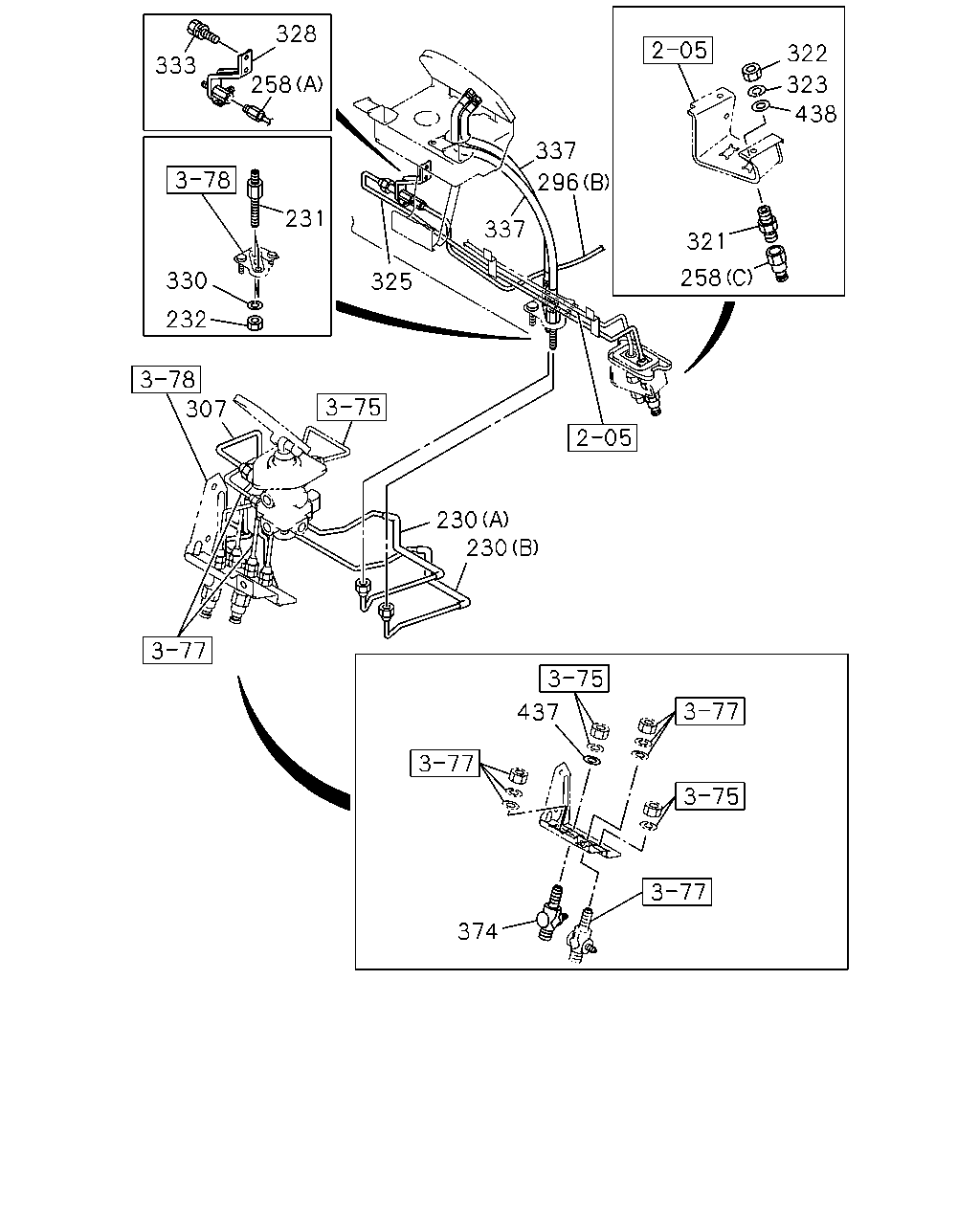

çizim 39851
328 322 258 333 323 438 337 296 231 337 321 258 325 330 232 307 230 230 437 374
BalonParca AdiParca NoAdetTipApplied Date A B
230 PIPE; AIR,UNION TO UNION
(A) 		1-49116-429-1 01 1 0005-0103 ● ●
230 PIPE; AIR,UNION TO UNION
(A) 		1-49122-777-0 01 1 0104- ● ●
230 PIPE; AIR,UNION TO UNION
(B) 		1-49116-430-1 01 1 0005-0103 ● ●
230 PIPE; AIR,UNION TO UNION
(B) 		1-49122-778-0 01 1 0104- ● ●
231 UNION; AIR PIPE
M10 STRAIGHT 		1-09654-361-0 02 1 0005- ● ●
232 NUT; UNION,AIR PIPE
M10 H=8 		1-09400-029-0 02 1 0005- ● ●
258 CONNECTOR; NYLON TUBE
(C) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0408-0410 ● ●
258 CONNECTOR; NYLON TUBE
(A) DIN6 & R1/8 STRAIGHT 		1-09660-691-1 01 1 0005-0302 ● ●
258 CONNECTOR; NYLON TUBE
(A) DIN6 R1/8 STRAIGHT 		1-09660-759-1 01 1 0303- ● ●
258 CONNECTOR; NYLON TUBE
(B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0005- ● ●
258 CONNECTOR; NYLON TUBE
(C) DIN8 & M16 STRAIGHT 		1-09661-095-0 01 1 0005-0007 ● ●
258 CONNECTOR; NYLON TUBE
(C) DIN8 & M16 STRAIGHT 		1-09660-875-0 01 1 0008- ● ●
296 TUBE; NYLON
(B) L=1200 OD=6 		1-09366-256-1 01 1 0005- ● ●
296 TUBE; NYLON
(A) SERVICED BY L=2000 OD=12 		1-87410-069-0 03 1 0005- ● ●
307 PIPE; AIR,FLEX HOSE TO BRK VLV
L=421 		1-49121-486-0 01 1 0005- ● ●
321 JOINT; FLEX HOSE 1-09656-738-0 01 1 0005- ● ●
322 NUT; JOINT,FLEX HOSE
M10 H=8 		1-09400-029-0 01 1 0005- ● ●
323 WASHER; LK,JOINT
ID=10.2 		9-09150-510-0 01 1 0005-0603 ● ●
323 WASHER; LK,JOINT
ID=10.2 		0-91510-510-0 01 1 0604- ● ●
325 PIPE; AIR,FLEX HOSE TO UNION 1-47492-452-2 01 1 0005- ● ●
328 UNION; AIR PIPE 1-47470-392-0 01 1 0005- ● ●
330 WASHER; LK,UNION,AIR PIPE
ID=10.2 		9-09150-510-0 02 1 0005-0603 ● ●
330 WASHER; LK,UNION,AIR PIPE
ID=10.2 		0-91510-510-0 02 1 0604- ● ●
333 BOLT; PIPE UNION
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0005- ● ●
337 HOSE; FLEX,UNION TO AIR PRESS GAGE
L=720 		0-07210-720-0 02 1 0005-0608 ● ●
337 HOSE; FLEX,UNION TO AIR PRESS GAGE
L=720 		0-57210-720-0 02 1 0609- ● ●
374 CONNECTOR 1-09656-721-0 01 1 0005-0103 ● ●
374 CONNECTOR 1-09656-754-0 01 1 0104- ● ●
437 WASHER; PL,CONNECTOR
ID=17 		9-09160-516-0 01 1 0005-0605 ● ●
437 WASHER; PL,CONNECTOR
ID=17 OD=30 		0-91610-516-0 01 1 0606- ● ●
438 WASHER; PL,JOINT
ID=10.5 OD=26 T=2.6 		1-09985-184-0 01 1 0005- ● ●

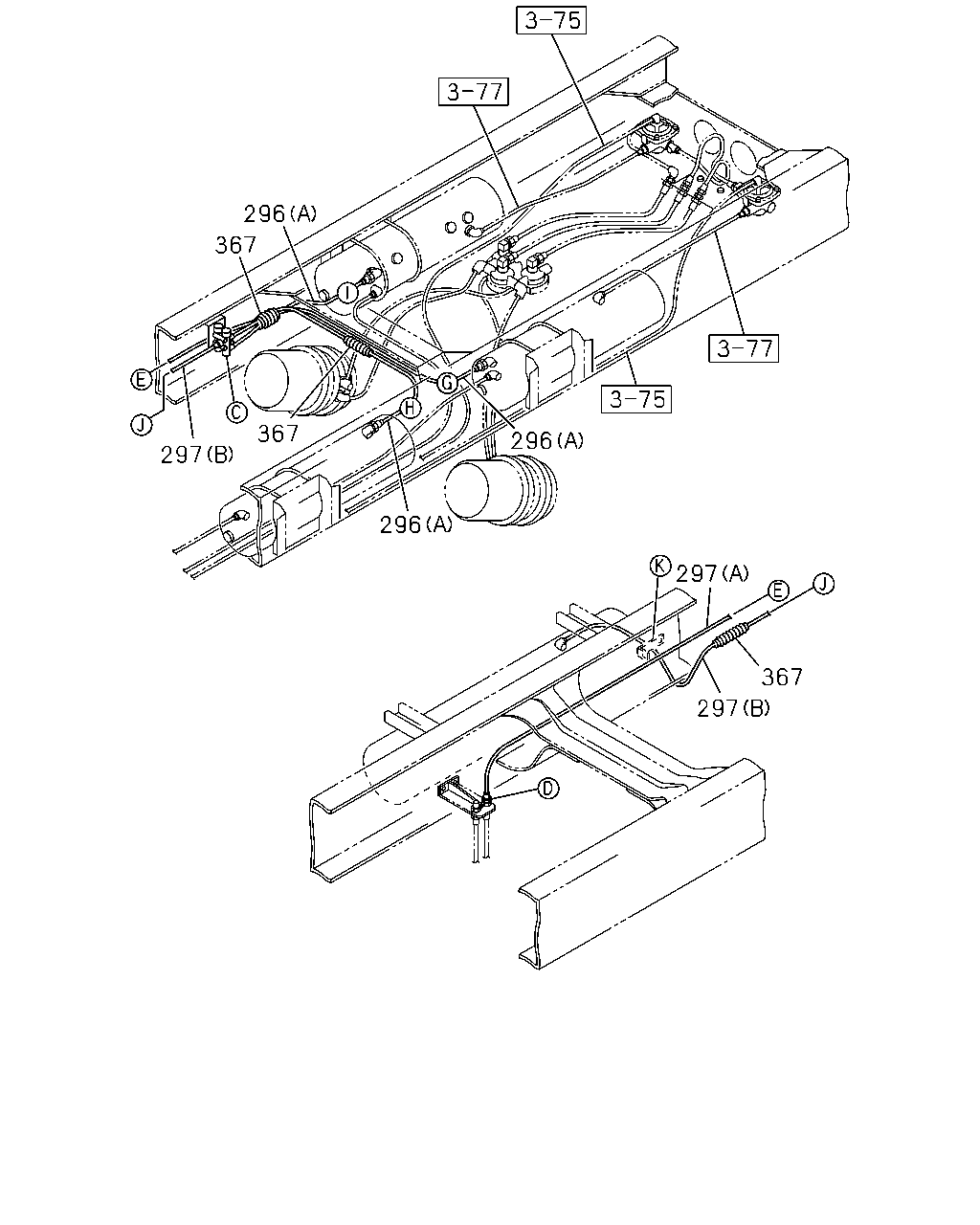

çizim 100040
296 367 296 367 297 296 297 367 297
BalonParca AdiParca NoAdetTipApplied Date A B
296 TUBE; NYLON
(B) L=1200 OD=6 		1-09366-256-1 01 1 0005- ● ●
296 TUBE; NYLON
(A) SERVICED BY L=2000 OD=12 		1-87410-069-0 03 1 0005- ● ●
297 TUBE; NYLON
WHEEL BASE 6200MM(62W) (B) SERVICED BY L=4000 OD=12 		1-87411-012-0 01 1 0406- ●
297 TUBE; NYLON
WHEEL BASE 6200MM(62W) (A) SERVICED BY L=4000 OD=8 		1-87411-007-0 01 1 0406- ●
297 TUBE; NYLON
WHEEL BASE 4200MM(42W) (B) SERVICED BY L=2000 OD=12 		1-87410-069-0 01 1 0005- ●
297 TUBE; NYLON
WHEEL BASE 5500MM(55W) (B) SERVICED BY L=4000 OD=12 		1-87410-070-0 01 1 0005-0210 ●
297 TUBE; NYLON
(B) SERVICED BY L=4000 OD=12 		1-87410-070-0 01 1 0005-0210 ●
297 TUBE; NYLON
WHEEL BASE 6000MM(60W) (B) SERVICED BY L=4000 OD=12 		1-87410-070-0 01 1 0211- ● ●
297 TUBE; NYLON
WHEEL BASE 5500MM(55W) (A) SERVICED BY L=4000 OD=8 		1-87410-074-0 01 1 0005-0210 ●
297 TUBE; NYLON
WHEEL BASE 6000MM(60W) (A) SERVICED BY L=4000 OD=8 		1-87410-074-0 01 1 0211- ● ●
297 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0005-0210 ● ●
297 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0005-0210 ● ●
297 TUBE; NYLON
WHEEL BASE 4200MM(42W) (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0005-0210 ●
297 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0211- ● ●
297 TUBE; NYLON
WHEEL BASE 4200MM(42W) (A) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0211- ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87410-088-0 AR 1 0005- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87410-091-0 AR 1 0005-0405 ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87411-022-0 AR 1 0406- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=28 		1-87410-098-0 AR 1 0005- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
