0-27 — EXHAUST MANIFOLD (#95583) — 14 parça

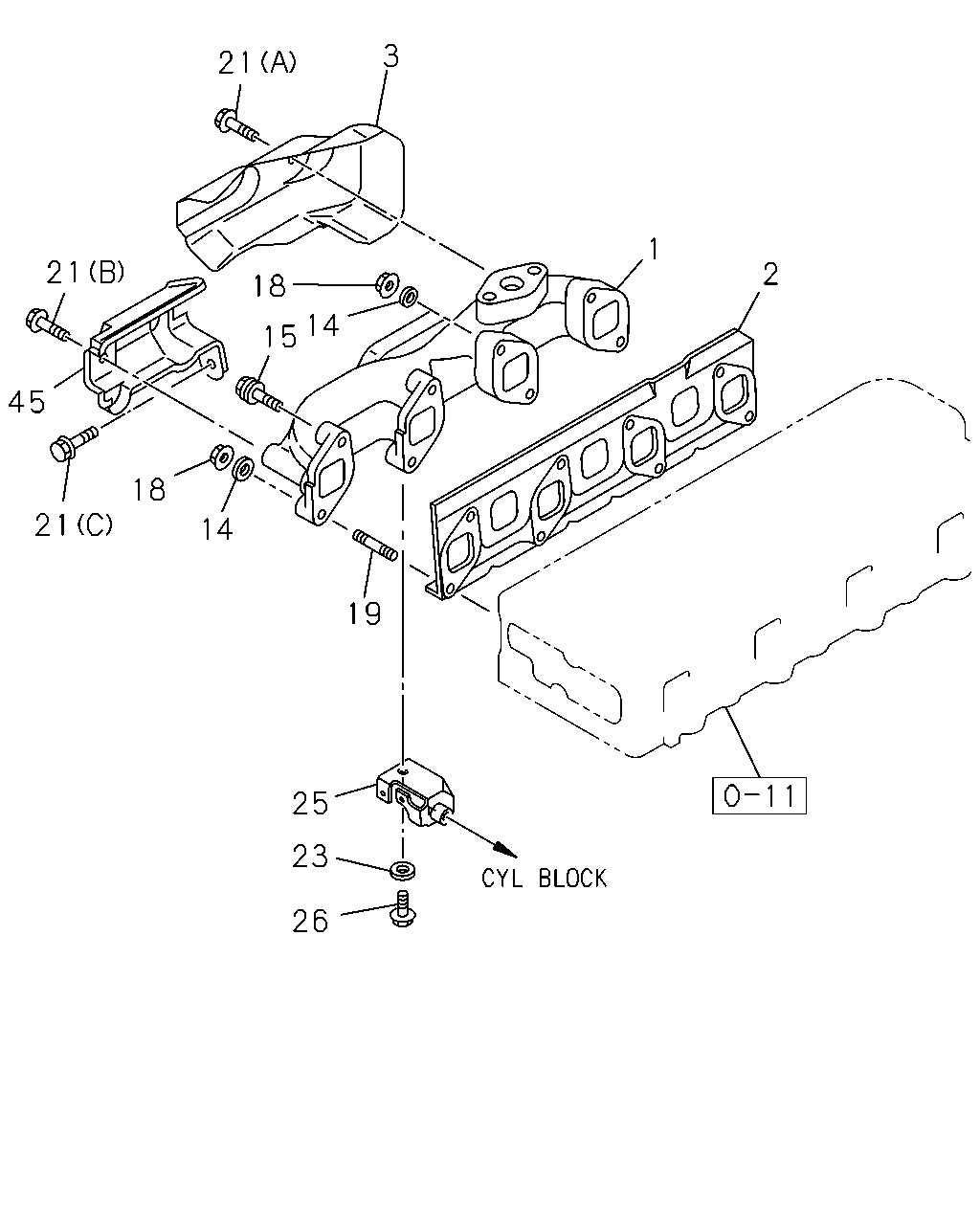

çizim 288056
2 1 3 21 18 15 14 21 45 18 21 14 19 25 23 26
BalonParca AdiParca NoAdetTipApplied Date
1 MANIFOLD; EXHAUST
THA 		8-97562-774-0 01 1 0612-
2 GASKET; EXH MANIF TO HD 8-97920-200-3 01 1 0612-
3 PROTECTOR; HEAT,EXH MANIF 8-97920-417-1 01 1 0612-
14 WASHER; PL,EXH MANIF
ID=8.5 OD=15 T=4 		8-97257-914-0 02 1 0612-
15 BOLT; EXH MANIF
M8X35 W/PL WASHER & FLANGE 		8-97131-597-1 06 1 0612-
18 NUT; EXH MANIF
M8 FLANGE IDN 		0-91180-208-0 02 1 0612-
19 STUD; MANIF TO CYL HD
M8X35 L=46 		8-97378-065-0 02 1 0612-
21 BOLT; HEAT PROTECTOR
(B) M6X12 FLANGE 		0-28050-612-0 01 1 0612-
21 BOLT; HEAT PROTECTOR
(A) M8X12 FLANGE 		0-28050-812-0 02 1 0612-
21 BOLT; HEAT PROTECTOR
(C) M8X16 FLANGE 		0-28450-816-0 01 1 0612-
23 WASHER; PL EXH MANIF BRKT
ID=8.4 OD=18 		0-91614-608-0 01 1 0612-
25 BRACKET; EXH MANIF 8-97188-185-1 01 1 0612-
26 BOLT; BRKT TO EXH MANIF
M8X14 FLANGE 		8-97378-075-0 01 1 0612-
45 PROTECTOR; HEAT,MANIF,RR 8-97920-418-1 01 1 0612-
