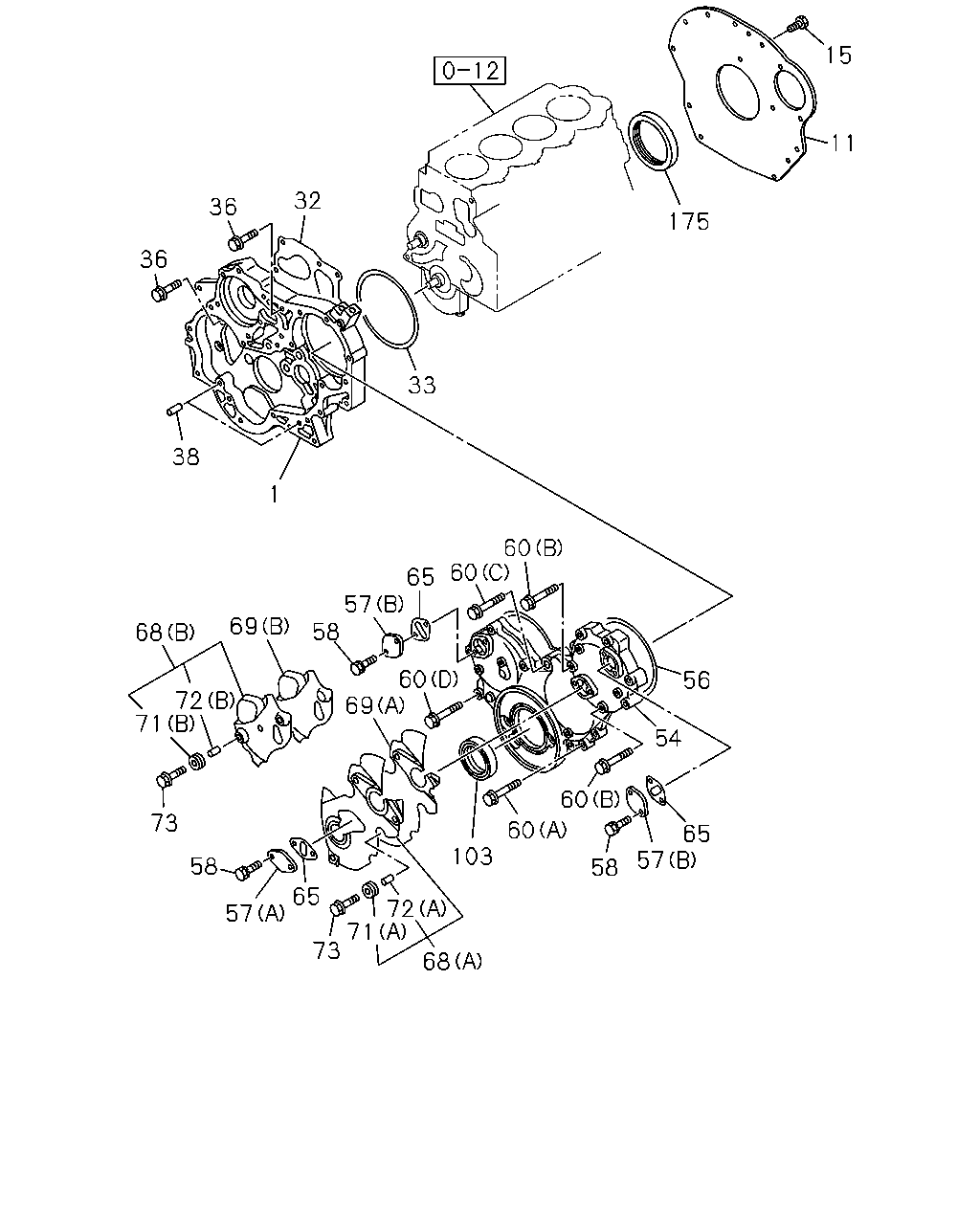

0-20 — TIMING GEAR CASE AND FLYWHEEL HOUSING
(#95580) — 31 parça
15
11
175
32
36
36
33
38
1
60
60
65
57
58
69
68
72
71
69
60
56
54
60
65
57
58
60
103
73
58
65
57
72
71
73
68
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CASE; TIMING GEAR
8-97306-429-1
01
1
0612-
11
PLATE; RR,C/BL
THA
8-97912-556-0
01
1
0612-
15
BOLT; RR PLATE TO C/BL
M12X25
5-09000-227-0
03
1
0612-
32
GASKET; GEAR CASE TO C/BL
8-97129-426-1
01
1
0612-
33
GASKET; BRKT TO CASE
THA
8-97912-581-0
01
1
0612-
36
BOLT; GEAR CASE
M8X20 W/LK WASHER
0-50040-820-0
06
1
0612-0909
36
BOLT; GEAR CASE
M8X20 W/LK WASHER
0-50540-820-0
06
1
0910-
36
BOLT; GEAR CASE
M8X45 W/LK WASHER
0-50040-845-0
02
1
0612-0909
36
BOLT; GEAR CASE
M8X45 W/LK WASHER
0-50540-845-0
02
1
0910-
38
PIN; GEAR CASE COVER
OD=10 L=20
8-97135-423-0
02
1
0612-
54
COVER; GEAR CASE
8-97306-431-2
01
1
0612-
56
GASKET; GEAR CASE TO COVER
8-97287-694-0
01
1
0612-
57
COVER; TIMING CHECK HOLE
(B)
5-11321-009-0
02
1
0612-
57
COVER; TIMING CHECK HOLE
(A)
8-97353-706-2
01
1
0612-
58
BOLT; CHECK HOLE COVER
M6X12 FLANGE
0-28050-612-0
06
1
0612-
60
BOLT; COVER TO CASE
(A) M8X30 FLANGE
0-28050-830-0
08
1
0612-
60
BOLT; COVER TO CASE
(B) M8X70 W/LK WASHER
0-50540-870-0
06
1
0612-
60
BOLT; COVER TO CASE
(C) M12X55 HEX SOCKET
0-58331-255-0
01
1
0612-
60
BOLT; COVER TO CASE
(D) M8X58 FLANGE
8-94130-055-1
01
1
0612-
65
GASKET; COVER,TIMING CHECK HOLE
IDN
8-97922-242-0
03
1
0612-
68
COVER ASM; GEAR CASE COVER
(A)
8-97255-034-1
01
1
0612-
68
COVER ASM; GEAR CASE COVER
(B)
8-97943-086-0
01
1
0612-
69
SEAL; RUBBER,COVER TO COVER
(B)
8-97306-548-1
01
1
0612-
69
SEAL; RUBBER,COVER TO COVER
(A)
8-97329-009-1
01
1
0612-
71
RUBBER; MTG,COVER
(A)
5-19389-002-0
03
1
0612-
71
RUBBER; MTG,COVER
(B)
8-97914-631-0
03
1
0612-
72
BUSHING; SPACER,COVER TO COVER
(A)
5-19389-009-0
03
1
0612-
72
BUSHING; SPACER,COVER TO COVER
(B)
8-97914-630-1
03
1
0612-
73
BOLT; COVER FIX
M6X16 FLANGE IDN
0-28050-616-0
05
1
0612-
103
SEAL; OIL,CR/SHF,FRT
8-97351-704-0
01
1
0612-
175
SEAL; OIL,CR/SHF,RR
8-97071-561-1
01
1
0612-
