◀ 🏠 ▶ Isuzu WW ▶ AUV ▶ TBR ▶ 51134 - TBR-PICKUP INDONESIA ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-15 - CRANKSHAFT,PISTON AND FLYWHEEL ▶
0-15 — CRANKSHAFT,PISTON AND FLYWHEEL (#95579) — 30 parça

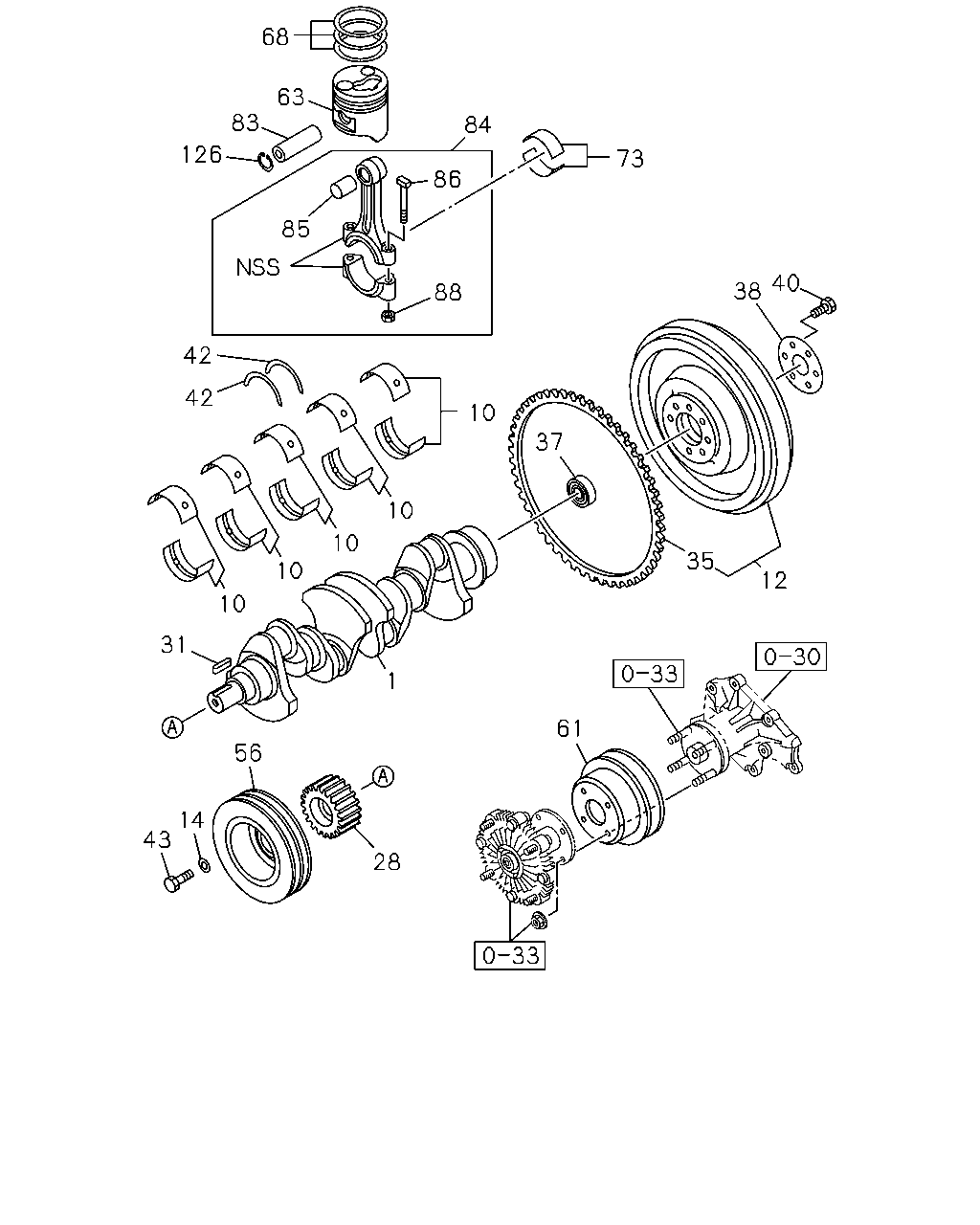

çizim 288034
61 28 56 14 43 31 10 1 10 10 10 10 37 35 12 38 40 73 84 86 88 85 42 42 126 83 63 68
BalonParca AdiParca NoAdetTipApplied Date
1 CRANKSHAFT
IDN 		8-97943-034-0 01 1 0612-
10 METAL SET; CRANKSHAFT,STANDARD
GREEN 		8-97958-912-0 05 1 0612-
10 METAL SET; CRANKSHAFT,STANDARD
BLACK 		8-97958-913-0 05 1 0612-
10 METAL SET; CRANKSHAFT,STANDARD
BLUE 		8-97958-914-0 05 1 0612-
10 METAL SET; CRANKSHAFT,STANDARD
BROWN 		8-97958-915-0 05 1 0612-
10 METAL SET; CRANKSHAFT,STANDARD
YELLOW 		8-97958-916-0 05 1 0612-
12 FLYWHEEL 8-94172-529-1 01 1 0612-
14 WASHER; PULLEY DAMPER
ID=16.5 OD=45 T=12 		5-09503-127-1 01 1 0612-
28 GEAR; CR/SHF
Z=30 		8-97240-011-2 01 1 0612-
31 KEY; FEATHER,CR/SHF 9-08030-743-0 01 1 0612-
35 GEAR; RING
Z=108 		8-94419-602-1 01 1 0612-
37 BEARING; PILOT,TOP GEAR SHAFT 9-00090-679-0 01 1 0612-
38 WASHER; FLYWHEEL 8-94133-970-1 01 1 0612-1005
38 WASHER; FLYWHEEL 8-98171-700-0 01 1 1006-
40 BOLT; FLYWHEEL
M13X36 		8-97065-984-1 08 1 0612-
42 WASHER; THRUST,CR/SHF
IDN 		8-97957-095-0 02 1 0612-
43 BOLT; CR/SHF PULLEY
M16X43 		5-09000-273-2 01 1 0612-
56 PULLEY; CR/SHF DAMPER
3-GROOVE 		8-97306-533-5 01 1 0612-
61 PULLEY; FAN DRIVE
1-GROOVE 		8-94146-638-2 01 1 0612-
63 PISTON
GRADE=AX 		8-97942-987-0 04 1 0612-
63 PISTON
GRADE=CX 		8-97942-988-0 04 1 0612-
68 RING SET; PISTON,STANDARD 8-94247-867-2 04 1 0612-
73 METAL SET; CONN ROD,STANDARD 8-97959-005-0 04 1 0612-
83 PIN; PISTON 8-94454-479-0 04 1 0612-
84 ROD ASM; CONN
IDN 		8-97943-031-3 04 1 0612-
85 BUSHING; CONNROD
AFTER PRESS FITTING,SHAPE THE BUSHING. THA 		8-97288-551-0 04 1 0612-0706
85 BUSHING; CONNROD
AFTER PRESS FITTING,SHAPE THE BUSHING. 		8-97352-889-0 04 1 0707-
86 BOLT; CONNROD
M11X59 IDN 		5-12235-009-0 08 1 0612-
88 NUT; CONNROD
M11 IDN 		5-09409-016-0 08 1 0612-
126 RING; SNAP,PISTON PIN 8-94133-969-0 08 1 0612-
