51134 - TBR-PICKUP INDONESIA
▶
0 - Engine, Emission, Engine Electrical
▶
0-14 - CAMSHAFT AND VALVE
▶
0-14 — CAMSHAFT AND VALVE
(#95578) — 44 parça
◀

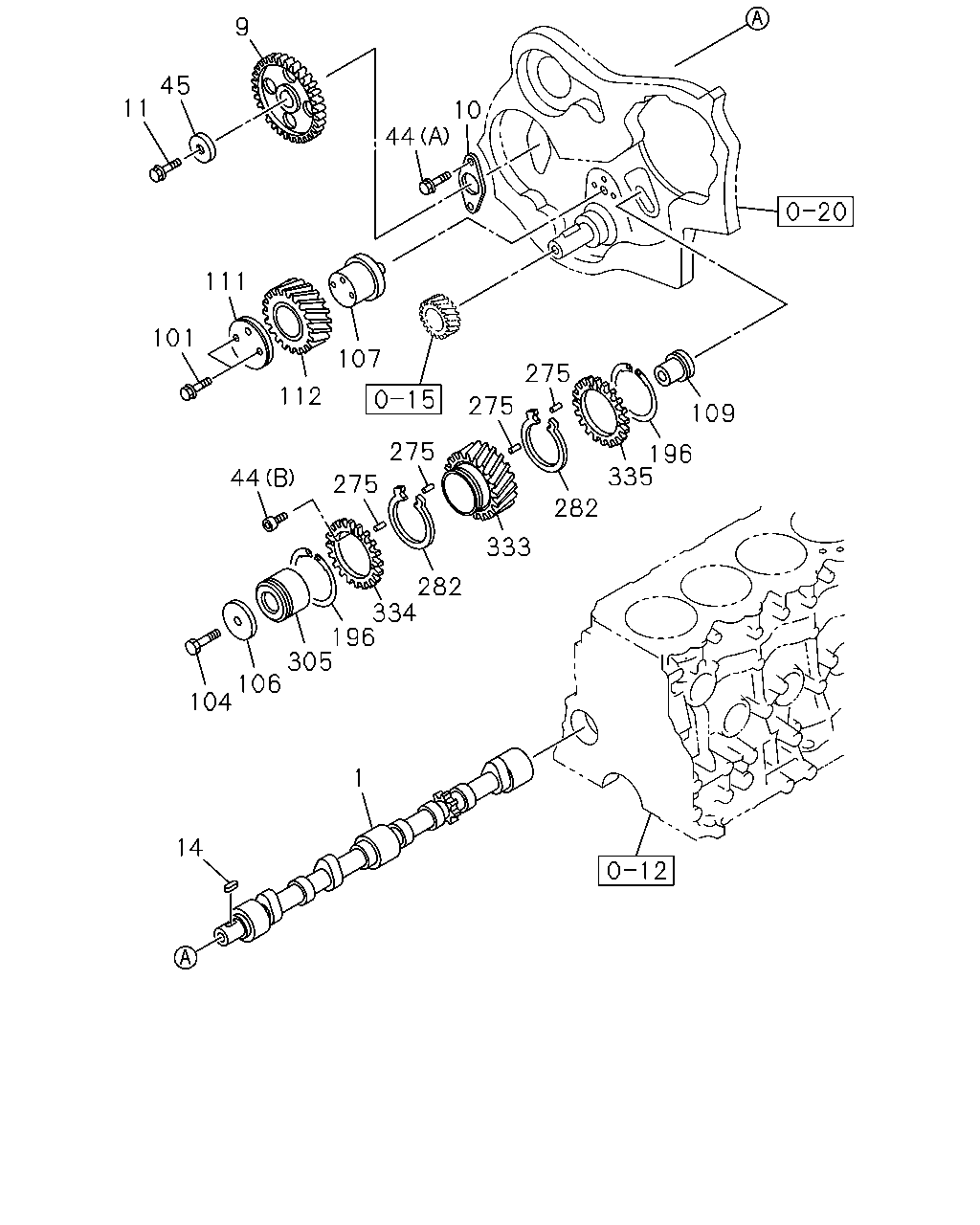

[014A] CAMSHAFT AND IDLE GEAR (22 parça)
[014A] ROCKER ARM AND VALVE (22 parça)
▶
11
45
9
44
10
275
275
282
335
196
109
333
282
334
196
305
106
104
1
14
275
275
112
107
44
101
111
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CAMSHAFT
IDN
8-97287-657-1
01
1
0612-
9
GEAR; CM/SHF
Z=60
8-97240-012-2
01
1
0612-
10
PLATE; THRUST
8-94110-480-1
01
1
0612-
11
BOLT; THRUST PLATE TO C/BL
M12X47
8-94433-407-0
01
1
0612-
14
KEY; CM/SHF
9-08000-718-0
01
1
0612-
44
BOLT
(A) M8X16 FLANGE
0-28050-816-0
02
1
0612-
44
BOLT
(B) M6X30 HEX SOCKET
9-05820-630-0
01
1
0612-
45
WASHER; GEAR CAM
ID=13 OD=36
5-12519-002-1
01
1
0612-
101
BOLT; THRUST COLLAR
M8X53 FLANGE IDN
8-97223-999-0
02
1
0612-
104
BOLT; SHAFT IDLE
M12X77
8-94129-384-1
01
1
0612-
106
WASHER; IDLE GEAR SHAFT
ID=13 OD=36
5-12519-002-1
01
1
0612-
107
SHAFT; IDLE GEAR
8-97943-224-0
01
1
0612-
109
SHAFT; IDLE GEAR
8-97943-225-0
01
1
0612-
111
COLLAR; THRUST,IDLE GEAR
8-94171-289-0
01
1
0612-
112
GEAR; IDLE
Z=43
8-97240-014-1
01
1
0612-
196
RING; SNAP
8-97245-684-1
02
1
0612-
275
PIN; IDLE GEAR
8-97245-683-0
04
1
0612-
282
SPRING; GEAR
8-97245-337-0
02
1
0612-
305
BEARING; IDLE GEAR
8-97240-019-1
01
1
0612-
333
GEAR; IDLE,MAIN
Z=52 IDN
8-97240-018-2
01
1
0612-
334
GEAR; IDLE,FRT
Z=52 IDN
8-97245-232-2
01
1
0612-
335
GEAR; IDLE,RR
Z=52 IDN
8-97245-231-1
01
1
0612-
86
85
56
55
78
78
78
86
87
84
78
78
78
95
54
53
54
78
84
78
55
56
81
83
85
86
65
65
71
68
72
71
88
89
5
4
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
4
VALVE; INL
THA
8-97940-024-0
04
1
0612-
5
VALVE; EXH
8-94247-875-2
04
1
0612-
53
SHAFT; ROCKER ARM
8-97036-197-0
01
1
0612-
54
WASHER; ROCKER SPR
ID=19.1 OD=23
8-94341-906-0
06
1
0612-
55
PLUG; ROCKER SHAFT END
9-12626-005-0
02
1
0612-
56
RING; SNAP,ROCKER ARM
ID=17.5
9-09180-019-0
02
1
0612-
65
COLLAR; SPLIT
5-12565-004-0
16
1
0612-
68
SPRING; VLV
ID=26.25
8-94433-247-0
08
1
0612-
71
SEAT; SPR
(A) OD=34
5-12563-001-0
08
1
0612-
71
SEAT; SPR
(B) OD=32.8
8-94133-731-2
08
1
0612-
72
SEAL; VLV GUIDE
8-97120-307-0
08
1
0612-
78
ARM; ROCKER
8-94152-344-0
08
1
0612-
81
SCREW; ADJ,ROCKER ARM
M8X30
8-94152-283-1
08
1
0612-
83
NUT; ADJ SCREW,LK
M8
0-91111-508-0
08
1
0612-
84
BRACKET; ROCKER SHAFT,INTER
8-94152-345-1
04
1
0612-
85
BOLT; BRKT
(A) M8X15,M10X60 L=82
8-94433-304-0
02
1
0612-
85
BOLT; BRKT
(B) M8X37 & M10X60 L=104
8-94437-493-1
01
1
0612-
86
WASHER; ROCKER ARM FIX
ID=10.5
9-09164-010-0
04
1
0612-
87
BOLT; ROCKER SHAFT
M10X60
8-94433-302-0
01
1
0612-
88
ROD; PUSH
8-97378-496-0
08
1
0612-
89
TAPPET; VLV
8-94438-305-1
08
1
0612-
95
SPRING; ROCKER SHAFT
8-94341-905-0
03
1
0612-
