Sayfa 9-33 - Isuzu EPC

9-33 — REAR BODY; GATE AND SIDE GUARD (#95573) — 168 parça

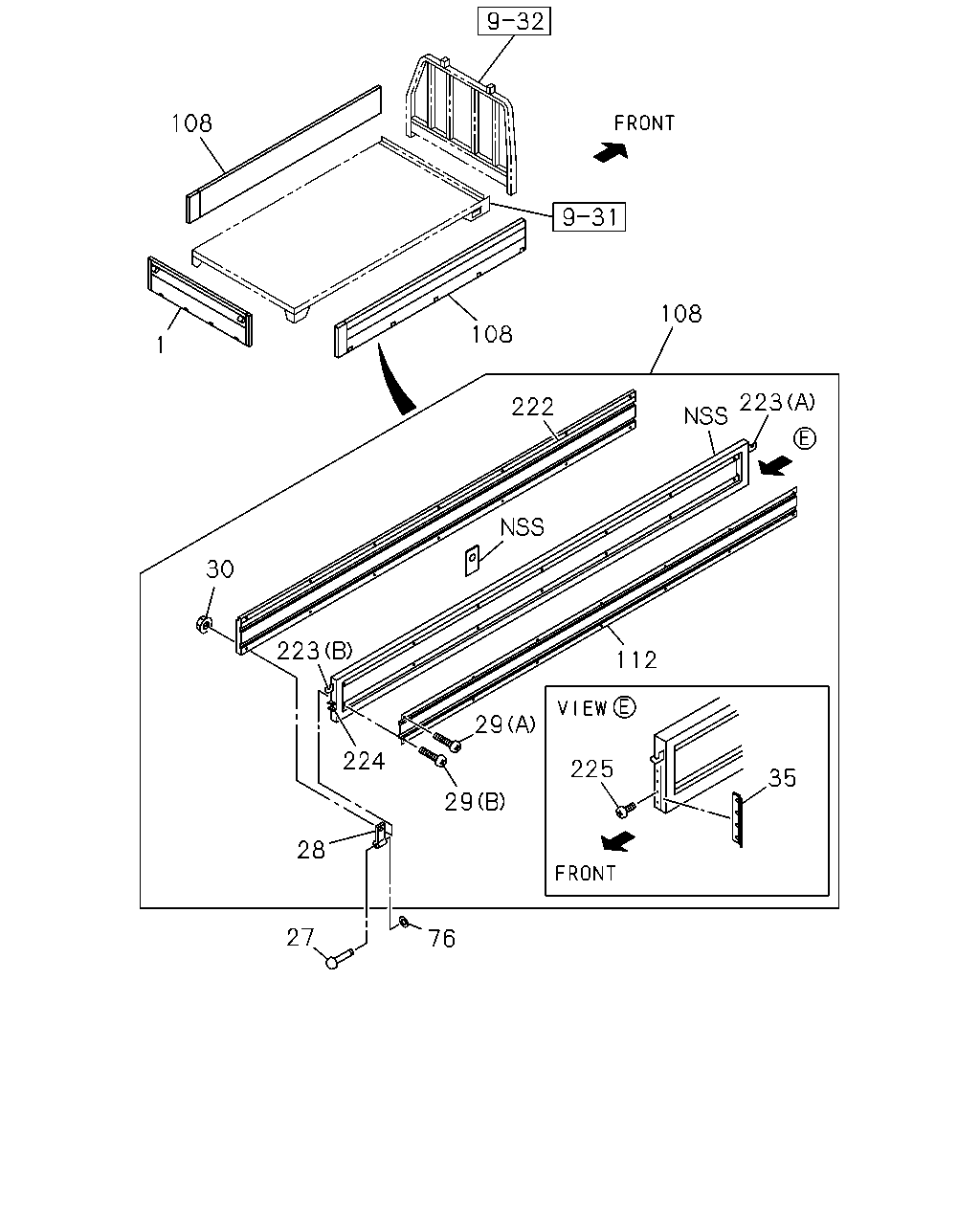

108 1 108 108 223 222 112 30 223 224 28 27 76 29 29 225 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	17.185 GATE ASM; RR RR BODY FLAT BED(RS6) L=1787 H=380 B=50 PLYWOOD TAKADA	8-97594-801-1	01	1	1206-1308	●
1	17.185 GATE ASM; RR RR BODY FLAT BED(RS6) L=1787 H=380 B=50 PLYWOOD TAKADA	8-97594-801-1	01	1	1309-1404	●	●
1	17.185 GATE ASM; RR RR BODY FLAT BED(RS6) L=1787 H=380 B=50 PLYWOOD TAKADA	8-97565-787-1	01	1	1405-	●	●
27	17.208 PIN; HINGE,SIDE GATE RR BODY FLAT BED(RS6) OD=10 L=89.5	8-94195-763-2	14	1	1206-1308	●
27	17.208 PIN; HINGE,SIDE GATE RR BODY FLAT BED(RS6) OD=10 L=89.5	8-94195-763-2	14	1	1309-	●	●
28	17.208 HINGE; UPR,SIDE GATE RR BODY FLAT BED(RS6) TAKADA	8-97590-027-0	12	1	1309-		●
28	17.208 HINGE; UPR,SIDE GATE RR BODY FLAT BED(RS6) TAKADA	8-97590-027-0	14	1	1206-	●
29	17.455 SCREW; PANEL SIDE GATE RR BODY FLAT BED(RS6) 17.185 (A) M8X16	8-94193-952-3	12	1	1309-		●
29	17.455 SCREW; PANEL SIDE GATE RR BODY FLAT BED(RS6) 17.185 (B) M8X21	8-94193-953-3	12	1	1309-		●
29	17.455 SCREW; PANEL SIDE GATE RR BODY FLAT BED(RS6) 17.185 (A) M8X16	8-94193-952-3	14	1	1206-	●
29	17.455 SCREW; PANEL SIDE GATE RR BODY FLAT BED(RS6) 17.185 (B) M8X21	8-94193-953-3	14	1	1206-	●
30	17.455 NUT; PLATE,SIDE GATE RR BODY FLAT BED(RS6) 17.447 M8	8-97565-434-0	24	1	1309-		●
30	17.455 NUT; PLATE,SIDE GATE RR BODY FLAT BED(RS6) 17.185 M8	8-94193-954-1	28	1	1206-1303	●
30	17.455 NUT; PLATE,SIDE GATE RR BODY FLAT BED(RS6) 17.447 M8	8-97565-434-0	28	1	1304-	●
35	17.455 WEATHERSTRIP; FRT SIDE GATE RR BODY FLAT BED(RS6) TAKADA	8-97593-750-0	02	1	1206-1308	●
35	17.455 WEATHERSTRIP; FRT SIDE GATE RR BODY FLAT BED(RS6) TAKADA	8-97593-750-0	02	1	1309-	●	●
76	17.505 RING; SNAP,GATE HINGE PIN RR BODY FLAT BED(RS6) ID=8	8-94194-117-1	18	1	1206-1308	●
76	17.505 RING; SNAP,GATE HINGE PIN RR BODY FLAT BED(RS6) ID=8	8-94194-117-1	18	1	1309-	●	●
108	17.505 GATE ASM; SIDE RR BODY FLAT BED(RS6) L=2983 H=393 B=50 PLYWOOD TAKADA	8-97594-100-3	01	1	1309-		●
108	17.505 GATE ASM; SIDE RR BODY FLAT BED(RS6) L=2983 H=393 B=50 PLYWOOD TAKADA	8-97594-101-3	01	1	1309-		●
108	17.505 GATE ASM; SIDE WHEEL BASE 2700MM(27W) RR BODY FLAT BED(RS6) L=3553 H=393 B=50 PLYWOOD TAKADA	8-97594-619-2	01	1	1206-	●
108	17.505 GATE ASM; SIDE WHEEL BASE 2700MM(27W) RR BODY FLAT BED(RS6) L=3553 H=393 B=50 PLYWOOD TAKADA	8-97594-620-2	01	1	1206-	●
108	17.505 GATE ASM; SIDE WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) L=4309 H=393 B=50 PLYWOOD TAKADA	8-97594-490-3	01	1	1206-	●
108	17.505 GATE ASM; SIDE WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) L=4309 H=393 B=50 PLYWOOD TAKADA	8-97594-491-3	01	1	1206-	●
112	17.455 PANEL; SIDE GATE RR BODY FLAT BED(RS6) TAKADA	8-97594-605-0	02	1	1309-		●
112	17.455 PANEL; SIDE GATE WHEEL BASE 2700MM(27W) RR BODY FLAT BED(RS6) TAKADA	8-97590-035-0	02	1	1206-	●
112	17.455 PANEL; SIDE GATE WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) TAKADA	8-97594-607-0	02	1	1206-	●
222	17.505 BOARD; SIDE GATE RR BODY FLAT BED(RS6) TAKADA	8-97594-609-1	02	1	1309-		●
222	17.505 BOARD; SIDE GATE WHEEL BASE 2700MM(27W) RR BODY FLAT BED(RS6) TAKADA	8-97594-231-1	02	1	1206-	●
222	17.505 BOARD; SIDE GATE WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) TAKADA	8-97594-611-1	02	1	1206-	●
223	17.505 HOOK; PLATE RR BODY FLAT BED(RS6) (B) REAR TAKADA	8-94194-396-0	01	1	1206-1308	●
223	17.505 HOOK; PLATE RR BODY FLAT BED(RS6) (B) REAR TAKADA	8-94194-396-0	01	1	1309-	●	●
223	17.505 HOOK; PLATE RR BODY FLAT BED(RS6) (B) REAR TAKADA	8-94194-397-0	01	1	1206-1308	●
223	17.505 HOOK; PLATE RR BODY FLAT BED(RS6) (B) REAR TAKADA	8-94194-397-0	01	1	1309-	●	●
223	17.505 HOOK; PLATE RR BODY FLAT BED(RS6) (A) FRONT TAKADA	8-97593-673-0	01	1	1206-1308	●
223	17.505 HOOK; PLATE RR BODY FLAT BED(RS6) (A) FRONT TAKADA	8-97593-673-0	01	1	1309-	●	●
223	17.505 HOOK; PLATE RR BODY FLAT BED(RS6) (A) FRONT TAKADA	8-97593-674-0	01	1	1206-1308	●
223	17.505 HOOK; PLATE RR BODY FLAT BED(RS6) (A) FRONT TAKADA	8-97593-674-0	01	1	1309-	●	●
224	17.505 HOOK; VERTICAL LOCK RR BODY FLAT BED(RS6) TAKADA	8-94194-275-0	01	1	1206-1308	●
224	17.505 HOOK; VERTICAL LOCK RR BODY FLAT BED(RS6) TAKADA	8-94194-275-0	01	1	1309-	●	●
224	17.505 HOOK; VERTICAL LOCK RR BODY FLAT BED(RS6) TAKADA	8-94194-276-0	01	1	1206-1308	●
224	17.505 HOOK; VERTICAL LOCK RR BODY FLAT BED(RS6) TAKADA	8-94194-276-0	01	1	1309-	●	●
225	17.505 CLIP; WEATHERSTRIP RR BODY FLAT BED(RS6) TAKADA	8-94194-351-0	08	1	1206-1308	●
225	17.505 CLIP; WEATHERSTRIP RR BODY FLAT BED(RS6) TAKADA	8-94194-351-0	08	1	1309-	●	●

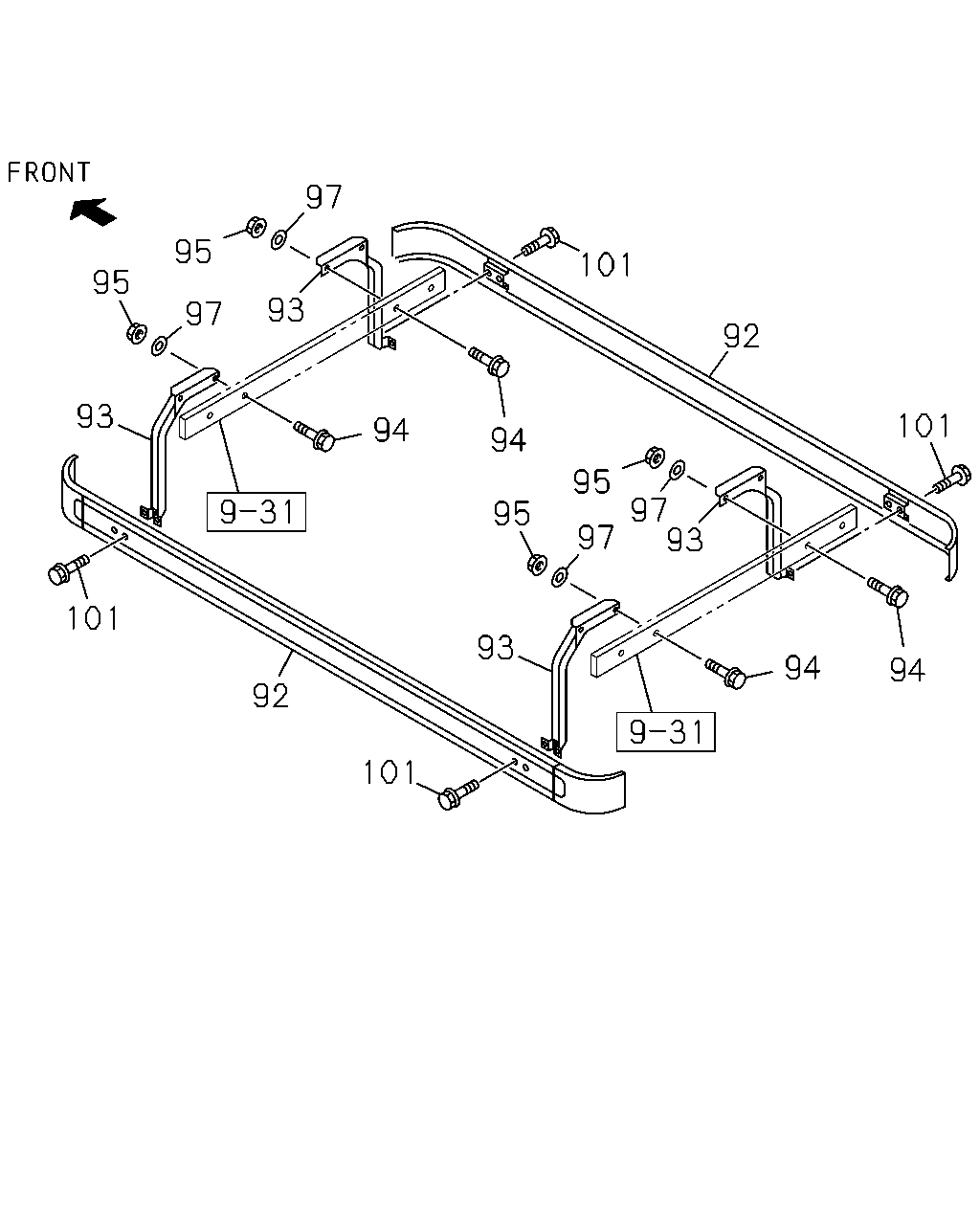

101 95 101 101 92 93 95 97 97 94 93 92 94 93 94 95 95 93 97 97 101 94

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
92	17.505 PIPE; SIDE GUARD	8-98092-668-1	01	1	1309-1310		●
92	17.505 PIPE; SIDE GUARD RR BODY FLAT BED(RS6)	8-98092-668-1	01	1	1311-		●
92	17.505 PIPE; SIDE GUARD	8-98092-669-0	01	1	1309-1310		●
92	17.505 PIPE; SIDE GUARD RR BODY FLAT BED(RS6)	8-98092-669-0	01	1	1311-		●
92	17.505 PIPE; SIDE GUARD WHEEL BASE 2700MM(27W) RR BODY FLAT BED(RS6)	8-98201-807-0	01	1	1206-	●
92	17.505 PIPE; SIDE GUARD WHEEL BASE 2700MM(27W) RR BODY FLAT BED(RS6)	8-98201-808-0	01	1	1206-	●
92	17.505 PIPE; SIDE GUARD WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6)	8-98092-666-0	01	1	1206-	●
92	17.505 PIPE; SIDE GUARD WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6)	8-98092-667-0	01	1	1206-	●
93	17.505 STAY; SIDE GUARD WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6)	8-98035-148-0	02	1	1206-1302	●
93	17.505 STAY; SIDE GUARD RR BODY FLAT BED(RS6)	8-98035-148-0	02	1	1303-1308	●
93	17.505 STAY; SIDE GUARD RR BODY FLAT BED(RS6)	8-98035-148-0	02	1	1309-1310	●
93	17.505 STAY; SIDE GUARD	8-98035-148-0	02	1	1309-1310		●
93	17.505 STAY; SIDE GUARD RR BODY FLAT BED(RS6)	8-98035-148-0	02	1	1311-1412	●	●
93	17.505 STAY; SIDE GUARD WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6)	8-98035-148-0	02	1	1501-	●
93	17.505 STAY; SIDE GUARD RR BODY FLAT BED(RS6)	8-98035-148-0	02	1	1501-		●
93	17.505 STAY; SIDE GUARD WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6)	8-98035-149-0	02	1	1206-1302	●
93	17.505 STAY; SIDE GUARD RR BODY FLAT BED(RS6)	8-98035-149-0	02	1	1303-1308	●
93	17.505 STAY; SIDE GUARD RR BODY FLAT BED(RS6)	8-98035-149-0	02	1	1309-1310	●
93	17.505 STAY; SIDE GUARD	8-98035-149-0	02	1	1309-1310		●
93	17.505 STAY; SIDE GUARD RR BODY FLAT BED(RS6)	8-98035-149-0	02	1	1311-1412	●	●
93	17.505 STAY; SIDE GUARD WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6)	8-98035-149-0	02	1	1501-	●
93	17.505 STAY; SIDE GUARD RR BODY FLAT BED(RS6)	8-98035-149-0	02	1	1501-		●
94	17.185 BOLT; STAY TO BOLSTER WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) M10X70 W/LK WASHER	0-50541-070-0	08	1	1206-1302	●
94	17.185 BOLT; STAY TO BOLSTER RR BODY FLAT BED(RS6) M10X70 W/LK WASHER	0-50541-070-0	08	1	1303-1308	●
94	17.185 BOLT; STAY TO BOLSTER RR BODY FLAT BED(RS6) M10X70 W/LK WASHER	0-50541-070-0	08	1	1309-1310	●
94	17.185 BOLT; STAY TO BOLSTER M10X70 W/LK WASHER	0-50541-070-0	08	1	1309-1310		●
94	17.185 BOLT; STAY TO BOLSTER RR BODY FLAT BED(RS6) M10X70 W/LK WASHER	0-50541-070-0	08	1	1311-1412	●	●
94	17.185 BOLT; STAY TO BOLSTER WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) M10X70 W/LK WASHER	0-50541-070-0	08	1	1501-	●
94	17.185 BOLT; STAY TO BOLSTER RR BODY FLAT BED(RS6) M10X70 W/LK WASHER	0-50541-070-0	08	1	1501-		●
95	17.505 NUT; STAY TO BOLSTER WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) 03.162 M10 FLANGE	0-91180-110-0	08	1	1206-1302	●
95	17.505 NUT; STAY TO BOLSTER RR BODY FLAT BED(RS6) 03.162 M10 FLANGE	0-91180-110-0	08	1	1303-1308	●
95	17.505 NUT; STAY TO BOLSTER RR BODY FLAT BED(RS6) 03.162 M10 FLANGE	0-91180-110-0	08	1	1309-1310	●
95	17.505 NUT; STAY TO BOLSTER 03.162 M10 FLANGE	0-91180-110-0	08	1	1309-1310		●
95	17.505 NUT; STAY TO BOLSTER RR BODY FLAT BED(RS6) 03.162 M10 FLANGE	0-91180-110-0	08	1	1311-1412	●	●
95	17.505 NUT; STAY TO BOLSTER WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) 03.162 M10 FLANGE	0-91180-110-0	08	1	1501-	●
95	17.505 NUT; STAY TO BOLSTER RR BODY FLAT BED(RS6) 03.162 M10 FLANGE	0-91180-110-0	08	1	1501-		●
97	17.507 WASHER; PL,STAY TO BOLSTER WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) 00.002 ID=10.5 OD=32	0-91614-810-0	08	1	1206-1302	●
97	17.507 WASHER; PL,STAY TO BOLSTER RR BODY FLAT BED(RS6) 00.002 ID=10.5 OD=32	0-91614-810-0	08	1	1303-1308	●
97	17.507 WASHER; PL,STAY TO BOLSTER RR BODY FLAT BED(RS6) 00.002 ID=10.5 OD=32	0-91614-810-0	08	1	1309-1310	●
97	17.507 WASHER; PL,STAY TO BOLSTER 00.002 ID=10.5 OD=32	0-91614-810-0	08	1	1309-1310		●
97	17.507 WASHER; PL,STAY TO BOLSTER RR BODY FLAT BED(RS6) 00.002 ID=10.5 OD=32	0-91614-810-0	08	1	1311-1412	●	●
97	17.507 WASHER; PL,STAY TO BOLSTER WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) 00.002 ID=10.5 OD=32	0-91614-810-0	08	1	1501-	●
97	17.507 WASHER; PL,STAY TO BOLSTER RR BODY FLAT BED(RS6) 00.002 ID=10.5 OD=32	0-91614-810-0	08	1	1501-		●
101	17.507 BOLT; PIPE TO STAY WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) 06.216 M8X25 FLANGE	0-28650-825-0	08	1	1206-1302	●
101	17.507 BOLT; PIPE TO STAY RR BODY FLAT BED(RS6) 06.216 M8X25 FLANGE	0-28650-825-0	08	1	1303-1308	●
101	17.507 BOLT; PIPE TO STAY RR BODY FLAT BED(RS6) 06.216 M8X25 FLANGE	0-28650-825-0	08	1	1309-1310	●
101	17.507 BOLT; PIPE TO STAY 06.216 M8X25 FLANGE	0-28650-825-0	08	1	1309-1310		●
101	17.507 BOLT; PIPE TO STAY RR BODY FLAT BED(RS6) 06.216 M8X25 FLANGE	0-28650-825-0	08	1	1311-1412	●	●
101	17.507 BOLT; PIPE TO STAY WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) 06.216 M8X25 FLANGE	0-28650-825-0	08	1	1501-	●
101	17.507 BOLT; PIPE TO STAY RR BODY FLAT BED(RS6) 06.216 M8X25 FLANGE	0-28650-825-0	08	1	1501-		●

40 70 37 200 40 37 36 37 40

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
36	17.202 RUBBER; STOPPER,RR GATE RR BODY FLAT BED(RS6) TAKADA	8-97592-525-0	02	1	1206-1308	●
36	17.202 RUBBER; STOPPER,RR GATE RR BODY FLAT BED(RS6) TAKADA	8-97592-525-0	02	1	1309-	●	●
37	17.202 SCREW RR BODY FLAT BED(RS6) TAKADA	8-94194-119-1	06	1	1206-1308	●
37	17.202 SCREW RR BODY FLAT BED(RS6) TAKADA	8-94194-119-1	06	1	1309-	●	●
40	17.202 NUT; STOPPER RUBBER RR BODY FLAT BED(RS6) 01.062 (A) M6 FLANGE	0-91180-106-0	06	1	1206-1308	●
40	17.202 NUT; STOPPER RUBBER RR BODY FLAT BED(RS6) 01.062 (A) M6 FLANGE	0-91180-106-0	06	1	1309-	●	●
40	17.202 NUT; STOPPER RUBBER RR BODY FLAT BED(RS6) 17.447 (B) M12	9-09130-412-0	02	1	1206-1306	●
40	17.202 NUT; STOPPER RUBBER WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) 17.447 (B) M12	9-09130-412-0	02	1	1307-	●
70	17.490 RUBBER; BUMPER RR BODY FLAT BED(RS6) 17.507 OD=60 H=22	8-94193-455-0	02	1	1206-1308	●
70	17.490 RUBBER; BUMPER RR BODY FLAT BED(RS6) 17.507 OD=60 H=22	8-94193-455-0	02	1	1309-	●	●
200	17.225 CHAIN; REAR GATE WHEEL BASE 2700MM(27W) RR BODY FLAT BED(RS6) TAKADA	8-94195-907-2	02	1	1206-	●

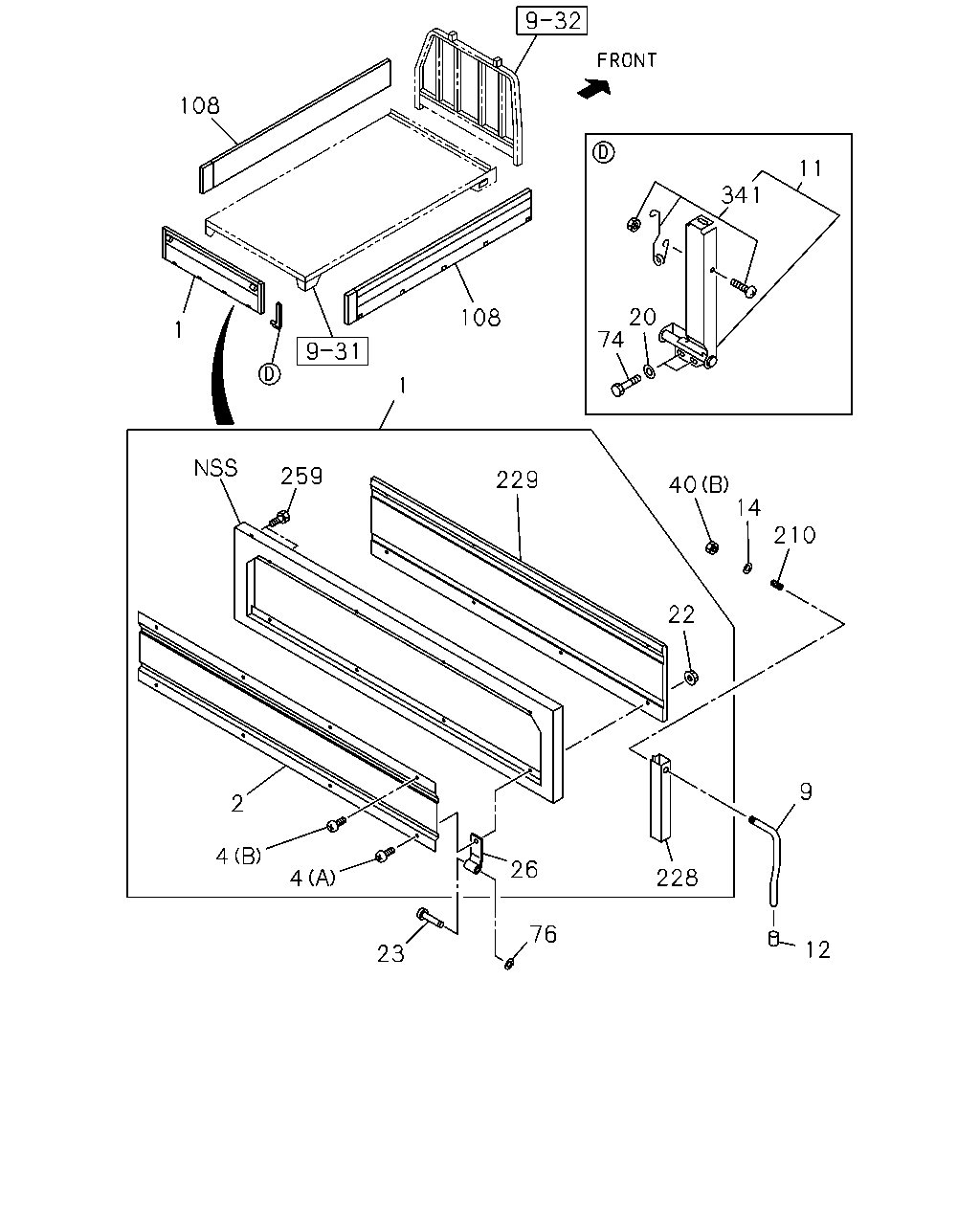

108 1 1 108 11 341 20 74 259 229 40 14 210 22 12 9 228 76 23 26 4 4 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	17.185 GATE ASM; RR RR BODY FLAT BED(RS6) L=1787 H=380 B=50 PLYWOOD TAKADA	8-97594-801-1	01	1	1206-1308	●
1	17.185 GATE ASM; RR RR BODY FLAT BED(RS6) L=1787 H=380 B=50 PLYWOOD TAKADA	8-97594-801-1	01	1	1309-1404	●	●
1	17.185 GATE ASM; RR RR BODY FLAT BED(RS6) L=1787 H=380 B=50 PLYWOOD TAKADA	8-97565-787-1	01	1	1405-	●	●
2	17.185 PANEL; RR GATE RR BODY FLAT BED(RS6) TAKADA	8-97590-081-0	01	1	1206-1308	●
2	17.185 PANEL; RR GATE RR BODY FLAT BED(RS6) TAKADA	8-97590-081-0	01	1	1309-	●	●
4	17.185 SCREW; PANEL,RR GATE RR BODY FLAT BED(RS6) (B) M8X16	8-94193-952-3	04	1	1206-1308	●
4	17.185 SCREW; PANEL,RR GATE RR BODY FLAT BED(RS6) (B) M8X16	8-94193-952-3	04	1	1309-	●	●
4	17.185 SCREW; PANEL,RR GATE RR BODY FLAT BED(RS6) (A) M8X21	8-94193-953-3	04	1	1206-1308	●
4	17.185 SCREW; PANEL,RR GATE RR BODY FLAT BED(RS6) (A) M8X21	8-94193-953-3	04	1	1309-	●	●
9	17.204 HANDLE; LATCH,RR GATE RR BODY FLAT BED(RS6) TAKADA	8-94196-400-2	01	1	1206-1308	●
9	17.204 HANDLE; LATCH,RR GATE RR BODY FLAT BED(RS6) TAKADA	8-94196-400-2	01	1	1309-	●	●
9	17.204 HANDLE; LATCH,RR GATE RR BODY FLAT BED(RS6) TAKADA	8-94196-401-2	01	1	1206-1308	●
9	17.204 HANDLE; LATCH,RR GATE RR BODY FLAT BED(RS6) TAKADA	8-94196-401-2	01	1	1309-	●	●
11	17.198 LOCK ASM; VERTICAL RR BODY FLAT BED(RS6) TAKADA	8-97591-898-0	01	1	1206-1308	●
11	17.198 LOCK ASM; VERTICAL RR BODY FLAT BED(RS6) TAKADA	8-97591-898-0	01	1	1309-	●	●
11	17.198 LOCK ASM; VERTICAL RR BODY FLAT BED(RS6) TAKADA	8-97591-899-0	01	1	1206-1308	●
11	17.198 LOCK ASM; VERTICAL RR BODY FLAT BED(RS6) TAKADA	8-97591-899-0	01	1	1309-	●	●
12	17.204 PIECE; END,RR HANDLE RR BODY FLAT BED(RS6) TAKADA	8-94193-344-0	02	1	1206-1308	●
12	17.204 PIECE; END,RR HANDLE RR BODY FLAT BED(RS6) TAKADA	8-94193-344-0	02	1	1309-	●	●
14	17.204 WASHER; PL,HANDLE RR BODY FLAT BED(RS6) ID=12.5	0-91614-512-0	02	1	1206-1308	●
14	17.204 WASHER; PL,HANDLE RR BODY FLAT BED(RS6) ID=12.5	0-91614-512-0	02	1	1309-	●	●
20	17.198 WASHER; PL,VERTICAL LOCK RR BODY FLAT BED(RS6)	8-97565-055-0	04	1	1206-1308	●
20	17.198 WASHER; PL,VERTICAL LOCK RR BODY FLAT BED(RS6)	8-97565-055-0	04	1	1309-	●	●
22	17.185 NUT; PLATE,RR GATE RR BODY FLAT BED(RS6) M8	8-94193-954-1	08	1	1206-1303	●
22	17.185 NUT; PLATE,RR GATE RR BODY FLAT BED(RS6) 17.447 M8	8-97565-434-0	08	1	1304-1308	●
22	17.185 NUT; PLATE,RR GATE RR BODY FLAT BED(RS6) 17.447 M8	8-97565-434-0	08	1	1309-	●	●
23	17.208 PIN; HINGE,RR GATE RR BODY FLAT BED(RS6) OD=10 L=58.5	8-94193-933-2	04	1	1206-1308	●
23	17.208 PIN; HINGE,RR GATE RR BODY FLAT BED(RS6) OD=10 L=58.5	8-94193-933-2	04	1	1309-	●	●
26	17.208 HINGE; UPR,RR GATE RR BODY FLAT BED(RS6) TAKADA	8-97590-078-0	04	1	1206-1308	●
26	17.208 HINGE; UPR,RR GATE RR BODY FLAT BED(RS6) TAKADA	8-97590-078-0	04	1	1309-	●	●
40	17.202 NUT; STOPPER RUBBER RR BODY FLAT BED(RS6) 01.062 (A) M6 FLANGE	0-91180-106-0	06	1	1206-1308	●
40	17.202 NUT; STOPPER RUBBER RR BODY FLAT BED(RS6) 01.062 (A) M6 FLANGE	0-91180-106-0	06	1	1309-	●	●
40	17.202 NUT; STOPPER RUBBER RR BODY FLAT BED(RS6) 17.447 (B) M12	9-09130-412-0	02	1	1206-1306	●
40	17.202 NUT; STOPPER RUBBER WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) 17.447 (B) M12	9-09130-412-0	02	1	1307-	●
74	17.490 SCREW; LOCK RR BODY FLAT BED(RS6)	8-97565-054-0	04	1	1206-1308	●
74	17.490 SCREW; LOCK RR BODY FLAT BED(RS6)	8-97565-054-0	04	1	1309-	●	●
76	17.505 RING; SNAP,GATE HINGE PIN RR BODY FLAT BED(RS6) ID=8	8-94194-117-1	18	1	1206-1308	●
76	17.505 RING; SNAP,GATE HINGE PIN RR BODY FLAT BED(RS6) ID=8	8-94194-117-1	18	1	1309-	●	●
108	17.505 GATE ASM; SIDE RR BODY FLAT BED(RS6) L=2983 H=393 B=50 PLYWOOD TAKADA	8-97594-100-3	01	1	1309-		●
108	17.505 GATE ASM; SIDE RR BODY FLAT BED(RS6) L=2983 H=393 B=50 PLYWOOD TAKADA	8-97594-101-3	01	1	1309-		●
108	17.505 GATE ASM; SIDE WHEEL BASE 2700MM(27W) RR BODY FLAT BED(RS6) L=3553 H=393 B=50 PLYWOOD TAKADA	8-97594-619-2	01	1	1206-	●
108	17.505 GATE ASM; SIDE WHEEL BASE 2700MM(27W) RR BODY FLAT BED(RS6) L=3553 H=393 B=50 PLYWOOD TAKADA	8-97594-620-2	01	1	1206-	●
108	17.505 GATE ASM; SIDE WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) L=4309 H=393 B=50 PLYWOOD TAKADA	8-97594-490-3	01	1	1206-	●
108	17.505 GATE ASM; SIDE WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) L=4309 H=393 B=50 PLYWOOD TAKADA	8-97594-491-3	01	1	1206-	●
210	17.505 SPRING; LATCH HANDLE RR BODY FLAT BED(RS6) TAKADA	8-94194-192-1	02	1	1206-1308	●
210	17.505 SPRING; LATCH HANDLE RR BODY FLAT BED(RS6) TAKADA	8-94194-192-1	02	1	1309-	●	●
228	17.505 BRACKET; LATCH HANDLE RR BODY FLAT BED(RS6) TAKADA	8-97593-782-0	01	1	1206-1308	●
228	17.505 BRACKET; LATCH HANDLE RR BODY FLAT BED(RS6) TAKADA	8-97593-782-0	01	1	1309-	●	●
228	17.505 BRACKET; LATCH HANDLE RR BODY FLAT BED(RS6) TAKADA	8-97593-783-0	01	1	1206-1308	●
228	17.505 BRACKET; LATCH HANDLE RR BODY FLAT BED(RS6) TAKADA	8-97593-783-0	01	1	1309-	●	●
229	17.505 BOARD; RR GATE RR BODY FLAT BED(RS6) TAKADA	8-97594-242-0	01	1	1206-1308	●
229	17.505 BOARD; RR GATE RR BODY FLAT BED(RS6) TAKADA	8-97594-242-0	01	1	1309-1404	●	●
229	17.505 BOARD; RR GATE RR BODY FLAT BED(RS6) TAKADA	8-97565-792-1	01	1	1405-	●	●
259	17.505 BOLT; BRKT,RR GATE RR BODY FLAT BED(RS6) OUTER M8X20 TAKADA	8-94194-115-0	02	1	1206-1303	●
259	17.505 BOLT; BRKT,RR GATE RR BODY FLAT BED(RS6) OUTER M8X20 TAKADA	8-97590-324-0	02	1	1304-1308	●
259	17.505 BOLT; BRKT,RR GATE RR BODY FLAT BED(RS6) OUTER M8X20 TAKADA	8-97590-324-0	02	1	1309-	●	●
259	17.505 BOLT; BRKT,RR GATE RR BODY FLAT BED(RS6) INNER M8X40 TAKADA	8-97593-296-0	02	1	1206-1303	●
259	17.505 BOLT; BRKT,RR GATE RR BODY FLAT BED(RS6) INNER M8X40 TAKADA	8-97590-325-0	02	1	1304-1308	●
259	17.505 BOLT; BRKT,RR GATE RR BODY FLAT BED(RS6) INNER M8X40 TAKADA	8-97590-325-0	02	1	1309-	●	●
341	17.505 SPRING KIT; VERTICAL LOCK RR BODY FLAT BED(RS6) TAKADA	8-97594-448-0	01	1	1206-1308	●
341	17.505 SPRING KIT; VERTICAL LOCK RR BODY FLAT BED(RS6) TAKADA	8-97594-448-0	01	1	1309-	●	●
341	17.505 SPRING KIT; VERTICAL LOCK RR BODY FLAT BED(RS6) TAKADA	8-97594-449-0	01	1	1206-1308	●
341	17.505 SPRING KIT; VERTICAL LOCK RR BODY FLAT BED(RS6) TAKADA	8-97594-449-0	01	1	1309-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
