Sayfa 9-31 - Isuzu EPC

9-31 — REAR BODY; FLOOR AND FENDER (#95571) — 423 parça

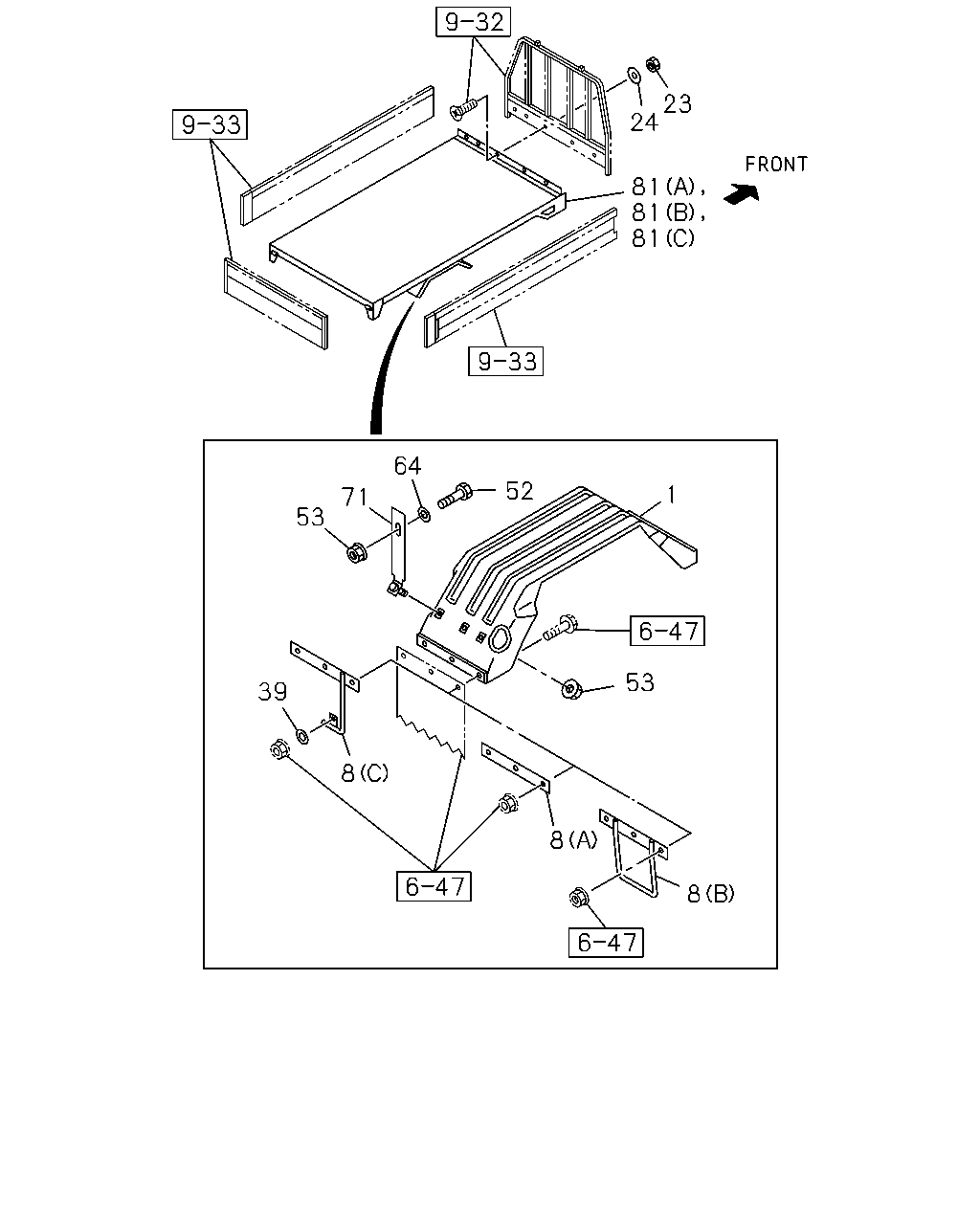

23 24 81 81 81 52 64 71 53 1 53 8 8 8 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	08.203 FENDER; RR,RR BODY	8-97162-719-0	02	1	1309-1310	●
1	08.203 FENDER; RR,RR BODY RR BODY FLAT BED(RS6)	8-97162-719-0	02	1	1311-1604	●
1	08.203 FENDER; RR,RR BODY RR BODY FLAT BED(RS6)	8-98253-301-0	02	1	1605-	●
1	08.203 FENDER; RR,RR BODY RR BODY FLAT BED(RS6)	8-97162-720-0	02	1	1206-1604		●
1	08.203 FENDER; RR,RR BODY RR BODY FLAT BED(RS6)	8-98253-302-0	02	1	1605-		●
8	08.212 HOLDER; FLAP RUBBER (C)	8-97190-220-0	02	1	1309-1310	●
8	08.212 HOLDER; FLAP RUBBER RR BODY FLAT BED(RS6) (C)	8-97190-220-0	02	1	1311-	●
8	08.212 HOLDER; FLAP RUBBER WHEEL BASE 2700MM(27W) RR BODY FLAT BED(RS6) (A)	8-97179-829-0	01	1	1206-		●
8	08.212 HOLDER; FLAP RUBBER WHEEL BASE 2700MM(27W) RR BODY FLAT BED(RS6) (B)	8-97183-841-1	01	1	1206-		●
8	08.212 HOLDER; FLAP RUBBER WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) (A)	8-97179-829-0	02	1	1206-		●
23	17.405 NUT; ANGLE RR BODY FLAT BED(RS6) 09.011 M8 W/LK WASHER	8-97065-435-0	05	1	1206-1308		●
23	17.405 NUT; ANGLE RR BODY FLAT BED(RS6) 09.011 M8 W/LK WASHER	8-97065-435-0	05	1	1309-1310		●
23	17.405 NUT; ANGLE 09.011 M8 W/LK WASHER	8-97065-435-0	05	1	1309-1310	●
23	17.405 NUT; ANGLE RR BODY FLAT BED(RS6) 09.011 M8 W/LK WASHER	8-97065-435-0	05	1	1311-	●	●
24	17.405 WASHER; ANGLE RR BODY FLAT BED(RS6) 04.047 ID=8.2 OD=40	8-97182-975-0	01	1	1206-1308		●
24	17.405 WASHER; ANGLE RR BODY FLAT BED(RS6) 04.047 ID=8.2 OD=40	8-97182-975-0	01	1	1309-1310		●
24	17.405 WASHER; ANGLE 04.047 ID=8.2 OD=40	8-97182-975-0	01	1	1309-1310	●
24	17.405 WASHER; ANGLE RR BODY FLAT BED(RS6) 04.047 ID=8.2 OD=40	8-97182-975-0	01	1	1311-	●	●
39	08.212 WASHER; PL,MUD COVER ID=6.4 OD=18	8-97076-852-0	02	1	1309-1310	●
39	08.212 WASHER; PL,MUD COVER RR BODY FLAT BED(RS6) ID=6.4 OD=18	8-97076-852-0	02	1	1311-	●
52	17.447 BOLT; FENDER STAY,RR RR BODY FLAT BED(RS6) M8X60 W/LK WASHER	0-50740-860-0	08	1	1206-1308		●
52	17.447 BOLT; FENDER STAY,RR RR BODY FLAT BED(RS6) M8X60 W/LK WASHER	0-50740-860-0	08	1	1309-1310		●
52	17.447 BOLT; FENDER STAY,RR M8X60 W/LK WASHER	0-50740-860-0	08	1	1309-1310	●
52	17.447 BOLT; FENDER STAY,RR RR BODY FLAT BED(RS6) M8X60 W/LK WASHER	0-50740-860-0	08	1	1311-	●	●
53	17.447 NUT; FENDER STAY,RR RR BODY FLAT BED(RS6) 01.062 M8 FLANGE	0-91180-108-0	16	1	1206-1308		●
53	17.447 NUT; FENDER STAY,RR RR BODY FLAT BED(RS6) 01.062 M8 FLANGE	0-91180-108-0	16	1	1309-1310		●
53	17.447 NUT; FENDER STAY,RR 01.062 M8 FLANGE	0-91180-108-0	16	1	1309-1310	●
53	17.447 NUT; FENDER STAY,RR RR BODY FLAT BED(RS6) 01.062 M8 FLANGE	0-91180-108-0	16	1	1311-	●	●
64	17.447 WASHER; PL,RR FENDER,UPR RR BODY FLAT BED(RS6) 03.706 ID=8.4 OD=26	0-91614-808-0	08	1	1206-1308		●
64	17.447 WASHER; PL,RR FENDER,UPR RR BODY FLAT BED(RS6) 03.706 ID=8.4 OD=26	0-91614-808-0	08	1	1309-1310		●
64	17.447 WASHER; PL,RR FENDER,UPR 03.706 ID=8.4 OD=26	0-91614-808-0	08	1	1309-1310	●
64	17.447 WASHER; PL,RR FENDER,UPR RR BODY FLAT BED(RS6) 03.706 ID=8.4 OD=26	0-91614-808-0	08	1	1311-	●	●
71	08.212 STAY; RR FENDER RR BODY FLAT BED(RS6)	8-97179-830-1	08	1	1206-1308		●
71	08.212 STAY; RR FENDER RR BODY FLAT BED(RS6)	8-97179-830-1	08	1	1309-1310		●
71	08.212 STAY; RR FENDER	8-97179-830-1	08	1	1309-1310	●
71	08.212 STAY; RR FENDER RR BODY FLAT BED(RS6)	8-97179-830-1	08	1	1311-	●	●
81	17.400 FLOOR ASM; RR BODY RR BODY FLAT BED(RS6) (C) TAKADA	8-97565-425-2	01	1	1309-	●
81	17.400 FLOOR ASM; RR BODY WHEEL BASE 2700MM(27W) RR BODY FLAT BED(RS6) (A) TAKADA	8-97565-255-4	01	1	1206-		●
81	17.400 FLOOR ASM; RR BODY WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) (B) TAKADA	8-97565-256-3	01	1	1206-		●

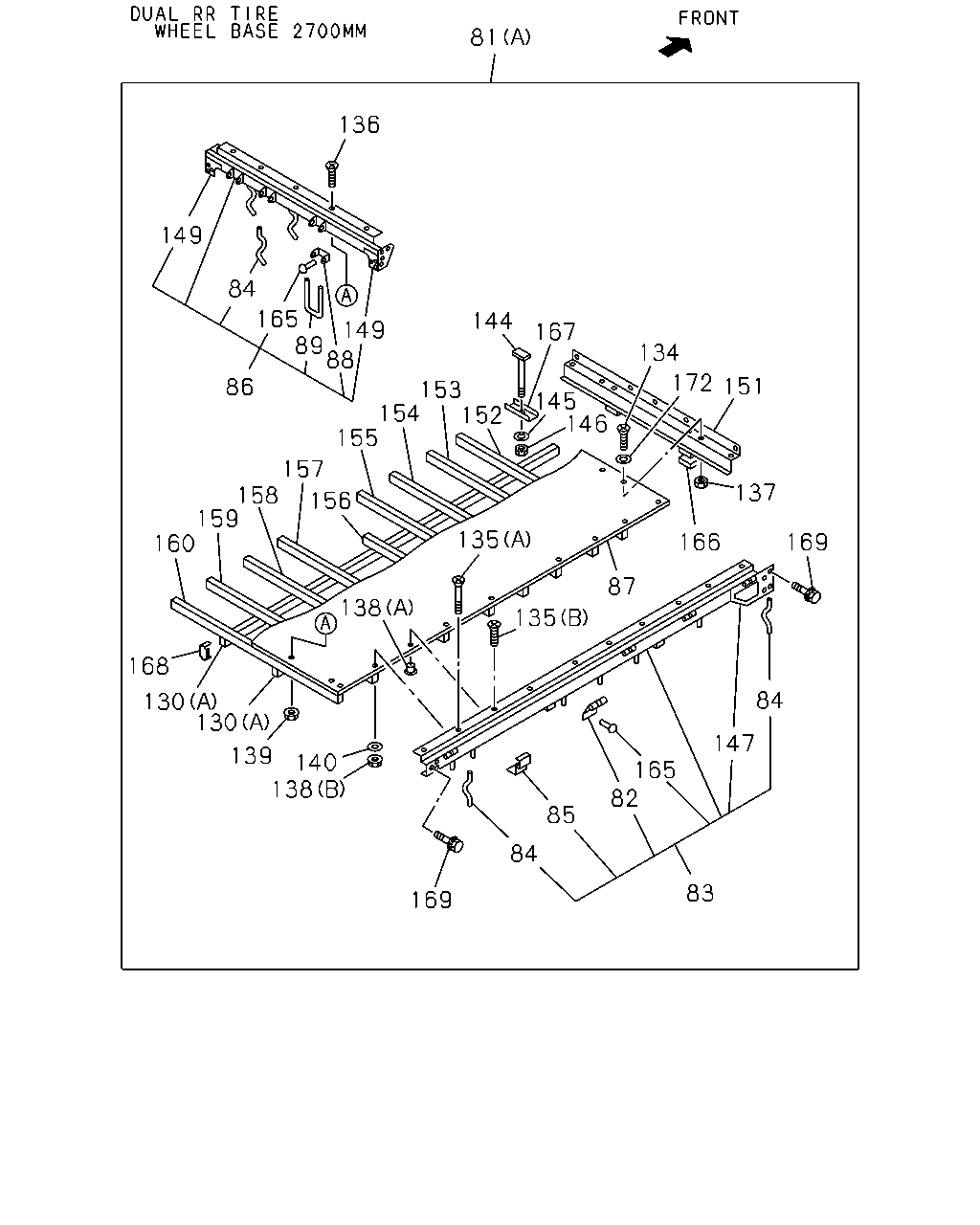

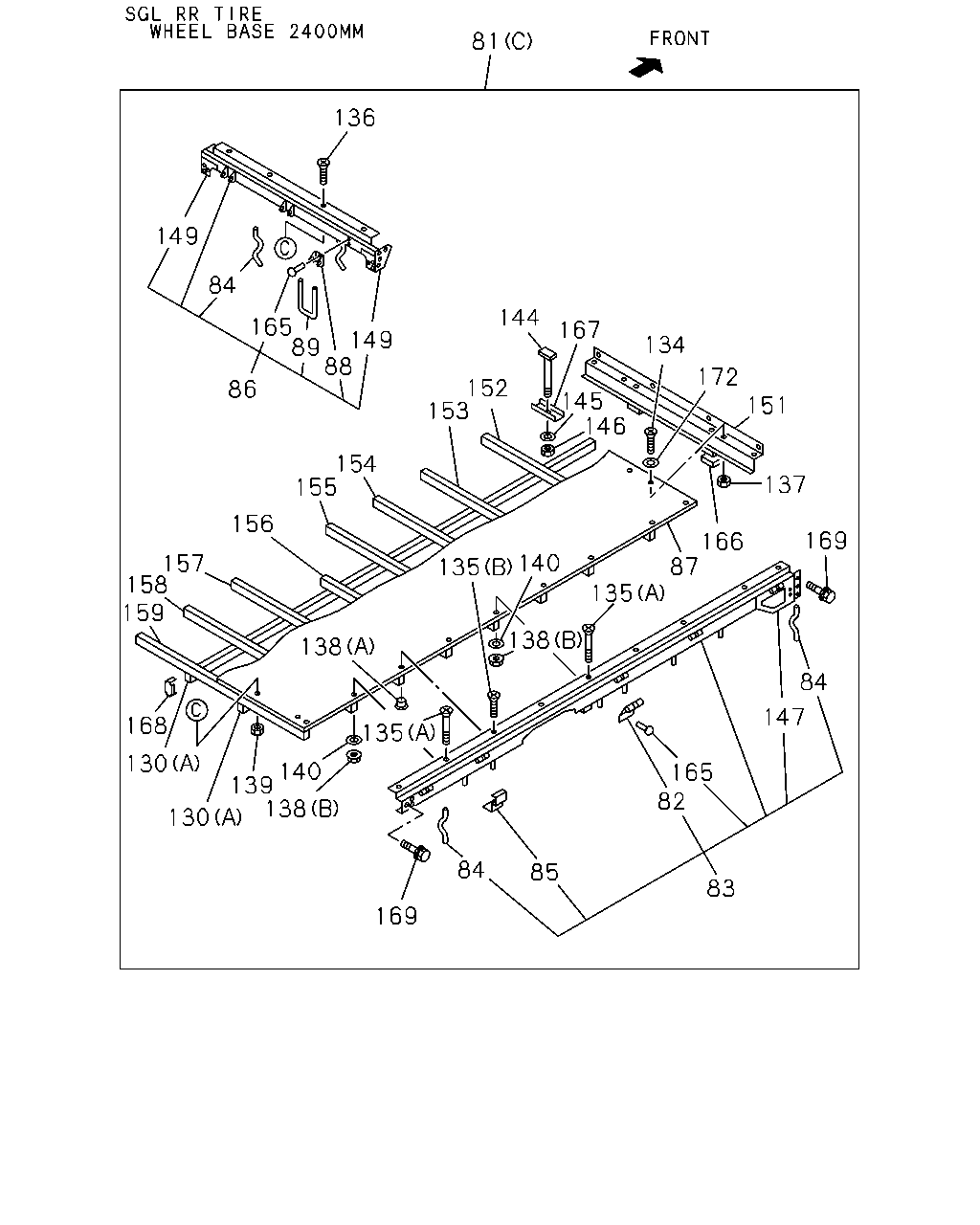

81 136 149 84 86 165 89 88 149 152 153 154 155 156 157 158 159 168 130 130 139 140 138 169 84 85 83 82 165 147 84 169 166 87 135 138 135 138 135 140 137 151 172 134 146 145 167 144

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
81	17.400 FLOOR ASM; RR BODY RR BODY FLAT BED(RS6) (C) TAKADA	8-97565-425-2	01	1	1309-	●
81	17.400 FLOOR ASM; RR BODY WHEEL BASE 2700MM(27W) RR BODY FLAT BED(RS6) (A) TAKADA	8-97565-255-4	01	1	1206-		●
81	17.400 FLOOR ASM; RR BODY WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) (B) TAKADA	8-97565-256-3	01	1	1206-		●
82	17.510 HINGE; SIDE GATE,LWR RR BODY FLAT BED(RS6) TAKADA	8-97590-219-0	12	1	1309-	●
82	17.510 HINGE; SIDE GATE,LWR RR BODY FLAT BED(RS6) TAKADA	8-97590-219-0	14	1	1206-		●
83	08.309 FRAME; SIDE RR BODY FLAT BED(RS6) TAKADA	8-97594-510-0	01	1	1309-	●
83	08.309 FRAME; SIDE RR BODY FLAT BED(RS6) TAKADA	8-97594-511-0	01	1	1309-	●
83	08.309 FRAME; SIDE WHEEL BASE 2700MM(27W) RR BODY FLAT BED(RS6) TAKADA	8-97565-257-0	01	1	1206-		●
83	08.309 FRAME; SIDE WHEEL BASE 2700MM(27W) RR BODY FLAT BED(RS6) TAKADA	8-97565-258-0	01	1	1206-		●
83	08.309 FRAME; SIDE WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) TAKADA	8-97594-841-0	01	1	1206-		●
83	08.309 FRAME; SIDE WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) TAKADA	8-97594-842-0	01	1	1206-		●
84	08.820 HOOK; ROPE WHEEL BASE 2700MM(27W) RR BODY FLAT BED(RS6) TAKADA	8-97593-866-0	15	1	1206-1308		●
84	08.820 HOOK; ROPE WHEEL BASE 2700MM(27W) RR BODY FLAT BED(RS6) TAKADA	8-97593-866-0	15	1	1309-		●
84	08.820 HOOK; ROPE TAKADA	8-97593-866-0	15	1	1309-	●
84	08.820 HOOK; ROPE WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) TAKADA	8-97593-866-0	21	1	1206-		●
85	08.212 BRACKET; SIDE FRAME WHEEL BASE 2700MM(27W) RR BODY FLAT BED(RS6) TAKADA	8-97593-865-0	04	1	1206-1308		●
85	08.212 BRACKET; SIDE FRAME WHEEL BASE 2700MM(27W) RR BODY FLAT BED(RS6) TAKADA	8-97593-865-0	04	1	1309-		●
85	08.212 BRACKET; SIDE FRAME TAKADA	8-97593-865-0	04	1	1309-	●
85	08.212 BRACKET; SIDE FRAME WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) TAKADA	8-97593-865-0	06	1	1206-		●
86	17.202 FRAME; RR RR BODY FLAT BED(RS6) TAKADA	8-97594-568-0	01	1	1309-	●
86	17.202 FRAME; RR RR BODY FLAT BED(RS6) TAKADA	8-97594-569-0	01	1	1206-		●
87	17.400 BOARD; FLOOR RR BODY FLAT BED(RS6) TAKADA	8-97565-203-1	01	1	1309-	●
87	17.400 BOARD; FLOOR WHEEL BASE 2700MM(27W) RR BODY FLAT BED(RS6) TAKADA	8-97565-259-1	01	1	1206-		●
87	17.400 BOARD; FLOOR WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) TAKADA	8-97565-207-1	01	1	1206-		●
88	17.208 HINGE; RR GATE,LWR RR BODY FLAT BED(RS6) TAKADA	8-97590-251-0	04	1	1206-1308		●
88	17.208 HINGE; RR GATE,LWR RR BODY FLAT BED(RS6) TAKADA	8-97590-251-0	04	1	1309-	●	●
89	17.400 STEP; RR RR BODY FLAT BED(RS6) TAKADA	8-97592-957-0	01	1	1309-	●
89	17.400 STEP; RR RR BODY FLAT BED(RS6) TAKADA	8-97593-886-0	01	1	1206-		●

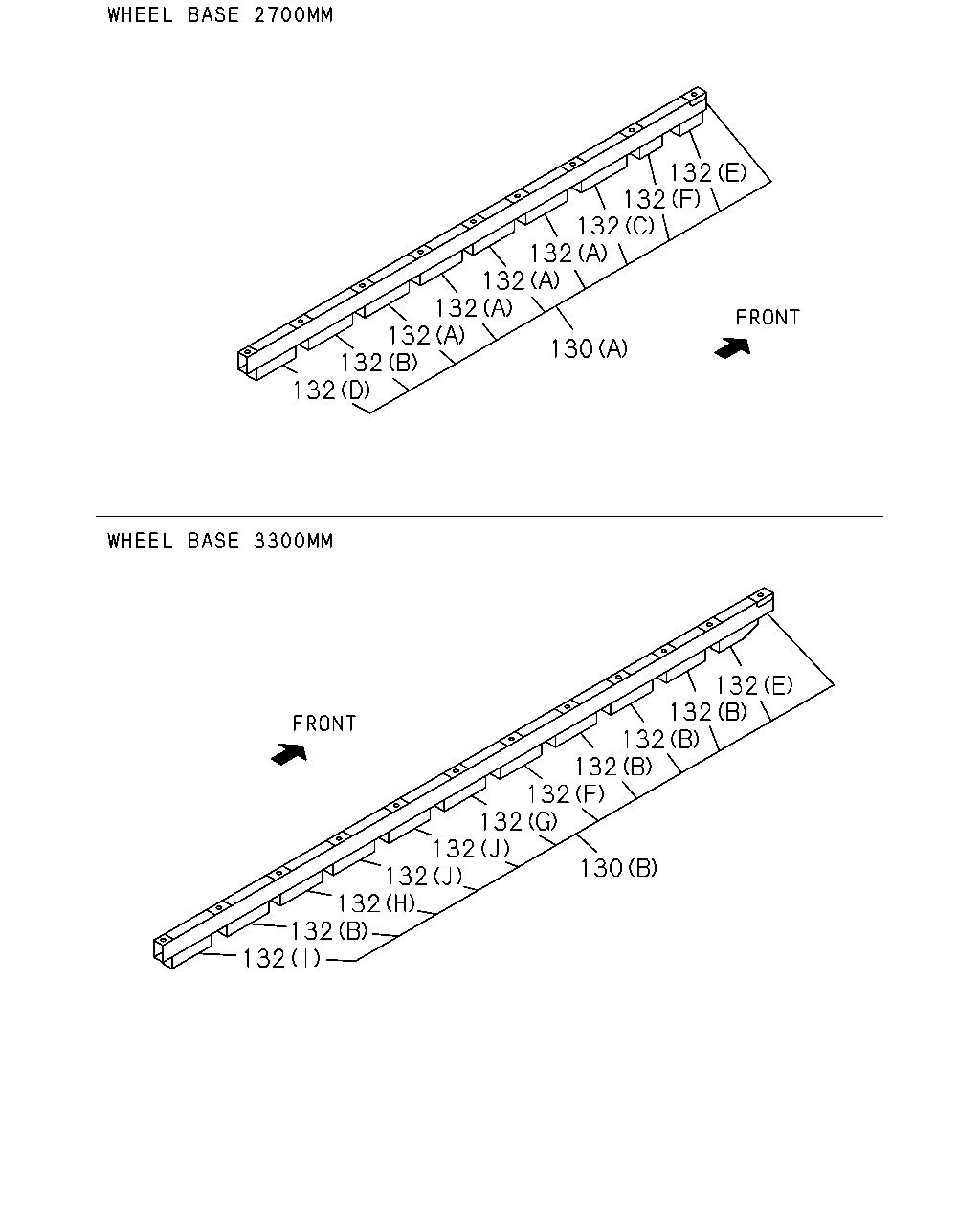

130	17.208 SILL ASM; RR BODY RR BODY FLAT BED(RS6) (C) TAKADA	8-97565-432-0	01	1	1309-	●
130	17.208 SILL ASM; RR BODY RR BODY FLAT BED(RS6) (C) TAKADA	8-97565-433-0	01	1	1309-	●
130	17.208 SILL ASM; RR BODY WHEEL BASE 2700MM(27W) RR BODY FLAT BED(RS6) (A) TAKADA	8-97565-260-1	01	1	1206-		●
130	17.208 SILL ASM; RR BODY WHEEL BASE 2700MM(27W) RR BODY FLAT BED(RS6) (A) TAKADA	8-97565-261-0	01	1	1206-		●
130	17.208 SILL ASM; RR BODY WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) (B) TAKADA	8-97565-262-1	01	1	1206-		●
130	17.208 SILL ASM; RR BODY WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) (B) TAKADA	8-97565-263-1	01	1	1206-		●
134	17.505 SCREW; BOARD,FRT RR BODY FLAT BED(RS6) 17.455 M8X30 TAKADA	8-94193-938-3	07	1	1206-1308		●
134	17.505 SCREW; BOARD,FRT RR BODY FLAT BED(RS6) 17.455 M8X30 TAKADA	8-94193-938-3	07	1	1309-	●	●
135	17.505 SCREW; BOARD,SIDE RR BODY FLAT BED(RS6) (A) M8X99 TAKADA	8-97594-760-0	12	1	1309-	●
135	17.505 SCREW; BOARD,SIDE WHEEL BASE 2700MM(27W) RR BODY FLAT BED(RS6) (A) M8X99 TAKADA	8-97594-760-0	14	1	1206-		●
135	17.505 SCREW; BOARD,SIDE WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) (A) M8X99 TAKADA	8-97594-760-0	18	1	1206-		●
135	17.505 SCREW; BOARD,SIDE RR BODY FLAT BED(RS6) (B) M8X16 TAKADA	8-94195-024-3	02	1	1206-1308		●
135	17.505 SCREW; BOARD,SIDE RR BODY FLAT BED(RS6) (B) M8X16 TAKADA	8-94195-024-3	02	1	1309-	●	●
136	17.505 SCREW; BOARD,RR RR BODY FLAT BED(RS6) 17.455 M8X30 TAKADA	8-94193-938-3	05	1	1309-	●
136	17.505 SCREW; BOARD,RR RR BODY FLAT BED(RS6) M8X99 TAKADA	8-97594-760-0	02	1	1309-	●
136	17.505 SCREW; BOARD,RR RR BODY FLAT BED(RS6) 17.455 M8X30 TAKADA	8-94193-938-3	07	1	1206-		●
137	17.447 NUT; BOARD,FRT RR BODY FLAT BED(RS6) M8 FLANGE	8-94193-939-2	07	1	1206-1308		●
137	17.447 NUT; BOARD,FRT RR BODY FLAT BED(RS6) M8 FLANGE	8-94193-939-2	07	1	1309-	●	●
138	17.447 NUT; BOARD,SIDE RR BODY FLAT BED(RS6) (B) M8 FLANGE	8-94193-939-2	12	1	1309-	●
138	17.447 NUT; BOARD,SIDE WHEEL BASE 2700MM(27W) RR BODY FLAT BED(RS6) (B) M8 FLANGE	8-94193-939-2	14	1	1206-		●
138	17.447 NUT; BOARD,SIDE WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) (B) M8 FLANGE	8-94193-939-2	18	1	1206-		●
138	17.447 NUT; BOARD,SIDE RR BODY FLAT BED(RS6) 17.185 (A) M8	8-94193-954-1	02	1	1206-1303		●
138	17.447 NUT; BOARD,SIDE RR BODY FLAT BED(RS6) (A) M8	8-97565-434-0	02	1	1304-1308		●
138	17.447 NUT; BOARD,SIDE RR BODY FLAT BED(RS6) (A) M8	8-97565-434-0	02	1	1309-	●	●
139	17.447 NUT; BOARD,RR RR BODY FLAT BED(RS6) M8 FLANGE	8-94193-939-2	07	1	1206-1308		●
139	17.447 NUT; BOARD,RR RR BODY FLAT BED(RS6) M8 FLANGE	8-94193-939-2	07	1	1309-	●	●
140	17.447 WASHER; PL,BOARD,SIDE RR BODY FLAT BED(RS6) 02.334 ID=8.4 OD=26	9-09164-808-0	08	1	1309-	●
140	17.447 WASHER; PL,BOARD,SIDE WHEEL BASE 2700MM(27W) RR BODY FLAT BED(RS6) 02.334 ID=8.4 OD=26	9-09164-808-0	10	1	1206-		●
140	17.447 WASHER; PL,BOARD,SIDE WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) 02.334 ID=8.4 OD=26	9-09164-808-0	12	1	1206-		●
144	17.447 BOLT; BOLSTER TO SILL RR BODY FLAT BED(RS6) M10X202 TAKADA	8-97592-730-0	14	1	1309-	●
144	17.447 BOLT; BOLSTER TO SILL WHEEL BASE 2700MM(27W) RR BODY FLAT BED(RS6) M10X202 TAKADA	8-97592-730-0	16	1	1206-		●
144	17.447 BOLT; BOLSTER TO SILL WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) M10X202 TAKADA	8-97592-730-0	20	1	1206-		●
145	17.447 WASHER; PL,BOLSTER TO SILL RR BODY FLAT BED(RS6) 00.002 ID=10.5 OD=32	0-91614-810-0	18	1	1309-	●
145	17.447 WASHER; PL,BOLSTER TO SILL WHEEL BASE 2700MM(27W) RR BODY FLAT BED(RS6) 00.002 ID=10.5 OD=32	0-91614-810-0	20	1	1206-		●
145	17.447 WASHER; PL,BOLSTER TO SILL WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) 00.002 ID=10.5 OD=32	0-91614-810-0	24	1	1206-		●
146	17.447 NUT; BOLSTER TO SILL RR BODY FLAT BED(RS6) M10 TAKADA	8-97594-444-0	18	1	1309-	●
146	17.447 NUT; BOLSTER TO SILL WHEEL BASE 2700MM(27W) RR BODY FLAT BED(RS6) M10 TAKADA	8-97594-444-0	20	1	1206-		●
146	17.447 NUT; BOLSTER TO SILL WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) M10 TAKADA	8-97594-444-0	24	1	1206-		●
147	17.405 GUSSET; GUARD FRAME RR BODY FLAT BED(RS6) 17.447 TAKADA	8-97593-174-0	01	1	1206-1308		●
147	17.405 GUSSET; GUARD FRAME RR BODY FLAT BED(RS6) 17.447 TAKADA	8-97593-174-0	01	1	1309-	●	●
147	17.405 GUSSET; GUARD FRAME RR BODY FLAT BED(RS6) 17.447 TAKADA	8-97593-175-0	01	1	1206-1308		●
147	17.405 GUSSET; GUARD FRAME RR BODY FLAT BED(RS6) 17.447 TAKADA	8-97593-175-0	01	1	1309-	●	●
149	17.455 CONNECTOR; RR CORNER RR BODY FLAT BED(RS6) TAKADA	8-97593-186-0	01	1	1206-1308		●
149	17.455 CONNECTOR; RR CORNER RR BODY FLAT BED(RS6) TAKADA	8-97593-186-0	01	1	1309-	●	●
149	17.455 CONNECTOR; RR CORNER RR BODY FLAT BED(RS6) TAKADA	8-97593-187-0	01	1	1206-1308		●
149	17.455 CONNECTOR; RR CORNER RR BODY FLAT BED(RS6) TAKADA	8-97593-187-0	01	1	1309-	●	●
151	17.208 BOLSTER; NO 1,RR BODY RR BODY FLAT BED(RS6) L=1768 TAKADA	8-97565-426-0	01	1	1309-	●
151	17.208 BOLSTER; NO 1,RR BODY RR BODY FLAT BED(RS6) L=1768 TAKADA	8-97565-219-0	01	1	1206-		●
152	17.208 BOLSTER; NO 2,RR BODY RR BODY FLAT BED(RS6) L=1768 TAKADA	8-97565-428-1	01	1	1309-	●
152	17.208 BOLSTER; NO 2,RR BODY RR BODY FLAT BED(RS6) L=1768 TAKADA	8-97594-114-1	01	1	1206-		●
153	17.208 BOLSTER; NO 3,RR BODY RR BODY FLAT BED(RS6) L=1768 TAKADA	8-97565-428-1	01	1	1309-	●
153	17.208 BOLSTER; NO 3,RR BODY RR BODY FLAT BED(RS6) L=1768 TAKADA	8-97594-113-1	01	1	1206-		●
154	17.208 BOLSTER; NO 4,RR BODY RR BODY FLAT BED(RS6) L=1768 TAKADA	8-97565-428-1	01	1	1309-	●
154	17.208 BOLSTER; NO 4,RR BODY WHEEL BASE 2700MM(27W) RR BODY FLAT BED(RS6) L=1768 TAKADA	8-97594-114-1	01	1	1206-		●
154	17.208 BOLSTER; NO 4,RR BODY WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) L=1768 TAKADA	8-97594-113-1	01	1	1206-		●
155	17.208 BOLSTER; NO 5,RR BODY RR BODY FLAT BED(RS6) L=1768 TAKADA	8-97565-429-1	01	1	1309-	●
155	17.208 BOLSTER; NO 5,RR BODY WHEEL BASE 2700MM(27W) RR BODY FLAT BED(RS6) L=1768 TAKADA	8-97594-116-1	01	1	1206-		●
155	17.208 BOLSTER; NO 5,RR BODY WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) L=1768 TAKADA	8-97594-113-1	01	1	1206-		●
156	17.208 BOLSTER; NO 6,RR BODY RR BODY FLAT BED(RS6) L=850 TAKADA	8-97565-430-1	01	1	1309-	●
156	17.208 BOLSTER; NO 6,RR BODY WHEEL BASE 2700MM(27W) RR BODY FLAT BED(RS6) L=780 TAKADA	8-97594-117-1	01	1	1206-		●
156	17.208 BOLSTER; NO 6,RR BODY WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) L=1768 TAKADA	8-97594-114-1	01	1	1206-		●
157	17.208 BOLSTER; NO 7,RR BODY RR BODY FLAT BED(RS6) L=1768 TAKADA	8-97565-429-1	01	1	1309-	●
157	17.208 BOLSTER; NO 7,RR BODY RR BODY FLAT BED(RS6) L=1768 TAKADA	8-97594-116-1	01	1	1206-		●
158	17.208 BOLSTER; NO 8,RR BODY RR BODY FLAT BED(RS6) L=1768 TAKADA	8-97565-427-1	01	1	1309-	●
158	17.208 BOLSTER; NO 8,RR BODY WHEEL BASE 2700MM(27W) RR BODY FLAT BED(RS6) L=1768 TAKADA	8-97594-113-1	01	1	1206-		●
158	17.208 BOLSTER; NO 8,RR BODY WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) L=780 TAKADA	8-97594-117-1	01	1	1206-		●
159	17.208 BOLSTER; NO 9,RR BODY RR BODY FLAT BED(RS6) L=1768 TAKADA	8-97565-431-0	01	1	1309-	●
159	17.208 BOLSTER; NO 9,RR BODY WHEEL BASE 2700MM(27W) RR BODY FLAT BED(RS6) L=1768 TAKADA	8-97594-113-1	01	1	1206-		●
159	17.208 BOLSTER; NO 9,RR BODY WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) L=1768 TAKADA	8-97594-116-1	01	1	1206-		●
165	17.447 RIVET; HINGE LWR RR BODY FLAT BED(RS6) TAKADA	8-97592-609-0	32	1	1309-	●
165	17.447 RIVET; HINGE LWR RR BODY FLAT BED(RS6) TAKADA	8-97592-609-0	36	1	1206-		●
166	17.208 SPACER; BOLSTER,RR BODY RR BODY FLAT BED(RS6) TAKADA	8-97594-119-0	02	1	1206-1308		●
166	17.208 SPACER; BOLSTER,RR BODY RR BODY FLAT BED(RS6) TAKADA	8-97594-119-0	02	1	1309-	●	●
167	17.447 WASHER; BOLSTER,RR BODY RR BODY FLAT BED(RS6) L=110 TAKADA	8-97594-313-0	02	1	1309-	●
167	17.447 WASHER; BOLSTER,RR BODY RR BODY FLAT BED(RS6) L=135 TAKADA	8-97594-314-0	12	1	1309-	●
167	17.447 WASHER; BOLSTER,RR BODY WHEEL BASE 2700MM(27W) RR BODY FLAT BED(RS6) L=135 TAKADA	8-97594-314-0	16	1	1206-		●
167	17.447 WASHER; BOLSTER,RR BODY WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) L=135 TAKADA	8-97594-314-0	10	1	1206-		●
168	08.212 COVER; SILL,RR BODY RR BODY FLAT BED(RS6) TAKADA	8-97565-106-0	02	1	1206-1308		●
168	08.212 COVER; SILL,RR BODY RR BODY FLAT BED(RS6) TAKADA	8-97565-106-0	02	1	1309-	●	●
169	17.447 BOLT; CONNECTOR,RR CORNER RR BODY FLAT BED(RS6) 17.185 M8X25	8-94194-111-2	06	1	1206-1308		●
169	17.447 BOLT; CONNECTOR,RR CORNER RR BODY FLAT BED(RS6) 17.185 M8X25	8-94194-111-2	06	1	1309-	●	●
172	17.447 WASHER; BOARD,RR BODY RR BODY FLAT BED(RS6)	8-94193-940-1	05	1	1206-1303		●
172	17.447 WASHER; BOARD,RR BODY RR BODY FLAT BED(RS6)	8-97565-435-0	05	1	1304-1308		●
172	17.447 WASHER; BOARD,RR BODY RR BODY FLAT BED(RS6)	8-97565-435-0	05	1	1309-	●	●

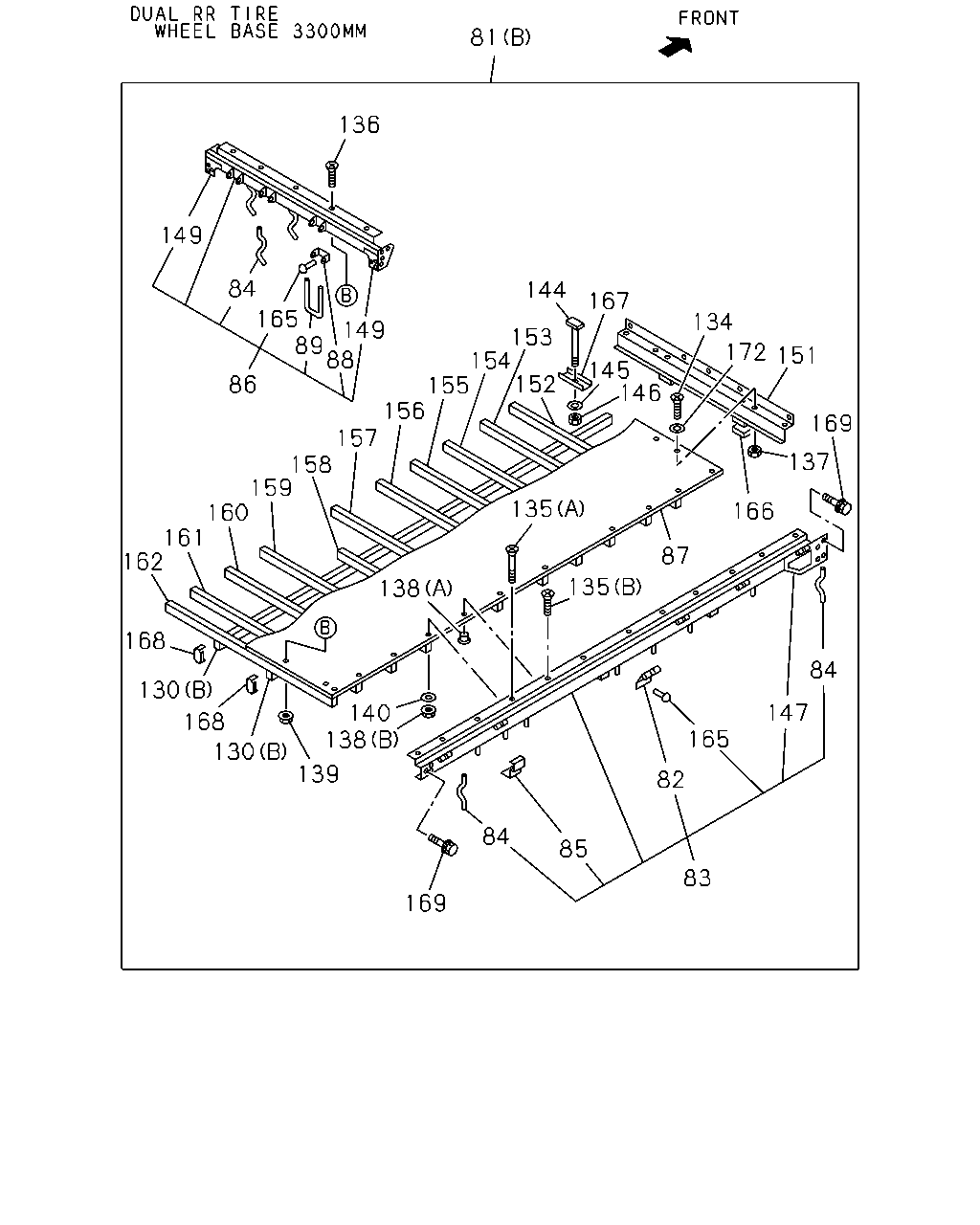

81 136 149 84 86 165 89 88 149 152 154 155 156 157 158 159 160 161 162 168 130 168 130 139 138 140 169 84 85 83 82 165 147 84 135 87 166 138 135 137 169 151 172 134 146 145 167 144 153 140

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
81	17.400 FLOOR ASM; RR BODY RR BODY FLAT BED(RS6) (C) TAKADA	8-97565-425-2	01	1	1309-	●
81	17.400 FLOOR ASM; RR BODY WHEEL BASE 2700MM(27W) RR BODY FLAT BED(RS6) (A) TAKADA	8-97565-255-4	01	1	1206-		●
81	17.400 FLOOR ASM; RR BODY WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) (B) TAKADA	8-97565-256-3	01	1	1206-		●
82	17.510 HINGE; SIDE GATE,LWR RR BODY FLAT BED(RS6) TAKADA	8-97590-219-0	12	1	1309-	●
82	17.510 HINGE; SIDE GATE,LWR RR BODY FLAT BED(RS6) TAKADA	8-97590-219-0	14	1	1206-		●
83	08.309 FRAME; SIDE RR BODY FLAT BED(RS6) TAKADA	8-97594-510-0	01	1	1309-	●
83	08.309 FRAME; SIDE RR BODY FLAT BED(RS6) TAKADA	8-97594-511-0	01	1	1309-	●
83	08.309 FRAME; SIDE WHEEL BASE 2700MM(27W) RR BODY FLAT BED(RS6) TAKADA	8-97565-257-0	01	1	1206-		●
83	08.309 FRAME; SIDE WHEEL BASE 2700MM(27W) RR BODY FLAT BED(RS6) TAKADA	8-97565-258-0	01	1	1206-		●
83	08.309 FRAME; SIDE WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) TAKADA	8-97594-841-0	01	1	1206-		●
83	08.309 FRAME; SIDE WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) TAKADA	8-97594-842-0	01	1	1206-		●
84	08.820 HOOK; ROPE WHEEL BASE 2700MM(27W) RR BODY FLAT BED(RS6) TAKADA	8-97593-866-0	15	1	1206-1308		●
84	08.820 HOOK; ROPE WHEEL BASE 2700MM(27W) RR BODY FLAT BED(RS6) TAKADA	8-97593-866-0	15	1	1309-		●
84	08.820 HOOK; ROPE TAKADA	8-97593-866-0	15	1	1309-	●
84	08.820 HOOK; ROPE WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) TAKADA	8-97593-866-0	21	1	1206-		●
85	08.212 BRACKET; SIDE FRAME WHEEL BASE 2700MM(27W) RR BODY FLAT BED(RS6) TAKADA	8-97593-865-0	04	1	1206-1308		●
85	08.212 BRACKET; SIDE FRAME WHEEL BASE 2700MM(27W) RR BODY FLAT BED(RS6) TAKADA	8-97593-865-0	04	1	1309-		●
85	08.212 BRACKET; SIDE FRAME TAKADA	8-97593-865-0	04	1	1309-	●
85	08.212 BRACKET; SIDE FRAME WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) TAKADA	8-97593-865-0	06	1	1206-		●
86	17.202 FRAME; RR RR BODY FLAT BED(RS6) TAKADA	8-97594-568-0	01	1	1309-	●
86	17.202 FRAME; RR RR BODY FLAT BED(RS6) TAKADA	8-97594-569-0	01	1	1206-		●
87	17.400 BOARD; FLOOR RR BODY FLAT BED(RS6) TAKADA	8-97565-203-1	01	1	1309-	●
87	17.400 BOARD; FLOOR WHEEL BASE 2700MM(27W) RR BODY FLAT BED(RS6) TAKADA	8-97565-259-1	01	1	1206-		●
87	17.400 BOARD; FLOOR WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) TAKADA	8-97565-207-1	01	1	1206-		●
88	17.208 HINGE; RR GATE,LWR RR BODY FLAT BED(RS6) TAKADA	8-97590-251-0	04	1	1206-1308		●
88	17.208 HINGE; RR GATE,LWR RR BODY FLAT BED(RS6) TAKADA	8-97590-251-0	04	1	1309-	●	●
89	17.400 STEP; RR RR BODY FLAT BED(RS6) TAKADA	8-97592-957-0	01	1	1309-	●
89	17.400 STEP; RR RR BODY FLAT BED(RS6) TAKADA	8-97593-886-0	01	1	1206-		●
130	17.208 SILL ASM; RR BODY RR BODY FLAT BED(RS6) (C) TAKADA	8-97565-432-0	01	1	1309-	●
130	17.208 SILL ASM; RR BODY RR BODY FLAT BED(RS6) (C) TAKADA	8-97565-433-0	01	1	1309-	●
130	17.208 SILL ASM; RR BODY WHEEL BASE 2700MM(27W) RR BODY FLAT BED(RS6) (A) TAKADA	8-97565-260-1	01	1	1206-		●
130	17.208 SILL ASM; RR BODY WHEEL BASE 2700MM(27W) RR BODY FLAT BED(RS6) (A) TAKADA	8-97565-261-0	01	1	1206-		●
130	17.208 SILL ASM; RR BODY WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) (B) TAKADA	8-97565-262-1	01	1	1206-		●
130	17.208 SILL ASM; RR BODY WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) (B) TAKADA	8-97565-263-1	01	1	1206-		●
134	17.505 SCREW; BOARD,FRT RR BODY FLAT BED(RS6) 17.455 M8X30 TAKADA	8-94193-938-3	07	1	1206-1308		●
134	17.505 SCREW; BOARD,FRT RR BODY FLAT BED(RS6) 17.455 M8X30 TAKADA	8-94193-938-3	07	1	1309-	●	●
135	17.505 SCREW; BOARD,SIDE RR BODY FLAT BED(RS6) (A) M8X99 TAKADA	8-97594-760-0	12	1	1309-	●
135	17.505 SCREW; BOARD,SIDE WHEEL BASE 2700MM(27W) RR BODY FLAT BED(RS6) (A) M8X99 TAKADA	8-97594-760-0	14	1	1206-		●
135	17.505 SCREW; BOARD,SIDE WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) (A) M8X99 TAKADA	8-97594-760-0	18	1	1206-		●
135	17.505 SCREW; BOARD,SIDE RR BODY FLAT BED(RS6) (B) M8X16 TAKADA	8-94195-024-3	02	1	1206-1308		●
135	17.505 SCREW; BOARD,SIDE RR BODY FLAT BED(RS6) (B) M8X16 TAKADA	8-94195-024-3	02	1	1309-	●	●
136	17.505 SCREW; BOARD,RR RR BODY FLAT BED(RS6) 17.455 M8X30 TAKADA	8-94193-938-3	05	1	1309-	●
136	17.505 SCREW; BOARD,RR RR BODY FLAT BED(RS6) M8X99 TAKADA	8-97594-760-0	02	1	1309-	●
136	17.505 SCREW; BOARD,RR RR BODY FLAT BED(RS6) 17.455 M8X30 TAKADA	8-94193-938-3	07	1	1206-		●
137	17.447 NUT; BOARD,FRT RR BODY FLAT BED(RS6) M8 FLANGE	8-94193-939-2	07	1	1206-1308		●
137	17.447 NUT; BOARD,FRT RR BODY FLAT BED(RS6) M8 FLANGE	8-94193-939-2	07	1	1309-	●	●
138	17.447 NUT; BOARD,SIDE RR BODY FLAT BED(RS6) (B) M8 FLANGE	8-94193-939-2	12	1	1309-	●
138	17.447 NUT; BOARD,SIDE WHEEL BASE 2700MM(27W) RR BODY FLAT BED(RS6) (B) M8 FLANGE	8-94193-939-2	14	1	1206-		●
138	17.447 NUT; BOARD,SIDE WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) (B) M8 FLANGE	8-94193-939-2	18	1	1206-		●
138	17.447 NUT; BOARD,SIDE RR BODY FLAT BED(RS6) 17.185 (A) M8	8-94193-954-1	02	1	1206-1303		●
138	17.447 NUT; BOARD,SIDE RR BODY FLAT BED(RS6) (A) M8	8-97565-434-0	02	1	1304-1308		●
138	17.447 NUT; BOARD,SIDE RR BODY FLAT BED(RS6) (A) M8	8-97565-434-0	02	1	1309-	●	●
139	17.447 NUT; BOARD,RR RR BODY FLAT BED(RS6) M8 FLANGE	8-94193-939-2	07	1	1206-1308		●
139	17.447 NUT; BOARD,RR RR BODY FLAT BED(RS6) M8 FLANGE	8-94193-939-2	07	1	1309-	●	●
140	17.447 WASHER; PL,BOARD,SIDE RR BODY FLAT BED(RS6) 02.334 ID=8.4 OD=26	9-09164-808-0	08	1	1309-	●
140	17.447 WASHER; PL,BOARD,SIDE WHEEL BASE 2700MM(27W) RR BODY FLAT BED(RS6) 02.334 ID=8.4 OD=26	9-09164-808-0	10	1	1206-		●
140	17.447 WASHER; PL,BOARD,SIDE WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) 02.334 ID=8.4 OD=26	9-09164-808-0	12	1	1206-		●
144	17.447 BOLT; BOLSTER TO SILL RR BODY FLAT BED(RS6) M10X202 TAKADA	8-97592-730-0	14	1	1309-	●
144	17.447 BOLT; BOLSTER TO SILL WHEEL BASE 2700MM(27W) RR BODY FLAT BED(RS6) M10X202 TAKADA	8-97592-730-0	16	1	1206-		●
144	17.447 BOLT; BOLSTER TO SILL WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) M10X202 TAKADA	8-97592-730-0	20	1	1206-		●
145	17.447 WASHER; PL,BOLSTER TO SILL RR BODY FLAT BED(RS6) 00.002 ID=10.5 OD=32	0-91614-810-0	18	1	1309-	●
145	17.447 WASHER; PL,BOLSTER TO SILL WHEEL BASE 2700MM(27W) RR BODY FLAT BED(RS6) 00.002 ID=10.5 OD=32	0-91614-810-0	20	1	1206-		●
145	17.447 WASHER; PL,BOLSTER TO SILL WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) 00.002 ID=10.5 OD=32	0-91614-810-0	24	1	1206-		●
146	17.447 NUT; BOLSTER TO SILL RR BODY FLAT BED(RS6) M10 TAKADA	8-97594-444-0	18	1	1309-	●
146	17.447 NUT; BOLSTER TO SILL WHEEL BASE 2700MM(27W) RR BODY FLAT BED(RS6) M10 TAKADA	8-97594-444-0	20	1	1206-		●
146	17.447 NUT; BOLSTER TO SILL WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) M10 TAKADA	8-97594-444-0	24	1	1206-		●
147	17.405 GUSSET; GUARD FRAME RR BODY FLAT BED(RS6) 17.447 TAKADA	8-97593-174-0	01	1	1206-1308		●
147	17.405 GUSSET; GUARD FRAME RR BODY FLAT BED(RS6) 17.447 TAKADA	8-97593-174-0	01	1	1309-	●	●
147	17.405 GUSSET; GUARD FRAME RR BODY FLAT BED(RS6) 17.447 TAKADA	8-97593-175-0	01	1	1206-1308		●
147	17.405 GUSSET; GUARD FRAME RR BODY FLAT BED(RS6) 17.447 TAKADA	8-97593-175-0	01	1	1309-	●	●
149	17.455 CONNECTOR; RR CORNER RR BODY FLAT BED(RS6) TAKADA	8-97593-186-0	01	1	1206-1308		●
149	17.455 CONNECTOR; RR CORNER RR BODY FLAT BED(RS6) TAKADA	8-97593-186-0	01	1	1309-	●	●
149	17.455 CONNECTOR; RR CORNER RR BODY FLAT BED(RS6) TAKADA	8-97593-187-0	01	1	1206-1308		●
149	17.455 CONNECTOR; RR CORNER RR BODY FLAT BED(RS6) TAKADA	8-97593-187-0	01	1	1309-	●	●
151	17.208 BOLSTER; NO 1,RR BODY RR BODY FLAT BED(RS6) L=1768 TAKADA	8-97565-426-0	01	1	1309-	●
151	17.208 BOLSTER; NO 1,RR BODY RR BODY FLAT BED(RS6) L=1768 TAKADA	8-97565-219-0	01	1	1206-		●
152	17.208 BOLSTER; NO 2,RR BODY RR BODY FLAT BED(RS6) L=1768 TAKADA	8-97565-428-1	01	1	1309-	●
152	17.208 BOLSTER; NO 2,RR BODY RR BODY FLAT BED(RS6) L=1768 TAKADA	8-97594-114-1	01	1	1206-		●
153	17.208 BOLSTER; NO 3,RR BODY RR BODY FLAT BED(RS6) L=1768 TAKADA	8-97565-428-1	01	1	1309-	●
153	17.208 BOLSTER; NO 3,RR BODY RR BODY FLAT BED(RS6) L=1768 TAKADA	8-97594-113-1	01	1	1206-		●
154	17.208 BOLSTER; NO 4,RR BODY RR BODY FLAT BED(RS6) L=1768 TAKADA	8-97565-428-1	01	1	1309-	●
154	17.208 BOLSTER; NO 4,RR BODY WHEEL BASE 2700MM(27W) RR BODY FLAT BED(RS6) L=1768 TAKADA	8-97594-114-1	01	1	1206-		●
154	17.208 BOLSTER; NO 4,RR BODY WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) L=1768 TAKADA	8-97594-113-1	01	1	1206-		●
155	17.208 BOLSTER; NO 5,RR BODY RR BODY FLAT BED(RS6) L=1768 TAKADA	8-97565-429-1	01	1	1309-	●
155	17.208 BOLSTER; NO 5,RR BODY WHEEL BASE 2700MM(27W) RR BODY FLAT BED(RS6) L=1768 TAKADA	8-97594-116-1	01	1	1206-		●
155	17.208 BOLSTER; NO 5,RR BODY WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) L=1768 TAKADA	8-97594-113-1	01	1	1206-		●
156	17.208 BOLSTER; NO 6,RR BODY RR BODY FLAT BED(RS6) L=850 TAKADA	8-97565-430-1	01	1	1309-	●
156	17.208 BOLSTER; NO 6,RR BODY WHEEL BASE 2700MM(27W) RR BODY FLAT BED(RS6) L=780 TAKADA	8-97594-117-1	01	1	1206-		●
156	17.208 BOLSTER; NO 6,RR BODY WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) L=1768 TAKADA	8-97594-114-1	01	1	1206-		●
157	17.208 BOLSTER; NO 7,RR BODY RR BODY FLAT BED(RS6) L=1768 TAKADA	8-97565-429-1	01	1	1309-	●
157	17.208 BOLSTER; NO 7,RR BODY RR BODY FLAT BED(RS6) L=1768 TAKADA	8-97594-116-1	01	1	1206-		●
158	17.208 BOLSTER; NO 8,RR BODY RR BODY FLAT BED(RS6) L=1768 TAKADA	8-97565-427-1	01	1	1309-	●
158	17.208 BOLSTER; NO 8,RR BODY WHEEL BASE 2700MM(27W) RR BODY FLAT BED(RS6) L=1768 TAKADA	8-97594-113-1	01	1	1206-		●
158	17.208 BOLSTER; NO 8,RR BODY WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) L=780 TAKADA	8-97594-117-1	01	1	1206-		●
159	17.208 BOLSTER; NO 9,RR BODY RR BODY FLAT BED(RS6) L=1768 TAKADA	8-97565-431-0	01	1	1309-	●
159	17.208 BOLSTER; NO 9,RR BODY WHEEL BASE 2700MM(27W) RR BODY FLAT BED(RS6) L=1768 TAKADA	8-97594-113-1	01	1	1206-		●
159	17.208 BOLSTER; NO 9,RR BODY WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) L=1768 TAKADA	8-97594-116-1	01	1	1206-		●
160	17.208 BOLSTER; NO 10,RR BODY WHEEL BASE 2700MM(27W) RR BODY FLAT BED(RS6) L=1768 TAKADA	8-97594-547-0	01	1	1206-		●
160	17.208 BOLSTER; NO 10,RR BODY WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) L=1768 TAKADA	8-97594-113-1	01	1	1206-		●
161	17.208 BOLSTER; NO 11,RR BODY WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) L=1768 TAKADA	8-97594-113-1	01	1	1206-		●
162	17.208 BOLSTER; NO 12,RR BODY WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) L=1768 TAKADA	8-97594-547-0	01	1	1206-		●
165	17.447 RIVET; HINGE LWR RR BODY FLAT BED(RS6) TAKADA	8-97592-609-0	32	1	1309-	●
165	17.447 RIVET; HINGE LWR RR BODY FLAT BED(RS6) TAKADA	8-97592-609-0	36	1	1206-		●
166	17.208 SPACER; BOLSTER,RR BODY RR BODY FLAT BED(RS6) TAKADA	8-97594-119-0	02	1	1206-1308		●
166	17.208 SPACER; BOLSTER,RR BODY RR BODY FLAT BED(RS6) TAKADA	8-97594-119-0	02	1	1309-	●	●
167	17.447 WASHER; BOLSTER,RR BODY RR BODY FLAT BED(RS6) L=110 TAKADA	8-97594-313-0	02	1	1309-	●
167	17.447 WASHER; BOLSTER,RR BODY RR BODY FLAT BED(RS6) L=135 TAKADA	8-97594-314-0	12	1	1309-	●
167	17.447 WASHER; BOLSTER,RR BODY WHEEL BASE 2700MM(27W) RR BODY FLAT BED(RS6) L=135 TAKADA	8-97594-314-0	16	1	1206-		●
167	17.447 WASHER; BOLSTER,RR BODY WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) L=135 TAKADA	8-97594-314-0	10	1	1206-		●
168	08.212 COVER; SILL,RR BODY RR BODY FLAT BED(RS6) TAKADA	8-97565-106-0	02	1	1206-1308		●
168	08.212 COVER; SILL,RR BODY RR BODY FLAT BED(RS6) TAKADA	8-97565-106-0	02	1	1309-	●	●
169	17.447 BOLT; CONNECTOR,RR CORNER RR BODY FLAT BED(RS6) 17.185 M8X25	8-94194-111-2	06	1	1206-1308		●
169	17.447 BOLT; CONNECTOR,RR CORNER RR BODY FLAT BED(RS6) 17.185 M8X25	8-94194-111-2	06	1	1309-	●	●
172	17.447 WASHER; BOARD,RR BODY RR BODY FLAT BED(RS6)	8-94193-940-1	05	1	1206-1303		●
172	17.447 WASHER; BOARD,RR BODY RR BODY FLAT BED(RS6)	8-97565-435-0	05	1	1304-1308		●
172	17.447 WASHER; BOARD,RR BODY RR BODY FLAT BED(RS6)	8-97565-435-0	05	1	1309-	●	●

81 136 149 84 86 165 89 88 149 152 153 154 155 156 157 158 159 160 168 130 130 139 140 138 169 84 83 85 82 165 147 84 169 166 87 135 138 135 137 151 172 134 144 167 145 146

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
81	17.400 FLOOR ASM; RR BODY RR BODY FLAT BED(RS6) (C) TAKADA	8-97565-425-2	01	1	1309-	●
81	17.400 FLOOR ASM; RR BODY WHEEL BASE 2700MM(27W) RR BODY FLAT BED(RS6) (A) TAKADA	8-97565-255-4	01	1	1206-		●
81	17.400 FLOOR ASM; RR BODY WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) (B) TAKADA	8-97565-256-3	01	1	1206-		●
82	17.510 HINGE; SIDE GATE,LWR RR BODY FLAT BED(RS6) TAKADA	8-97590-219-0	12	1	1309-	●
82	17.510 HINGE; SIDE GATE,LWR RR BODY FLAT BED(RS6) TAKADA	8-97590-219-0	14	1	1206-		●
83	08.309 FRAME; SIDE RR BODY FLAT BED(RS6) TAKADA	8-97594-510-0	01	1	1309-	●
83	08.309 FRAME; SIDE RR BODY FLAT BED(RS6) TAKADA	8-97594-511-0	01	1	1309-	●
83	08.309 FRAME; SIDE WHEEL BASE 2700MM(27W) RR BODY FLAT BED(RS6) TAKADA	8-97565-257-0	01	1	1206-		●
83	08.309 FRAME; SIDE WHEEL BASE 2700MM(27W) RR BODY FLAT BED(RS6) TAKADA	8-97565-258-0	01	1	1206-		●
83	08.309 FRAME; SIDE WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) TAKADA	8-97594-841-0	01	1	1206-		●
83	08.309 FRAME; SIDE WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) TAKADA	8-97594-842-0	01	1	1206-		●
84	08.820 HOOK; ROPE WHEEL BASE 2700MM(27W) RR BODY FLAT BED(RS6) TAKADA	8-97593-866-0	15	1	1206-1308		●
84	08.820 HOOK; ROPE WHEEL BASE 2700MM(27W) RR BODY FLAT BED(RS6) TAKADA	8-97593-866-0	15	1	1309-		●
84	08.820 HOOK; ROPE TAKADA	8-97593-866-0	15	1	1309-	●
84	08.820 HOOK; ROPE WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) TAKADA	8-97593-866-0	21	1	1206-		●
85	08.212 BRACKET; SIDE FRAME WHEEL BASE 2700MM(27W) RR BODY FLAT BED(RS6) TAKADA	8-97593-865-0	04	1	1206-1308		●
85	08.212 BRACKET; SIDE FRAME WHEEL BASE 2700MM(27W) RR BODY FLAT BED(RS6) TAKADA	8-97593-865-0	04	1	1309-		●
85	08.212 BRACKET; SIDE FRAME TAKADA	8-97593-865-0	04	1	1309-	●
85	08.212 BRACKET; SIDE FRAME WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) TAKADA	8-97593-865-0	06	1	1206-		●
86	17.202 FRAME; RR RR BODY FLAT BED(RS6) TAKADA	8-97594-568-0	01	1	1309-	●
86	17.202 FRAME; RR RR BODY FLAT BED(RS6) TAKADA	8-97594-569-0	01	1	1206-		●
87	17.400 BOARD; FLOOR RR BODY FLAT BED(RS6) TAKADA	8-97565-203-1	01	1	1309-	●
87	17.400 BOARD; FLOOR WHEEL BASE 2700MM(27W) RR BODY FLAT BED(RS6) TAKADA	8-97565-259-1	01	1	1206-		●
87	17.400 BOARD; FLOOR WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) TAKADA	8-97565-207-1	01	1	1206-		●
88	17.208 HINGE; RR GATE,LWR RR BODY FLAT BED(RS6) TAKADA	8-97590-251-0	04	1	1206-1308		●
88	17.208 HINGE; RR GATE,LWR RR BODY FLAT BED(RS6) TAKADA	8-97590-251-0	04	1	1309-	●	●
89	17.400 STEP; RR RR BODY FLAT BED(RS6) TAKADA	8-97592-957-0	01	1	1309-	●
89	17.400 STEP; RR RR BODY FLAT BED(RS6) TAKADA	8-97593-886-0	01	1	1206-		●
130	17.208 SILL ASM; RR BODY RR BODY FLAT BED(RS6) (C) TAKADA	8-97565-432-0	01	1	1309-	●
130	17.208 SILL ASM; RR BODY RR BODY FLAT BED(RS6) (C) TAKADA	8-97565-433-0	01	1	1309-	●
130	17.208 SILL ASM; RR BODY WHEEL BASE 2700MM(27W) RR BODY FLAT BED(RS6) (A) TAKADA	8-97565-260-1	01	1	1206-		●
130	17.208 SILL ASM; RR BODY WHEEL BASE 2700MM(27W) RR BODY FLAT BED(RS6) (A) TAKADA	8-97565-261-0	01	1	1206-		●
130	17.208 SILL ASM; RR BODY WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) (B) TAKADA	8-97565-262-1	01	1	1206-		●
130	17.208 SILL ASM; RR BODY WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) (B) TAKADA	8-97565-263-1	01	1	1206-		●
134	17.505 SCREW; BOARD,FRT RR BODY FLAT BED(RS6) 17.455 M8X30 TAKADA	8-94193-938-3	07	1	1206-1308		●
134	17.505 SCREW; BOARD,FRT RR BODY FLAT BED(RS6) 17.455 M8X30 TAKADA	8-94193-938-3	07	1	1309-	●	●
135	17.505 SCREW; BOARD,SIDE RR BODY FLAT BED(RS6) (A) M8X99 TAKADA	8-97594-760-0	12	1	1309-	●
135	17.505 SCREW; BOARD,SIDE WHEEL BASE 2700MM(27W) RR BODY FLAT BED(RS6) (A) M8X99 TAKADA	8-97594-760-0	14	1	1206-		●
135	17.505 SCREW; BOARD,SIDE WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) (A) M8X99 TAKADA	8-97594-760-0	18	1	1206-		●
135	17.505 SCREW; BOARD,SIDE RR BODY FLAT BED(RS6) (B) M8X16 TAKADA	8-94195-024-3	02	1	1206-1308		●
135	17.505 SCREW; BOARD,SIDE RR BODY FLAT BED(RS6) (B) M8X16 TAKADA	8-94195-024-3	02	1	1309-	●	●
136	17.505 SCREW; BOARD,RR RR BODY FLAT BED(RS6) 17.455 M8X30 TAKADA	8-94193-938-3	05	1	1309-	●
136	17.505 SCREW; BOARD,RR RR BODY FLAT BED(RS6) M8X99 TAKADA	8-97594-760-0	02	1	1309-	●
136	17.505 SCREW; BOARD,RR RR BODY FLAT BED(RS6) 17.455 M8X30 TAKADA	8-94193-938-3	07	1	1206-		●
137	17.447 NUT; BOARD,FRT RR BODY FLAT BED(RS6) M8 FLANGE	8-94193-939-2	07	1	1206-1308		●
137	17.447 NUT; BOARD,FRT RR BODY FLAT BED(RS6) M8 FLANGE	8-94193-939-2	07	1	1309-	●	●
138	17.447 NUT; BOARD,SIDE RR BODY FLAT BED(RS6) (B) M8 FLANGE	8-94193-939-2	12	1	1309-	●
138	17.447 NUT; BOARD,SIDE WHEEL BASE 2700MM(27W) RR BODY FLAT BED(RS6) (B) M8 FLANGE	8-94193-939-2	14	1	1206-		●
138	17.447 NUT; BOARD,SIDE WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) (B) M8 FLANGE	8-94193-939-2	18	1	1206-		●
138	17.447 NUT; BOARD,SIDE RR BODY FLAT BED(RS6) 17.185 (A) M8	8-94193-954-1	02	1	1206-1303		●
138	17.447 NUT; BOARD,SIDE RR BODY FLAT BED(RS6) (A) M8	8-97565-434-0	02	1	1304-1308		●
138	17.447 NUT; BOARD,SIDE RR BODY FLAT BED(RS6) (A) M8	8-97565-434-0	02	1	1309-	●	●
139	17.447 NUT; BOARD,RR RR BODY FLAT BED(RS6) M8 FLANGE	8-94193-939-2	07	1	1206-1308		●
139	17.447 NUT; BOARD,RR RR BODY FLAT BED(RS6) M8 FLANGE	8-94193-939-2	07	1	1309-	●	●
140	17.447 WASHER; PL,BOARD,SIDE RR BODY FLAT BED(RS6) 02.334 ID=8.4 OD=26	9-09164-808-0	08	1	1309-	●
140	17.447 WASHER; PL,BOARD,SIDE WHEEL BASE 2700MM(27W) RR BODY FLAT BED(RS6) 02.334 ID=8.4 OD=26	9-09164-808-0	10	1	1206-		●
140	17.447 WASHER; PL,BOARD,SIDE WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) 02.334 ID=8.4 OD=26	9-09164-808-0	12	1	1206-		●
144	17.447 BOLT; BOLSTER TO SILL RR BODY FLAT BED(RS6) M10X202 TAKADA	8-97592-730-0	14	1	1309-	●
144	17.447 BOLT; BOLSTER TO SILL WHEEL BASE 2700MM(27W) RR BODY FLAT BED(RS6) M10X202 TAKADA	8-97592-730-0	16	1	1206-		●
144	17.447 BOLT; BOLSTER TO SILL WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) M10X202 TAKADA	8-97592-730-0	20	1	1206-		●
145	17.447 WASHER; PL,BOLSTER TO SILL RR BODY FLAT BED(RS6) 00.002 ID=10.5 OD=32	0-91614-810-0	18	1	1309-	●
145	17.447 WASHER; PL,BOLSTER TO SILL WHEEL BASE 2700MM(27W) RR BODY FLAT BED(RS6) 00.002 ID=10.5 OD=32	0-91614-810-0	20	1	1206-		●
145	17.447 WASHER; PL,BOLSTER TO SILL WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) 00.002 ID=10.5 OD=32	0-91614-810-0	24	1	1206-		●
146	17.447 NUT; BOLSTER TO SILL RR BODY FLAT BED(RS6) M10 TAKADA	8-97594-444-0	18	1	1309-	●
146	17.447 NUT; BOLSTER TO SILL WHEEL BASE 2700MM(27W) RR BODY FLAT BED(RS6) M10 TAKADA	8-97594-444-0	20	1	1206-		●
146	17.447 NUT; BOLSTER TO SILL WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) M10 TAKADA	8-97594-444-0	24	1	1206-		●
147	17.405 GUSSET; GUARD FRAME RR BODY FLAT BED(RS6) 17.447 TAKADA	8-97593-174-0	01	1	1206-1308		●
147	17.405 GUSSET; GUARD FRAME RR BODY FLAT BED(RS6) 17.447 TAKADA	8-97593-174-0	01	1	1309-	●	●
147	17.405 GUSSET; GUARD FRAME RR BODY FLAT BED(RS6) 17.447 TAKADA	8-97593-175-0	01	1	1206-1308		●
147	17.405 GUSSET; GUARD FRAME RR BODY FLAT BED(RS6) 17.447 TAKADA	8-97593-175-0	01	1	1309-	●	●
149	17.455 CONNECTOR; RR CORNER RR BODY FLAT BED(RS6) TAKADA	8-97593-186-0	01	1	1206-1308		●
149	17.455 CONNECTOR; RR CORNER RR BODY FLAT BED(RS6) TAKADA	8-97593-186-0	01	1	1309-	●	●
149	17.455 CONNECTOR; RR CORNER RR BODY FLAT BED(RS6) TAKADA	8-97593-187-0	01	1	1206-1308		●
149	17.455 CONNECTOR; RR CORNER RR BODY FLAT BED(RS6) TAKADA	8-97593-187-0	01	1	1309-	●	●
151	17.208 BOLSTER; NO 1,RR BODY RR BODY FLAT BED(RS6) L=1768 TAKADA	8-97565-426-0	01	1	1309-	●
151	17.208 BOLSTER; NO 1,RR BODY RR BODY FLAT BED(RS6) L=1768 TAKADA	8-97565-219-0	01	1	1206-		●
152	17.208 BOLSTER; NO 2,RR BODY RR BODY FLAT BED(RS6) L=1768 TAKADA	8-97565-428-1	01	1	1309-	●
152	17.208 BOLSTER; NO 2,RR BODY RR BODY FLAT BED(RS6) L=1768 TAKADA	8-97594-114-1	01	1	1206-		●
153	17.208 BOLSTER; NO 3,RR BODY RR BODY FLAT BED(RS6) L=1768 TAKADA	8-97565-428-1	01	1	1309-	●
153	17.208 BOLSTER; NO 3,RR BODY RR BODY FLAT BED(RS6) L=1768 TAKADA	8-97594-113-1	01	1	1206-		●
154	17.208 BOLSTER; NO 4,RR BODY RR BODY FLAT BED(RS6) L=1768 TAKADA	8-97565-428-1	01	1	1309-	●
154	17.208 BOLSTER; NO 4,RR BODY WHEEL BASE 2700MM(27W) RR BODY FLAT BED(RS6) L=1768 TAKADA	8-97594-114-1	01	1	1206-		●
154	17.208 BOLSTER; NO 4,RR BODY WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) L=1768 TAKADA	8-97594-113-1	01	1	1206-		●
155	17.208 BOLSTER; NO 5,RR BODY RR BODY FLAT BED(RS6) L=1768 TAKADA	8-97565-429-1	01	1	1309-	●
155	17.208 BOLSTER; NO 5,RR BODY WHEEL BASE 2700MM(27W) RR BODY FLAT BED(RS6) L=1768 TAKADA	8-97594-116-1	01	1	1206-		●
155	17.208 BOLSTER; NO 5,RR BODY WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) L=1768 TAKADA	8-97594-113-1	01	1	1206-		●
156	17.208 BOLSTER; NO 6,RR BODY RR BODY FLAT BED(RS6) L=850 TAKADA	8-97565-430-1	01	1	1309-	●
156	17.208 BOLSTER; NO 6,RR BODY WHEEL BASE 2700MM(27W) RR BODY FLAT BED(RS6) L=780 TAKADA	8-97594-117-1	01	1	1206-		●
156	17.208 BOLSTER; NO 6,RR BODY WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) L=1768 TAKADA	8-97594-114-1	01	1	1206-		●
157	17.208 BOLSTER; NO 7,RR BODY RR BODY FLAT BED(RS6) L=1768 TAKADA	8-97565-429-1	01	1	1309-	●
157	17.208 BOLSTER; NO 7,RR BODY RR BODY FLAT BED(RS6) L=1768 TAKADA	8-97594-116-1	01	1	1206-		●
158	17.208 BOLSTER; NO 8,RR BODY RR BODY FLAT BED(RS6) L=1768 TAKADA	8-97565-427-1	01	1	1309-	●
158	17.208 BOLSTER; NO 8,RR BODY WHEEL BASE 2700MM(27W) RR BODY FLAT BED(RS6) L=1768 TAKADA	8-97594-113-1	01	1	1206-		●
158	17.208 BOLSTER; NO 8,RR BODY WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) L=780 TAKADA	8-97594-117-1	01	1	1206-		●
159	17.208 BOLSTER; NO 9,RR BODY RR BODY FLAT BED(RS6) L=1768 TAKADA	8-97565-431-0	01	1	1309-	●
159	17.208 BOLSTER; NO 9,RR BODY WHEEL BASE 2700MM(27W) RR BODY FLAT BED(RS6) L=1768 TAKADA	8-97594-113-1	01	1	1206-		●
159	17.208 BOLSTER; NO 9,RR BODY WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) L=1768 TAKADA	8-97594-116-1	01	1	1206-		●
160	17.208 BOLSTER; NO 10,RR BODY WHEEL BASE 2700MM(27W) RR BODY FLAT BED(RS6) L=1768 TAKADA	8-97594-547-0	01	1	1206-		●
160	17.208 BOLSTER; NO 10,RR BODY WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) L=1768 TAKADA	8-97594-113-1	01	1	1206-		●
165	17.447 RIVET; HINGE LWR RR BODY FLAT BED(RS6) TAKADA	8-97592-609-0	32	1	1309-	●
165	17.447 RIVET; HINGE LWR RR BODY FLAT BED(RS6) TAKADA	8-97592-609-0	36	1	1206-		●
166	17.208 SPACER; BOLSTER,RR BODY RR BODY FLAT BED(RS6) TAKADA	8-97594-119-0	02	1	1206-1308		●
166	17.208 SPACER; BOLSTER,RR BODY RR BODY FLAT BED(RS6) TAKADA	8-97594-119-0	02	1	1309-	●	●
167	17.447 WASHER; BOLSTER,RR BODY RR BODY FLAT BED(RS6) L=110 TAKADA	8-97594-313-0	02	1	1309-	●
167	17.447 WASHER; BOLSTER,RR BODY RR BODY FLAT BED(RS6) L=135 TAKADA	8-97594-314-0	12	1	1309-	●
167	17.447 WASHER; BOLSTER,RR BODY WHEEL BASE 2700MM(27W) RR BODY FLAT BED(RS6) L=135 TAKADA	8-97594-314-0	16	1	1206-		●
167	17.447 WASHER; BOLSTER,RR BODY WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) L=135 TAKADA	8-97594-314-0	10	1	1206-		●
168	08.212 COVER; SILL,RR BODY RR BODY FLAT BED(RS6) TAKADA	8-97565-106-0	02	1	1206-1308		●
168	08.212 COVER; SILL,RR BODY RR BODY FLAT BED(RS6) TAKADA	8-97565-106-0	02	1	1309-	●	●
169	17.447 BOLT; CONNECTOR,RR CORNER RR BODY FLAT BED(RS6) 17.185 M8X25	8-94194-111-2	06	1	1206-1308		●
169	17.447 BOLT; CONNECTOR,RR CORNER RR BODY FLAT BED(RS6) 17.185 M8X25	8-94194-111-2	06	1	1309-	●	●
172	17.447 WASHER; BOARD,RR BODY RR BODY FLAT BED(RS6)	8-94193-940-1	05	1	1206-1303		●
172	17.447 WASHER; BOARD,RR BODY RR BODY FLAT BED(RS6)	8-97565-435-0	05	1	1304-1308		●
172	17.447 WASHER; BOARD,RR BODY RR BODY FLAT BED(RS6)	8-97565-435-0	05	1	1309-	●	●

132 132 132 132 132 132 132 132 132 130 132 132 132 132 132 132 132 132 132 132 132 130

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
130	17.208 SILL ASM; RR BODY RR BODY FLAT BED(RS6) (C) TAKADA	8-97565-432-0	01	1	1309-	●
130	17.208 SILL ASM; RR BODY RR BODY FLAT BED(RS6) (C) TAKADA	8-97565-433-0	01	1	1309-	●
130	17.208 SILL ASM; RR BODY WHEEL BASE 2700MM(27W) RR BODY FLAT BED(RS6) (A) TAKADA	8-97565-260-1	01	1	1206-		●
130	17.208 SILL ASM; RR BODY WHEEL BASE 2700MM(27W) RR BODY FLAT BED(RS6) (A) TAKADA	8-97565-261-0	01	1	1206-		●
130	17.208 SILL ASM; RR BODY WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) (B) TAKADA	8-97565-262-1	01	1	1206-		●
130	17.208 SILL ASM; RR BODY WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) (B) TAKADA	8-97565-263-1	01	1	1206-		●
132	17.208 SPACER; SILL,RR BODY RR BODY FLAT BED(RS6) (B)	8-97565-409-0	04	1	1309-	●
132	17.208 SPACER; SILL,RR BODY RR BODY FLAT BED(RS6) (L)	8-97565-439-0	06	1	1309-	●
132	17.208 SPACER; SILL,RR BODY RR BODY FLAT BED(RS6) (K)	8-97565-440-0	02	1	1309-	●
132	17.208 SPACER; SILL,RR BODY RR BODY FLAT BED(RS6) (D)	8-97594-161-0	06	1	1309-	●
132	17.208 SPACER; SILL,RR BODY WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) (J)	8-97565-412-0	04	1	1208-		●
132	17.208 SPACER; SILL,RR BODY WHEEL BASE 2700MM(27W) RR BODY FLAT BED(RS6) (B)	8-97565-409-0	02	1	1206-		●
132	17.208 SPACER; SILL,RR BODY WHEEL BASE 2700MM(27W) RR BODY FLAT BED(RS6) (A)	8-97565-412-0	08	1	1206-		●
132	17.208 SPACER; SILL,RR BODY WHEEL BASE 2700MM(27W) RR BODY FLAT BED(RS6) (C)	8-97594-160-0	02	1	1206-		●
132	17.208 SPACER; SILL,RR BODY WHEEL BASE 2700MM(27W) RR BODY FLAT BED(RS6) (D)	8-97594-161-0	02	1	1206-		●
132	17.208 SPACER; SILL,RR BODY WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) (B)	8-97565-409-0	08	1	1206-		●
132	17.208 SPACER; SILL,RR BODY WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) (G)	8-97565-411-0	02	1	1206-		●
132	17.208 SPACER; SILL,RR BODY WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) (H)	8-97594-154-0	02	1	1206-		●
132	17.208 SPACER; SILL,RR BODY WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) (I)	8-97594-155-0	02	1	1206-		●
132	17.208 SPACER; SILL,RR BODY RR BODY FLAT BED(RS6) (E)	8-97565-410-0	02	1	1206-		●
132	17.208 SPACER; SILL,RR BODY RR BODY FLAT BED(RS6) (F)	8-97594-158-0	02	1	1206-		●

132 132 132 132 132 132 132 132 132 130

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
130	17.208 SILL ASM; RR BODY RR BODY FLAT BED(RS6) (C) TAKADA	8-97565-432-0	01	1	1309-	●
130	17.208 SILL ASM; RR BODY RR BODY FLAT BED(RS6) (C) TAKADA	8-97565-433-0	01	1	1309-	●
130	17.208 SILL ASM; RR BODY WHEEL BASE 2700MM(27W) RR BODY FLAT BED(RS6) (A) TAKADA	8-97565-260-1	01	1	1206-		●
130	17.208 SILL ASM; RR BODY WHEEL BASE 2700MM(27W) RR BODY FLAT BED(RS6) (A) TAKADA	8-97565-261-0	01	1	1206-		●
130	17.208 SILL ASM; RR BODY WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) (B) TAKADA	8-97565-262-1	01	1	1206-		●
130	17.208 SILL ASM; RR BODY WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) (B) TAKADA	8-97565-263-1	01	1	1206-		●
132	17.208 SPACER; SILL,RR BODY RR BODY FLAT BED(RS6) (B)	8-97565-409-0	04	1	1309-	●
132	17.208 SPACER; SILL,RR BODY RR BODY FLAT BED(RS6) (L)	8-97565-439-0	06	1	1309-	●
132	17.208 SPACER; SILL,RR BODY RR BODY FLAT BED(RS6) (K)	8-97565-440-0	02	1	1309-	●
132	17.208 SPACER; SILL,RR BODY RR BODY FLAT BED(RS6) (D)	8-97594-161-0	06	1	1309-	●
132	17.208 SPACER; SILL,RR BODY WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) (J)	8-97565-412-0	04	1	1208-		●
132	17.208 SPACER; SILL,RR BODY WHEEL BASE 2700MM(27W) RR BODY FLAT BED(RS6) (B)	8-97565-409-0	02	1	1206-		●
132	17.208 SPACER; SILL,RR BODY WHEEL BASE 2700MM(27W) RR BODY FLAT BED(RS6) (A)	8-97565-412-0	08	1	1206-		●
132	17.208 SPACER; SILL,RR BODY WHEEL BASE 2700MM(27W) RR BODY FLAT BED(RS6) (C)	8-97594-160-0	02	1	1206-		●
132	17.208 SPACER; SILL,RR BODY WHEEL BASE 2700MM(27W) RR BODY FLAT BED(RS6) (D)	8-97594-161-0	02	1	1206-		●
132	17.208 SPACER; SILL,RR BODY WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) (B)	8-97565-409-0	08	1	1206-		●
132	17.208 SPACER; SILL,RR BODY WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) (G)	8-97565-411-0	02	1	1206-		●
132	17.208 SPACER; SILL,RR BODY WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) (H)	8-97594-154-0	02	1	1206-		●
132	17.208 SPACER; SILL,RR BODY WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) (I)	8-97594-155-0	02	1	1206-		●
132	17.208 SPACER; SILL,RR BODY RR BODY FLAT BED(RS6) (E)	8-97565-410-0	02	1	1206-		●
132	17.208 SPACER; SILL,RR BODY RR BODY FLAT BED(RS6) (F)	8-97594-158-0	02	1	1206-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
