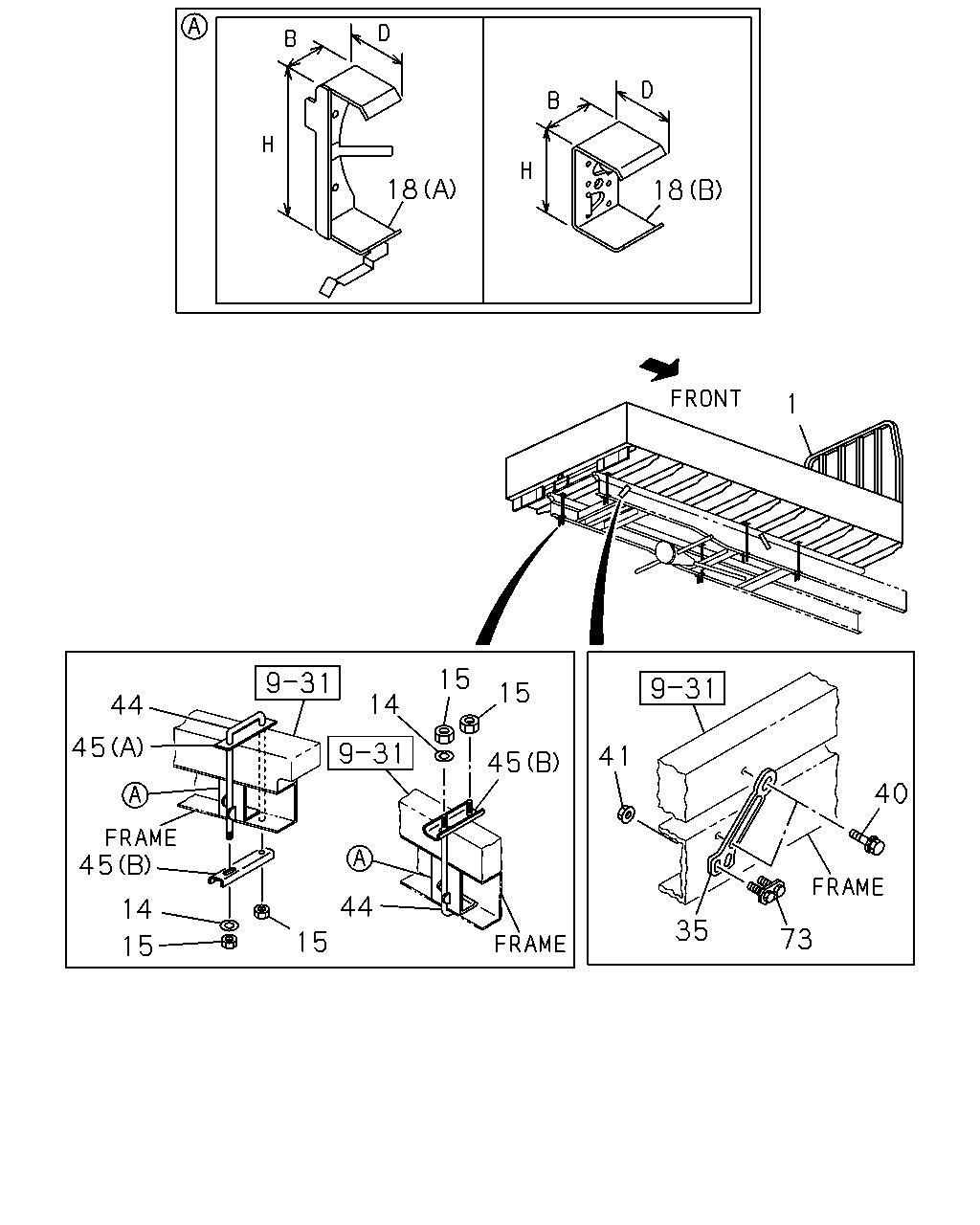

9-30 — REAR BODY ASM AND MOUNTING (#95570) — 60 parça

18 18 1 44 45 45 14 15 15 44 45 15 15 14 41 35 73 40

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	17.090 BODY ASM; REAR BODY COLOR ARC WHITE(729) WHITE	8-97426-555-0	01	1	1309-1310	●
1	17.090 BODY ASM; REAR BODY COLOR ARC WHITE(729) RR BODY FLAT BED(RS6) WHITE	8-97426-555-0	01	1	1311-	●
1	17.090 BODY ASM; REAR BODY COLOR MARINE BLUE(890) BLUE	8-97426-556-0	01	1	1309-1310	●
1	17.090 BODY ASM; REAR BODY COLOR MARINE BLUE(890) RR BODY FLAT BED(RS6) BLUE	8-97426-556-0	01	1	1311-	●
1	17.090 BODY ASM; REAR BODY COLOR TRANS BLUE(999) BLUE	8-97426-557-0	01	1	1309-1310	●
1	17.090 BODY ASM; REAR BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) BLUE	8-97426-557-0	01	1	1311-	●
1	17.090 BODY ASM; REAR WHEEL BASE 2700MM(27W) BODY COLOR ARC WHITE(729) RR BODY FLAT BED(RS6) WHITE	8-97423-461-2	01	1	1206-		●
1	17.090 BODY ASM; REAR WHEEL BASE 2700MM(27W) BODY COLOR MARINE BLUE(890) RR BODY FLAT BED(RS6) BLUE	8-97423-462-2	01	1	1206-		●
1	17.090 BODY ASM; REAR WHEEL BASE 2700MM(27W) BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) BLUE	8-97423-463-2	01	1	1206-		●
1	17.090 BODY ASM; REAR WHEEL BASE 3300MM(33W) BODY COLOR ARC WHITE(729) RR BODY FLAT BED(RS6) WHITE	8-97423-464-0	01	1	1206-		●
1	17.090 BODY ASM; REAR WHEEL BASE 3300MM(33W) BODY COLOR MARINE BLUE(890) RR BODY FLAT BED(RS6) BLUE	8-97423-465-0	01	1	1206-		●
1	17.090 BODY ASM; REAR WHEEL BASE 3300MM(33W) BODY COLOR TRANS BLUE(999) RR BODY FLAT BED(RS6) BLUE	8-97423-466-0	01	1	1206-		●
14	09.011 WASHER; PL,RR BODY MTG ID=15 OD=26	0-91614-514-0	04	1	1309-1310	●
14	09.011 WASHER; PL,RR BODY MTG RR BODY FLAT BED(RS6) ID=15 OD=26	0-91614-514-0	04	1	1311-	●
14	09.011 WASHER; PL,RR BODY MTG RR BODY FLAT BED(RS6) 00.029 ID=15 OD=26	9-09164-514-0	06	1	1206-1206		●
14	09.011 WASHER; PL,RR BODY MTG RR BODY FLAT BED(RS6) ID=15 OD=26	0-91614-514-0	06	1	1207-		●
15	09.011 NUT; RR BODY MTG 06.008 M14	9-09130-414-0	08	1	1309-1310	●
15	09.011 NUT; RR BODY MTG RR BODY FLAT BED(RS6) 06.008 M14	9-09130-414-0	08	1	1311-	●
15	09.011 NUT; RR BODY MTG RR BODY FLAT BED(RS6) 06.008 M14	9-09130-414-0	12	1	1206-		●
18	17.447 REINFORCEMENT; U-BOLT WHEEL BASE 2700MM(27W) RR BODY FLAT BED(RS6) (B) H=161 B=50 D=65	8-94132-122-1	01	1	1206-		●
18	17.447 REINFORCEMENT; U-BOLT WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) (A) H=162.5 B=40 D=63	8-97307-993-1	01	1	1206-		●
18	17.447 REINFORCEMENT; U-BOLT (B) H=121 B=50 D=65	8-94484-000-0	02	1	1309-1310	●
18	17.447 REINFORCEMENT; U-BOLT RR BODY FLAT BED(RS6) (B) H=121 B=50 D=65	8-94484-000-0	02	1	1311-	●
18	17.447 REINFORCEMENT; U-BOLT RR BODY FLAT BED(RS6) (B) H=91 B=50 D=65	8-94132-123-1	02	1	1206-		●
18	17.447 REINFORCEMENT; U-BOLT RR BODY FLAT BED(RS6) (A) H=162.5 B=40 D=63	8-97307-992-1	01	1	1206-		●
18	17.447 REINFORCEMENT; U-BOLT WHEEL BASE 2700MM(27W) RR BODY FLAT BED(RS6) (A) H=162.5 B=40 D=63	8-97307-993-1	02	1	1206-		●
18	17.447 REINFORCEMENT; U-BOLT WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) (B) H=161 B=50 D=65	8-94132-122-1	02	1	1206-1308		●
18	17.447 REINFORCEMENT; U-BOLT WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) (B) H=161 B=50 D=65	8-94132-122-1	02	1	1309-1310		●
18	17.447 REINFORCEMENT; U-BOLT (B) H=161 B=50 D=65	8-94132-122-1	02	1	1309-1310	●
18	17.447 REINFORCEMENT; U-BOLT WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) (B) H=161 B=50 D=65	8-94132-122-1	02	1	1311-		●
18	17.447 REINFORCEMENT; U-BOLT RR BODY FLAT BED(RS6) (B) H=161 B=50 D=65	8-94132-122-1	02	1	1311-	●
35	17.447 STOPPER; RR BODY RR BODY FLAT BED(RS6)	8-98030-398-2	04	1	1206-1308		●
35	17.447 STOPPER; RR BODY RR BODY FLAT BED(RS6)	8-98030-398-2	04	1	1309-1310		●
35	17.447 STOPPER; RR BODY	8-98030-398-2	04	1	1309-1310	●
35	17.447 STOPPER; RR BODY RR BODY FLAT BED(RS6)	8-98030-398-2	04	1	1311-	●	●
40	17.447 BOLT; STOPPER TO RR BODY RR BODY FLAT BED(RS6)	8-97189-615-0	04	1	1206-1308		●
40	17.447 BOLT; STOPPER TO RR BODY RR BODY FLAT BED(RS6)	8-97189-615-0	04	1	1309-1310		●
40	17.447 BOLT; STOPPER TO RR BODY	8-97189-615-0	04	1	1309-1310	●
40	17.447 BOLT; STOPPER TO RR BODY RR BODY FLAT BED(RS6)	8-97189-615-0	04	1	1311-	●	●
41	17.447 NUT; STOPPER TO RR BODY RR BODY FLAT BED(RS6) 03.162 M10 FLANGE	0-91180-110-0	08	1	1206-1308		●
41	17.447 NUT; STOPPER TO RR BODY RR BODY FLAT BED(RS6) 03.162 M10 FLANGE	0-91180-110-0	08	1	1309-1310		●
41	17.447 NUT; STOPPER TO RR BODY 03.162 M10 FLANGE	0-91180-110-0	08	1	1309-1310	●
41	17.447 NUT; STOPPER TO RR BODY RR BODY FLAT BED(RS6) 03.162 M10 FLANGE	0-91180-110-0	08	1	1311-	●	●
44	17.447 U-BOLT; FRAME TO RR BODY L=297	5-51171-009-1	02	1	1309-1310	●
44	17.447 U-BOLT; FRAME TO RR BODY RR BODY FLAT BED(RS6) L=297	5-51171-009-1	02	1	1311-	●
44	17.447 U-BOLT; FRAME TO RR BODY L=345	8-94317-633-0	02	1	1309-1310	●
44	17.447 U-BOLT; FRAME TO RR BODY RR BODY FLAT BED(RS6) L=345	8-94317-633-0	02	1	1311-	●
44	17.447 U-BOLT; FRAME TO RR BODY RR BODY FLAT BED(RS6) L=272	5-51171-007-1	02	1	1206-		●
44	17.447 U-BOLT; FRAME TO RR BODY RR BODY FLAT BED(RS6) L=345	8-94317-633-0	04	1	1206-		●
45	17.447 PLATE; U-BOLT (B) L=120 B=45	5-66900-204-3	04	1	1309-1310	●
45	17.447 PLATE; U-BOLT RR BODY FLAT BED(RS6) (B) L=120 B=45	5-66900-204-3	04	1	1311-	●
45	17.447 PLATE; U-BOLT RR BODY FLAT BED(RS6) (B) L=120 B=45	5-66900-204-3	06	1	1206-		●
45	17.447 PLATE; U-BOLT WHEEL BASE 2700MM(27W) RR BODY FLAT BED(RS6) (A) L=116 B=35	5-66900-203-0	01	1	1206-		●
45	17.447 PLATE; U-BOLT WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6) (A) L=116 B=35	5-66900-203-0	02	1	1206-		●
73	03.690 PLATE; STUD BOLT RR BODY FLAT BED(RS6)	8-98047-322-0	04	1	1206-1308		●
73	03.690 PLATE; STUD BOLT RR BODY FLAT BED(RS6)	8-98047-322-0	04	1	1309-1310		●
73	03.690 PLATE; STUD BOLT	8-98047-322-0	04	1	1309-1310	●
73	03.690 PLATE; STUD BOLT RR BODY FLAT BED(RS6)	8-98047-322-0	04	1	1311-1412	●	●
73	03.690 PLATE; STUD BOLT WHEEL BASE 2700MM(27W),WHEEL BASE 3300MM(33W) RR BODY FLAT BED(RS6)	8-98047-322-0	04	1	1501-		●
73	03.690 PLATE; STUD BOLT RR BODY FLAT BED(RS6)	8-98047-322-0	04	1	1501-	●
