Isuzu WW
▶
TRUCKS
▶
FTR
▶
10827 - FTR(AUSTRALIA)
▶
3 - Brakes, Brake System
▶
3-46 - AIR DRYER
▶
3-46 — AIR DRYER
(#9557) — 40 parça
Tümü
A - FTR5MF
B - FTR5WF
◀

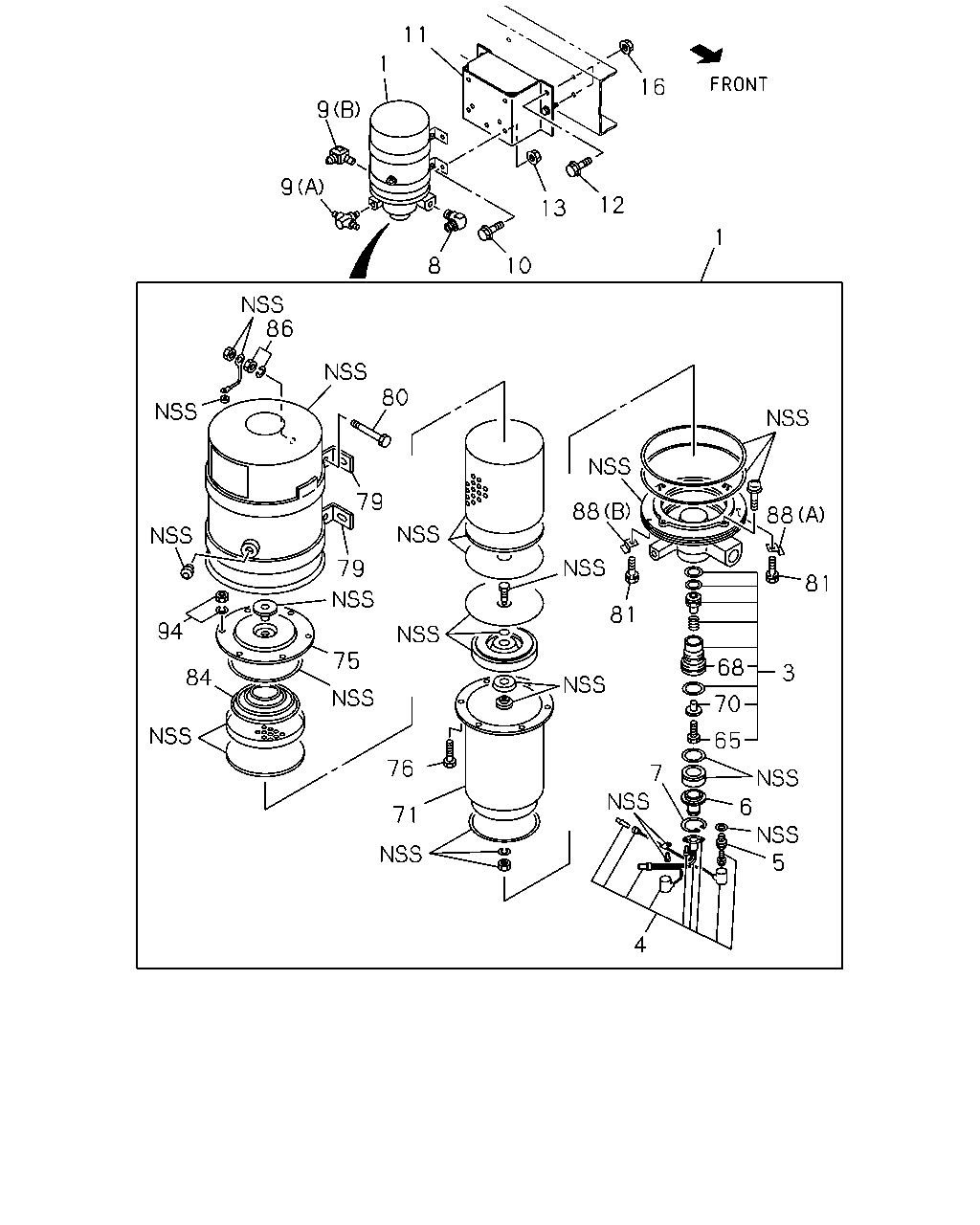

[346A] FIXING,COMPONENT,PISTON,THERMOSTAT KIT (38 parça)

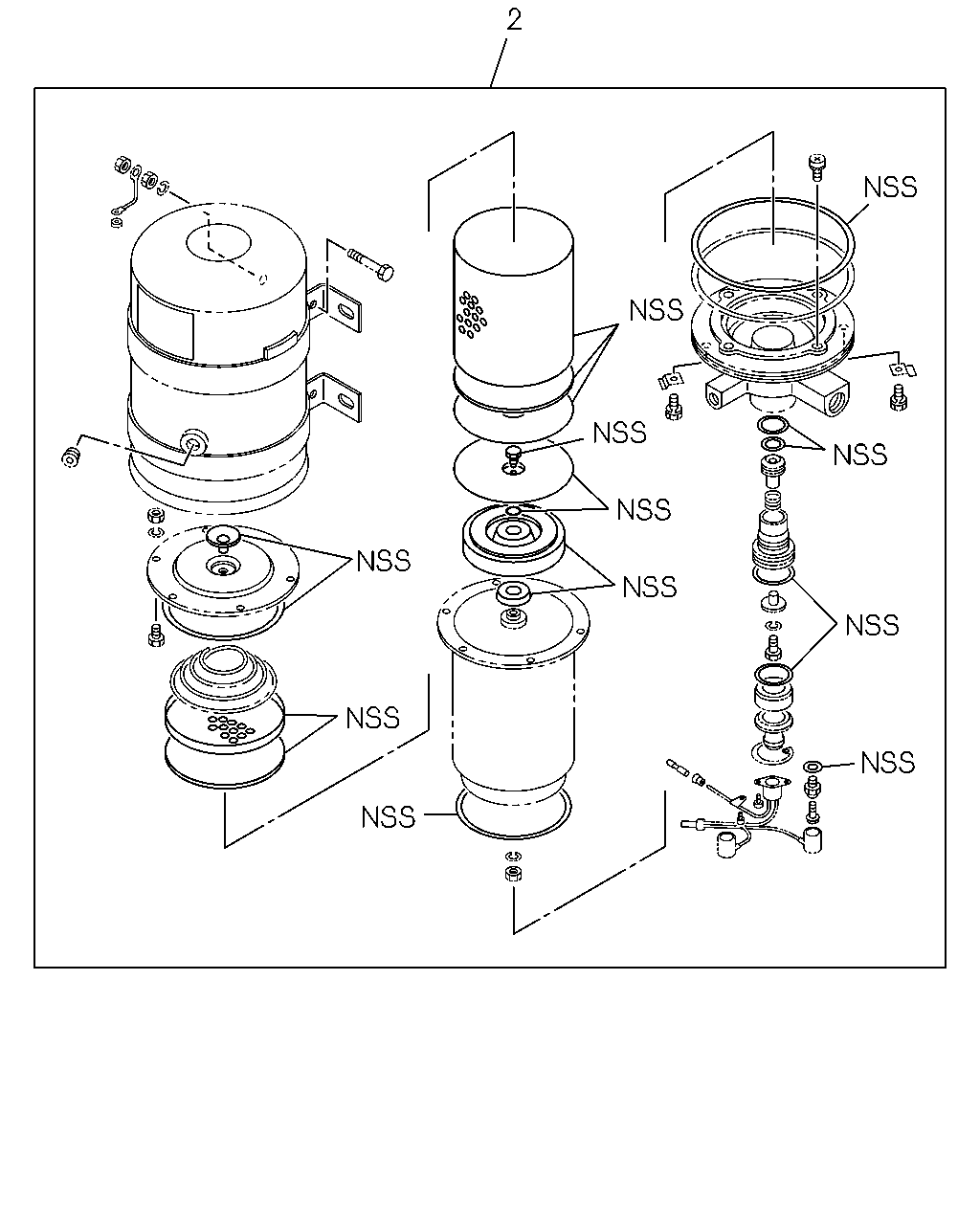

[346A] REPAIR KIT (2 parça)
▶
11
1
16
9
9
12
13
1
8
10
86
80
79
88
88
79
81
81
94
75
68
3
84
70
65
76
7
6
5
71
4
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
DRYER; AIR
1-48190-105-3
01
1
0005-0210
●
●
1
DRYER; AIR
1-48190-277-1
01
1
0211-
●
●
3
PISTON KIT; AIR DRYER
1-85576-057-1
01
1
0005-
●
●
4
THERMOSTAT KIT; AIR DRYER
1-85576-129-0
01
1
0005-0210
●
●
4
THERMOSTAT KIT; AIR DRYER
1-85576-254-0
01
1
0211-
●
●
5
HEATER ASM; AIR DRYER
1-48199-085-0
02
1
0005-
●
●
6
COVER; EXH,AIR DRYER
1-48199-101-0
01
1
0005-
●
●
7
RING; SNAP,AIR DRYER
1-48199-154-0
01
1
0005-
●
●
8
CONNECTOR; OUT,AIR DRYER
M22 & PT1/2 ELBOW
1-09650-444-0
01
1
0005-0607
●
●
8
CONNECTOR; OUT,AIR DRYER
M22 & PT1/2 ELBOW
0-92134-315-0
01
1
0608-
●
●
9
CONNECTOR; PIPE,AIR DRYER
(A) M12X2 & PT1/4 3WAY
1-09656-229-1
01
1
0005-
●
●
9
CONNECTOR; PIPE,AIR DRYER
(B) M22 & R1/2 W/VALVE
1-48320-026-2
01
1
0005-
●
●
10
BOLT; AIR DRYER
M10X25 FLANGE
0-28681-025-0
04
1
0005-0512
●
●
10
BOLT; AIR DRYER
M10X25 FLANGE
0-28651-025-0
04
1
0601-
●
●
11
BRACKET; AIR DRYER
1-48195-107-0
01
1
0005-0005
●
●
11
BRACKET; AIR DRYER
1-48195-108-0
01
1
0006-
●
●
12
BOLT; BRKT
M10X30 FLANGE
0-28681-030-0
02
1
0005-0301
●
●
12
BOLT; BRKT
M10X35 FLANGE
0-28681-035-0
02
1
0302-0512
●
●
12
BOLT; BRKT
M10X35 FLANGE
0-28651-035-0
02
1
0601-
●
●
13
NUT; AIR DRYER
M10 FLANGE
0-91150-210-0
04
1
0005-0602
●
●
13
NUT; AIR DRYER
M10 FLANGE
0-91180-210-0
04
1
0603-
●
●
16
NUT; BRKT
M10 FLANGE
0-91150-210-0
04
1
0005-0602
●
●
16
NUT; BRKT
M10 FLANGE
0-91180-210-0
04
1
0603-
●
●
65
BOLT; PURGE VLV
1-48199-413-0
01
1
0005-0210
●
●
65
BOLT; PURGE VLV
1-48199-393-0
01
1
0211-
●
●
68
BODY; VALVE
1-48199-216-0
01
1
0005-
●
●
70
VALVE; AIR DRYER
1-48199-105-0
01
1
0005-
●
●
71
CASE; INNER,AIR DRYER
1-48199-156-1
01
1
0005-
●
●
75
COVER; CASE,AIR DRYER
1-48199-167-0
01
1
0005-
●
●
76
BOLT; COVER,AIR DRYER
1-48199-478-0
06
1
0005-0210
●
●
79
BRACKET; AIR DRYER
1-48199-189-0
02
1
0005-
●
●
80
BOLT; BRKT
1-48199-190-0
02
1
0005-
●
●
81
BOLT; CASE,AIR DRYER
1-48199-177-0
02
1
0005-
●
●
84
SPRING; AIR DRYER
1-48199-166-0
01
1
0005-
●
●
86
NUT; BRKT
1-48199-320-0
02
1
0005-
●
●
88
PLATE; STOPPER
(A)
1-48199-178-0
01
1
0005-
●
●
88
PLATE; STOPPER
(B)
1-48199-179-0
01
1
0005-
●
●
94
NUT; COVER,AIR DRYER
1-48199-479-0
07
1
0005-0210
●
●
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
2
REPAIR KIT; AIR DRYER
1-85576-055-1
01
1
0005-0210
●
●
2
REPAIR KIT; AIR DRYER
1-85576-226-0
01
1
0211-
●
●
