Isuzu WW
▶
TRUCKS
▶
QKR
▶
51376 - QKR(MIDDLE EAST)
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶

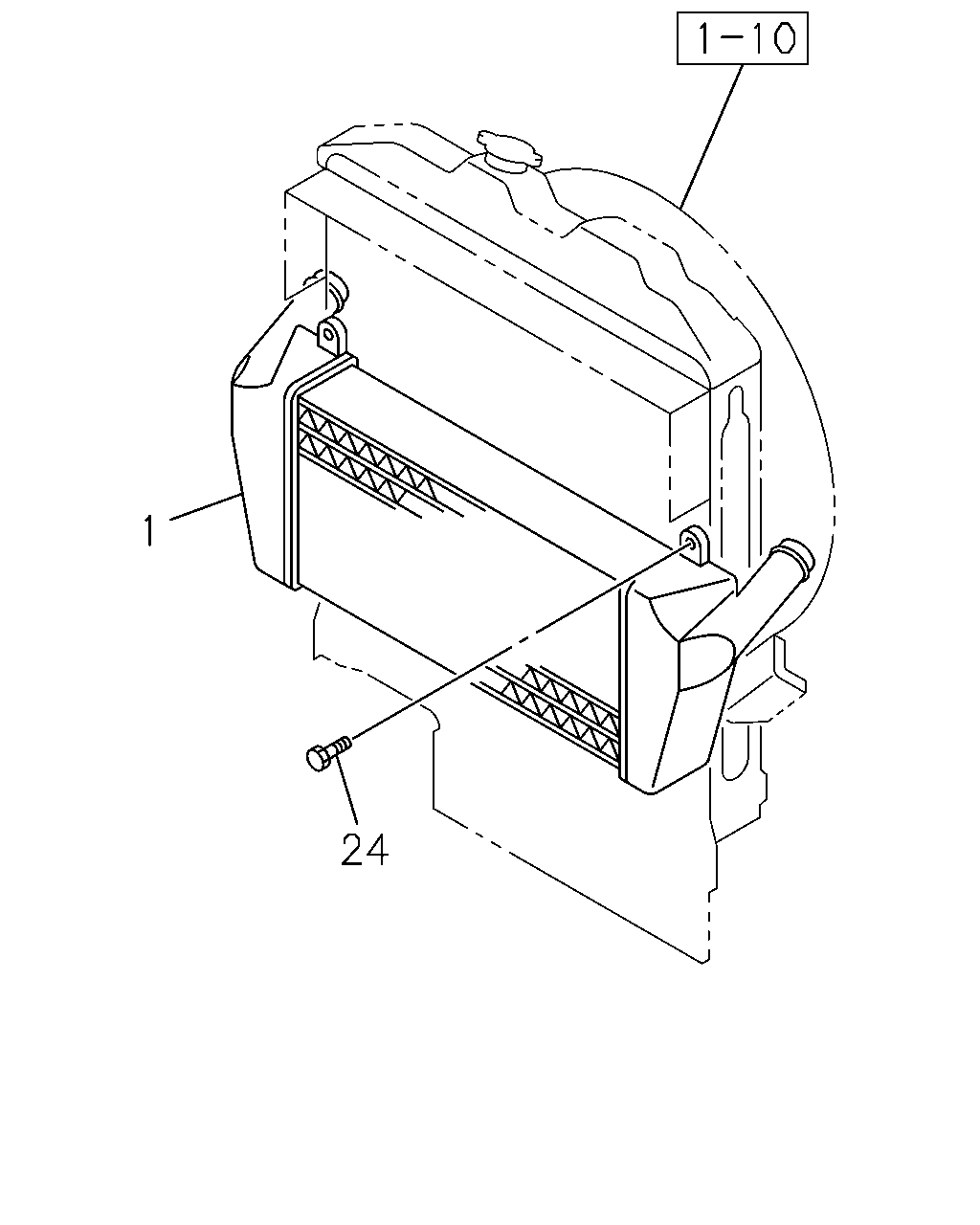

1-35 - CHARGE AIR COOLER
▶
1-35 — CHARGE AIR COOLER
(#95569) — 9 parça
Tümü
A - NKR6SN
B - NKR6SE
1
24
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
03.374 COOLER; CHARGE AIR
4JB1-TC ENG(RDT) IDENTIFICATION LABEL FOR KD<6UT>
5-87220-507-0
01
1
1206-1308
●
1
03.374 COOLER; CHARGE AIR
4JB1-TC ENG(RDT) IDENTIFICATION LABEL FOR KD<6UT>
5-87220-507-0
01
1
1309-
●
●
1
03.374 COOLER; CHARGE AIR
4JB1-TC ENG(RDT) EXC. IDENTIFICATION LABEL FOR KD<6UT>
8-97210-644-0
01
1
1206-1308
●
1
03.374 COOLER; CHARGE AIR
4JB1-TC ENG(RDT) EXC. IDENTIFICATION LABEL FOR KD<6UT>
8-97210-644-0
01
1
1309-
●
●
24
03.374 BOLT; COOLER TO RAD
4JB1-TC ENG(RDT) IDENTIFICATION LABEL FOR KD<6UT>
5-87220-508-0
04
1
1206-1308
●
24
03.374 BOLT; COOLER TO RAD
4JB1-TC ENG(RDT) IDENTIFICATION LABEL FOR KD<6UT>
5-87220-508-0
04
1
1309-
●
●
24
03.374 BOLT; COOLER TO RAD
4JB1-TC ENG(RDT) EXC. IDENTIFICATION LABEL FOR KD<6UT> 01.531 M8X25 FLANGE
0-28080-825-0
04
1
1206-1303
●
24
03.374 BOLT; COOLER TO RAD
4JB1-TC ENG(RDT) EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.275 M8X25 FLANGE
0-28050-825-0
04
1
1304-1308
●
24
03.374 BOLT; COOLER TO RAD
4JB1-TC ENG(RDT) EXC. IDENTIFICATION LABEL FOR KD<6UT> 03.275 M8X25 FLANGE
0-28050-825-0
04
1
1309-
●
●
