Isuzu WW
▶
AUV
▶
TBR
▶
50919 - TBR (GM-INDONESIA)
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-90 - RADIO AND TV
▶
8-90 — RADIO AND TV
(#95563) — 33 parça
◀
[890A] NO.1 (11 parça)
[890A] NO.2 (5 parça)
[890A] NO.3 (10 parça)
[890A] NO.4 (7 parça)
▶

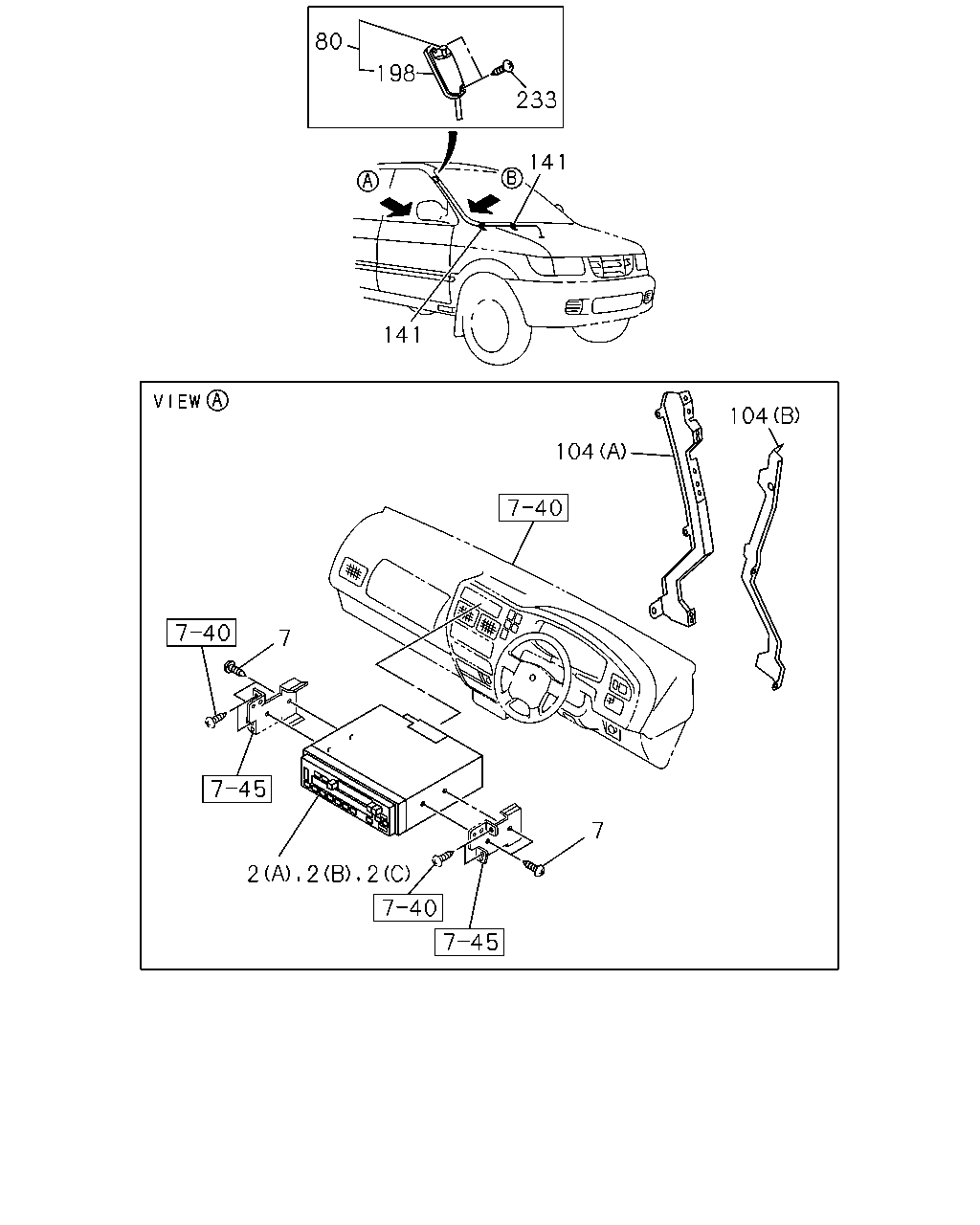

233
198
80
141
141
104
104
7
7
2
2
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
RADIO & CASSETTE DECK ASM
(A) JVC IDN
8-97560-612-0
01
1
0201-0206
2
RADIO & CASSETTE DECK ASM
(C) JVC IDN
8-97353-404-0
01
1
0207-
2
RADIO & CASSETTE DECK ASM
(B) KENWOOD IDN
8-97957-519-2
01
1
0201-0206
7
SCREW; RADIO
M5X10 TAPPING W/PL WASHER
0-74100-510-0
04
1
0201-0604
7
SCREW; RADIO
M5X10 TAPPING W/PL WASHER
0-74160-510-0
04
1
0605-
80
ANTENNA
IDN
8-97956-716-1
01
1
0201-
104
BRACKET; AUDIO
(A) THA
8-97910-982-0
01
1
0201-
104
BRACKET; AUDIO
(B) THA
8-97910-983-0
01
1
0201-
141
CLIP; ANTENNA CABLE
L=250 IDN
5-09707-030-1
03
1
0201-
198
SHEET; ANTENNA
IDN
8-97958-188-0
01
1
0201-
233
SCREW
M4X14 TAPPING
0-71090-414-0
02
1
0201-

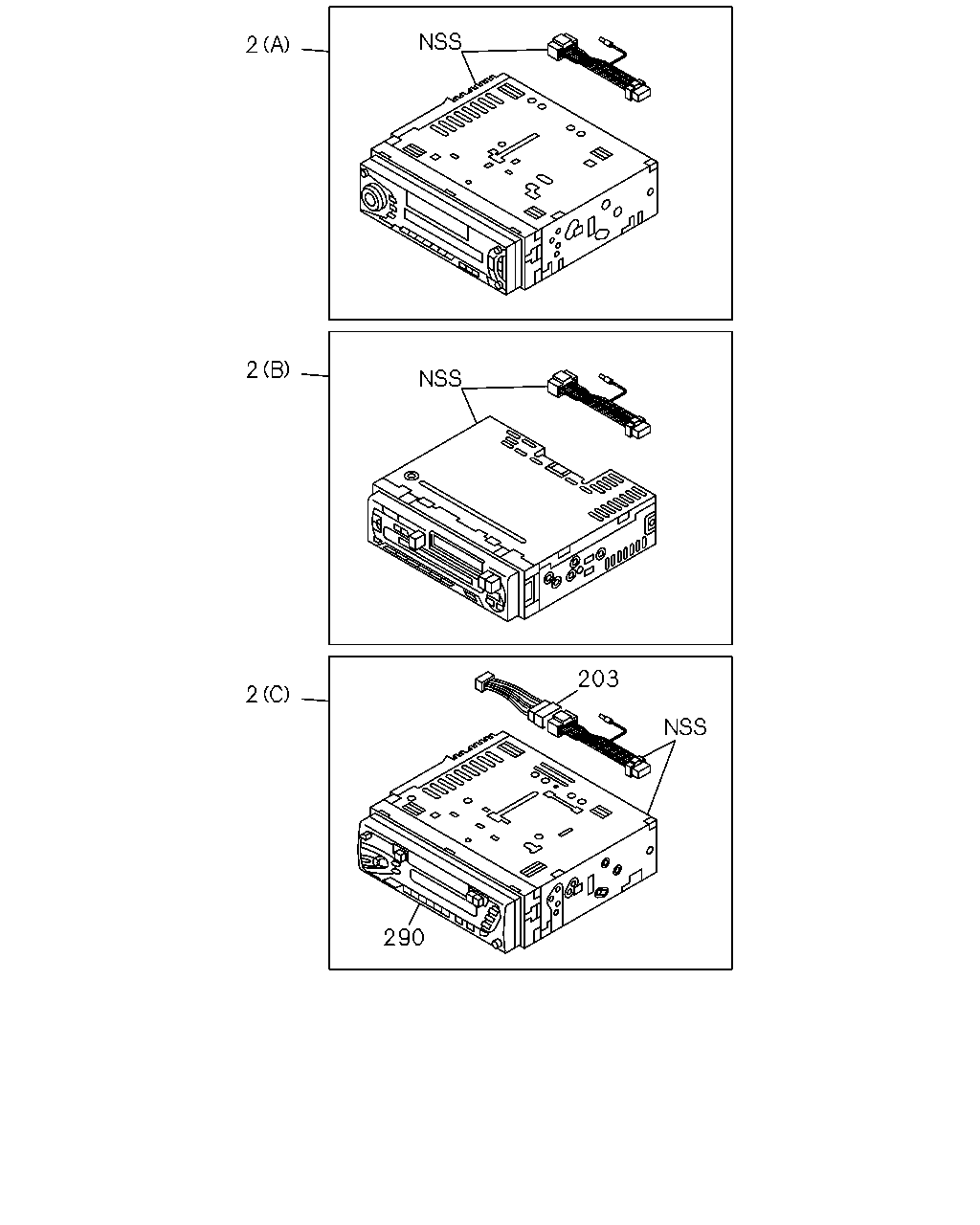

2
2
2
203
290
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
RADIO & CASSETTE DECK ASM
(A) JVC IDN
8-97560-612-0
01
1
0201-0206
2
RADIO & CASSETTE DECK ASM
(C) JVC IDN
8-97353-404-0
01
1
0207-
2
RADIO & CASSETTE DECK ASM
(B) KENWOOD IDN
8-97957-519-2
01
1
0201-0206
203
HARNESS; EXT,CASSETTE & RADIO
IDN
8-97357-211-0
01
1
0207-
290
PANEL; CONTROL,RADIO & CASSETTE
IDN
8-97356-226-0
01
1
0207-

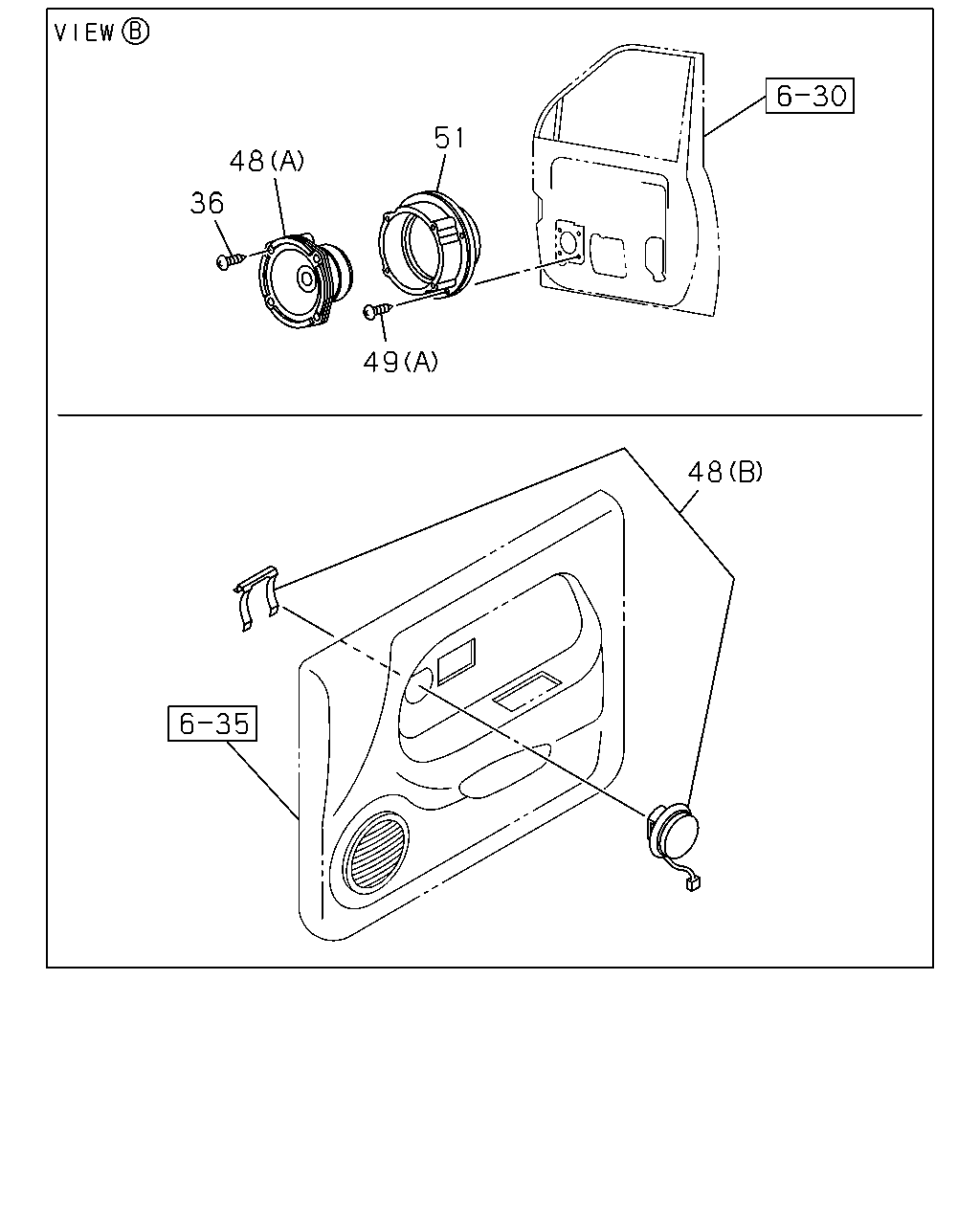

51
48
36
49
48
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
36
SCREW; COVER
M5X14 TAPPING
9-07076-514-0
08
1
0201-0603
36
SCREW; COVER
M5X14 TAPPING
0-71240-514-0
08
1
0604-
48
SPEAKER; AUDIO
(B) ISUZU GRAY IDN
8-97561-087-0
02
1
0201-
48
SPEAKER; AUDIO
(A) KENWOOD IDN
8-97956-751-1
02
1
0201-
48
SPEAKER; AUDIO
(B) KENWOOD GRAY IDN
8-97959-933-1
02
1
0201-
49
SCREW; SPEAKER
(B) M5X14 TAPPING
9-07076-514-0
06
1
0201-0603
49
SCREW; SPEAKER
(B) M5X14 TAPPING
0-71240-514-0
06
1
0604-
49
SCREW; SPEAKER
(A) M5X14 TAPPING
9-07076-514-0
08
1
0201-0603
49
SCREW; SPEAKER
(A) M5X14 TAPPING
0-71240-514-0
08
1
0604-
51
SPACER; SPEAKER
IDN
8-97956-717-0
02
1
0201-
49
59
56
134
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
49
SCREW; SPEAKER
(B) M5X14 TAPPING
9-07076-514-0
06
1
0201-0603
49
SCREW; SPEAKER
(B) M5X14 TAPPING
0-71240-514-0
06
1
0604-
49
SCREW; SPEAKER
(A) M5X14 TAPPING
9-07076-514-0
08
1
0201-0603
49
SCREW; SPEAKER
(A) M5X14 TAPPING
0-71240-514-0
08
1
0604-
56
NUT; SPEAKER,RADIO OR STEREO
OD=14
8-94107-541-0
06
1
0201-
59
SPEAKER; AUDIO
KENWOOD IDN
8-97956-752-1
02
1
0201-
134
GRILLE; SPEAKER,RR
GRAY IDN
8-97959-426-1
02
1
0201-
