50919 - TBR (GM-INDONESIA)
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶

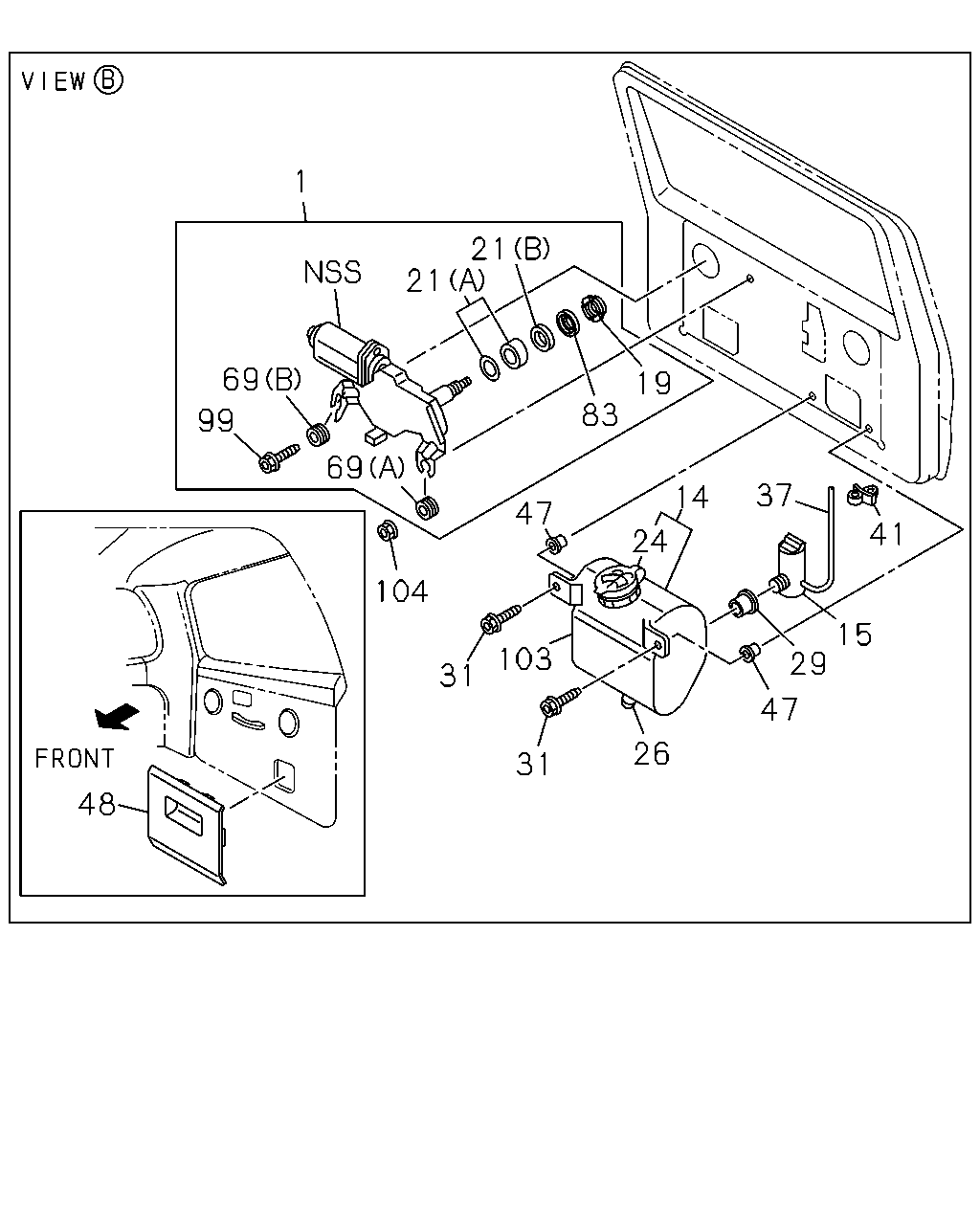

8-85 - REAR WIPER AND WASHER
▶
8-85 — REAR WIPER AND WASHER
(#95562) — 31 parça
◀
[885A] NO.2 (24 parça)
[885A] NO.1 (7 parça)
▶
41
15
29
47
37
14
24
47
103
26
31
31
104
19
83
21
21
1
69
99
69
48
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
MOTOR ASM; RR WIPER
IDN
8-97306-684-0
01
1
0201-0206
1
MOTOR ASM; RR WIPER
IDN
8-97322-389-0
01
1
0207-
14
TANK ASM; WASHER,REAR WIPER
IDN
8-97958-182-0
01
1
0201-
15
MOTOR ASM; RR,WASHER TANK
IDN
8-97958-183-0
01
1
0201-
19
NUT; LOCK,PIVOT
IDN
8-97260-188-0
01
1
0201-
21
SEAL; PIVOT,RR WIPER
(A)
8-97260-182-0
01
1
0201-
21
SEAL; PIVOT,RR WIPER
(B) IDN
8-97260-183-0
01
1
0201-
24
CAP; WASHER TANK,RR
IDN
8-97958-184-0
01
1
0201-
26
RUBBER; CUSHION,RR WASHER TANK
IDN
8-97958-548-0
01
1
0201-
29
GASKET; TANK TO MOTOR
IDN
8-97958-547-0
01
1
0201-
31
SCREW; RR WASHER TANK TO BODY
M6X25 W/PL WASHER
9-03900-625-0
02
1
0201-0604
31
SCREW; RR WASHER TANK TO BODY
M6X25 W/PL WASHER
0-36210-625-0
02
1
0605-
37
HOSE; WASHER TANK,RR
SERVICED BY L=10000 IDN
8-97958-549-0
01
1
0201-
41
CLIP; RR WASHER TANK HOSE
ID=6
8-94417-625-0
05
1
0201-0212
41
CLIP; RR WASHER TANK HOSE
ID=6
8-94417-625-0
03
1
0301-
47
NUT; HANGER,RR WIPER
M6 RUBBER NUT
8-97023-281-0
02
1
0201-
48
LID; RR WASHER TANK
GRAY
8-97198-127-1
01
1
0201-
69
RUBBER; CUSHION,RR,WIPER
(A) IDN
8-97264-709-0
01
1
0201-
69
RUBBER; CUSHION,RR,WIPER
(B) IDN
8-97264-710-0
01
1
0201-
83
COVER; LOCK NUT
IDN
8-97260-184-0
01
1
0201-
99
BOLT; WIPER MOTOR
M6X25 W/LK&PL WASHER
8-94416-136-0
01
1
0201-
103
NECK; RR WASHER TANK
IDN
8-97958-621-0
01
1
0201-
104
NUT; WIPER MOTOR
M6 FLANGE
0-91150-106-0
01
1
0201-0602
104
NUT; WIPER MOTOR
M6 FLANGE
0-91180-106-0
01
1
0603-
39
4
3
2
8
6
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
ARM ASM; REAR WIPER
IDN
8-97175-418-0
01
1
0201-
3
BLADE ASM; REAR WIPER
IDN
8-97175-464-0
01
1
0201-
4
RUBBER; BLADE,RR WIPER
IDN
8-97264-873-0
01
1
0201-
6
CLIP; COVER
8-94460-965-0
01
1
0201-
8
NUT; RR WIPER ARM TO WIPER MOTOR
M8 FLANGE
9-09844-190-0
01
1
0201-0803
8
NUT; RR WIPER ARM TO WIPER MOTOR
M8 FLANGE
8-98053-188-0
01
1
0804-
39
NOZZLE; RR WINDSHIELD,WASHER
8-97175-419-1
01
1
0201-
