3-41 — REAR BRAKE POWER CHAMBER (#9556) — 49 parça

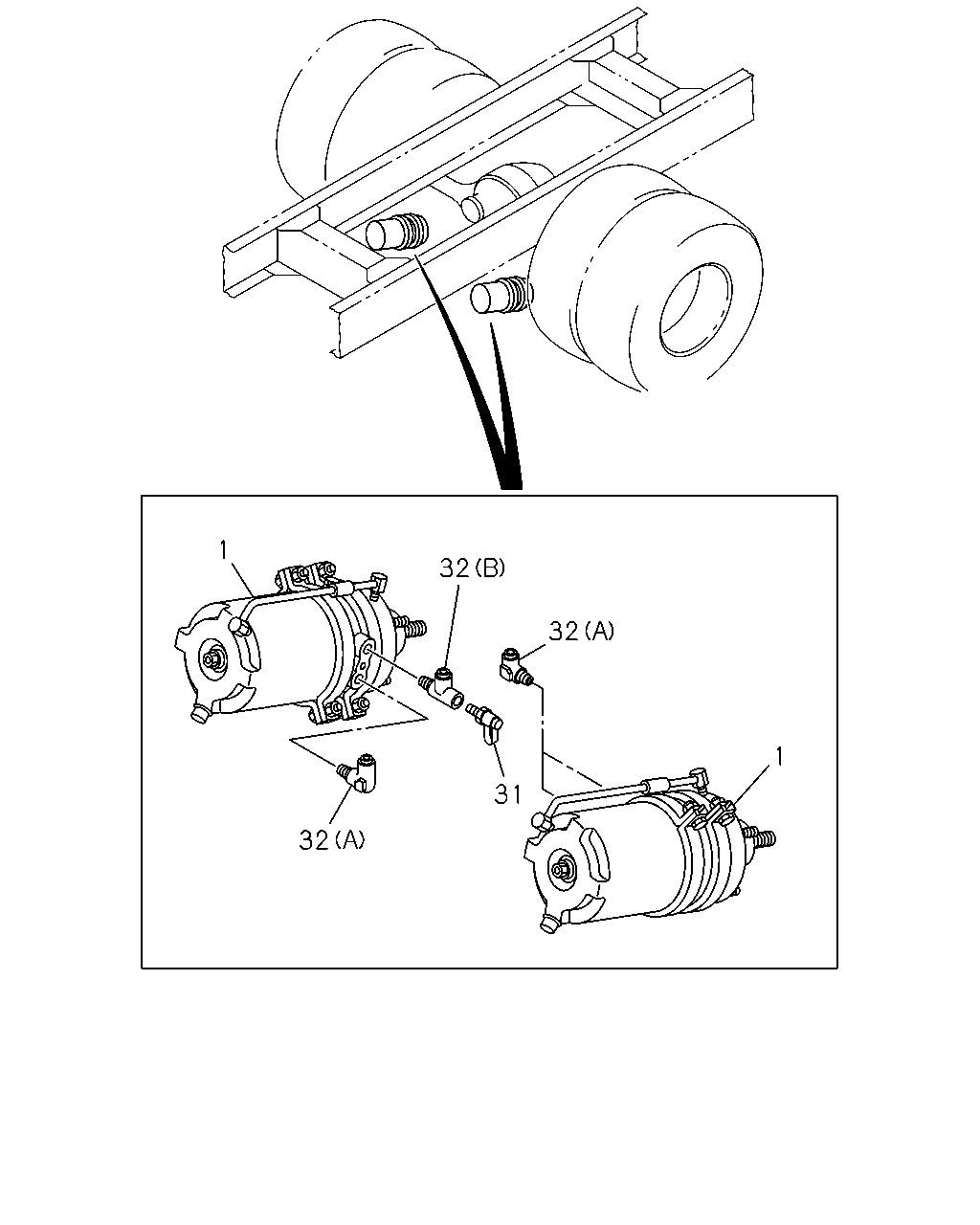

çizim 40385
1 32 32 1 31 32
BalonParca AdiParca NoAdetTipApplied Date A B
1 CHAMBER ASM; SPRING 1-48250-641-1 01 1 0005- ● ●
1 CHAMBER ASM; SPRING 1-48250-640-1 01 1 0005- ● ●
31 CONNECTOR 1-47459-013-1 01 1 0005- ● ●
32 CONNECTOR; SPR CHAMBER
(A) DIN12 & R3/8 ELBOW 		1-09660-959-0 03 1 0005- ● ●
32 CONNECTOR; SPR CHAMBER
(B) DIN12 & RC1/4 & R3/8 3WAY 		1-09661-132-0 01 1 0005- ● ●

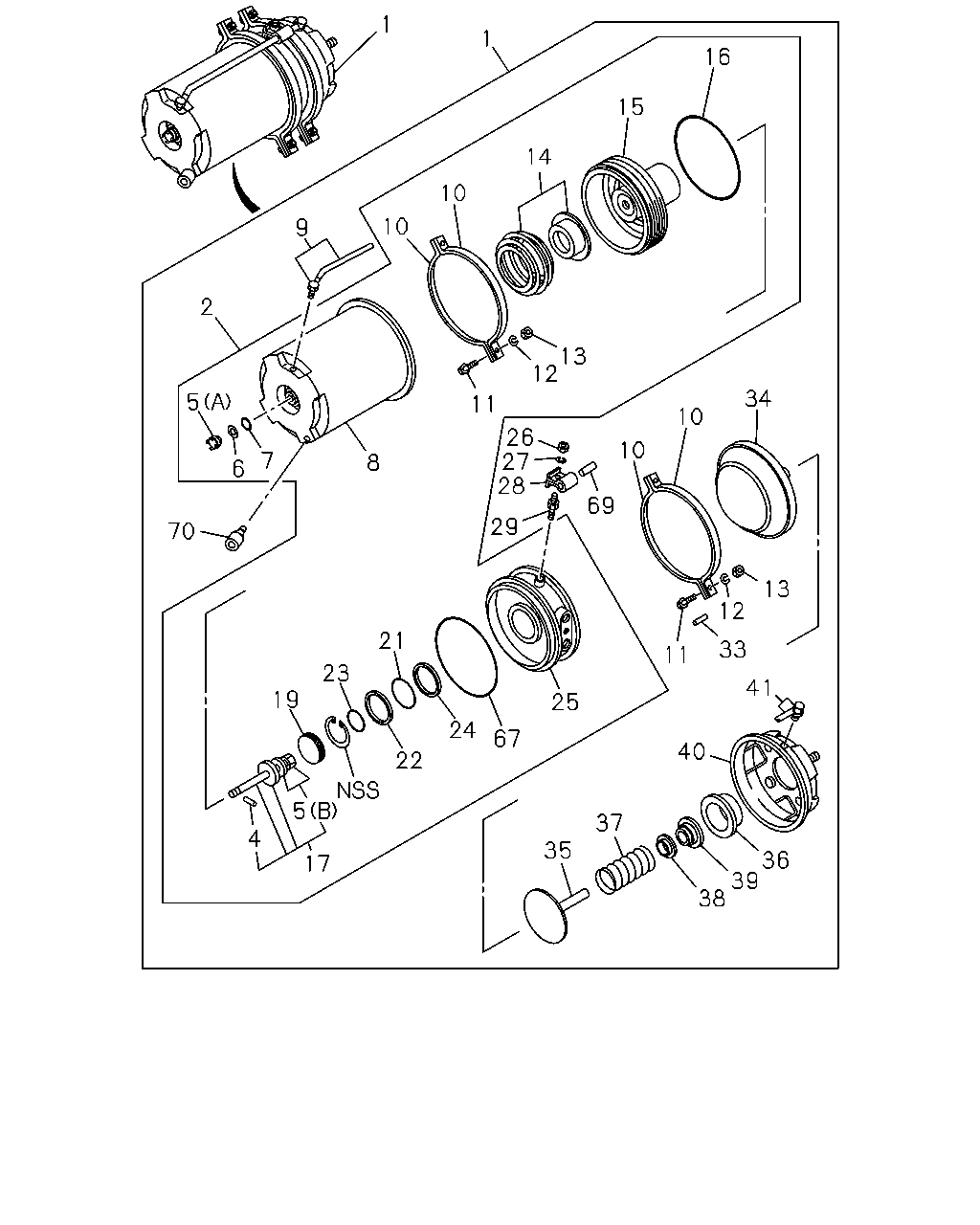

çizim 100043
1 1 16 15 14 10 10 9 2 13 12 34 5 11 10 26 27 28 10 7 8 6 69 29 70 13 12 21 33 11 23 41 19 25 24 67 40 22 5 37 4 35 36 39 38 17
BalonParca AdiParca NoAdetTipApplied Date A B
1 CHAMBER ASM; SPRING 1-48250-641-1 01 1 0005- ● ●
1 CHAMBER ASM; SPRING 1-48250-640-1 01 1 0005- ● ●
2 CHAMBER; EMERGENCY 1-48252-015-0 01 1 0005- ● ●
2 CHAMBER; EMERGENCY 1-48252-014-0 01 1 0005- ● ●
4 PIN; STRAIGHT,SPR CHAMBER 1-48259-056-0 04 1 0005- ● ●
5 NUT; SHELL
(A) 		1-48259-054-0 02 1 0005- ● ●
5 NUT; SHELL
(B) 		1-48259-074-0 02 1 0005- ● ●
6 GASKET; SHELL 9-09920-268-0 02 1 0005- ● ●
7 GASKET 1-48259-055-0 02 1 0005- ● ●
8 SHELL; CYL,SPR CHAMBER 1-48259-070-0 01 1 0005- ● ●
8 SHELL; CYL,SPR CHAMBER 1-48259-069-0 01 1 0005- ● ●
9 PIPE ASM; SHELL 1-48259-076-0 02 1 0005- ● ●
10 RING; CLAMP,SPR CHAMBER 1-48259-016-0 08 1 0005- ● ●
11 BOLT; CLAMP RING 1-48259-092-0 08 1 0005- ● ●
12 WASHER; LK,CLAMP RING
ID=10.2 		9-09150-510-0 08 1 0005- ● ●
13 NUT; CLAMP RING 9-83315-080-0 08 1 0005- ● ●
14 SPRING & SEAT SET 1-48259-037-1 02 1 0005- ● ●
15 PISTON 1-48262-005-0 02 1 0005- ● ●
16 GASKET 1-48259-048-0 02 1 0005- ● ●
17 BOLT ASM; EMERGENCY 1-48259-073-0 02 1 0005- ● ●
19 COVER; PISTON 1-48269-011-0 02 1 0005- ● ●
21 GASKET; SPR CHAMBER 1-48259-049-0 02 1 0005- ● ●
22 RING; BACKUP,SPR CHAMBER 1-48259-019-0 02 1 0005- ● ●
23 GASKET; SPR CHAMBER 1-48259-047-0 02 1 0005- ● ●
24 BEARING; SPR CHAMBER 1-48259-020-0 02 1 0005- ● ●
25 PLATE; PRESSURE,SPR CHAMBER 1-48259-078-0 01 1 0005- ● ●
25 PLATE; PRESSURE,SPR CHAMBER 1-48259-077-0 01 1 0005- ● ●
26 NUT; PRESSURE PLATE 1-48259-058-0 04 1 0005- ● ●
27 WASHER; PRESSURE PLATE
ID=8.2 		9-09150-508-0 02 1 0005- ● ●
28 BRACKET; PRESSURE PLATE,HOSE 1-48259-059-0 02 1 0005- ● ●
29 STUD; PRESSURE PLATE 1-48259-050-0 02 1 0005- ● ●
33 RETAINER; DIAPH 1-48259-044-0 04 1 0005- ● ●
34 DIAPHRAGM 1-48252-056-0 02 1 0005- ● ●
35 PLATE; ROD END,SPR CHAMBER 1-48253-010-0 02 1 0005- ● ●
36 RETAINER; SPR CHAMBER 1-48259-043-0 02 1 0005- ● ●
37 SPRING; LWR,SPR CHAMBER 1-48255-016-0 02 1 0005- ● ●
38 COVER; ROD & PLATE 1-48259-066-0 02 1 0005- ● ●
39 COVER; ROD & PLATE 1-48259-065-0 02 1 0005- ● ●
40 COVER ASM; LWR,SPR CHAMBER 1-48259-068-1 01 1 0005- ● ●
40 COVER ASM; LWR,SPR CHAMBER 1-48259-067-1 01 1 0005- ● ●
41 PIPE ASM; LWR COVER 1-48259-075-0 02 1 0005- ● ●
67 GASKET; SPR CHAMBER 1-48259-053-0 02 1 0005- ● ●
69 HOSE; PRESSURE PLATE 1-48259-051-0 02 1 0005- ● ●
70 COVER; EXH,SPR CHAMBER 1-48259-052-0 02 1 0005- ● ●
