50919 - TBR (GM-INDONESIA)
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶

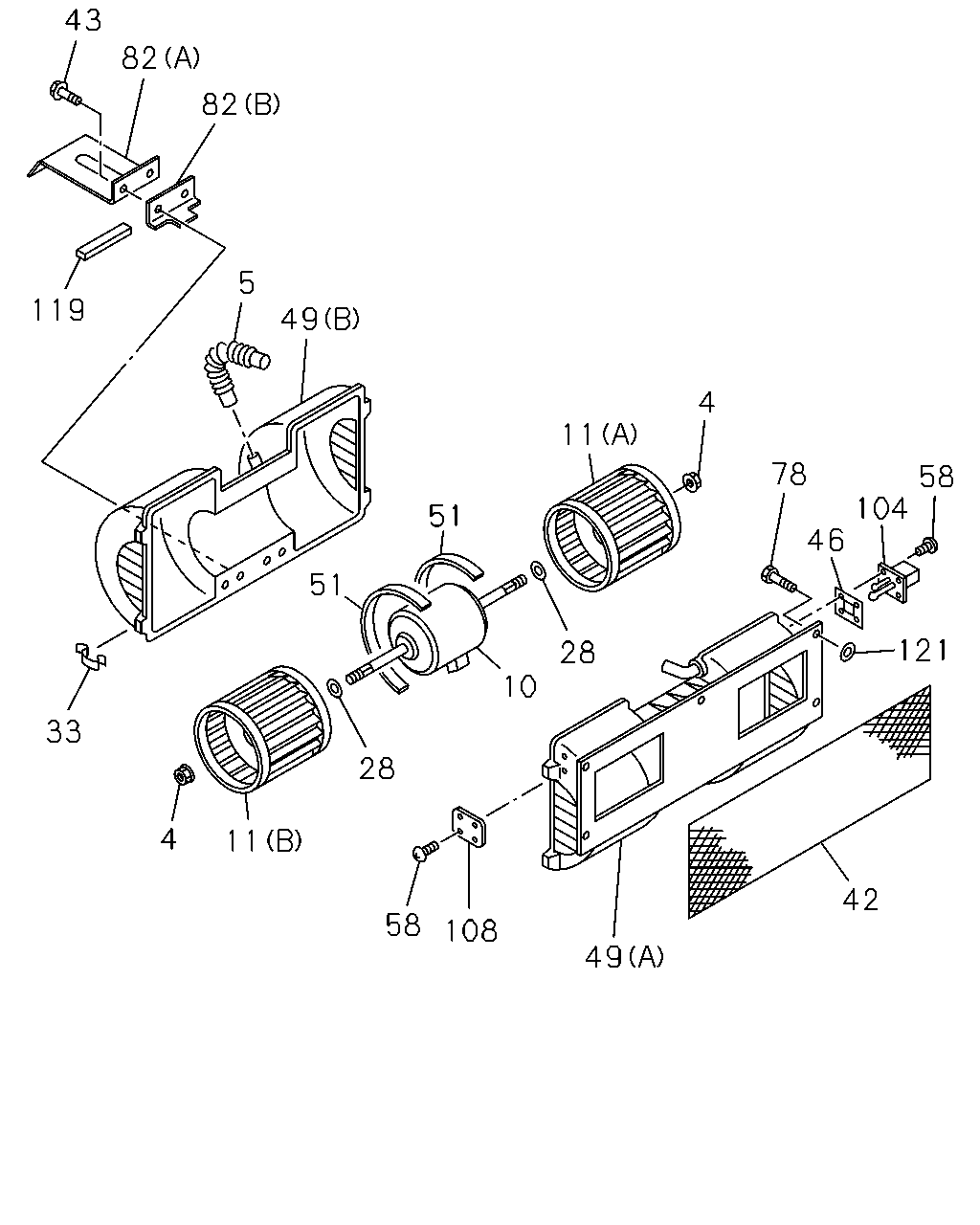

8-73 - BLOWER UNIT
▶
8-73 — BLOWER UNIT
(#95558) — 21 parça
43
82
82
119
5
49
33
4
11
51
51
28
58
108
49
42
121
58
104
46
78
4
11
28
10
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
4
NUT; FAN MOTOR
1-83539-313-0
02
1
0201-
5
HOSE; AIR
IDN
8-97262-275-0
01
1
0201-
10
MOTOR ASM; FAN,BLOWER UNIT
IDN
8-97262-263-0
01
1
0201-
11
IMPELLER; FAN MOTOR
(A)
1-87540-414-0
01
1
0201-
11
IMPELLER; FAN MOTOR
(B)
1-87540-415-0
01
1
0201-
28
WASHER; PL,FAN MOTOR
1-87540-630-0
02
1
0201-
33
CLIP; BLOWER UNIT
1-87540-422-0
04
1
0201-
42
FILTER; BLOWER UNIT
IDN
8-97262-270-0
01
1
0201-0308
43
BOLT; CASE
M6X25 IDN
8-97254-310-0
08
1
0201-
46
PLATE; BLOWER UNIT
IDN
8-97262-274-0
01
1
0201-
49
CASE; BLOWER UNIT
(A) IDN
8-97262-261-0
01
1
0201-
49
CASE; BLOWER UNIT
(B) IDN
8-97262-262-0
01
1
0201-
51
ISOLATOR; BLOWER UNIT
IDN
8-97262-276-0
02
1
0201-
58
SCREW; PLATE TO CASE
IDN
8-97262-289-0
04
1
0201-
78
SCREW; CASE TO CASE
IDN
8-97262-290-0
05
1
0201-
82
BRACKET; BLOWER UNIT
(A) IDN
8-97262-294-0
01
1
0201-
82
BRACKET; BLOWER UNIT
(B) IDN
8-97262-295-0
01
1
0201-
104
RESISTOR; BLOWER UNIT
IDN
8-97262-271-0
01
1
0201-
108
LINING; RESISTOR
IDN
8-97262-293-0
01
1
0201-
119
LINING; CASE
IDN
8-97262-282-0
01
1
0201-
121
WASHER; BLOWER UNIT
IDN
8-97262-292-0
02
1
0201-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
