8-52 — PIPING; AIR CONDITIONING
(#95554) — 52 parça
◀
[852A] NO.1 (21 parça)
[852A] NO.2 (31 parça)
▶

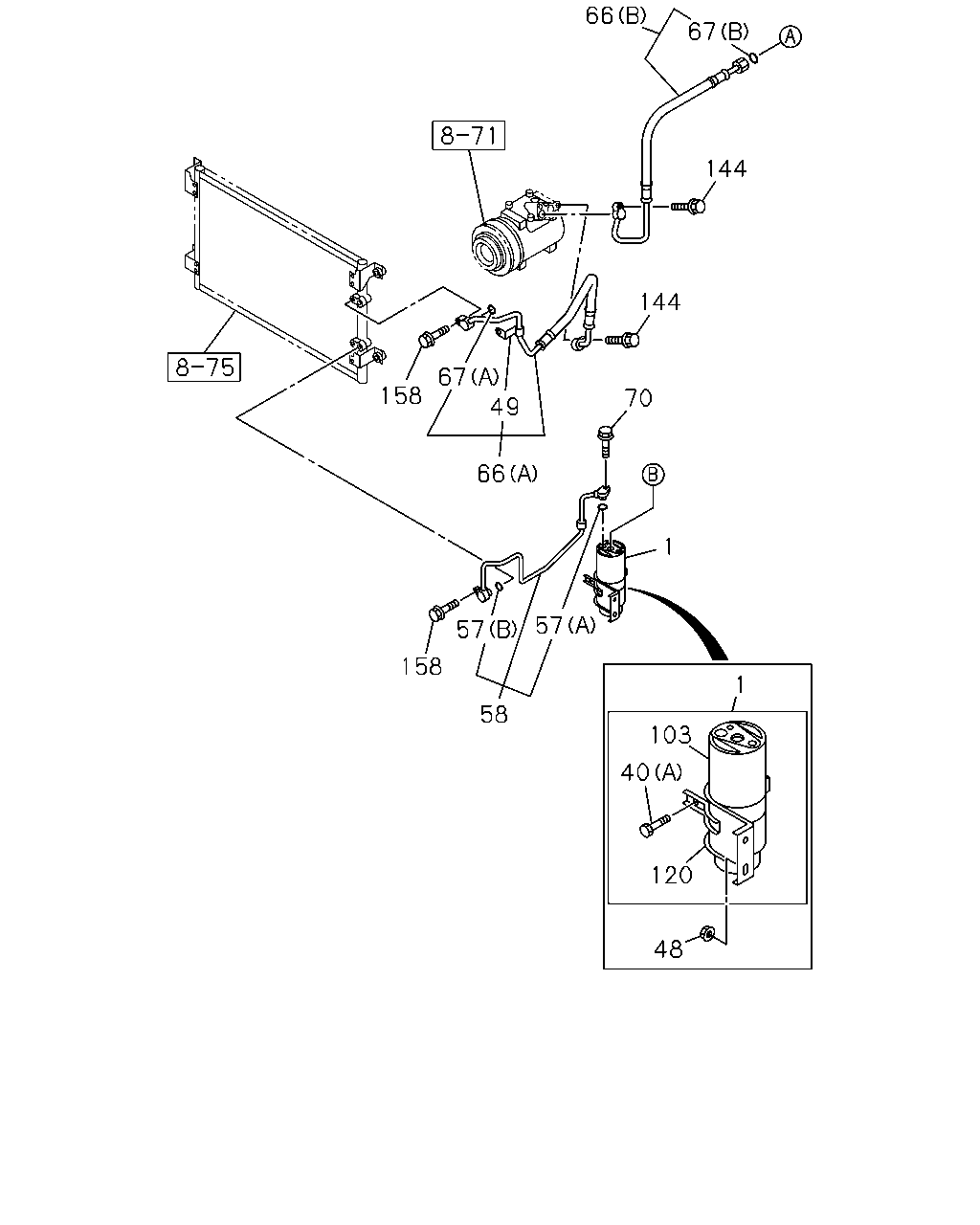

48
120
40
103
1
58
158
57
57
1
66
158
49
67
70
144
144
67
66
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
TANK; RECEIVER
IDN
8-97560-127-0
01
1
0201-
40
BOLT; CLIP BRKT
(B) M6X20 FLANGE
0-28480-620-0
05
1
0201-0512
40
BOLT; CLIP BRKT
(B) M6X20 FLANGE
0-28450-620-0
05
1
0601-
40
BOLT; CLIP BRKT
(A) M6X25 IDN
8-97254-310-0
01
1
0201-
48
NUT; BRKT
M6 FLANGE
8-97063-399-0
02
1
0201-
49
CLAMP; FLEX HOSE
IDN
8-97254-427-0
01
1
0201-
57
GASKET; CONDENSER TO RECEIVER TANK
(A) ID=7.5 IDN
1-83539-316-0
01
1
0201-
57
GASKET; CONDENSER TO RECEIVER TANK
(B) IDN
1-83539-317-0
01
1
0201-
58
PIPE; CONDENSER TO RECEIVER TANK
IDN
8-97560-128-1
01
1
0201-
66
HOSE; FLEX,A/C
(A) IDN
8-97560-126-0
01
1
0201-
66
HOSE; FLEX,A/C
(B) IDN
8-97560-132-0
01
1
0201-
67
GASKET; FLEX HOSE
(A) ID=11.7 IDN
1-83539-317-0
02
1
0201-
67
GASKET; FLEX HOSE
(B) ID=14.5 IDN
1-83539-324-0
02
1
0201-
70
BOLT; PIPE TO BODY
M6X25 FLANGE IDN
0-28680-625-0
02
1
0201-0512
70
BOLT; PIPE TO BODY
M6X25 FLANGE IDN
0-28650-625-0
02
1
0601-
103
TANK; RECEIVER
IDN
8-97957-760-0
01
1
0201-
120
BRACKET; RECEIVER TANK
IDN
8-97560-369-0
01
1
0201-
144
BOLT; CONN TO CMPR
M6X30 FLANGE
0-28680-630-0
02
1
0201-0512
144
BOLT; CONN TO CMPR
M6X30 FLANGE
0-28650-630-0
02
1
0601-
158
BOLT; PIPE FIX
M6X25 FLANGE IDN
0-28680-625-0
02
1
0201-0512
158
BOLT; PIPE FIX
M6X25 FLANGE IDN
0-28650-625-0
02
1
0601-

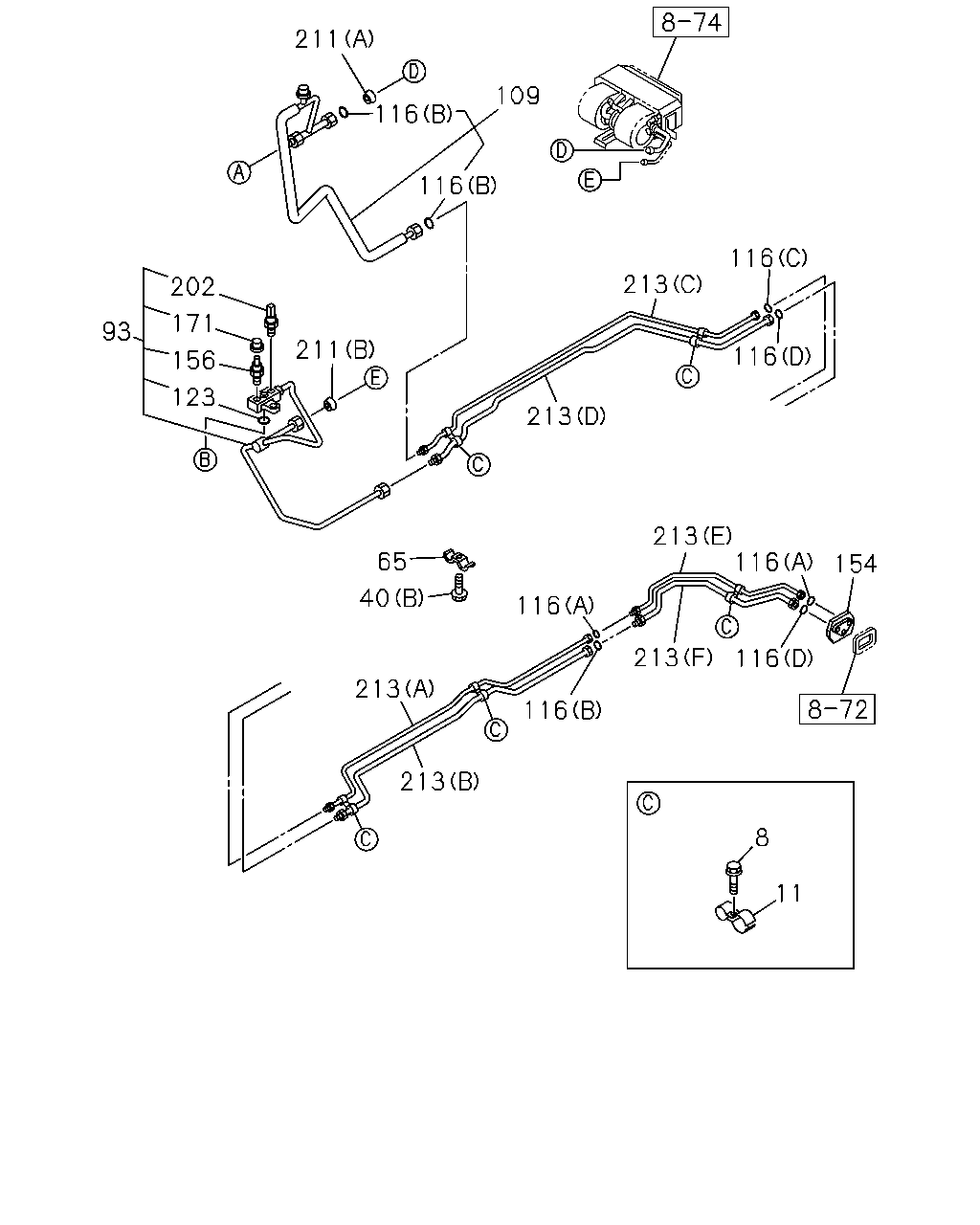

11
8
116
213
116
213
213
40
65
116
213
116
154
116
116
213
213
211
123
156
93
171
202
116
116
211
109
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
8
BOLT; CLIP
8-97228-645-0
02
1
0201-
8
BOLT; CLIP
8-97228-645-0
03
1
0201-
11
CLIP; COOLER PIPE
IDN
8-97957-842-0
02
1
0201-
11
CLIP; COOLER PIPE
IDN
8-97957-842-0
03
1
0201-
40
BOLT; CLIP BRKT
(B) M6X20 FLANGE
0-28480-620-0
05
1
0201-0512
40
BOLT; CLIP BRKT
(B) M6X20 FLANGE
0-28450-620-0
05
1
0601-
40
BOLT; CLIP BRKT
(A) M6X25 IDN
8-97254-310-0
01
1
0201-
65
CLIP; A/C PIPE
1-83574-194-0
05
1
0201-1205
65
CLIP; A/C PIPE
8-98166-022-0
05
1
1206-
93
PIPE; RECEIVER TANK TO PIPE
IDN
8-97560-130-0
01
1
0201-
109
PIPE; PIPE TO PIPE
IDN
8-97560-131-0
01
1
0201-
116
GASKET; PIPE
(C) ID=7.5 IDN
1-83539-316-0
01
1
0201-
116
GASKET; PIPE
(B) ID=14.5 IDN
1-83539-324-0
02
1
0201-
116
GASKET; PIPE
(B) ID=14.5 IDN
1-83539-324-0
01
1
0201-
116
GASKET; PIPE
(A) ID=7.4 IDN
8-97095-906-0
01
1
0201-
116
GASKET; PIPE
(A) ID=7.4 IDN
8-97095-906-0
01
1
0201-
116
GASKET; PIPE
(D) ID=14.5 IDN
8-97095-908-0
01
1
0201-
116
GASKET; PIPE
(D) ID=14.5 IDN
8-97095-908-0
01
1
0201-
123
GASKET; RECEIVER PIPE
ID=7.5 IDN
1-83539-316-0
03
1
0201-
154
SEAL; COOLER PIPE
IDN
8-97956-884-1
01
1
0201-
156
VALVE; PIPE
IDN
8-97180-811-0
01
1
0201-
171
CAP; PIPE
IDN
8-97560-379-0
01
1
0201-
202
SWITCH; PRESSURE
IDN
8-97560-383-0
01
1
0201-
211
RUBBER; PIPE
(A) IDN
8-97956-869-0
01
1
0201-
211
RUBBER; PIPE
(B) IDN
8-97957-608-0
01
1
0201-
213
PIPE
(C) IDN
8-97957-834-0
01
1
0201-
213
PIPE
(D) IDN
8-97957-835-0
01
1
0201-
213
PIPE
(A) IDN
8-97957-836-0
01
1
0201-
213
PIPE
(B) IDN
8-97957-837-0
01
1
0201-
213
PIPE
(E) IDN
8-97957-840-0
01
1
0201-
213
PIPE
(F) IDN
8-97957-841-0
01
1
0201-
