8-25 — SWITCH AND RELAY; INSTRUMENT PANEL (#95548) — 24 parça

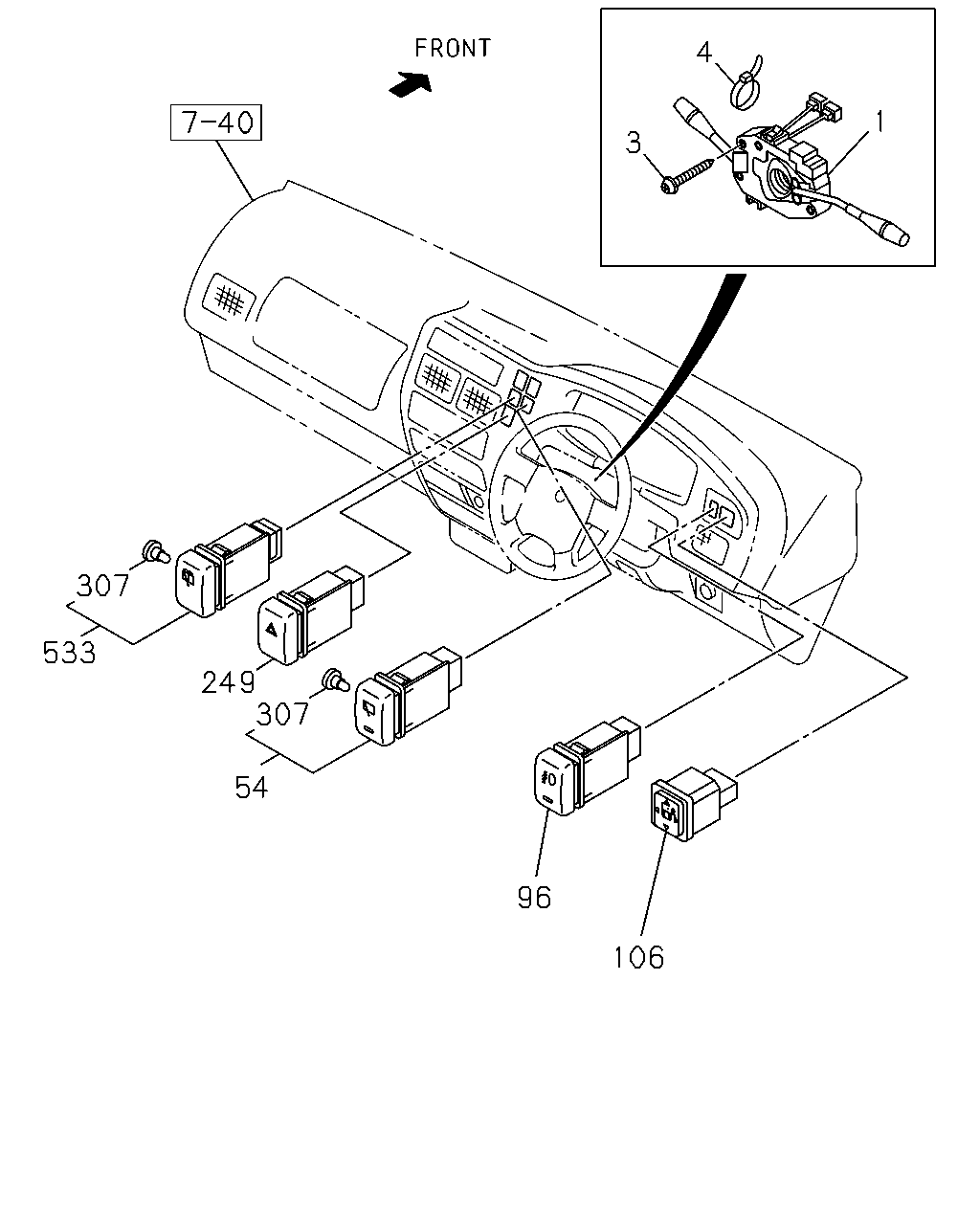

1 4 3 307 533 249 307 54 96 106

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SWITCH; COMB IDN	8-97192-271-1	01	1	0201-
3	SCREW; COMB SW M5X14 W/LK WASHER	9-03910-514-0	02	1	0201-0604
3	SCREW; COMB SW M5X14 W/LK WASHER	0-36220-514-0	02	1	0605-
4	CLIP; COMB SW L=250 IDN	5-09707-030-1	02	1	0201-
54	SWITCH; RR WIPER	8-97094-078-1	01	1	0201-
96	SWITCH; FOG LAMP	8-97104-355-2	01	1	0201-
106	SWITCH; REMOTE CONT MIRROR	8-97131-293-1	01	1	0201-
249	SWITCH; HAZARD THA	8-97916-882-0	01	1	0201-
307	BULB ASM; SW 14V 0.84W	8-97117-108-0	02	1	0201-
533	SWITCH; WASHER	8-97094-080-1	01	1	0201-

433 433 12 99 85

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	RELAY; POWER WINDOW 12V 20A IDN	8-97173-037-1	01	1	0201-
85	RELAY; HEADLAMP 12V 20A IDN	8-97173-037-1	01	1	0201-
99	RELAY; FOG LAMP 12V 20A IDN	8-97173-037-1	01	1	0201-
433	RELAY; RAD FAN (A) 12V 35A	8-97180-794-1	01	1	0201-
433	RELAY; RAD FAN (B) 12V 30A	8-97210-972-1	01	1	0201-

536 41 30 29 30

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
29	SWITCH; DOOR	8-97286-900-0	04	1	0201-
30	SCREW; DOOR SW (A) M5X14	8-94120-095-0	04	1	0201-
30	SCREW; DOOR SW (B) M5X14	8-94313-116-1	01	1	0201-
41	SWITCH; BACK DOOR LOCK	8-97192-273-0	01	1	0201-
536	HARNESS; SW IDN	8-97957-586-1	01	1	0201-

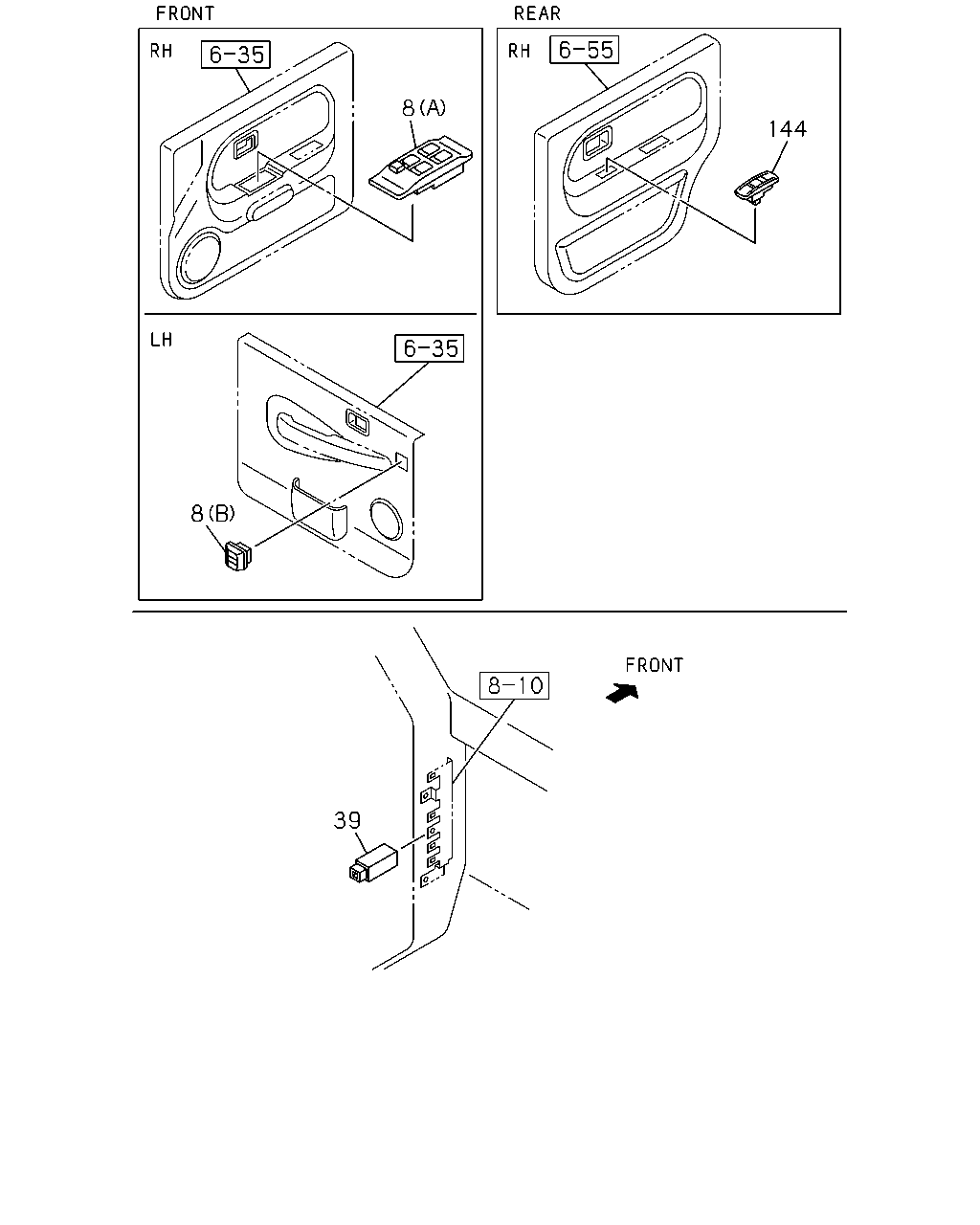

8 144 8 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
8	SWITCH; POWER WINDOW (A) GRAY IDN	8-97196-870-1	01	1	0201-
8	SWITCH; POWER WINDOW (B) GRAY IDN	8-97196-872-1	01	1	0201-
39	RELAY; DOOR LK	8-97956-755-0	01	1	0201-
144	SWITCH; POWER WINDOW,RR GRAY IDN	8-97196-872-1	02	1	0201-
