50919 - TBR (GM-INDONESIA)
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-15 - FIXING PARTS; WIRING HARNESS
▶
8-15 — FIXING PARTS; WIRING HARNESS
(#95546) — 28 parça
◀
[815A] NO.1 (5 parça)
[815A] NO.2 (5 parça)
[815A] NO.4 (14 parça)
[815A] NO.3 (4 parça)
▶

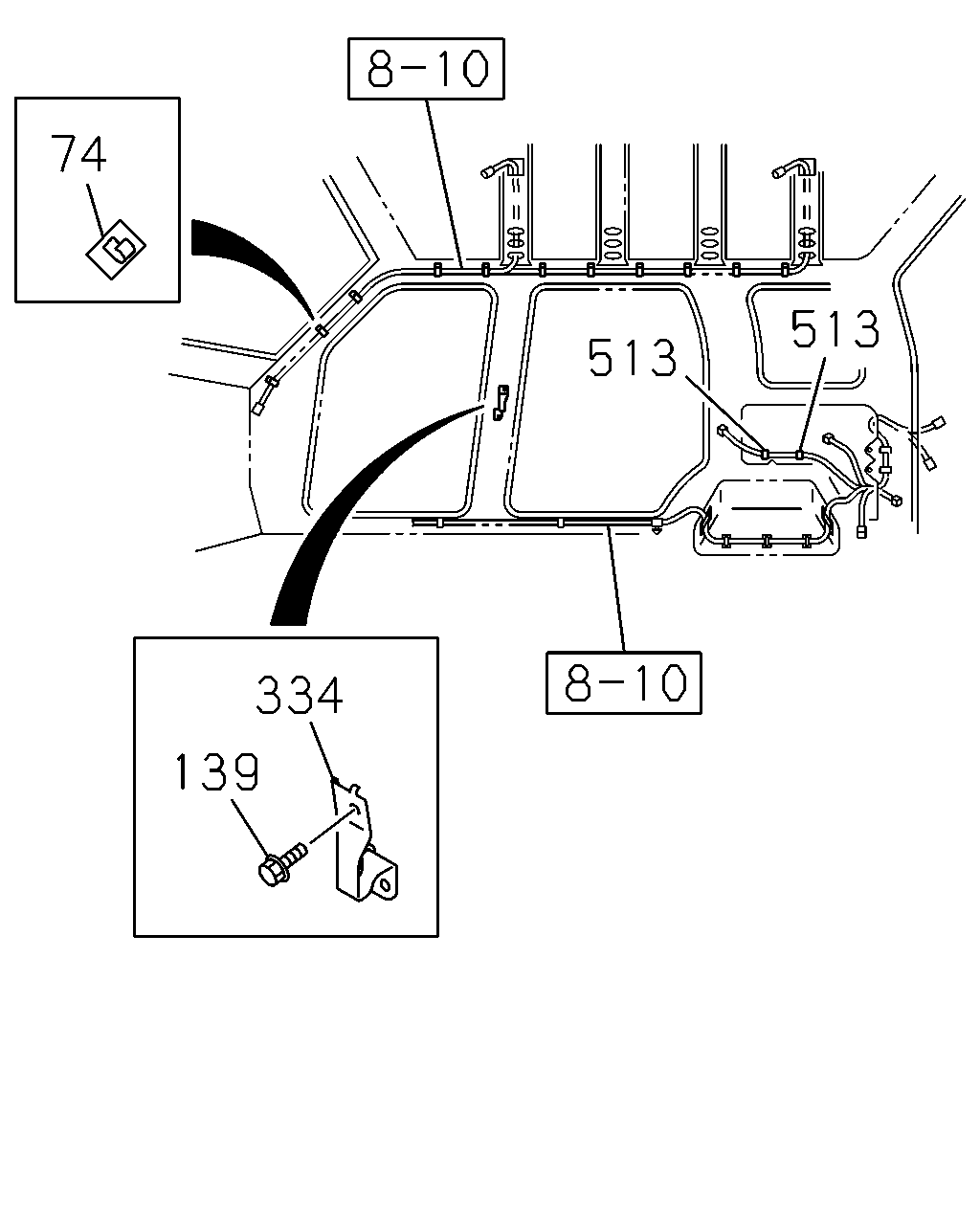

139
334
513
513
74
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
74
CLIP; ROOM LAMP HARNESS
8-94138-987-0
06
1
0201-
139
BOLT; BRKT
M6X12 W/WASHER ET SCREW
8-94430-946-0
02
1
0201-
334
BRACKET
IDN
8-97957-646-1
01
1
0201-
334
BRACKET
IDN
8-97957-645-1
01
1
0201-
513
TAPE; SOFT,HARNESS
8-97304-371-0
07
1
0201-

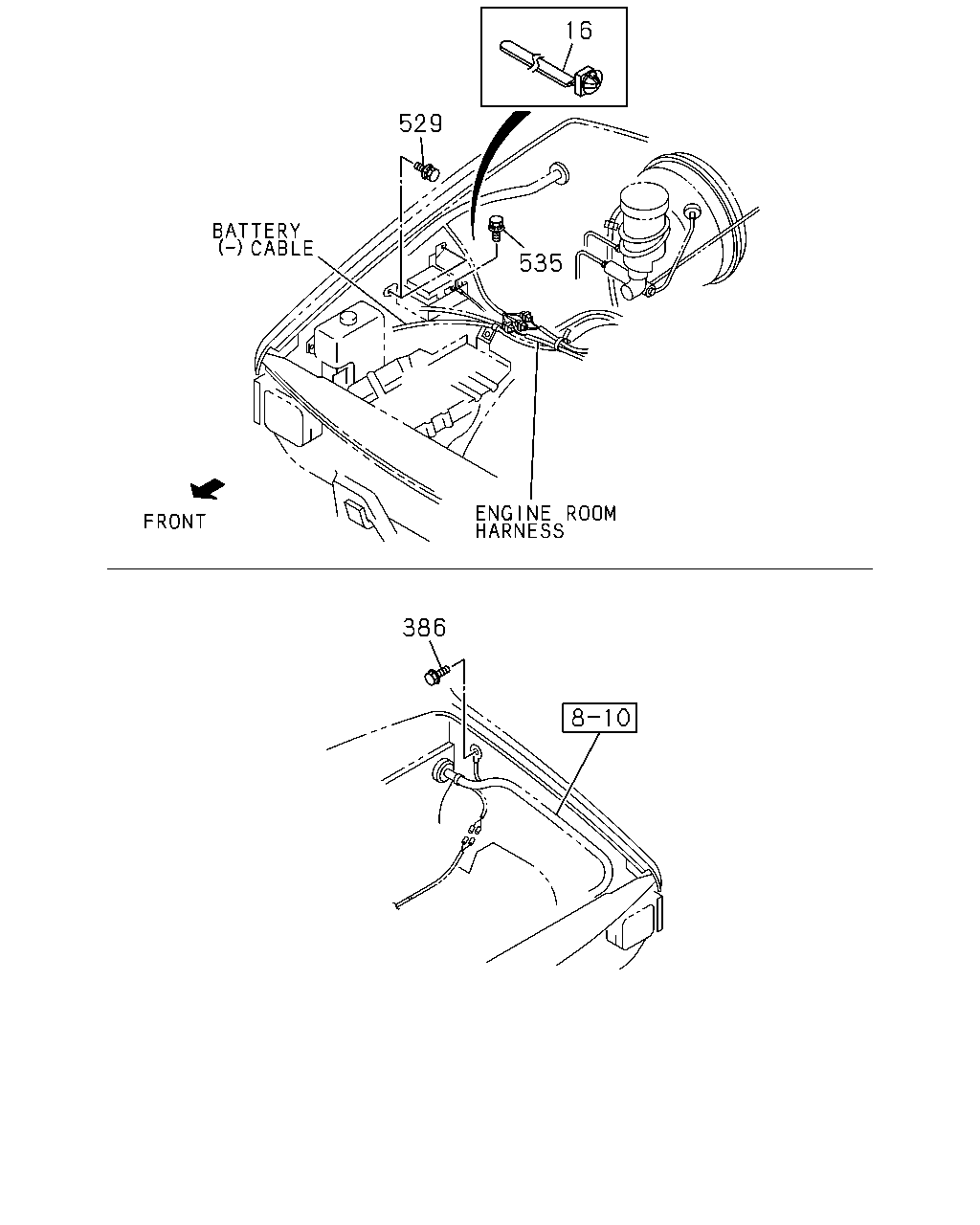

386
535
529
16
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
16
CLIP; HARNESS
L=155 IDN
8-97173-307-0
01
1
0206-
386
BOLT; GRAND HARNESS
M6X14 W/LK&PL WASHER
8-97086-822-0
04
1
0201-
529
BOLT; RELAY BOX
M6X20
8-94412-422-0
02
1
0201-
535
BOLT; FUSE BOX
M6X12 FLANGE
0-28080-612-0
02
1
0201-0512
535
BOLT; FUSE BOX
M6X12 FLANGE
0-28050-612-0
02
1
0601-

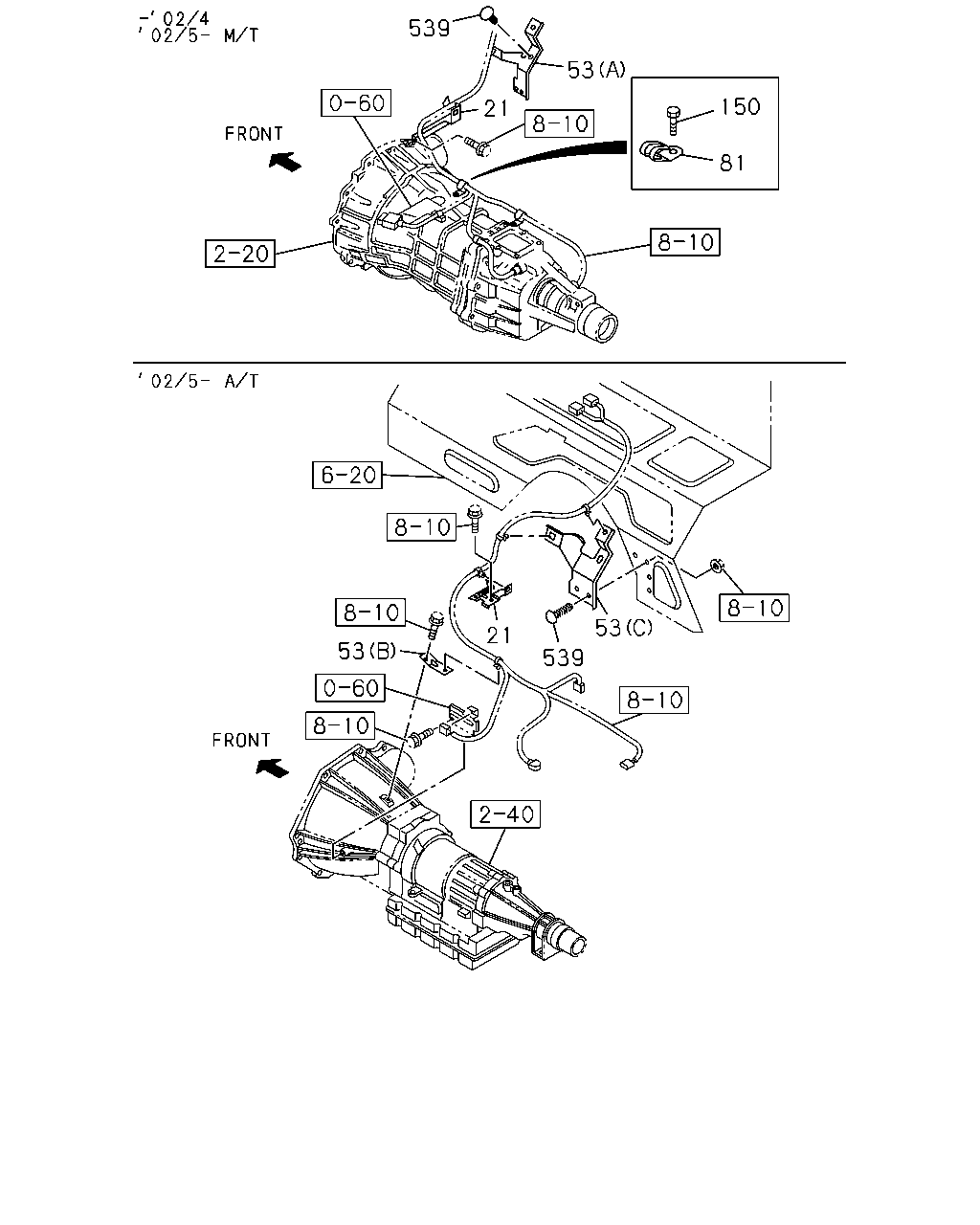

539
21
81
150
53
539
21
53
53
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
21
BRACKET; ENG HARNESS
IDN
8-97560-204-0
01
1
0201-0204
21
BRACKET; ENG HARNESS
M/T MSG 5 SPEED(M75) IDN
8-97560-204-0
01
1
0205-
21
BRACKET; ENG HARNESS
A/T AISIN(RMD) IDN
8-97560-617-0
01
1
0205-
53
BRACKET; HARNESS
(A) IDN
8-97560-203-0
01
1
0201-0204
53
BRACKET; HARNESS
M/T MSG 5 SPEED(M75) (A) IDN
8-97560-203-0
01
1
0205-
53
BRACKET; HARNESS
A/T AISIN(RMD) (B) IDN
8-97560-201-0
01
1
0205-
53
BRACKET; HARNESS
A/T AISIN(RMD) (C) IDN
8-97560-208-0
01
1
0205-
81
CLIP; HARNESS
ID=12 B=14 ID=8.5 IDN
5-09700-350-0
03
1
0201-0204
81
CLIP; HARNESS
M/T MSG 5 SPEED(M75) ID=12 B=14 ID=8.5 IDN
5-09700-350-0
03
1
0205-0801
81
CLIP; HARNESS
M/T MSG 5 SPEED(M75) ID=12 IDN
8-97367-984-1
03
1
0802-
150
BOLT; CLIP
M8X12 FLANGE
0-28080-812-0
03
1
0201-0204
150
BOLT; CLIP
M/T MSG 5 SPEED(M75) M8X12 FLANGE
0-28080-812-0
03
1
0205-0512
150
BOLT; CLIP
M/T MSG 5 SPEED(M75) M8X12 FLANGE
0-28050-812-0
03
1
0601-
539
CLIP; SEAL
BLACK L=12.5
8-94345-178-0
01
1
0201-
578
574
582
513
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
513
TAPE; SOFT,HARNESS
8-97304-371-0
07
1
0201-
574
SCREW; FUSE BOX
M5X12
8-94120-094-0
01
1
0201-
578
BRACKET; FUSE BOX
IDN
8-97956-799-0
01
1
0201-
582
CLIP; FUSE BOX
BLACK L=12.5
8-94345-178-0
01
1
0201-
