50919 - TBR (GM-INDONESIA)
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-10 - WIRING HARNESS AND FUSE
▶
8-10 — WIRING HARNESS AND FUSE
(#95545) — 55 parça
◀

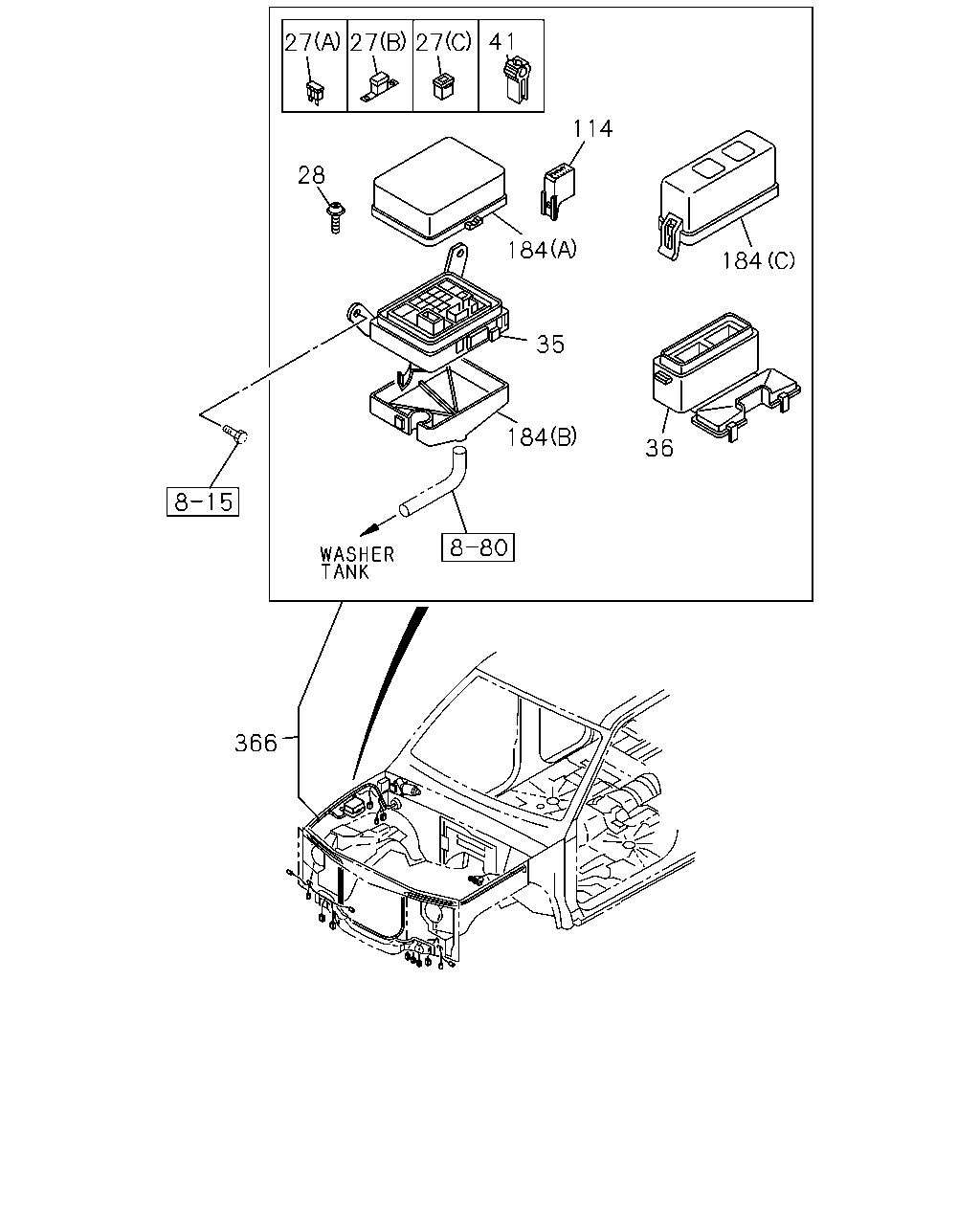

[810A] HARNESS;ENG ROOM (18 parça)

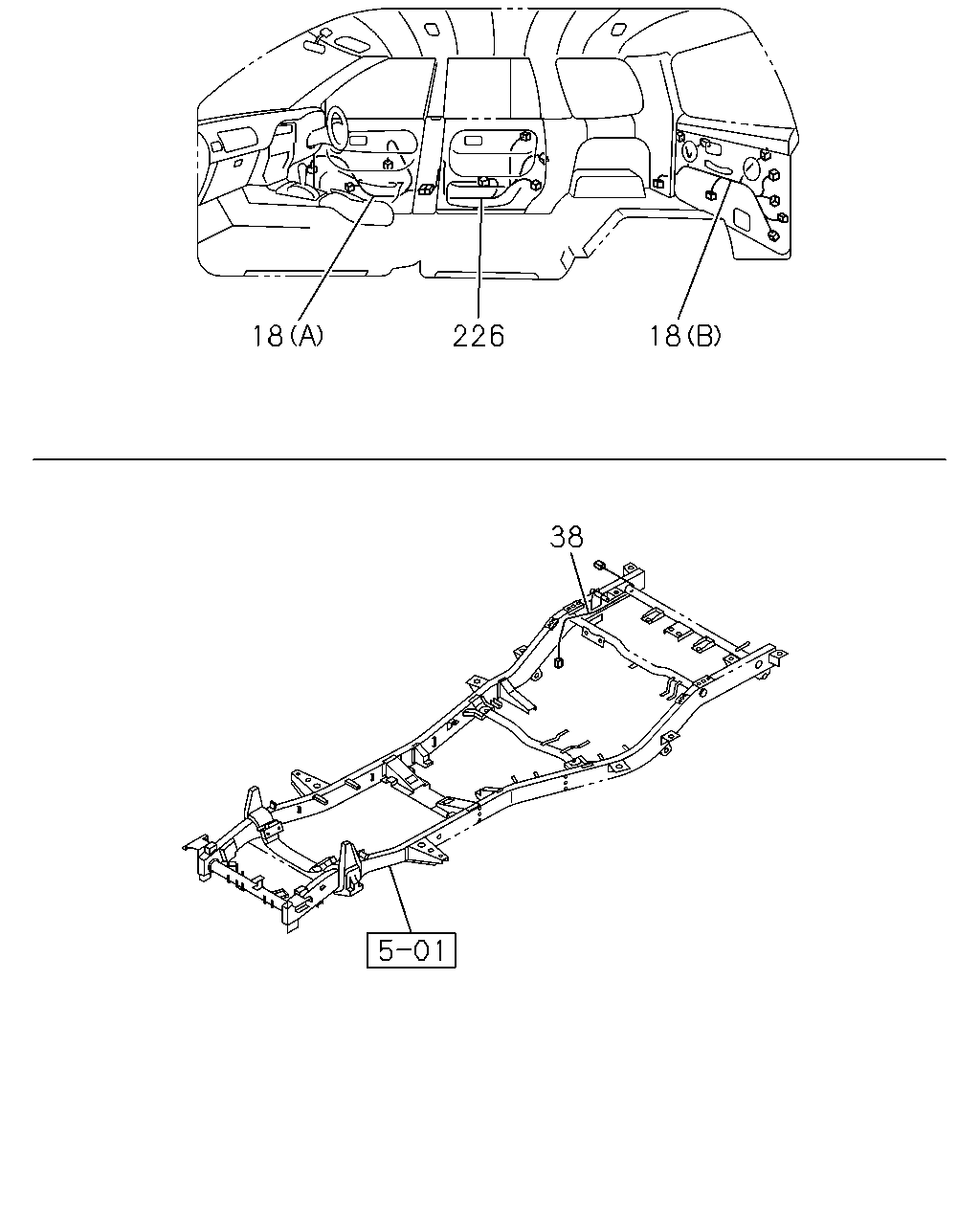

[810A] HARNESS;DOOR AND CHAS (6 parça)

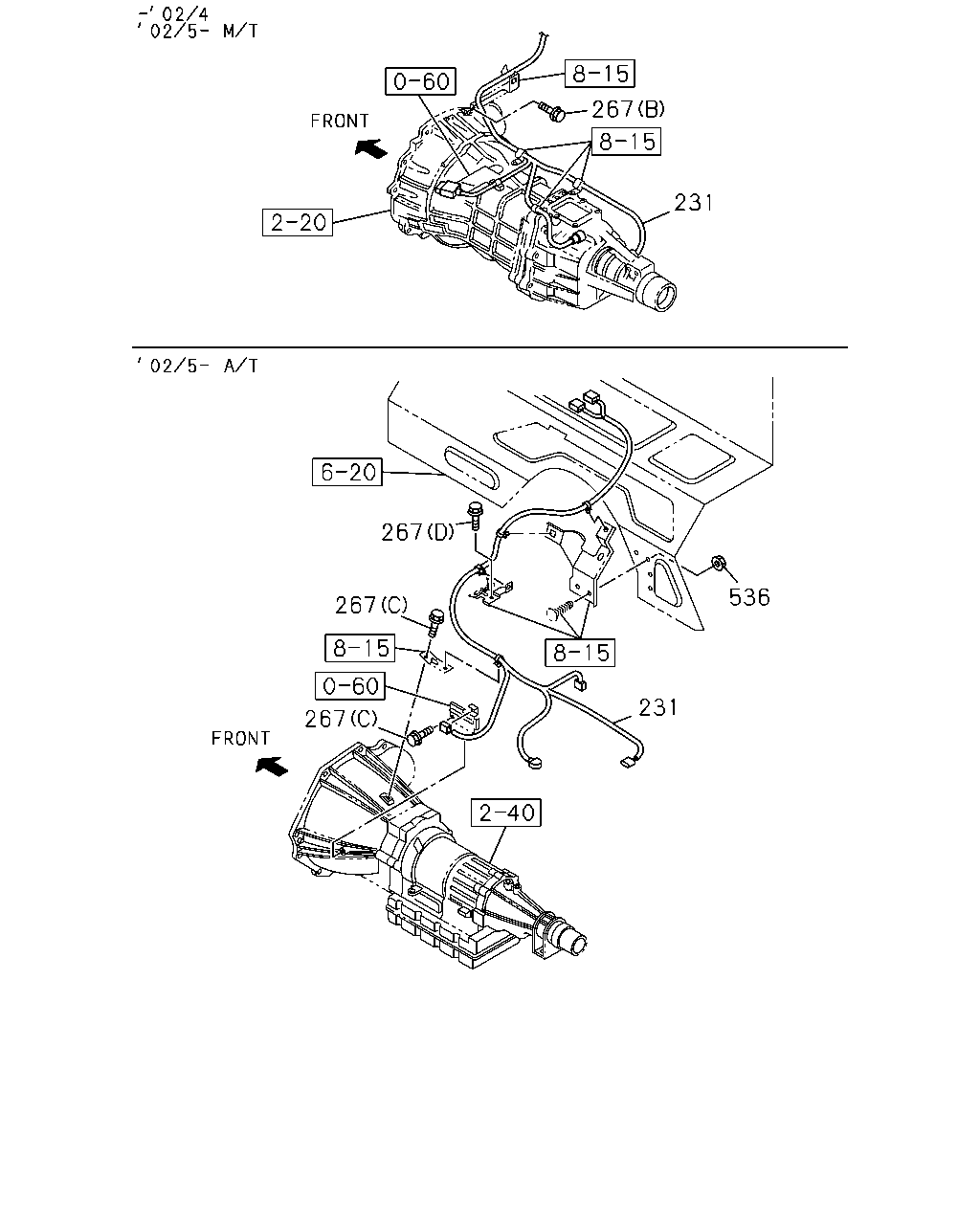

[810A] HARNESS;TRANS (13 parça)

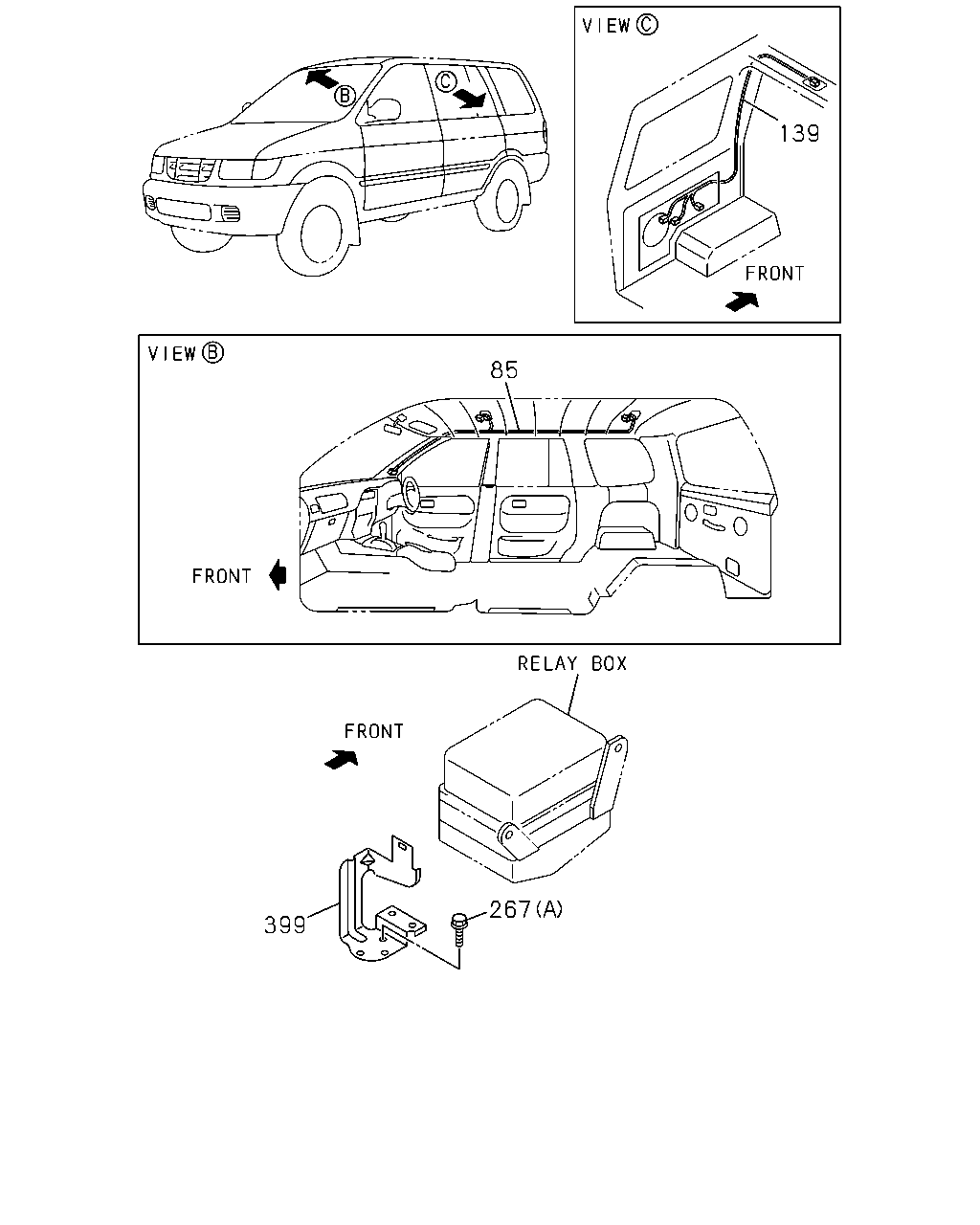

[810A] HARNESS;ROOM LAMP (11 parça)

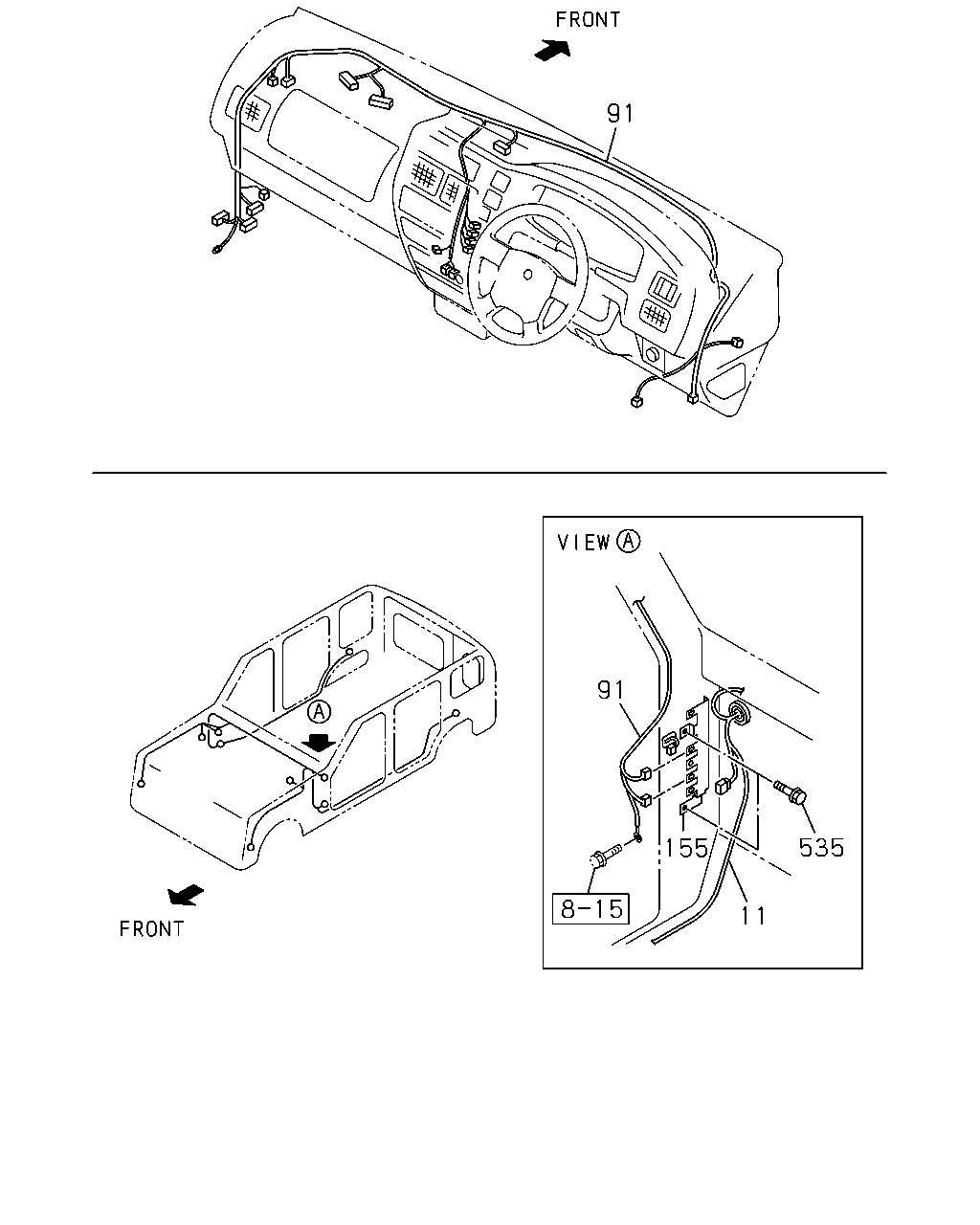

[810A] HARNESS;BODY AND INST (7 parça)
▶
366
184
36
35
184
184
114
28
27
27
27
41
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
27
FUSE UNIT
(B) 40A GREEN IDN
8-94388-301-0
AR
1
0201-
27
FUSE UNIT
(B) 100A BLUE
8-94388-306-0
AR
1
0201-
27
FUSE UNIT
(A) 10A MINI RED IDN
8-97062-022-0
AR
1
0201-
27
FUSE UNIT
(A) 15A MINI BLUE IDN
8-97062-023-0
AR
1
0201-
27
FUSE UNIT
(A) 20A MINI YELLOW IDN
8-97062-024-0
AR
1
0201-
27
FUSE UNIT
(C) 30A PINK IDN
8-97183-643-0
AR
1
0201-
27
FUSE UNIT
(C) 40A GREEN IDN
8-97183-644-0
AR
1
0201-
28
SCREW; FUSE BOX
IDN
8-97249-192-0
04
1
0201-
35
BOX; RELAY & FUSE
IDN
8-97940-316-1
01
1
0201-
36
BOX; RELAY
IDN
8-97104-122-1
01
1
0201-
41
PULLER; FUSE
8-97103-388-0
01
1
0201-
114
BOX ASM; FUSE
IDN
8-97189-222-0
03
1
0201-
184
COVER; RELAY & FUSE BOX
(B) IDN
8-97104-115-1
01
1
0201-
184
COVER; RELAY & FUSE BOX
(A) IDN
8-97203-784-0
01
1
0201-
184
COVER; RELAY & FUSE BOX
(C) IDN
8-97328-220-0
01
1
0201-
366
HARNESS; CABLE,ENG ROOM
IDN
8-97560-182-6
01
1
0201-0204
366
HARNESS; CABLE,ENG ROOM
M/T MSG 5 SPEED(M75) IDN
8-97560-182-6
01
1
0205-
366
HARNESS; CABLE,ENG ROOM
A/T AISIN(RMD) IDN
8-97560-183-7
01
1
0205-
18
226
18
38
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
18
HARNESS; DOOR
(B) IDN
8-97958-918-1
01
1
0201-
18
HARNESS; DOOR
(A) IDN
8-97959-354-6
01
1
0201-
18
HARNESS; DOOR
(A) IDN
8-97959-353-6
01
1
0201-
38
HARNESS; CHAS
IDN
8-97560-190-0
01
1
0201-
226
HARNESS; RR DOOR
IDN
8-97959-441-0
01
1
0201-
226
HARNESS; RR DOOR
IDN
8-97959-440-0
01
1
0201-
231
536
267
267
267
231
267
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
231
HARNESS; TRANS
IDN
8-97560-188-4
01
1
0201-0204
231
HARNESS; TRANS
M/T MSG 5 SPEED(M75) IDN
8-97560-188-4
01
1
0205-
231
HARNESS; TRANS
A/T AISIN(RMD) IDN
8-97560-189-6
01
1
0205-
267
BOLT; BRKT
(A) M6X12 FLANGE
0-28080-612-0
03
1
0201-0512
267
BOLT; BRKT
(A) M6X12 FLANGE
0-28050-612-0
03
1
0601-
267
BOLT; BRKT
(B) M8X12 FLANGE
0-28080-812-0
01
1
0201-0204
267
BOLT; BRKT
M/T MSG 5 SPEED(M75) (B) M8X12 FLANGE
0-28080-812-0
01
1
0205-0512
267
BOLT; BRKT
M/T MSG 5 SPEED(M75) (B) M8X12 FLANGE
0-28050-812-0
01
1
0601-
267
BOLT; BRKT
A/T AISIN(RMD) (C) M6X12 FLANGE
0-28080-612-0
02
1
0205-0512
267
BOLT; BRKT
A/T AISIN(RMD) (C) M6X12 FLANGE
0-28050-612-0
02
1
0601-
267
BOLT; BRKT
A/T AISIN(RMD) (D) M6X14 FLANGE
0-28080-614-0
01
1
0205-
536
NUT; BRKT FIX
A/T AISIN(RMD) M6 FLANGE
0-91150-106-0
02
1
0205-0602
536
NUT; BRKT FIX
A/T AISIN(RMD) M6 FLANGE
0-91180-106-0
02
1
0603-
399
267
85
139
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
85
HARNESS; ROOM LAMP
IDN
8-97956-797-6
01
1
0201-
139
HARNESS; CAB COOLER
IDN
8-97956-798-6
01
1
0201-
267
BOLT; BRKT
(A) M6X12 FLANGE
0-28080-612-0
03
1
0201-0512
267
BOLT; BRKT
(A) M6X12 FLANGE
0-28050-612-0
03
1
0601-
267
BOLT; BRKT
(B) M8X12 FLANGE
0-28080-812-0
01
1
0201-0204
267
BOLT; BRKT
M/T MSG 5 SPEED(M75) (B) M8X12 FLANGE
0-28080-812-0
01
1
0205-0512
267
BOLT; BRKT
M/T MSG 5 SPEED(M75) (B) M8X12 FLANGE
0-28050-812-0
01
1
0601-
267
BOLT; BRKT
A/T AISIN(RMD) (C) M6X12 FLANGE
0-28080-612-0
02
1
0205-0512
267
BOLT; BRKT
A/T AISIN(RMD) (C) M6X12 FLANGE
0-28050-612-0
02
1
0601-
267
BOLT; BRKT
A/T AISIN(RMD) (D) M6X14 FLANGE
0-28080-614-0
01
1
0205-
399
BRACKET; BOX
IDN
8-97560-200-1
01
1
0201-
11
535
155
91
91
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
11
HARNESS; BODY
IDN
8-97560-186-1
01
1
0201-
11
HARNESS; BODY
IDN
8-97560-184-0
01
1
0201-
91
HARNESS; INST
IDN
8-97560-187-2
01
1
0201-
155
BRACKET; CONNECTOR
IDN
8-97560-196-0
01
1
0201-
155
BRACKET; CONNECTOR
IDN
8-97560-195-0
01
1
0201-
535
BOLT; BRKT FIX
M6X16 FLANGE
0-28480-616-0
04
1
0201-0512
535
BOLT; BRKT FIX
M6X16 FLANGE
0-28450-616-0
04
1
0601-
