50919 - TBR (GM-INDONESIA)
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-01 - LAMP; FRONT AND FRONT SIDE
▶

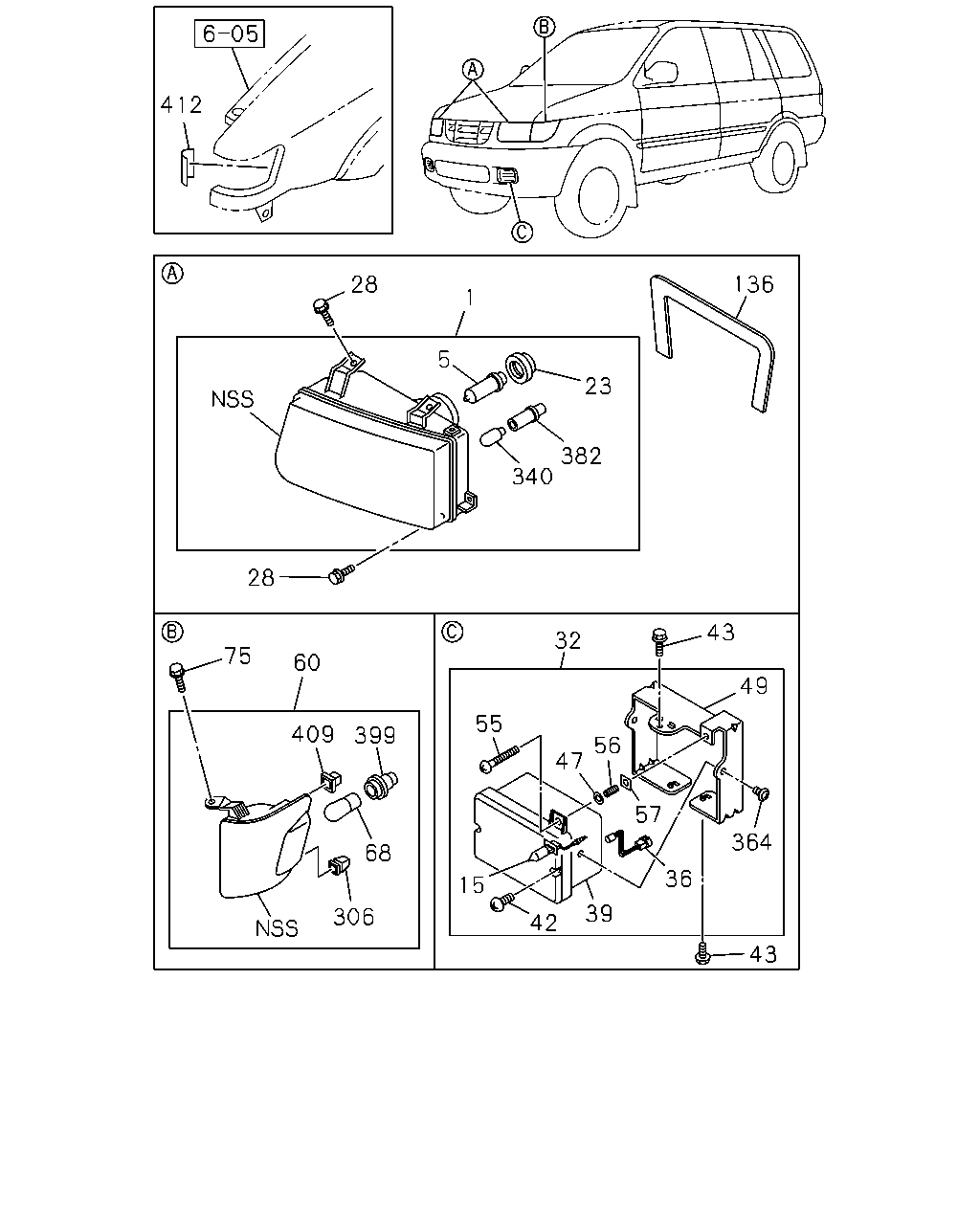

8-01 — LAMP; FRONT AND FRONT SIDE
(#95542) — 31 parça
412
28
1
5
340
382
23
136
32
43
55
47
56
49
57
364
36
43
39
42
15
306
68
399
409
75
60
28
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
LAMP ASM; HEAD
IDN
8-97957-313-1
01
1
0201-
1
LAMP ASM; HEAD
IDN
8-97957-312-1
01
1
0201-
5
BULB; HEADLAMP
12V 60/55W
8-94217-817-0
02
1
0201-
15
BULB; FOG LAMP
12V 55W IDN
8-94458-282-0
02
1
0201-
23
COVER; BULB,HEADLAMP
IDN
8-97258-867-0
02
1
0201-
28
BOLT; HEADLAMP
M6X18 TAPPING W/LK&PL WASHER
8-94372-359-0
08
1
0201-
32
LAMP ASM; FOG
IDN
8-97956-832-0
01
1
0201-
32
LAMP ASM; FOG
IDN
8-97956-831-0
01
1
0201-
36
CORD; FOG LAMP
IDN
8-97967-207-0
02
1
0201-
39
UNIT; FOG LAMP
IDN
8-97161-028-0
02
1
0201-
42
SCREW; LENS,FOG LAMP
IDN
8-97161-024-0
04
1
0201-
43
BOLT; FOG LAMP
M6X10 FLANGE IDN
0-28080-610-0
06
1
0201-0512
43
BOLT; FOG LAMP
M6X10 FLANGE IDN
0-28050-610-0
06
1
0601-
47
WASHER; PL,FOG LAMP
IDN
8-97967-208-0
02
1
0201-
49
BRACKET; LAMP
IDN
8-97967-206-0
01
1
0201-
49
BRACKET; LAMP
IDN
8-97967-205-0
01
1
0201-
55
SCREW; ADJ,FOG LAMP
IDN
8-97161-034-0
02
1
0201-
56
SPRING; COIL,FOG LAMP
IDN
8-97161-035-0
02
1
0201-
57
NUT; UNIT TO SCREW,FOG LAMP
IDN
8-97161-036-0
02
1
0201-
60
LAMP ASM; FRT COMB
IDN
8-97957-315-2
01
1
0201-
60
LAMP ASM; FRT COMB
IDN
8-97957-314-1
01
1
0201-
68
BULB; FRT COMB LAMP
12V 21W IDN
8-97179-967-0
02
1
0201-
75
SCREW; FRT COMB LAMP
M4X16 W/WASHER
8-97809-122-0
02
1
0201-
136
SEAL; HEADLAMP
IDN
8-97957-067-2
02
1
0201-
306
PIVOT; FRT COMB LAMP
IDN
8-97258-869-0
02
1
0201-
340
BULB; POSITION
12V 5W IDN
8-94124-595-0
02
1
0201-
364
FASTENER; FOG LAMP
IDN
8-97161-027-0
04
1
0201-
382
PLUG; SOCKET,HEADLAMP
IDN
8-97258-868-0
02
1
0201-
399
SOCKET; TURN SIGNAL
IDN
8-97258-870-0
02
1
0201-
409
CAP; BREATHER,SIDE COMB LAMP
IDN
8-97258-871-0
02
1
0201-
412
TAPE; FRT COMB LAMP
IDN
8-97959-635-0
02
1
0201-
