7-55 — REAR SEAT (#95540) — 78 parça

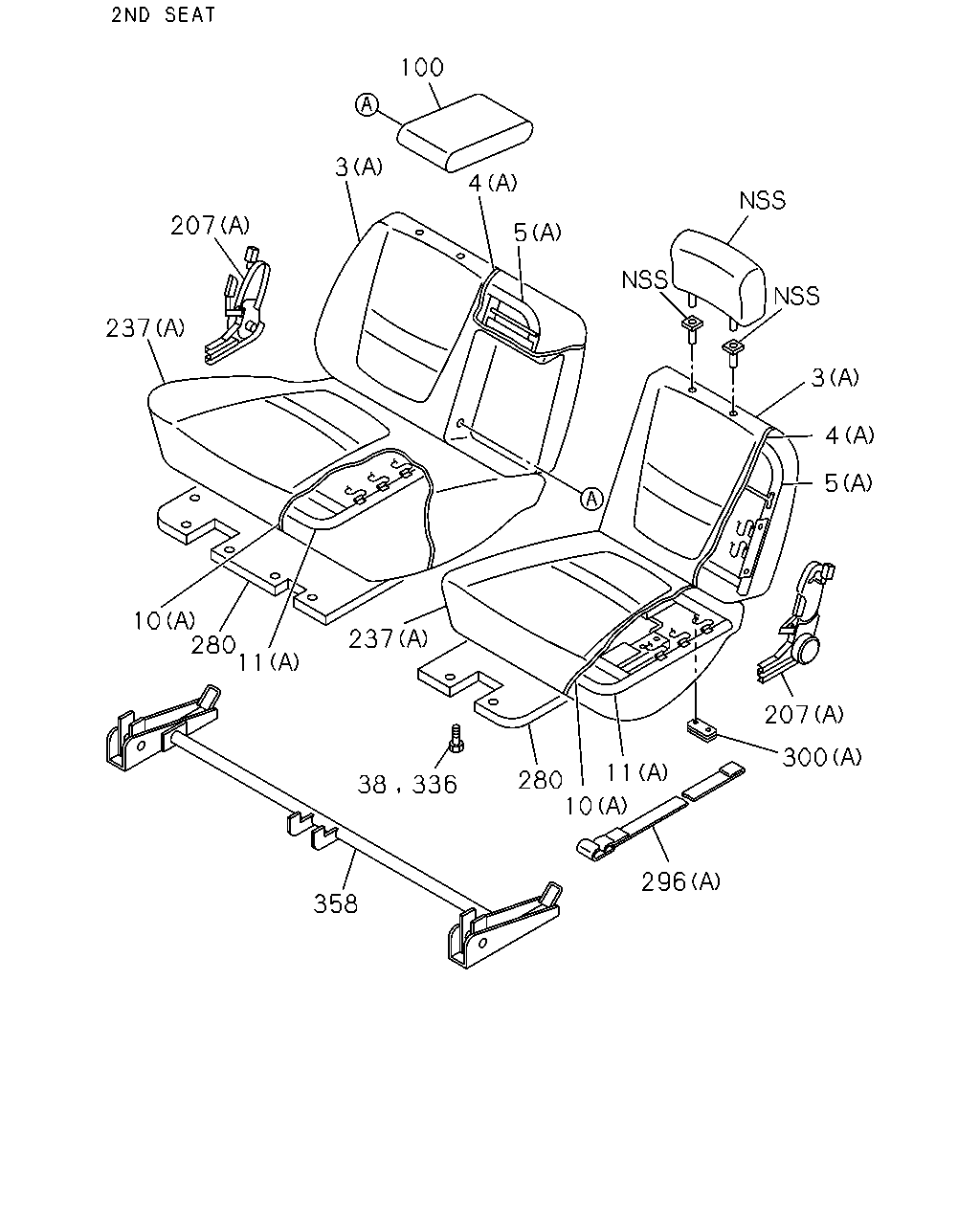

çizim 289154
237 207 3 100 4 5 3 4 5 207 300 11 10 296 280 336 38 358 237 11 280 10
BalonParca AdiParca NoAdetTipApplied Date
3 COVER; TRIM,RR SEAT BACK
(B) GRAY IDN 		8-97560-486-0 01 1 0201-
3 COVER; TRIM,RR SEAT BACK
(A) IDN 		8-97560-482-0 01 1 0201-
3 COVER; TRIM,RR SEAT BACK
(A) DARK GRAY IDN 		8-97560-477-0 01 1 0201-
4 PAD; RR,SEAT BACK
(B) IDN 		8-97959-586-1 01 1 0201-
4 PAD; RR,SEAT BACK
(A) IDN 		8-97958-452-0 01 1 0201-
4 PAD; RR,SEAT BACK
(A) IDN 		8-97958-451-0 01 1 0201-
5 FRAME ASM; RR SEAT BACK
(B) IDN 		8-97959-584-1 01 1 0201-
5 FRAME ASM; RR SEAT BACK
(A) IDN 		8-97958-436-0 01 1 0201-
5 FRAME ASM; RR SEAT BACK
(A) IDN 		8-97958-435-1 01 1 0201-
10 PAD; CUSHION,RR SEAT
(B) IDN 		8-97959-587-0 01 1 0201-
10 PAD; CUSHION,RR SEAT
(A) IDN 		8-97958-460-0 01 1 0201-
10 PAD; CUSHION,RR SEAT
(A) IDN 		8-97958-459-0 01 1 0201-
11 FRAME ASM; CUSHION,RR SEAT
(B) IDN 		8-97959-585-2 01 1 0201-
11 FRAME ASM; CUSHION,RR SEAT
(A) IDN 		8-97958-458-0 01 1 0201-
11 FRAME ASM; CUSHION,RR SEAT
(A) IDN 		8-97958-457-0 01 1 0201-
38 BOLT; SEAT TO FLOOR
EXC. 3RD SEAT 7 PASSENGERS<AS3> M10X19 		8-94427-095-2 18 1 0201-
100 REST; ARM,RR SEAT
GRAY IDN 		8-97560-452-0 01 1 0201-
207 LOCK ASM; RR SEAT
(A) IDN 		8-97958-579-1 01 1 0201-
207 LOCK ASM; RR SEAT
(B) IDN 		8-97959-592-0 01 1 0201-
207 LOCK ASM; RR SEAT
(A) IDN 		8-97958-578-1 01 1 0201-
207 LOCK ASM; RR SEAT
(B) IDN 		8-97959-591-0 01 1 0201-
237 COVER; TRIM,RR CUSHION
(B) GRAY IDN 		8-97959-779-0 01 1 0201-
237 COVER; TRIM,RR CUSHION
(A) GRAY IDN 		8-97560-484-0 01 1 0201-
237 COVER; TRIM,RR CUSHION
(A) GRAY IDN 		8-97560-479-0 01 1 0201-
280 BOARD; RR SEAT CUSHION
IDN 		8-97958-513-0 01 1 0201-
280 BOARD; RR SEAT CUSHION
IDN 		8-97958-461-0 01 1 0201-
296 BAND; RR SEAT CUSHION
(A) IDN 		8-97958-462-0 02 1 0201-
296 BAND; RR SEAT CUSHION
(B) IDN 		8-97959-589-0 01 1 0201-0212
296 BAND; RR SEAT CUSHION
(B) IDN 		8-97363-728-0 01 1 0301-
300 RUBBER; RR SEAT CUSHION
(A) IDN 		8-97958-463-0 04 1 0201-
300 RUBBER; RR SEAT CUSHION
(B) IDN 		8-97959-590-0 02 1 0201-
336 BOLT; RR SEAT BACK
M8X25 FLANGE IDN 		0-28680-825-0 01 1 0201-0512
336 BOLT; RR SEAT BACK
M8X25 FLANGE IDN 		0-28650-825-0 01 1 0601-
336 BOLT; RR SEAT BACK
EXC. 3RD SEAT 7 PASSENGERS<AS3> M8X25 FLANGE IDN 		0-28680-825-0 04 1 0201-0512
336 BOLT; RR SEAT BACK
EXC. 3RD SEAT 7 PASSENGERS<AS3> M8X25 FLANGE IDN 		0-28650-825-0 04 1 0601-
358 FOOT; RR SEAT
IDN 		8-97560-280-0 01 1 0201-

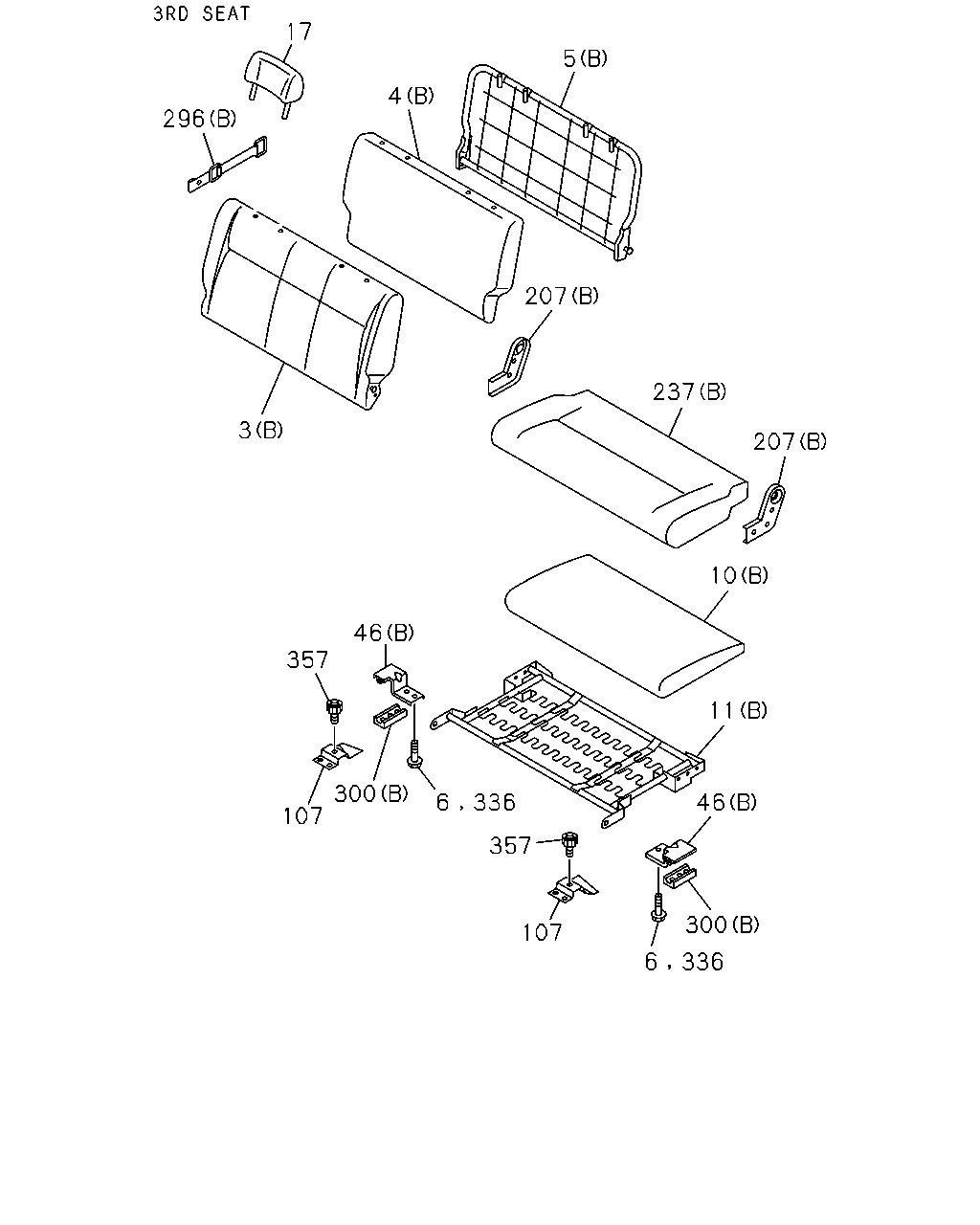

çizim 289186
17 296 4 5 207 237 207 10 11 46 300 336 107 357 336 6 300 107 357 46 3 6
BalonParca AdiParca NoAdetTipApplied Date
3 COVER; TRIM,RR SEAT BACK
(B) GRAY IDN 		8-97560-486-0 01 1 0201-
3 COVER; TRIM,RR SEAT BACK
(A) IDN 		8-97560-482-0 01 1 0201-
3 COVER; TRIM,RR SEAT BACK
(A) DARK GRAY IDN 		8-97560-477-0 01 1 0201-
4 PAD; RR,SEAT BACK
(B) IDN 		8-97959-586-1 01 1 0201-
4 PAD; RR,SEAT BACK
(A) IDN 		8-97958-452-0 01 1 0201-
4 PAD; RR,SEAT BACK
(A) IDN 		8-97958-451-0 01 1 0201-
5 FRAME ASM; RR SEAT BACK
(B) IDN 		8-97959-584-1 01 1 0201-
5 FRAME ASM; RR SEAT BACK
(A) IDN 		8-97958-436-0 01 1 0201-
5 FRAME ASM; RR SEAT BACK
(A) IDN 		8-97958-435-1 01 1 0201-
6 BOLT; RR SEAT
IDN 		8-97959-595-0 02 1 0201-
10 PAD; CUSHION,RR SEAT
(B) IDN 		8-97959-587-0 01 1 0201-
10 PAD; CUSHION,RR SEAT
(A) IDN 		8-97958-460-0 01 1 0201-
10 PAD; CUSHION,RR SEAT
(A) IDN 		8-97958-459-0 01 1 0201-
11 FRAME ASM; CUSHION,RR SEAT
(B) IDN 		8-97959-585-2 01 1 0201-
11 FRAME ASM; CUSHION,RR SEAT
(A) IDN 		8-97958-458-0 01 1 0201-
11 FRAME ASM; CUSHION,RR SEAT
(A) IDN 		8-97958-457-0 01 1 0201-
17 REST; HD,RR SEAT
GRAY IDN 		8-97560-488-0 02 1 0201-
46 BRACKET; RR SEAT
(A) IDN 		8-97142-754-0 02 1 0201-
46 BRACKET; RR SEAT
(B) IDN 		8-97959-594-1 01 1 0201-
46 BRACKET; RR SEAT
(B) IDN 		8-97959-593-1 01 1 0201-
107 BRACKET; HOOK,3RD SEAT
3RD SEAT 7 PASSENGERS<AS3> IDN 		8-97957-202-0 01 1 0201-
107 BRACKET; HOOK,3RD SEAT
3RD SEAT 7 PASSENGERS<AS3> IDN 		8-97957-201-0 01 1 0201-
207 LOCK ASM; RR SEAT
(A) IDN 		8-97958-579-1 01 1 0201-
207 LOCK ASM; RR SEAT
(B) IDN 		8-97959-592-0 01 1 0201-
207 LOCK ASM; RR SEAT
(A) IDN 		8-97958-578-1 01 1 0201-
207 LOCK ASM; RR SEAT
(B) IDN 		8-97959-591-0 01 1 0201-
237 COVER; TRIM,RR CUSHION
(B) GRAY IDN 		8-97959-779-0 01 1 0201-
237 COVER; TRIM,RR CUSHION
(A) GRAY IDN 		8-97560-484-0 01 1 0201-
237 COVER; TRIM,RR CUSHION
(A) GRAY IDN 		8-97560-479-0 01 1 0201-
296 BAND; RR SEAT CUSHION
(A) IDN 		8-97958-462-0 02 1 0201-
296 BAND; RR SEAT CUSHION
(B) IDN 		8-97959-589-0 01 1 0201-0212
296 BAND; RR SEAT CUSHION
(B) IDN 		8-97363-728-0 01 1 0301-
300 RUBBER; RR SEAT CUSHION
(A) IDN 		8-97958-463-0 04 1 0201-
300 RUBBER; RR SEAT CUSHION
(B) IDN 		8-97959-590-0 02 1 0201-
336 BOLT; RR SEAT BACK
M8X25 FLANGE IDN 		0-28680-825-0 01 1 0201-0512
336 BOLT; RR SEAT BACK
M8X25 FLANGE IDN 		0-28650-825-0 01 1 0601-
336 BOLT; RR SEAT BACK
EXC. 3RD SEAT 7 PASSENGERS<AS3> M8X25 FLANGE IDN 		0-28680-825-0 04 1 0201-0512
336 BOLT; RR SEAT BACK
EXC. 3RD SEAT 7 PASSENGERS<AS3> M8X25 FLANGE IDN 		0-28650-825-0 04 1 0601-
357 DIAL; SEAT RECLINING
3RD SEAT 7 PASSENGERS<AS3> IDN 		8-97957-203-0 02 1 0201-
çizim 289953
46 46
BalonParca AdiParca NoAdetTipApplied Date
46 BRACKET; RR SEAT
(A) IDN 		8-97142-754-0 02 1 0201-
46 BRACKET; RR SEAT
(B) IDN 		8-97959-594-1 01 1 0201-
46 BRACKET; RR SEAT
(B) IDN 		8-97959-593-1 01 1 0201-
