7-50 — FRONT SEAT (#95539) — 51 parça

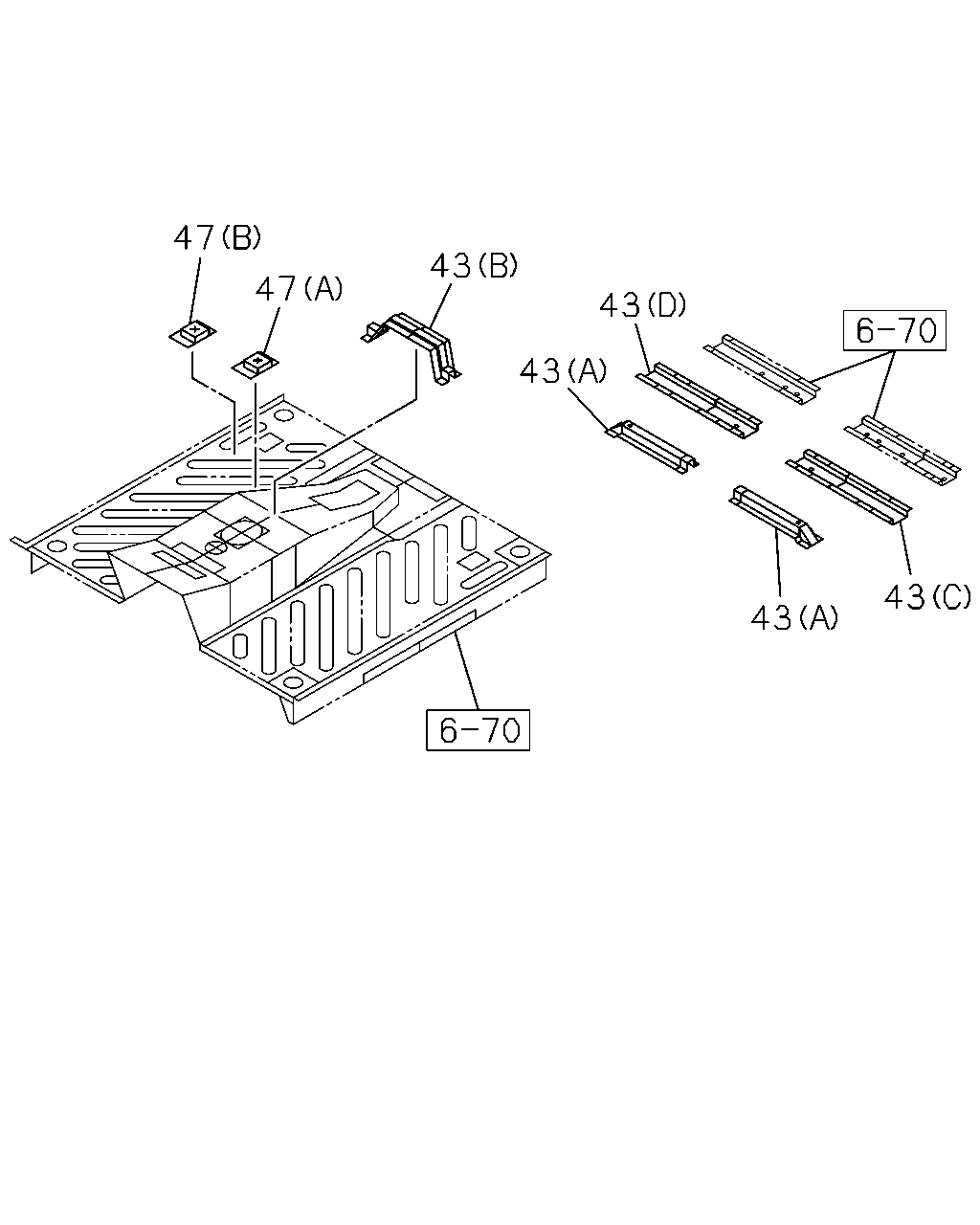

43 43 43 43 43 47 47

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
43	BAR ASM; FRT SEAT MTG (A) IDN	8-97955-239-0	02	1	0201-
43	BAR ASM; FRT SEAT MTG (B) IDN	8-97955-241-0	01	1	0201-
43	BAR ASM; FRT SEAT MTG (C) IDN	8-97955-244-1	01	1	0201-
43	BAR ASM; FRT SEAT MTG (D) IDN	8-97956-730-1	01	1	0201-
47	BRACKET; SEAT MTG,RR (A) IDN	8-97956-445-1	02	1	0201-
47	BRACKET; SEAT MTG,RR (B) IDN	8-97956-447-1	02	1	0201-

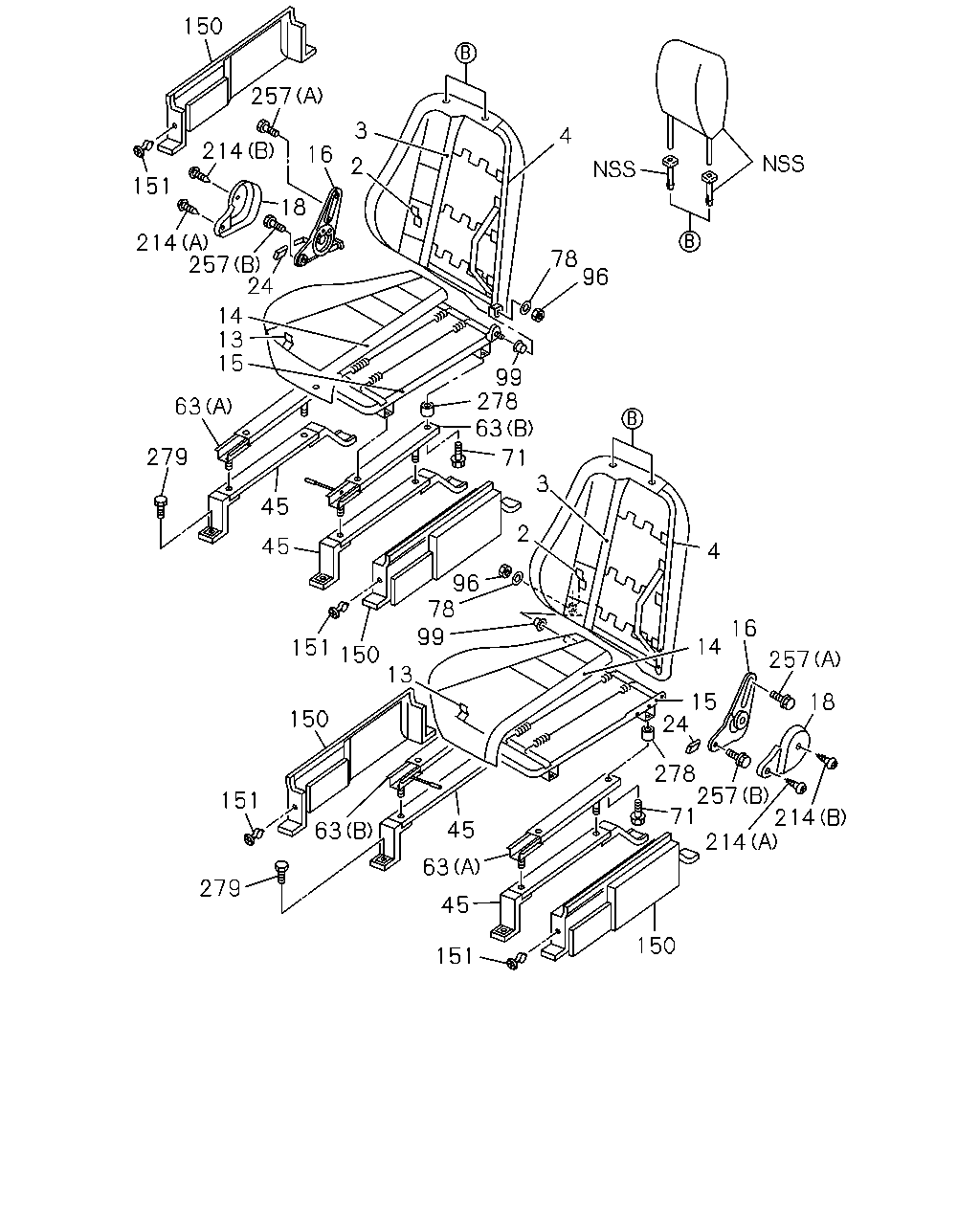

4 3 2 16 18 257 150 214 151 24 257 214 14 15 13 63 279 45 45 96 78 99 63 278 71 2 3 4 96 78 99 13 150 151 150 151 63 279 45 63 45 151 150 214 71 214 257 278 18 257 16 14 15 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	COVER; TRIM,FRT SEAT,BACK GRAY IDN	8-97560-446-0	01	1	0201-
2	COVER; TRIM,FRT SEAT,BACK GRAY IDN	8-97560-441-0	01	1	0201-
3	PAD; FRT SEAT BACK IDN	8-97958-412-0	01	1	0201-
3	PAD; FRT SEAT BACK IDN	8-97958-411-0	01	1	0201-
4	FRAME ASM; FRT SEAT IDN	8-97958-410-1	01	1	0201-
4	FRAME ASM; FRT SEAT IDN	8-97958-409-1	01	1	0201-
13	COVER; TRIM,FRT SEAT,CUSHION GRAY IDN	8-97560-448-0	01	1	0201-
13	COVER; TRIM,FRT SEAT,CUSHION GRAY IDN	8-97560-443-0	01	1	0201-
14	PAD; FRT SEAT CUSHION IDN	8-97958-508-0	01	1	0201-
14	PAD; FRT SEAT CUSHION IDN	8-97958-507-0	01	1	0201-
15	FRAME; CUSHION,FRT SEAT IDN	8-97958-506-0	01	1	0201-
15	FRAME; CUSHION,FRT SEAT IDN	8-97958-505-0	01	1	0201-
16	ADJUSTER ASM; RECLINING IDN	8-94473-669-2	01	1	0201-
16	ADJUSTER ASM; RECLINING IDN	8-94473-497-2	01	1	0201-
18	COVER; RECLINING GRAY IDN	8-97296-925-1	01	1	0201-
18	COVER; RECLINING GRAY IDN	8-97296-924-1	01	1	0201-
24	KNOB; RECLINING,FRT,SEAT GRAY IDN	8-97958-706-0	01	1	0201-
24	KNOB; RECLINING,FRT,SEAT GRAY IDN	8-97958-691-0	01	1	0201-
45	BRACKET; SEAT MTG,FRT INNER IDN	8-97560-633-0	02	1	0201-
45	BRACKET; SEAT MTG,FRT OUTER IDN	8-97560-632-0	01	1	0201-
45	BRACKET; SEAT MTG,FRT OUTER IDN	8-97560-631-0	01	1	0201-
63	ADJUSTER; SEAT SLIDE (A) DRIVER IDN	8-97011-753-1	01	1	0201-
63	ADJUSTER; SEAT SLIDE (B) DRIVER IDN	8-97011-752-1	01	1	0201-
63	ADJUSTER; SEAT SLIDE (B) PASSENGER IDN	8-97959-140-0	01	1	0201-
63	ADJUSTER; SEAT SLIDE (A) PASSENDER IDN	8-97959-129-0	01	1	0201-
71	BOLT; ADJ TO SEAT M8X25 W/LK&PL WASHER IDN	0-50140-825-0	04	1	0201-0512
71	BOLT; ADJ TO SEAT M8X25 W/LK&PL WASHER IDN	0-50640-825-0	04	1	0601-
71	BOLT; ADJ TO SEAT M8X35 W/LK&PL WASHER IDN	0-50140-835-0	04	1	0201-0512
71	BOLT; ADJ TO SEAT M8X35 W/LK&PL WASHER IDN	0-50640-835-0	04	1	0601-
78	RING; SNAP ID=10 IDN	9-09185-410-0	02	1	0201-0604
78	RING; SNAP ID=10 IDN	0-91805-510-0	02	1	0605-
96	NUT; LK,HINGE M8 FLANGE IDN	0-91150-208-0	08	1	0201-0602
96	NUT; LK,HINGE M8 FLANGE IDN	0-91180-208-0	08	1	0603-
99	BUSHING; SEAT BACK IDN	8-94371-716-0	02	1	0201-
150	COVER; SEAT BRKT GRAY IDN	8-97560-900-0	02	1	0201-
150	COVER; SEAT BRKT GRAY IDN	8-97560-899-0	02	1	0201-
151	CLIP; SEAT BRKT COVER GRAY	8-97289-384-0	08	1	0201-
214	SCREW; SIDE COVER (A) M5X16 TAPPING W/PL WASHER IDN	0-74310-516-0	02	1	0201-0604
214	SCREW; SIDE COVER (A) M5X16 TAPPING W/PL WASHER IDN	0-74360-516-0	02	1	0605-
214	SCREW; SIDE COVER (B) IDN	8-94478-733-0	02	1	0201-
257	BOLT; RECLINING DEVICE (A) M10X20 W/LK WASHER IDN	0-50041-020-0	04	1	0201-0512
257	BOLT; RECLINING DEVICE (A) M10X20 W/LK WASHER IDN	0-50541-020-0	04	1	0601-
257	BOLT; RECLINING DEVICE (B) M10X20 W/LK WASHER IDN	8-94317-654-0	04	1	0201-
278	COLLAR; FRT SEAT IDN	8-94371-715-1	04	1	0201-
279	BOLT; FRT SEAT 3RD SEAT 7 PASSENGERS<AS3> M10X19	8-94427-095-2	16	1	0201-
