◀ 🏠 ▶ Isuzu WW ▶ AUV ▶ TBR ▶ 50919 - TBR (GM-INDONESIA) ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-75 - MAT AND CARPET ▶
6-75 — MAT AND CARPET (#95521) — 20 parça
çizim 289069
9 115 152 152
BalonParca AdiParca NoAdetTipApplied Date
9 INSULATION; PAD,RR FLOOR 8-97195-113-0 01 1 0201-
115 INSULATION; PAD,FRT TUNNEL,RR 8-97195-112-0 01 1 0201-0204
115 INSULATION; PAD,FRT TUNNEL,RR 8-97349-852-0 01 1 0205-
152 INSULATION; PAD,FRT TUNNEL 8-97260-612-0 01 1 0201-0204
152 INSULATION; PAD,FRT TUNNEL 8-97351-700-0 01 1 0205-
152 INSULATION; PAD,FRT TUNNEL 8-97195-111-1 01 1 0201-0204
152 INSULATION; PAD,FRT TUNNEL 8-97351-699-0 01 1 0205-0205
152 INSULATION; PAD,FRT TUNNEL
M/T MSG 5 SPEED(M75) 		8-97351-699-0 01 1 0205-
152 INSULATION; PAD,FRT TUNNEL
A/T AISIN(RMD) 		8-97351-701-0 01 1 0205-

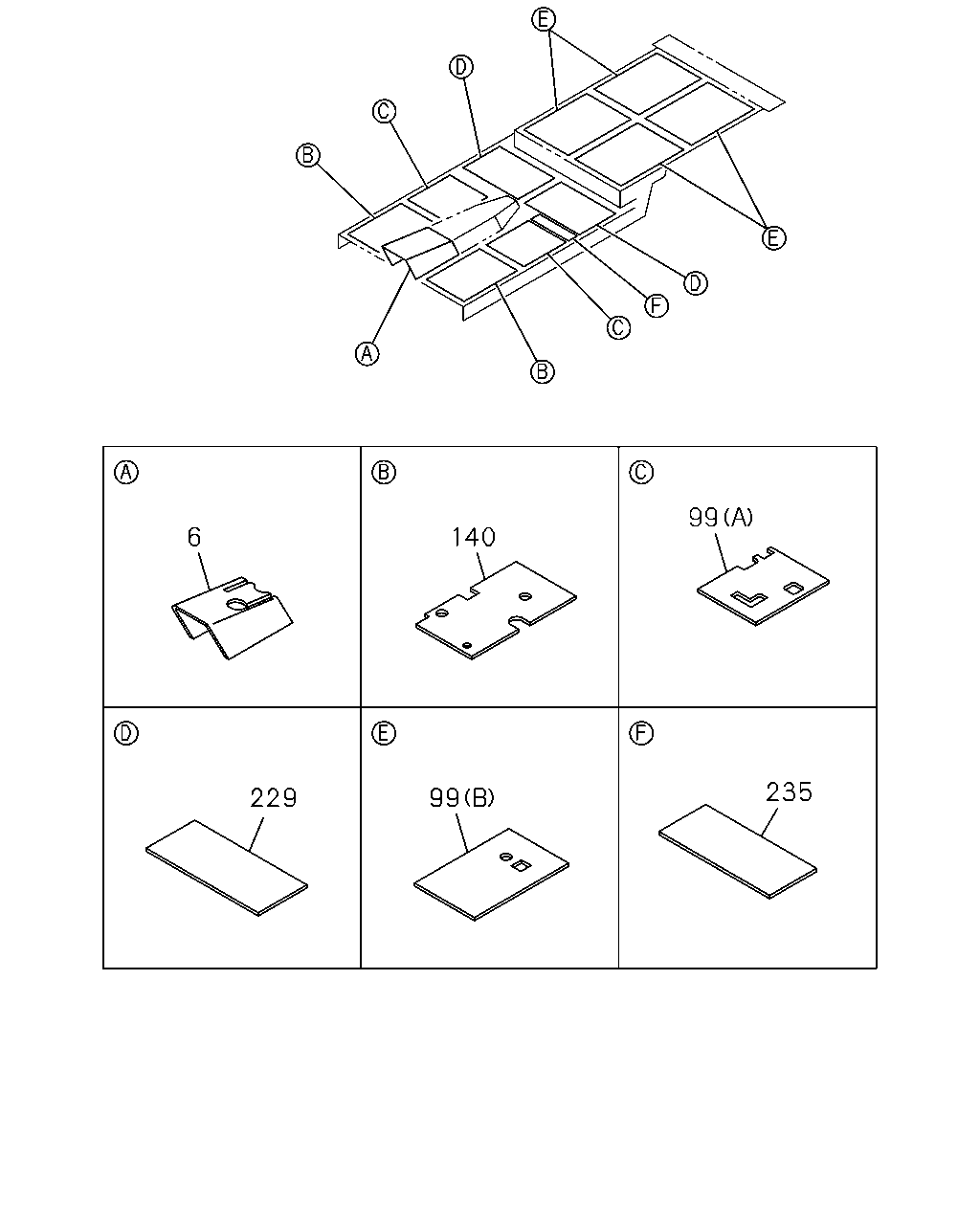

çizim 289071
235 99 99 140 229 6
BalonParca AdiParca NoAdetTipApplied Date
6 DEADENER; FLOOR GEAR BOX FRT
ARGAPURA TRADING IDN 		8-97955-610-2 01 1 0201-
99 DEADENER; FLOOR
(A)ARGAPURA TRADING IDN 		8-97955-612-2 02 1 0201-
99 DEADENER; FLOOR
(B)ARGAPURA TRADING IDN 		8-97955-613-2 04 1 0201-
140 DEADENER; DASH LWR PANEL
ARGAPURA TRADING IDN 		8-97955-611-3 02 1 0201-
229 DEADENER; CTR,FLOOR PANEL
ARGAPURA TRADING IDN 		8-97956-453-0 02 1 0201-
235 PROTECTOR; FLOOR
A/T AISIN(RMD) 		8-97324-586-0 01 1 0205-
çizim 289945
12 1
BalonParca AdiParca NoAdetTipApplied Date
1 CARPET; FLOOR,FRT
DARK GRAY IDN 		8-97959-394-4 01 1 0201-0204
1 CARPET; FLOOR,FRT
M/T MSG 5 SPEED(M75) DARK GRAY IDN 		8-97959-394-4 01 1 0205-
1 CARPET; FLOOR,FRT
A/T AISIN(RMD) DARK GRAY IDN 		8-97959-397-4 01 1 0205-
12 CARPET; FLOOR,RR
3RD SEAT 7 PASSENGERS<AS3> DARK GRAY IDN 		8-97560-317-0 01 1 0201-
12 CARPET; FLOOR,RR
EXC. 3RD SEAT 7 PASSENGERS<AS3> DARK GRAY IDN 		8-97959-401-4 01 1 0201-
