6-70 — FLOOR PANEL (#95520) — 30 parça

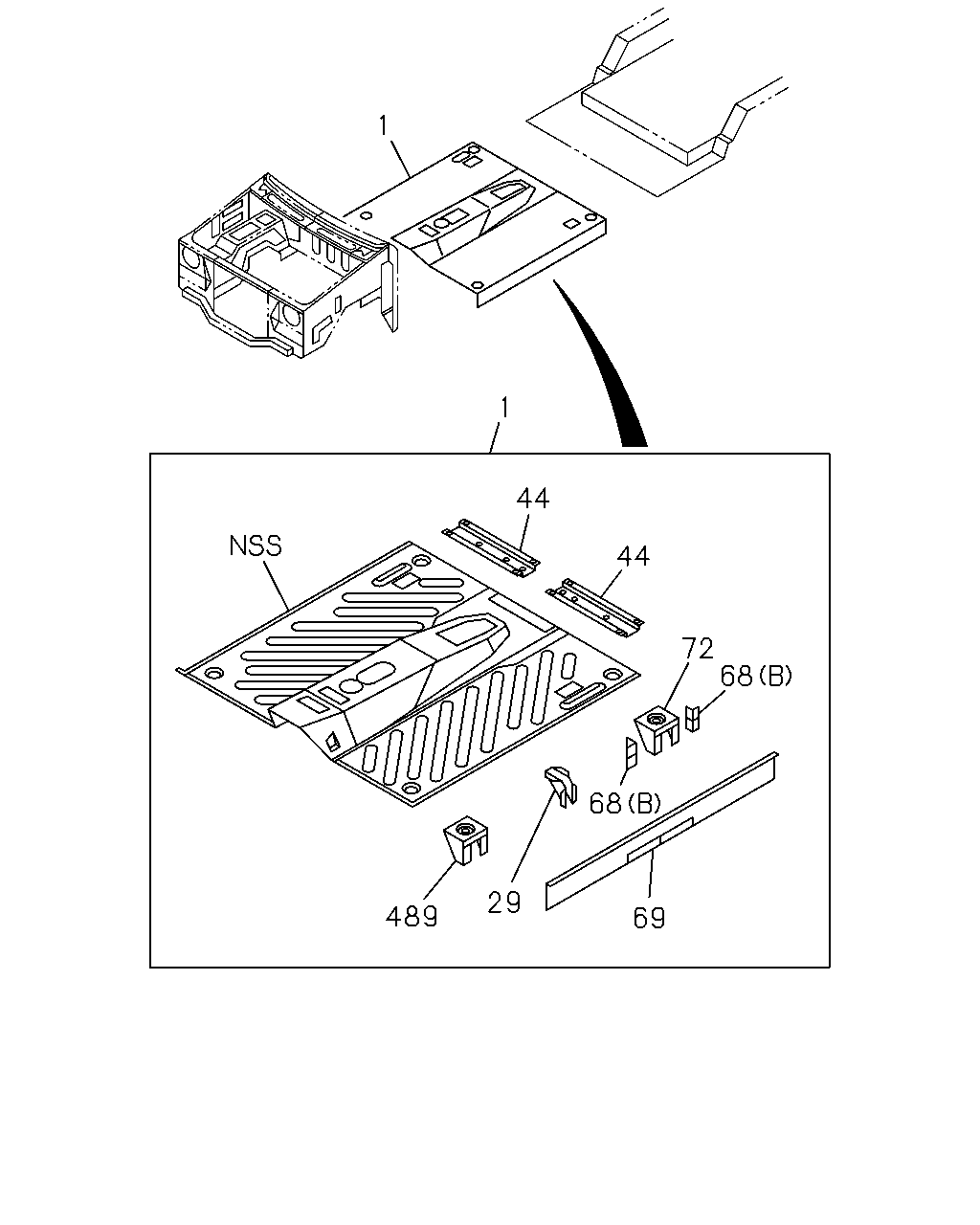

çizim 289003
1 1 44 44 72 68 68 69 29 489
BalonParca AdiParca NoAdetTipApplied Date
1 PANEL; FLOOR
IDN 		8-97958-981-1 01 1 0201-0204
1 PANEL; FLOOR
M/T MSG 5 SPEED(M75) IDN 		8-97958-981-1 01 1 0205-
1 PANEL; FLOOR
A/T AISIN(RMD) IDN 		8-97560-238-1 01 1 0205-
29 GUSSET
IDN 		8-94366-724-0 02 1 0201-
44 BAR; FRT COMPT PAN,RR
IDN 		8-97958-986-1 01 1 0201-
44 BAR; FRT COMPT PAN,RR
IDN 		8-97958-985-1 01 1 0201-
68 PANEL; ROCKER INNER,CENTER
(B) IDN 		8-97011-996-0 04 1 0201-
68 PANEL; ROCKER INNER,CENTER
(A) IDN 		8-97955-287-0 01 1 0201-
68 PANEL; ROCKER INNER,CENTER
(A) IDN 		8-97955-286-0 01 1 0201-
69 PANEL; ROCKER INNER
IDN 		8-97955-253-0 01 1 0201-
69 PANEL; ROCKER INNER
IDN 		8-97955-252-0 01 1 0201-
72 BRACKET; CAB MTG,RR
IDN 		8-97956-568-2 02 1 0201-
489 BRACKET; CAB MTG,NO 3
IDN 		8-97958-990-2 02 1 0201-

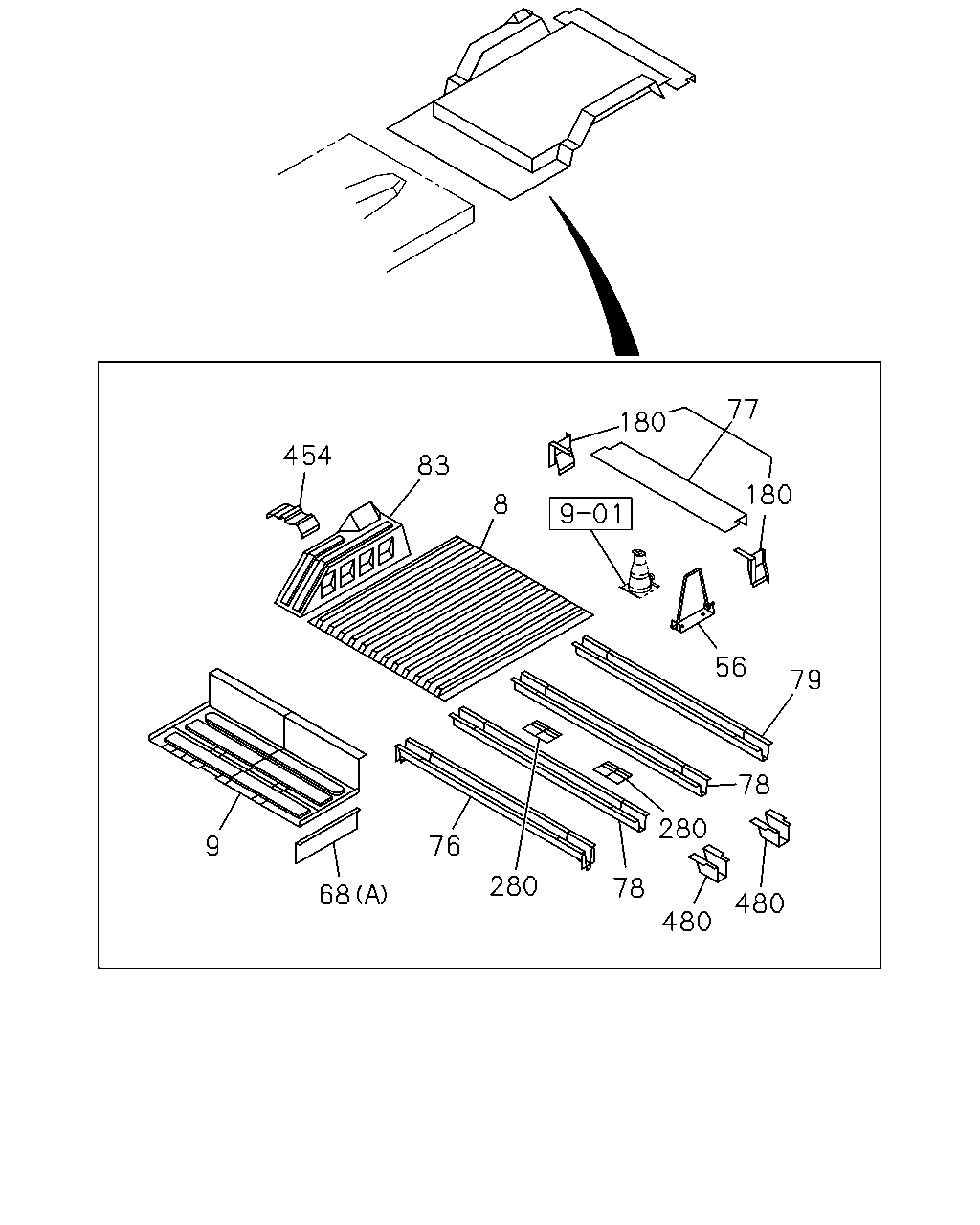

çizim 289039
77 180 180 56 79 8 83 454 480 480 78 280 280 76 68 9 78
BalonParca AdiParca NoAdetTipApplied Date
8 PANEL; RR FLOOR,RR
IDN 		8-97957-828-0 01 1 0201-
9 PANEL; RR FLOOR,FRT
IDN 		8-97958-991-1 01 1 0201-
56 BRACKET; JACK
IDN 		8-97956-676-0 01 1 0201-
68 PANEL; ROCKER INNER,CENTER
(B) IDN 		8-97011-996-0 04 1 0201-
68 PANEL; ROCKER INNER,CENTER
(A) IDN 		8-97955-287-0 01 1 0201-
68 PANEL; ROCKER INNER,CENTER
(A) IDN 		8-97955-286-0 01 1 0201-
76 BOLSTER ASM; RR FLOOR NO 1
IDN 		8-97126-616-1 01 1 0201-
77 BOLSTER ASM; END
IDN 		8-97958-883-1 01 1 0201-
78 BOLSTER ASM; RR FLOOR NO 2
IDN 		8-97955-296-0 02 1 0201-
79 BOLSTER ASM; RR FLOOR NO 3
IDN 		8-97958-996-0 01 1 0201-
83 ARCH ASM; WHEEL
IDN 		8-97959-271-0 01 1 0201-
83 ARCH ASM; WHEEL
IDN 		8-97959-270-0 01 1 0201-
180 GUSSET; RR END
IDN 		8-97955-307-0 01 1 0201-
180 GUSSET; RR END
IDN 		8-97955-306-0 01 1 0201-
280 PATCH; SEAT BELT
IDN 		8-97957-826-0 02 1 0201-
454 PATCH; 3RD SEAT
IDN 		8-97955-278-0 02 1 0201-
480 EXTENSION; MTG,BOLSTER
IDN 		8-97956-627-1 04 1 0201-
