3-22 — AIR CONTROL PARTS (#9552) — 134 parça

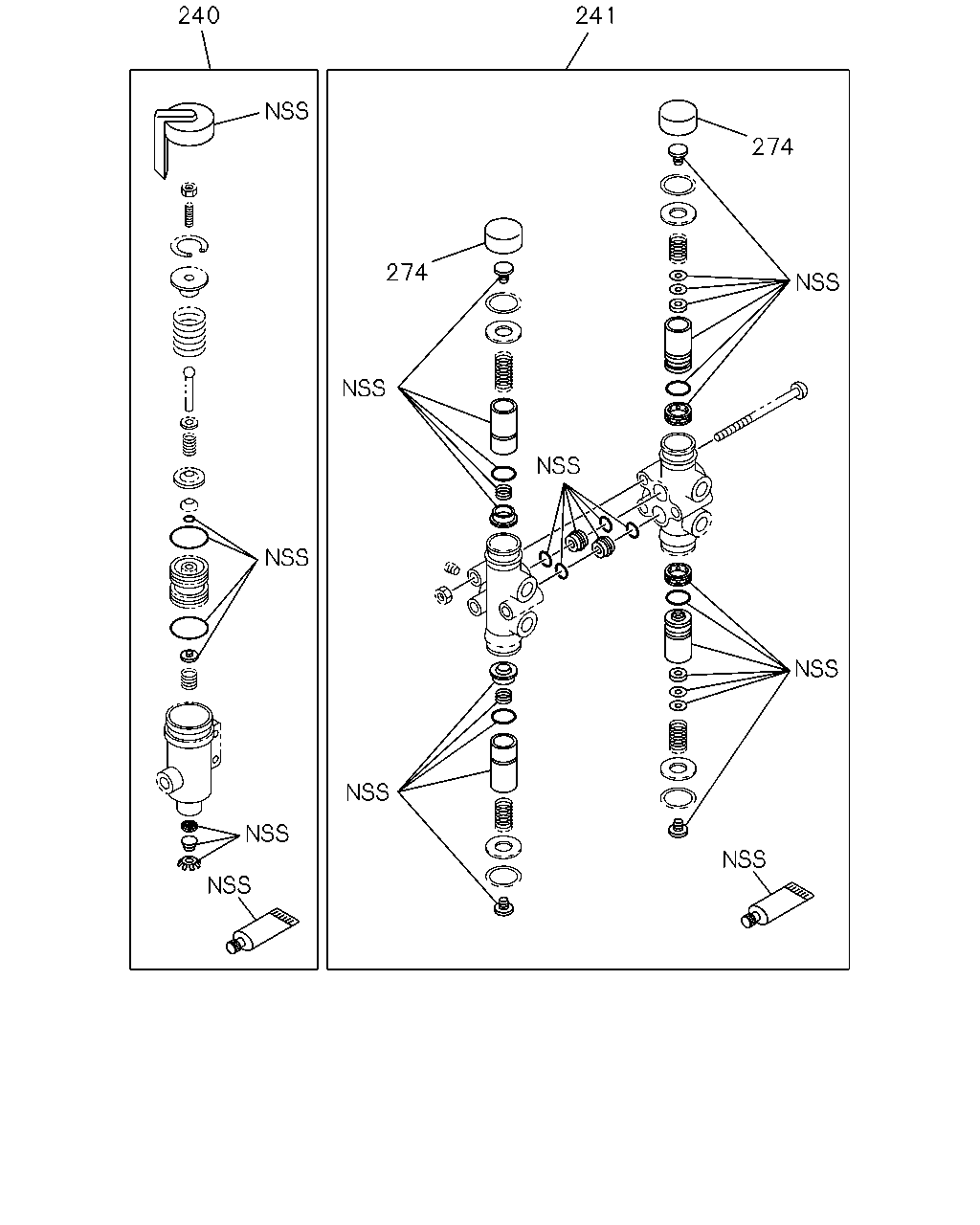

çizim 40248
240 241 274 274
BalonParca AdiParca NoAdetTipApplied Date A B
240 REPAIR KIT; AIR CONT GOV 1-85576-467-0 01 1 0211- ● ●
240 REPAIR KIT; AIR CONT GOV 1-85576-303-0 01 1 0005-0210 ● ●
241 REPAIR KIT; PROTECTION VALVE 1-85576-224-0 01 1 0005- ● ●
274 COVER; DUST 1-48119-450-0 02 1 0211- ● ●

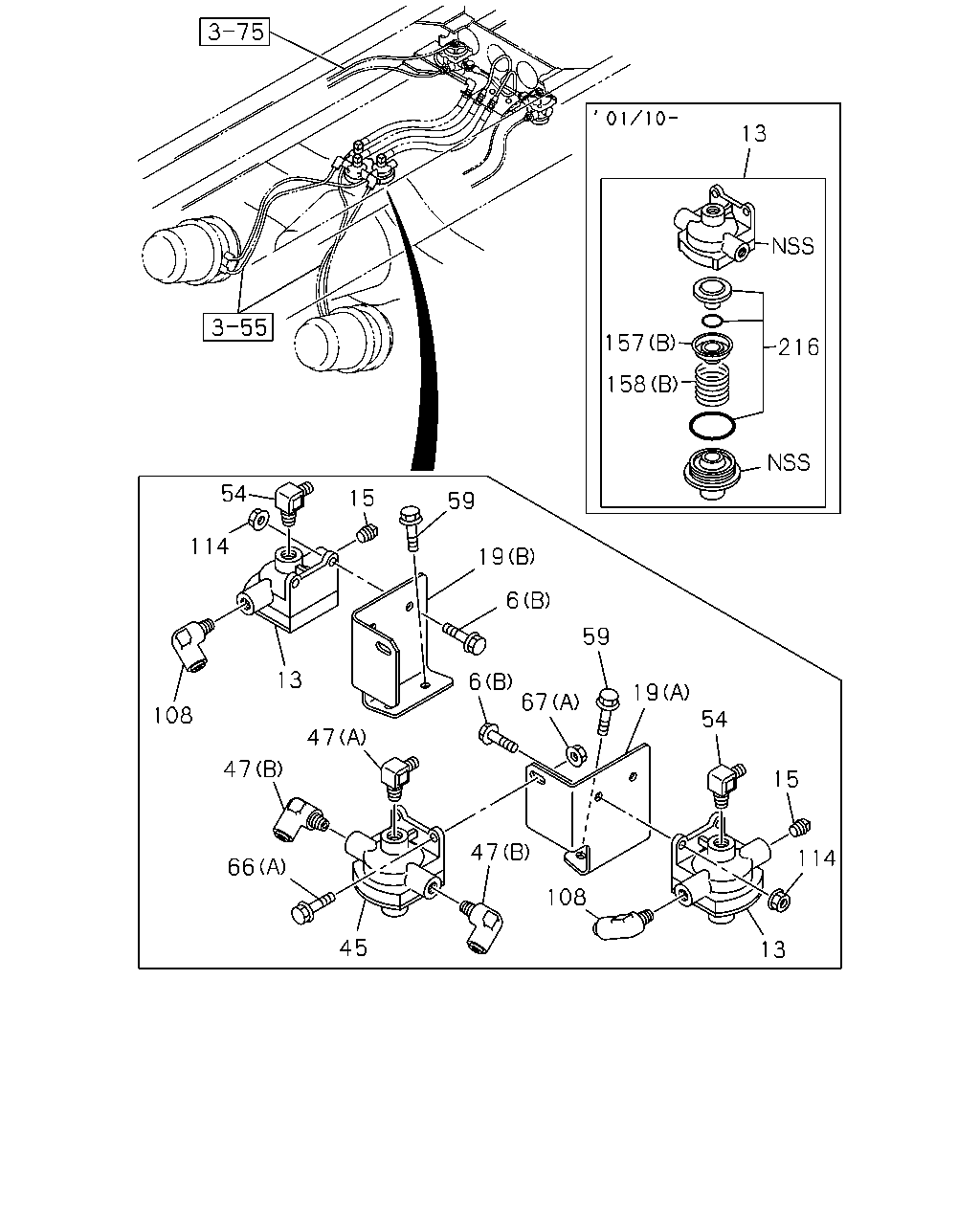

çizim 40285
13 157 216 158 54 15 59 114 19 6 59 13 6 67 19 108 54 47 47 15 47 114 66 108 45 13
BalonParca AdiParca NoAdetTipApplied Date A B
6 BOLT; VLV
(B) M8X25 FLANGE 		0-28680-825-0 04 1 0005-0512 ● ●
6 BOLT; VLV
(B) M8X25 FLANGE 		0-28650-825-0 04 1 0601- ● ●
6 BOLT; VLV
(A) M10X30 FLANGE 		0-28681-030-0 02 1 0005-0512 ● ●
6 BOLT; VLV
(A) M10X30 FLANGE 		0-28651-030-0 02 1 0601- ● ●
13 VALVE ASM; QUICK RELEASE 1-48410-320-0 02 1 0005-0109 ● ●
13 VALVE ASM; QUICK RELEASE 1-48410-659-0 02 1 0110- ● ●
15 PLUG; VALVE
PT3/8 		9-09204-517-0 02 1 0005- ● ●
19 BRACKET; QUICK RELEASE VLV
(A) 		1-48495-221-0 01 1 0005- ● ●
19 BRACKET; QUICK RELEASE VLV
(B) 		1-48495-220-0 01 1 0005- ● ●
45 VALVE; QUICK RELEASE 1-48410-320-0 01 1 0005-0109 ● ●
45 VALVE; QUICK RELEASE 1-48410-659-0 01 1 0110- ● ●
47 CONNECTOR; RELAY VLV,CONT
(A) M20 & PT3/8 ELBOW 		1-09660-684-0 01 1 0005- ● ●
47 CONNECTOR; RELAY VLV,CONT
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 0005- ● ●
54 CONNECTOR; QUICK RELEASE VLV
M20 & PT3/8 ELBOW 		1-09660-684-0 02 1 0005- ● ●
59 BOLT; RELEASE VALVE FIX
M8X20 FLANGE 		0-28080-820-0 04 1 0005-0108 ● ●
59 BOLT; RELEASE VALVE FIX
M8X16 FLANGE 		0-28080-816-0 04 1 0109-0512 ● ●
59 BOLT; RELEASE VALVE FIX
M8X16 FLANGE 		0-28050-816-0 04 1 0601- ● ●
66 BOLT; BRKT,RELAY VLV RR
(A) M8X25 FLANGE 		0-28680-825-0 02 1 0005-0512 ● ●
66 BOLT; BRKT,RELAY VLV RR
(A) M8X25 FLANGE 		0-28650-825-0 02 1 0601- ● ●
66 BOLT; BRKT,RELAY VLV RR
(B) M10X25 FLANGE 		0-28681-025-0 02 1 0005-0512 ● ●
66 BOLT; BRKT,RELAY VLV RR
(B) M10X25 FLANGE 		0-28651-025-0 02 1 0601- ● ●
67 NUT; BRKT,RELAY VLV RR
(A) M8 FLANGE 		0-91150-108-0 02 1 0005-0602 ● ●
67 NUT; BRKT,RELAY VLV RR
(A) M8 FLANGE 		0-91180-108-0 02 1 0603- ● ●
67 NUT; BRKT,RELAY VLV RR
(B) M10 FLANGE 		0-91150-210-0 02 1 0005-0602 ● ●
67 NUT; BRKT,RELAY VLV RR
(B) M10 FLANGE 		0-91180-210-0 02 1 0603- ● ●
108 CONNECTOR; ELBOW
DIN12 & R3/8 ELBOW 		1-09660-959-0 02 1 0005- ● ●
114 NUT; VLV
M8 FLANGE 		0-91150-108-0 04 1 0005-0602 ● ●
114 NUT; VLV
M8 FLANGE 		0-91180-108-0 04 1 0603- ● ●
157 RETAINER; VALVE
(B) 		1-48419-020-0 03 1 0005-0210 ● ●
157 RETAINER; VALVE
(B) 		1-48419-020-0 03 1 0211- ● ●
157 RETAINER; VALVE
(A) 		1-48213-002-0 03 1 0005- ● ●
158 SPRING; VALVE
(B) 		9-48419-003-0 03 1 0005-0210 ● ●
158 SPRING; VALVE
(B) 		9-48419-003-0 03 1 0211- ● ●
158 SPRING; VALVE
(A) 		1-47819-089-0 03 1 0005- ● ●
216 REPAIR KIT; QUICK RELEASE VLV 1-85576-235-0 03 1 0005-0210 ● ●
216 REPAIR KIT; QUICK RELEASE VLV 1-85576-235-0 03 1 0211- ● ●

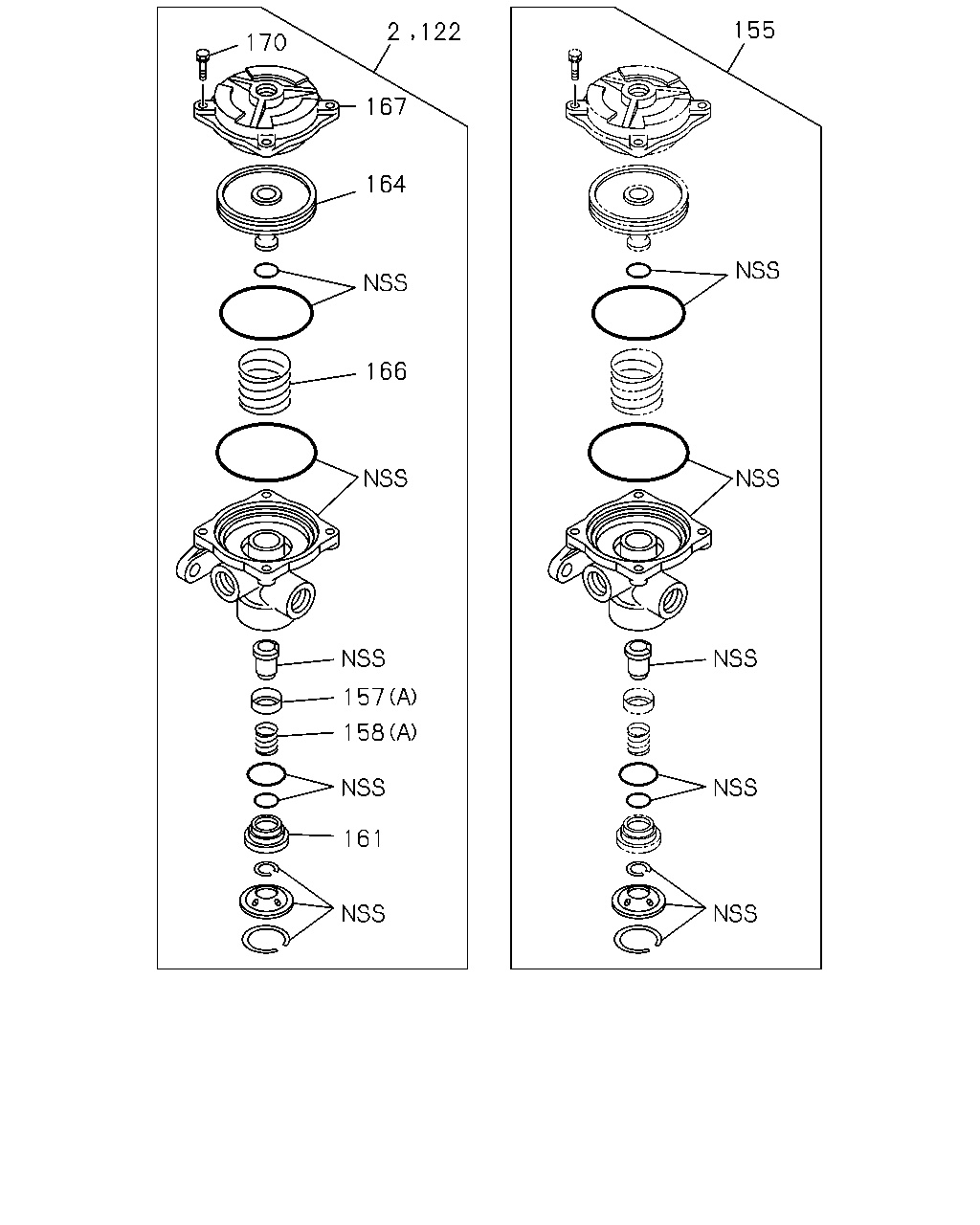

çizim 40287
155 2 122 170 167 164 166 157 158 161
BalonParca AdiParca NoAdetTipApplied Date A B
2 VALVE; RELAY 1-48210-755-0 02 1 0005- ● ●
122 VALVE ASM; CONT,WHEEL PARKING 1-48210-755-0 01 1 0005- ● ●
155 REPAIR KIT; RELAY VALVE 1-85576-033-0 03 1 0005- ● ●
157 RETAINER; VALVE
(B) 		1-48419-020-0 03 1 0005-0210 ● ●
157 RETAINER; VALVE
(B) 		1-48419-020-0 03 1 0211- ● ●
157 RETAINER; VALVE
(A) 		1-48213-002-0 03 1 0005- ● ●
158 SPRING; VALVE
(B) 		9-48419-003-0 03 1 0005-0210 ● ●
158 SPRING; VALVE
(B) 		9-48419-003-0 03 1 0211- ● ●
158 SPRING; VALVE
(A) 		1-47819-089-0 03 1 0005- ● ●
161 GUIDE; VALVE 1-48129-014-0 03 1 0005- ● ●
164 PISTON; RELAY VALVE 1-48219-071-0 03 1 0005- ● ●
166 SPRING; PISTON 1-47819-090-0 03 1 0005- ● ●
167 COVER; VALVE 1-48219-070-0 03 1 0005- ● ●
170 SCREW; COVER TO BODY 1-48219-039-0 12 1 0005- ● ●

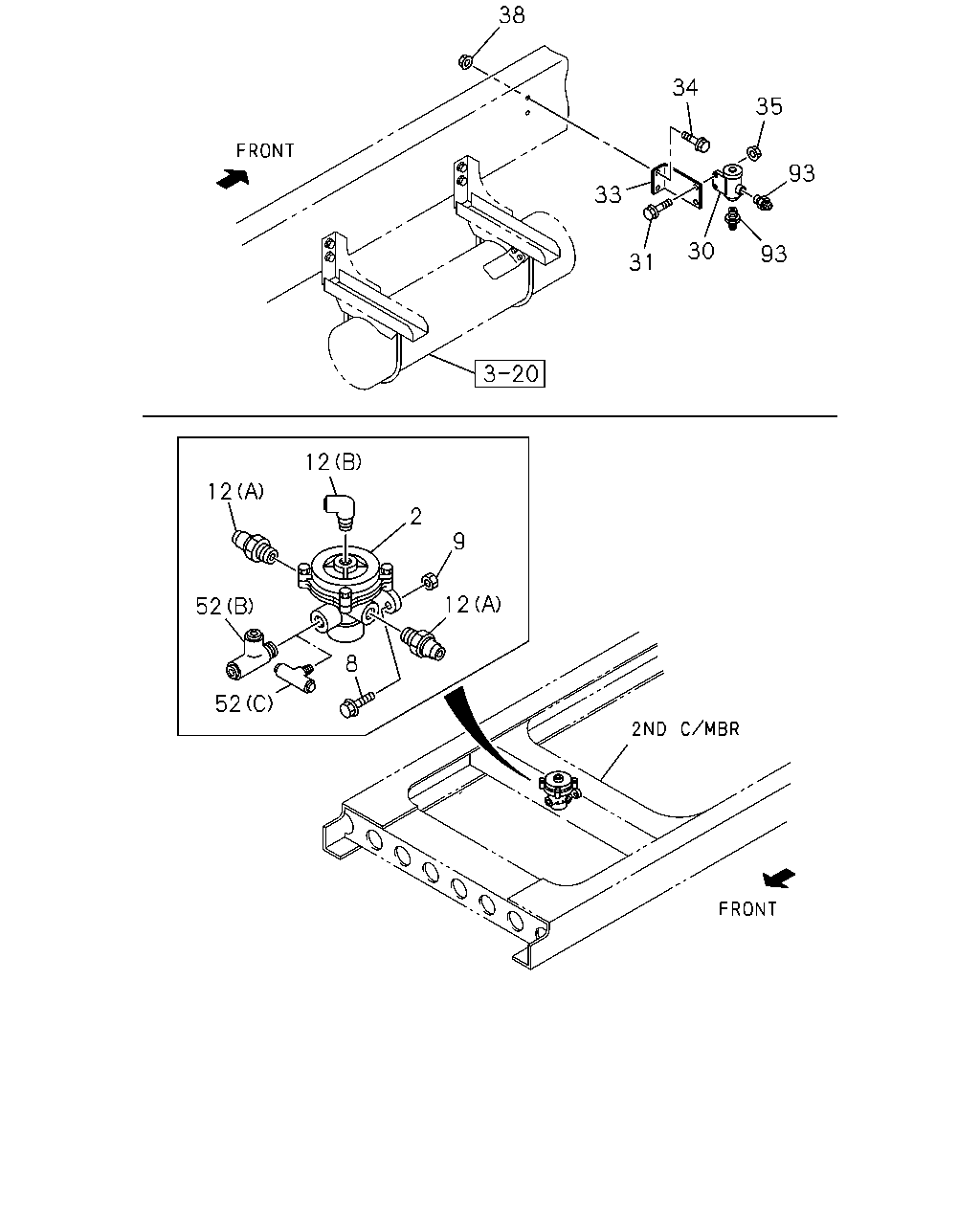

çizim 40858
38 34 35 93 33 30 93 31 12 12 2 9 12 52 8 52
BalonParca AdiParca NoAdetTipApplied Date A B
2 VALVE; RELAY 1-48210-755-0 02 1 0005- ● ●
8 BOLT; BRKT
M10X30 FLANGE 		0-28681-030-0 02 1 0005-0512 ● ●
8 BOLT; BRKT
M10X30 FLANGE 		0-28651-030-0 02 1 0601- ● ●
9 NUT
M10 FLANGE 		0-91150-210-0 02 1 0005-0602 ● ●
9 NUT
M10 FLANGE 		0-91180-210-0 02 1 0603- ● ●
12 CONNECTOR; RELAY VLV
(A) M16 		1-09650-245-1 02 1 0005- ● ●
12 CONNECTOR; RELAY VLV
(B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0005- ● ●
12 CONNECTOR; RELAY VLV
(C) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0005- ● ●
12 CONNECTOR; RELAY VLV
(D) DIN12 & R1/2 ELBOW 		1-09660-960-0 01 1 0005- ● ●
12 CONNECTOR; RELAY VLV
(E) DIN12 & R1/2 STRAIGHT 		1-09660-966-0 01 1 0005- ● ●
30 GOVERNOR; AIR CONT 1-48350-063-2 01 1 0005- ● ●
31 BOLT; GOV TO FRAME
M8X25 FLANGE 		0-28680-825-0 02 1 0005-0512 ● ●
31 BOLT; GOV TO FRAME
M8X25 FLANGE 		0-28650-825-0 02 1 0601- ● ●
33 BRACKET; GOV,AIR CONT 1-48359-106-1 01 1 0005- ● ●
34 BOLT; BRKT,GOV
M8X30 FLANGE 		0-28680-830-0 02 1 0005-0512 ● ●
34 BOLT; BRKT,GOV
M8X30 FLANGE 		0-28650-830-0 02 1 0601- ● ●
35 NUT; GOV TO FRAME
M8 FLANGE 		0-91150-108-0 02 1 0005-0602 ● ●
35 NUT; GOV TO FRAME
M8 FLANGE 		0-91180-108-0 02 1 0603- ● ●
38 NUT; BRKT,GOV
M8 FLANGE 		0-91150-108-0 02 1 0005-0602 ● ●
38 NUT; BRKT,GOV
M8 FLANGE 		0-91180-108-0 02 1 0603- ● ●
52 CONNECTOR; RELAY VLV
(A) 		1-09656-476-0 01 1 0005- ● ●
52 CONNECTOR; RELAY VLV
(B) DIN12X2 & R1/2 3WAY 		1-09661-019-0 01 1 0005-0210 ● ●
52 CONNECTOR; RELAY VLV
(C) DIN12X2 & R1/2 3WAY 		1-09661-020-0 01 1 0211- ● ●
93 CONNECTOR; GOV
M12 & PT1/4 STRAIGHT 		1-09650-074-1 02 1 0005- ● ●

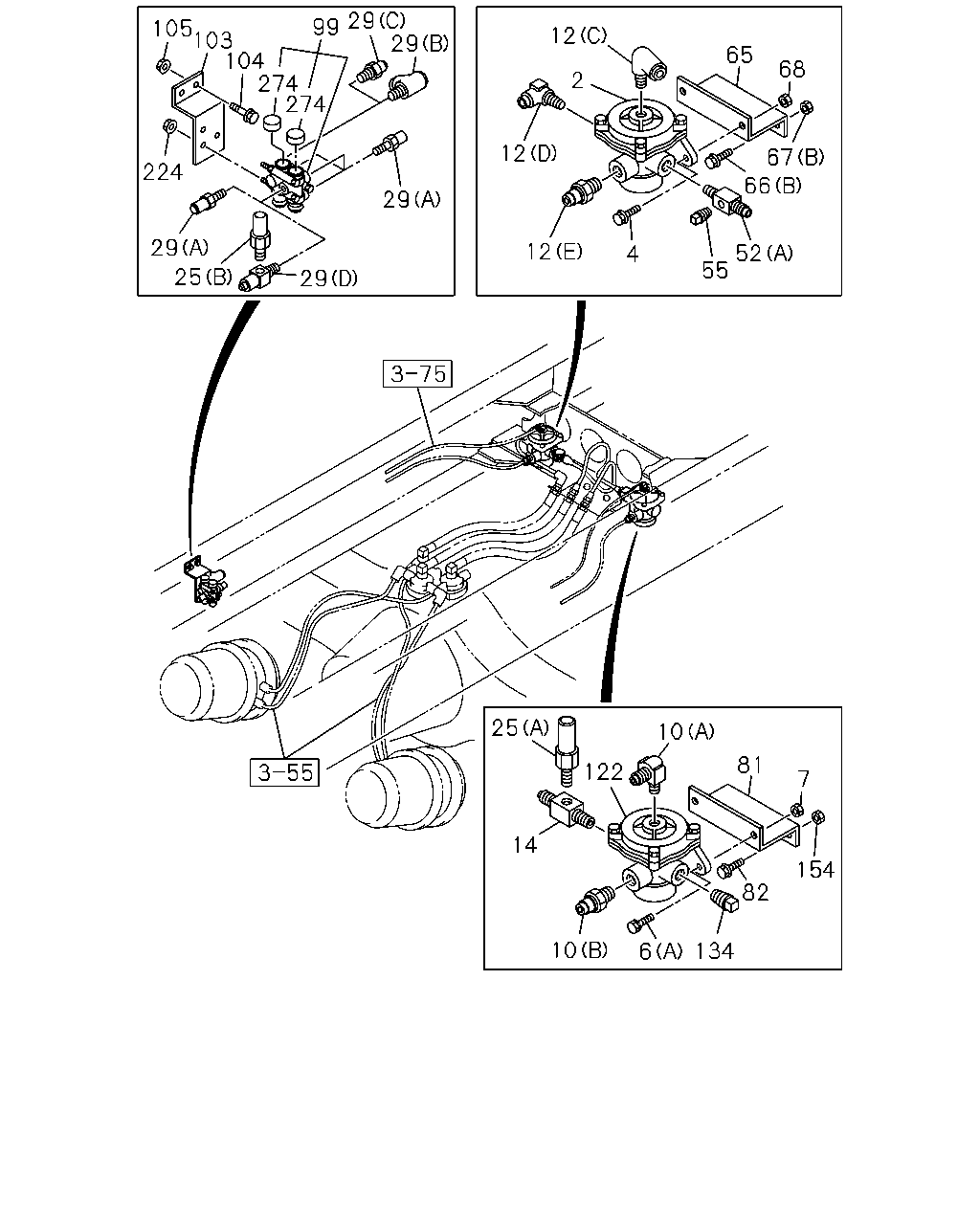

çizim 99984
29 99 29 105 103 104 274 274 12 65 68 2 12 67 224 66 29 29 12 52 55 4 25 29 25 10 81 122 7 14 154 82 10 134 6
BalonParca AdiParca NoAdetTipApplied Date A B
2 VALVE; RELAY 1-48210-755-0 02 1 0005- ● ●
4 BOLT; RELAY VLV TO BRKT
M10X30 FLANGE 		0-28681-030-0 02 1 0005-0512 ● ●
4 BOLT; RELAY VLV TO BRKT
M10X30 FLANGE 		0-28651-030-0 02 1 0601- ● ●
6 BOLT; VLV
(B) M8X25 FLANGE 		0-28680-825-0 04 1 0005-0512 ● ●
6 BOLT; VLV
(B) M8X25 FLANGE 		0-28650-825-0 04 1 0601- ● ●
6 BOLT; VLV
(A) M10X30 FLANGE 		0-28681-030-0 02 1 0005-0512 ● ●
6 BOLT; VLV
(A) M10X30 FLANGE 		0-28651-030-0 02 1 0601- ● ●
7 NUT; RELAY VLV
M10 FLANGE 		0-91150-210-0 02 1 0005-0602 ● ●
7 NUT; RELAY VLV
M10 FLANGE 		0-91180-210-0 02 1 0603- ● ●
10 CONNECTOR
(A) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0005- ● ●
10 CONNECTOR
(B) DIN12 & R1/2 STRAIGHT 		1-09660-966-0 01 1 0005- ● ●
12 CONNECTOR; RELAY VLV
(A) M16 		1-09650-245-1 02 1 0005- ● ●
12 CONNECTOR; RELAY VLV
(B) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0005- ● ●
12 CONNECTOR; RELAY VLV
(C) DIN12 & R3/8 ELBOW 		1-09660-959-0 01 1 0005- ● ●
12 CONNECTOR; RELAY VLV
(D) DIN12 & R1/2 ELBOW 		1-09660-960-0 01 1 0005- ● ●
12 CONNECTOR; RELAY VLV
(E) DIN12 & R1/2 STRAIGHT 		1-09660-966-0 01 1 0005- ● ●
14 CONNECTOR; RELAY VLV 1-09656-476-0 01 1 0005- ● ●
25 SWITCH; PRESSURE
(A) 		1-82410-163-1 01 1 0005- ● ●
25 SWITCH; PRESSURE
(B) 530KPA 		1-48340-054-1 01 1 0211- ● ●
29 CONNECTOR; AIR VLV
(B) DIN8X2 & R3/8 3WAY 		1-09660-997-0 01 1 0005-0005 ●
29 CONNECTOR; AIR VLV
(B) DIN8X2 & R3/8 3WAY 		1-09660-997-0 01 1 0005- ● ●
29 CONNECTOR; AIR VLV
(A) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 04 1 0005-0210 ● ●
29 CONNECTOR; AIR VLV
(A) DIN12 & R3/8 STRAIGHT 		1-09660-965-0 03 1 0211- ● ●
29 CONNECTOR; AIR VLV
(D) 		1-09661-027-0 01 1 0211- ● ●
29 CONNECTOR; AIR VLV
(C) DIN8 & R3/8 STRAIGHT 		1-09660-964-0 01 1 0005-0005 ●
52 CONNECTOR; RELAY VLV
(A) 		1-09656-476-0 01 1 0005- ● ●
52 CONNECTOR; RELAY VLV
(B) DIN12X2 & R1/2 3WAY 		1-09661-019-0 01 1 0005-0210 ● ●
52 CONNECTOR; RELAY VLV
(C) DIN12X2 & R1/2 3WAY 		1-09661-020-0 01 1 0211- ● ●
55 PLUG; SUPPLY
PT1/4 		9-99204-513-0 01 1 0005- ● ●
65 BRACKET; RELAY VLV RR 1-47477-964-0 01 1 0005- ● ●
66 BOLT; BRKT,RELAY VLV RR
(A) M8X25 FLANGE 		0-28680-825-0 02 1 0005-0512 ● ●
66 BOLT; BRKT,RELAY VLV RR
(A) M8X25 FLANGE 		0-28650-825-0 02 1 0601- ● ●
66 BOLT; BRKT,RELAY VLV RR
(B) M10X25 FLANGE 		0-28681-025-0 02 1 0005-0512 ● ●
66 BOLT; BRKT,RELAY VLV RR
(B) M10X25 FLANGE 		0-28651-025-0 02 1 0601- ● ●
67 NUT; BRKT,RELAY VLV RR
(A) M8 FLANGE 		0-91150-108-0 02 1 0005-0602 ● ●
67 NUT; BRKT,RELAY VLV RR
(A) M8 FLANGE 		0-91180-108-0 02 1 0603- ● ●
67 NUT; BRKT,RELAY VLV RR
(B) M10 FLANGE 		0-91150-210-0 02 1 0005-0602 ● ●
67 NUT; BRKT,RELAY VLV RR
(B) M10 FLANGE 		0-91180-210-0 02 1 0603- ● ●
68 NUT; RELAY VLV TO BRKT
M10 FLANGE 		0-91150-210-0 02 1 0005-0602 ● ●
68 NUT; RELAY VLV TO BRKT
M10 FLANGE 		0-91180-210-0 02 1 0603- ● ●
81 BRACKET; RELAY VLV,PARKING BRK 1-47477-964-0 01 1 0005- ● ●
82 BOLT; BRKT,RELAY VLV
M10X25 FLANGE 		0-28681-025-0 02 1 0005-0512 ● ●
82 BOLT; BRKT,RELAY VLV
M10X25 FLANGE 		0-28651-025-0 02 1 0601- ● ●
99 VALVE; PROTECTION 1-48110-135-5 01 1 0005- ● ●
103 BRACKET; PROTECTION VALVE 1-47478-694-0 01 1 0005- ● ●
104 BOLT; BRKT,VALVE
M8X25 FLANGE 		0-28680-825-0 02 1 0005-0512 ● ●
104 BOLT; BRKT,VALVE
M8X25 FLANGE 		0-28650-825-0 02 1 0601- ● ●
105 NUT; BRKT,VALVE
M8 FLANGE 		0-91150-108-0 02 1 0005-0602 ● ●
105 NUT; BRKT,VALVE
M8 FLANGE 		0-91180-108-0 02 1 0603- ● ●
122 VALVE ASM; CONT,WHEEL PARKING 1-48210-755-0 01 1 0005- ● ●
134 PLUG; RELAY VALVE
PT1/2 		9-09204-521-0 01 1 0005- ● ●
154 NUT; BRKT
M10 FLANGE 		0-91150-210-0 02 1 0005-0602 ● ●
154 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0603- ● ●
224 NUT; PROTECTION VALVE
M8 FLANGE 		0-91150-108-0 03 1 0005-0602 ● ●
224 NUT; PROTECTION VALVE
M8 FLANGE 		0-91180-108-0 03 1 0603- ● ●
274 COVER; DUST 1-48119-450-0 02 1 0211- ● ●
