Isuzu WW
▶
AUV
▶
TBR
▶
50919 - TBR (GM-INDONESIA)
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-66 - HEAD LINING AND TRIM
▶

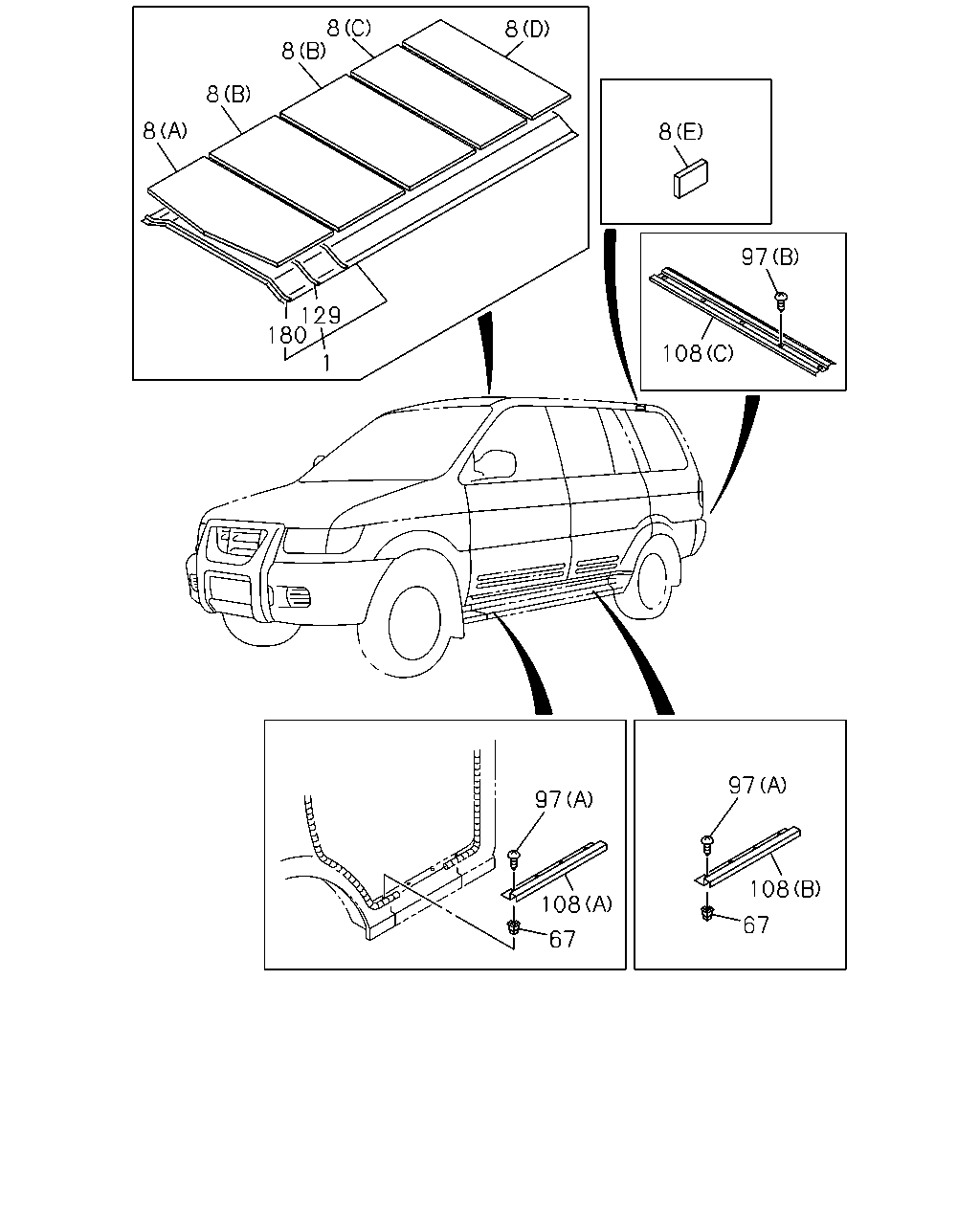

6-66 — HEAD LINING AND TRIM
(#95519) — 15 parça
8
8
8
8
8
180
129
1
8
97
108
97
108
67
108
67
97
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
LINING; HD
LIGHT GRAY IDN
8-97957-252-3
01
1
0201-
8
PAD; HEADLINING
(A) 350X755 IDN
8-97955-652-2
01
1
0201-
8
PAD; HEADLINING
(B) 344X755 IDN
8-97955-655-2
02
1
0201-
8
PAD; HEADLINING
(C) 286X755 IDN
8-97955-656-2
01
1
0201-
8
PAD; HEADLINING
(D) 248X755 IDN
8-97955-657-2
01
1
0201-
8
PAD; HEADLINING
(E) 40X150 IDN
8-97957-593-2
04
1
0201-
67
GROMMET; SCREW
D=7.9X7.9 L=11.4 M5
8-94367-528-0
14
1
0201-
97
SCREW; TAP
(B) M4X16 TAPPING W/PL WASHER
0-74300-416-0
05
1
0201-0604
97
SCREW; TAP
(B) M4X16 TAPPING W/PL WASHER
0-74360-416-0
05
1
0605-
97
SCREW; TAP
(A) M5X16 IDN
8-94380-268-0
14
1
0201-
108
PLATE; TREAD
(C) IDN
8-97955-624-1
01
1
0201-
108
PLATE; TREAD
(A) GRAY IDN
8-97959-085-0
02
1
0201-
108
PLATE; TREAD
(B) GRAY IDN
8-97959-086-0
02
1
0201-
129
RAIL; LISTING,NO 2
IDN
8-97955-662-1
07
1
0201-
180
RAIL; LISTING,NO 1
IDN
8-97955-661-1
01
1
0201-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
