50919 - TBR (GM-INDONESIA)
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-55 - REAR DOOR TRIM
▶

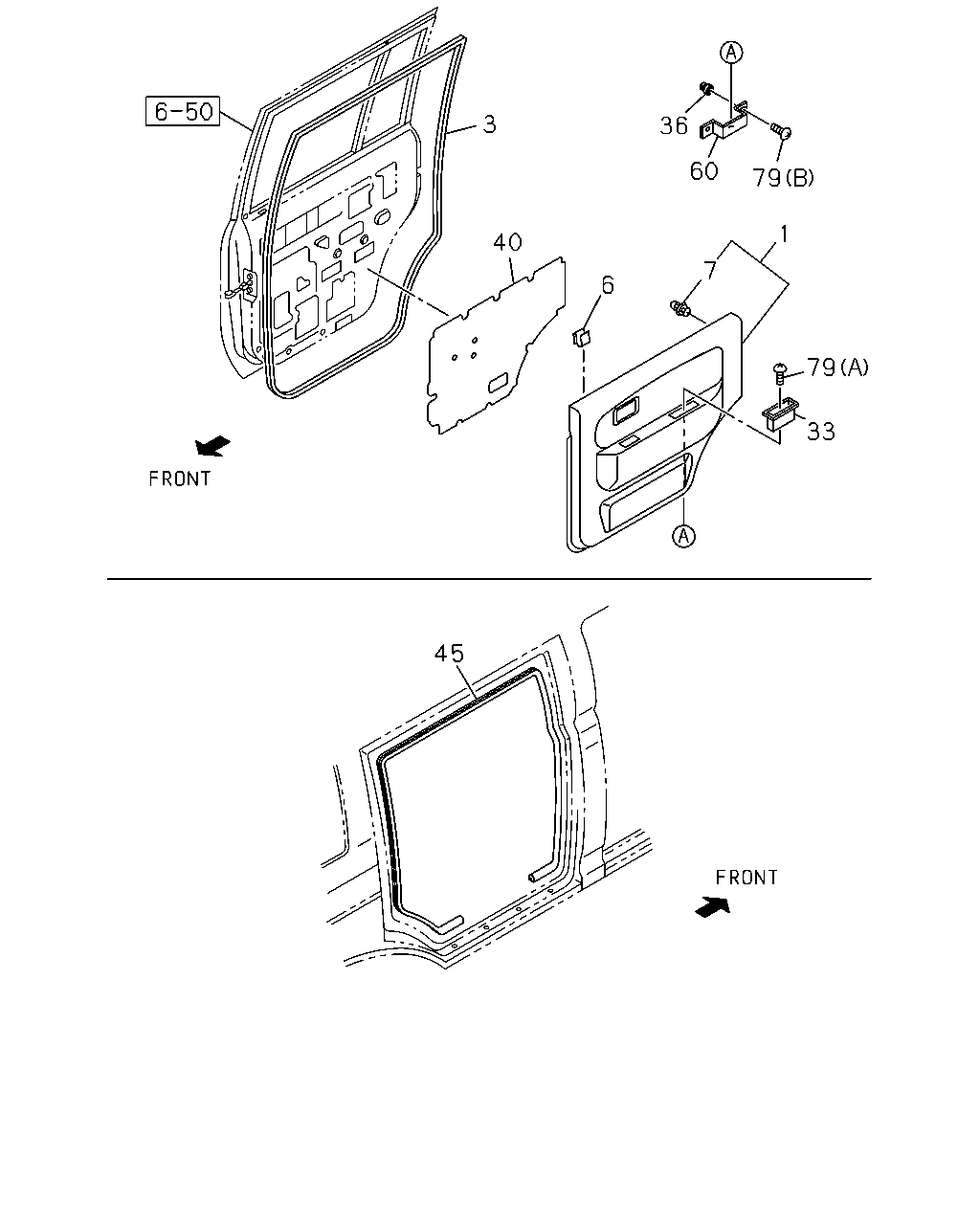

6-55 — REAR DOOR TRIM
(#95517) — 17 parça
45
33
79
7
1
6
40
3
36
60
79
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PAD; TRIM,RR DOOR
GRAY IDN
8-97560-502-2
01
1
0201-
1
PAD; TRIM,RR DOOR
GRAY IDN
8-97560-501-2
01
1
0201-
3
WEATHERSTRIP; RR DOOR
IDN
8-97955-532-3
01
1
0201-
3
WEATHERSTRIP; RR DOOR
IDN
8-97955-531-3
01
1
0201-
6
CLIP; DOOR PAD
B=8.4 H=16 CR-PLATED IDN
8-94116-002-3
06
1
0201-
7
CLIP; DOOR PAD
H=16.3 IDN
8-97126-393-0
12
1
0201-
7
CLIP; DOOR PAD
H=20.6 IDN
8-97260-948-0
04
1
0201-
7
CLIP; DOOR PAD
H=15.9 IDN
8-97288-141-0
02
1
0201-
33
BOX; RR DOOR
GRAY
8-97196-884-0
02
1
0201-
36
GROMMET; SCREW,DOOR TRIM
IDN
8-94481-286-2
06
1
0201-
40
SHEET; WATER PROOF,RR DOOR
IDN
8-97955-524-2
01
1
0201-
40
SHEET; WATER PROOF,RR DOOR
IDN
8-97955-523-2
01
1
0201-
45
FINISHER; RR DOOR
8-97248-142-1
02
1
0201-0402
45
FINISHER; RR DOOR
IDN
8-97562-377-0
02
1
0403-
60
BRACKET; BOX
IDN
8-97955-688-0
02
1
0201-
79
SCREW; BRKT
(A) M5X16 IDN
8-94380-268-0
02
1
0201-
79
SCREW; BRKT
(B) M6X25 TAPPING
9-07077-625-0
06
1
0201-
