50919 - TBR (GM-INDONESIA)
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-51 - REAR DOOR GLASS AND REGULATOR
▶

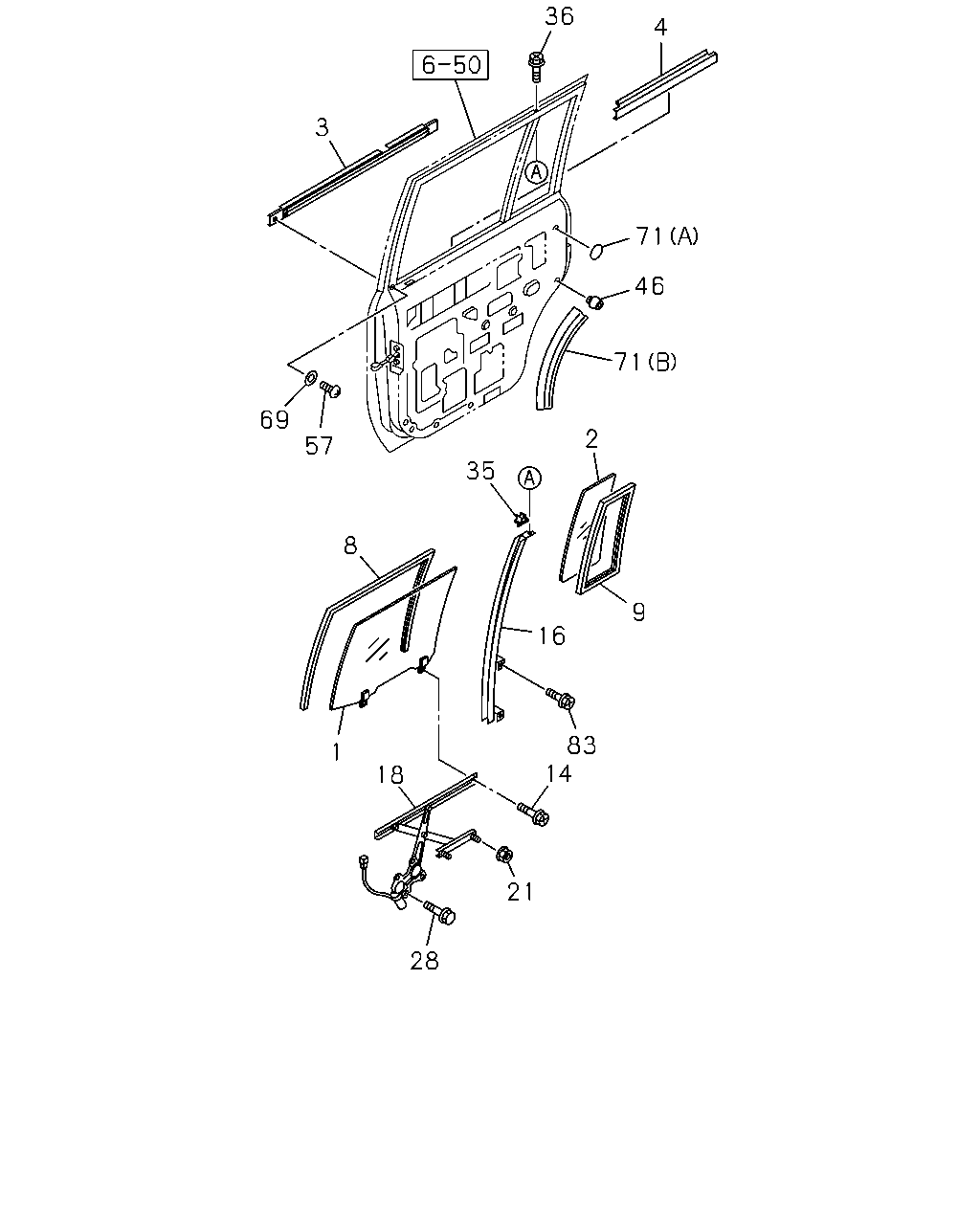

6-51 — REAR DOOR GLASS AND REGULATOR
(#95515) — 36 parça
3
36
4
71
46
71
2
35
9
16
83
14
21
28
18
1
8
57
69
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
GLASS; RR DOOR
IDN
8-97955-114-1
01
1
0201-
1
GLASS; RR DOOR
IDN
8-97955-113-1
01
1
0201-
2
GLASS; RR DOOR,RR
IDN
8-97955-520-0
01
1
0201-
2
GLASS; RR DOOR,RR
IDN
8-97955-519-0
01
1
0201-
3
SEAL; RR DOOR OUTER WAIST
8-97174-254-2
01
1
0201-
3
SEAL; RR DOOR OUTER WAIST
8-97174-253-2
01
1
0201-
4
SEAL; RR DOOR GLASS
8-97174-258-0
01
1
0201-0401
4
SEAL; RR DOOR GLASS
8-97371-602-0
01
1
0402-0412
4
SEAL; RR DOOR GLASS
8-97174-258-0
01
1
0501-
4
SEAL; RR DOOR GLASS
8-97174-257-0
01
1
0201-0401
4
SEAL; RR DOOR GLASS
8-97371-601-0
01
1
0402-0412
4
SEAL; RR DOOR GLASS
8-97174-257-0
01
1
0501-
8
RUN; GLASS,RR DOOR
IDN
8-97955-510-0
01
1
0201-0209
8
RUN; GLASS,RR DOOR
IDN
8-97562-221-0
01
1
0210-
8
RUN; GLASS,RR DOOR
IDN
8-97955-509-0
01
1
0201-0209
8
RUN; GLASS,RR DOOR
IDN
8-97562-220-0
01
1
0210-
9
WEATHERSTRIP; RR DOOR
IDN
8-97955-522-0
01
1
0201-
9
WEATHERSTRIP; RR DOOR
IDN
8-97955-521-0
01
1
0201-
14
BOLT; RR DOOR GLASS
M6X8 IDN
8-94155-893-0
04
1
0201-
16
SASH ASM; DIVISION
IDN
8-97955-605-0
01
1
0201-
16
SASH ASM; DIVISION
IDN
8-97955-604-0
01
1
0201-
18
REGULATOR; WINDOW,RR DOOR
IDN
8-97955-502-2
01
1
0201-
18
REGULATOR; WINDOW,RR DOOR
IDN
8-97955-501-2
01
1
0201-
21
NUT; FLANGE,WINDOW REG
M6 FLANGE
0-91150-106-0
04
1
0201-0602
21
NUT; FLANGE,WINDOW REG
M6 FLANGE
0-91180-106-0
04
1
0603-
28
BOLT; WINDOW REG
M6X8 IDN
8-94155-893-0
08
1
0201-
35
CAP; DOOR SASH END
8-97957-137-0
01
1
0201-
35
CAP; DOOR SASH END
8-97957-136-0
01
1
0201-
36
SCREW; DIVISION SASH
M4X8 CK-HEAD
9-03094-408-0
02
1
0201-
46
BUFFER; RR DOOR
IDN
8-97957-223-0
02
1
0201-
57
SCREW; WAIST OUTER SEAL
8-97802-968-1
02
1
0201-
69
WASHER; WAIST SEAL
D=16
8-94427-941-0
02
1
0201-
71
SEAL; WATER,RR DOOR
(A) OD=25 BLACK
1-76798-019-0
02
1
0201-
71
SEAL; WATER,RR DOOR
(B)
8-97316-981-2
01
1
0201-
71
SEAL; WATER,RR DOOR
(B)
8-97316-979-2
01
1
0201-
83
BOLT; BAR,DIVISION,LWR FIX
M6X8 IDN
8-94155-893-0
04
1
0201-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
