50919 - TBR (GM-INDONESIA)
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-50 - REAR DOOR AND HINGE
▶
6-50 — REAR DOOR AND HINGE
(#95514) — 30 parça
◀

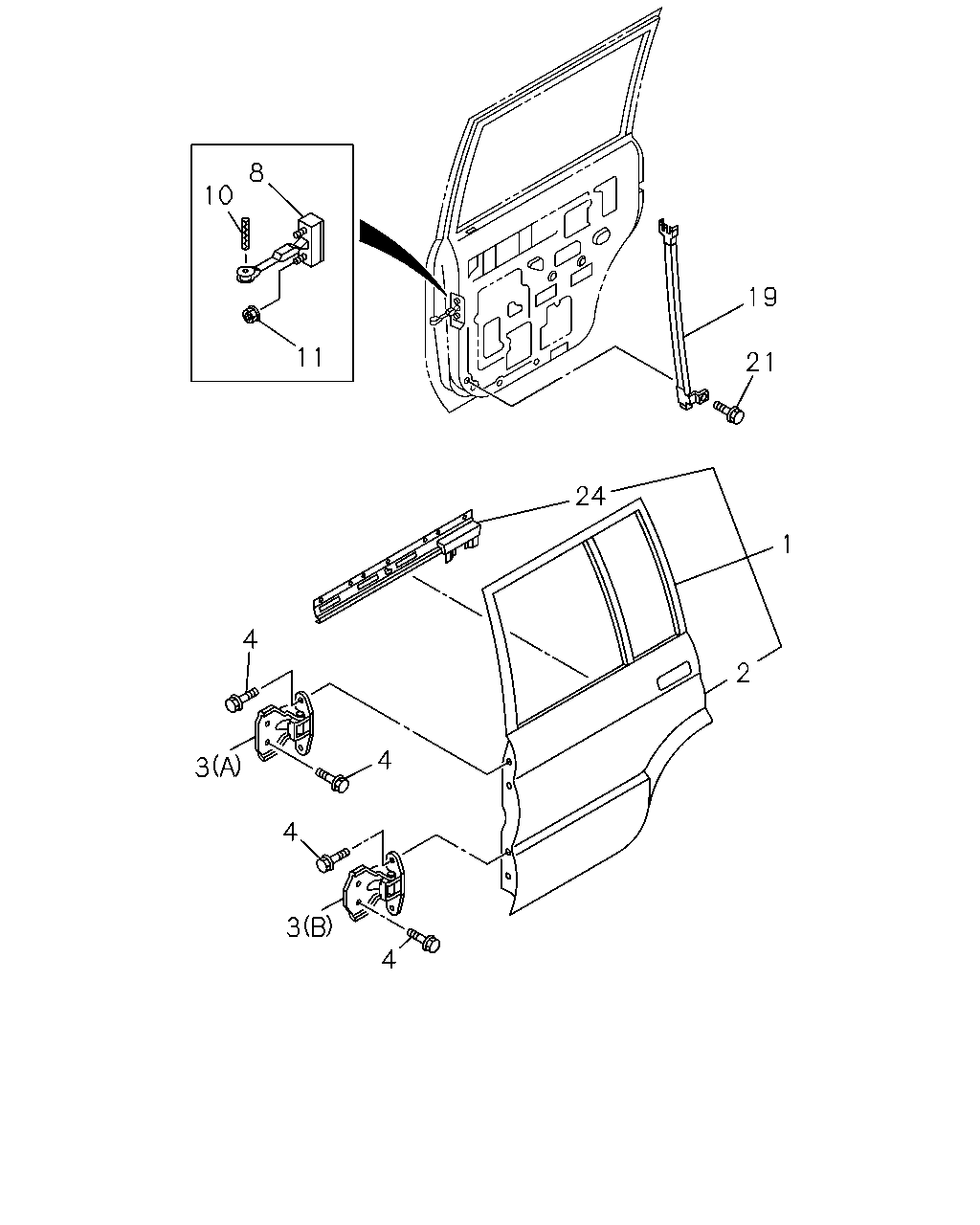

[650A] HINGE (18 parça)
[650A] EXTENSION (12 parça)
▶
10
8
11
4
3
4
4
3
4
2
1
24
21
19
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
DOOR ASM; REAR
IDN
8-97958-051-1
01
1
0201-
1
DOOR ASM; REAR
IDN
8-97958-050-1
01
1
0201-
2
PANEL; RR DOOR OUTER
IDN
8-97958-021-2
01
1
0201-
2
PANEL; RR DOOR OUTER
IDN
8-97958-020-2
01
1
0201-
3
HINGE; RR DOOR
(A) UPPER
8-97076-891-0
01
1
0201-
3
HINGE; RR DOOR
(B) LOWER
8-97076-893-0
01
1
0201-
3
HINGE; RR DOOR
(A) UPPER
8-97076-890-0
01
1
0201-
3
HINGE; RR DOOR
(B) LOWER
8-97076-892-0
01
1
0201-
4
BOLT; HINGE
M8X23 FLANGE IDN
8-94174-559-2
08
1
0201-
4
BOLT; HINGE
M8X23 FLANGE IDN
8-94174-559-2
08
1
0201-
8
ARM; CHECK,RR DOOR
8-94358-620-1
02
1
0201-
10
PIN; CHECK ARM
8-97020-859-0
02
1
0201-
11
NUT
M6 FLANGE IDN
5-09440-004-0
04
1
0201-
19
RAIL; FRT GUIDE,RR DOOR
IDN
8-97955-514-1
01
1
0201-
19
RAIL; FRT GUIDE,RR DOOR
IDN
8-97955-513-1
01
1
0201-
21
BOLT; GUIDE RAIL
M6X8 IDN
8-94155-893-0
02
1
0201-
24
REINFORCEMENT; RR DOOR
IDN
8-97956-350-0
01
1
0201-
24
REINFORCEMENT; RR DOOR
IDN
8-97956-349-0
01
1
0201-
39
36
37
29
37
34
33
26
35
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
26
GROMMET; SCREW,BRKT
IDN
8-94152-494-0
06
1
0201-
29
EXTENSION; RR DOOR
IDN
8-97560-012-0
01
1
0201-
29
EXTENSION; RR DOOR
IDN
8-97560-011-0
01
1
0201-
33
RETAINER; EXTENSION
IDN
8-97959-935-1
01
1
0201-
33
RETAINER; EXTENSION
IDN
8-97959-934-1
01
1
0201-
34
RIVET; EXTENSION
8-97122-143-0
08
1
0201-
35
SCREW; EXTENSION
M5X14 IDN
8-94152-495-0
06
1
0201-
36
CLIP; EXTENSION
IDN
8-97117-942-0
20
1
0201-
37
SPACER ASM; EXT
(A) IDN
8-97959-963-1
08
1
0201-
37
SPACER ASM; EXT
(B) IDN
8-97959-967-1
01
1
0201-
37
SPACER ASM; EXT
(B) IDN
8-97959-966-1
01
1
0201-
39
FINISHER; EXT,REAR DOOR
IDN
8-97307-379-1
02
1
0201-
